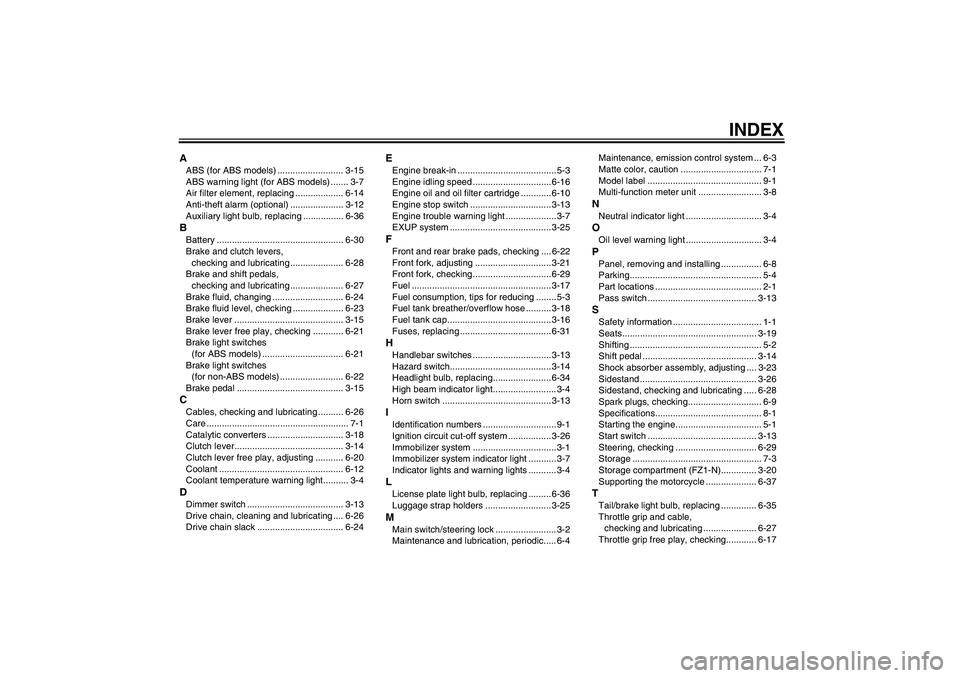

YAMAHA FZ1-N 2011 Owners Manual

INDEX
AABS (for ABS models) .......................... 3-15
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-14
Anti-theft alarm (optional) ..................... 3-12
Auxiliary light bulb, replacing ................ 6-36BBattery .................................................. 6-30
Brake and clutch levers,
checking and lubricating ..................... 6-28
Brake and shift pedals,
checking and lubricating ..................... 6-27
Brake fluid, changing ............................ 6-24
Brake fluid level, checking .................... 6-23
Brake lever ........................................... 3-15
Brake lever free play, checking ............ 6-21
Brake light switches
(for ABS models) ................................ 6-21
Brake light switches
(for non-ABS models) ......................... 6-22
Brake pedal .......................................... 3-15CCables, checking and lubricating .......... 6-26
Care ........................................................ 7-1
Catalytic converters .............................. 3-18
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-20
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-4DDimmer switch ...................................... 3-13
Drive chain, cleaning and lubricating .... 6-26
Drive chain slack .................................. 6-24
EEngine break-in .......................................5-3
Engine idling speed ............................... 6-16
Engine oil and oil filter cartridge ............ 6-10
Engine stop switch ................................ 3-13
Engine trouble warning light .................... 3-7
EXUP system ........................................ 3-25FFront and rear brake pads, checking .... 6-22
Front fork, adjusting .............................. 3-21
Front fork, checking...............................6-29
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-18
Fuel tank cap......................................... 3-16
Fuses, replacing .................................... 6-31HHandlebar switches ............................... 3-13
Hazard switch........................................ 3-14
Headlight bulb, replacing....................... 6-34
High beam indicator light......................... 3-4
Horn switch ........................................... 3-13IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-26
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-7
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-36
Luggage strap holders .......................... 3-25MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-8
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13SSafety information ................................... 1-1
Seats..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-23
Sidestand .............................................. 3-26
Sidestand, checking and lubricating ..... 6-28
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-13
Steering, checking ................................ 6-29
Storage ................................................... 7-3
Storage compartment (FZ1-N).............. 3-20
Supporting the motorcycle .................... 6-37TTail/brake light bulb, replacing .............. 6-35
Throttle grip and cable,
checking and lubricating ..................... 6-27
Throttle grip free play, checking............ 6-17
U1ECE0E0.book Page 1 Friday, August 20, 2010 9:35 AM

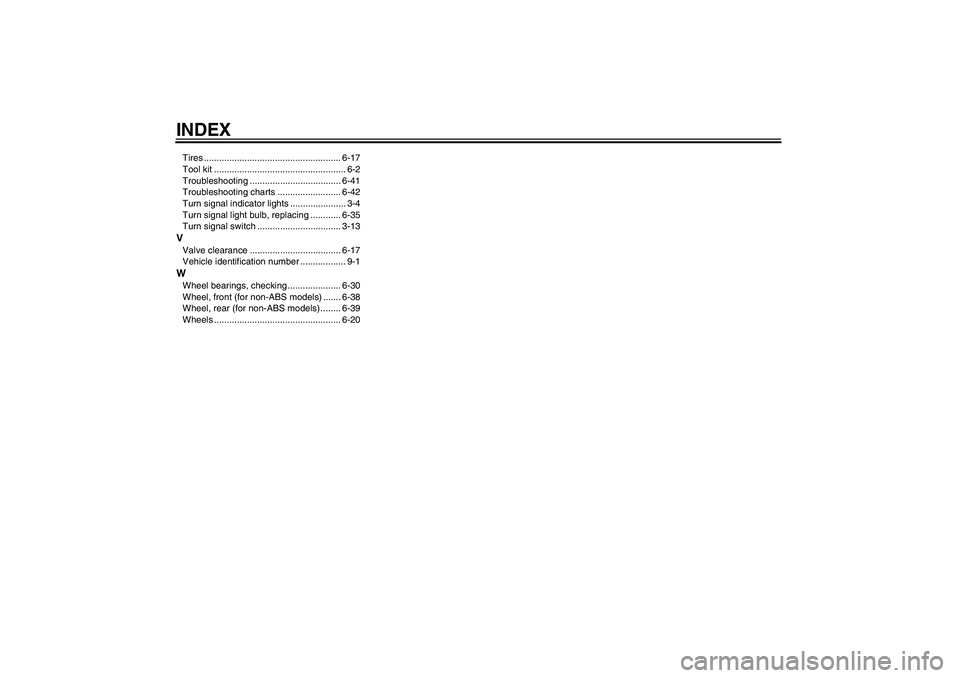

INDEXTires ...................................................... 6-17
