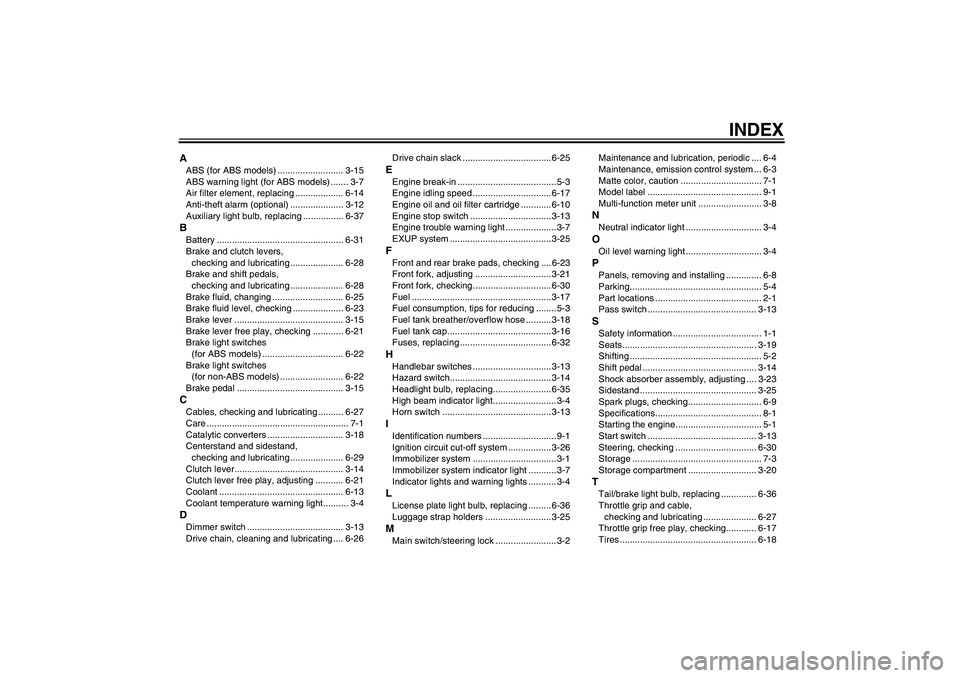

INDEX
AABS (for ABS models) .......................... 3-15
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-14
Anti-theft alarm (optional) ..................... 3-12
Auxiliary light bulb, replacing ................ 6-37BBattery .................................................. 6-31
Brake and clutch levers,
checking and lubricating ..................... 6-28
Brake and shift pedals,
checking and lubricating ..................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-23
Brake lever ........................................... 3-15
Brake lever free play, checking ............ 6-21
Brake light switches
(for ABS models) ................................ 6-22
Brake light switches
(for non-ABS models) ......................... 6-22
Brake pedal .......................................... 3-15CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converters .............................. 3-18
Centerstand and sidestand,
checking and lubricating ..................... 6-29
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-21
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-4DDimmer switch ...................................... 3-13
Drive chain, cleaning and lubricating .... 6-26Drive chain slack ...................................6-25
EEngine break-in .......................................5-3
Engine idling speed ............................... 6-17
Engine oil and oil filter cartridge ............ 6-10
Engine stop switch ................................ 3-13
Engine trouble warning light .................... 3-7
EXUP system ........................................ 3-25FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-21
Front fork, checking...............................6-30
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-18
Fuel tank cap......................................... 3-16
Fuses, replacing .................................... 6-32HHandlebar switches ............................... 3-13
Hazard switch........................................ 3-14
Headlight bulb, replacing....................... 6-35
High beam indicator light......................... 3-4
Horn switch ........................................... 3-13IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-26
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-7
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-36
Luggage strap holders .......................... 3-25MMain switch/steering lock ........................ 3-2Maintenance and lubrication, periodic .... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13SSafety information ................................... 1-1
Seats..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-23
Sidestand .............................................. 3-25
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-13
Steering, checking ................................ 6-30
Storage ................................................... 7-3
Storage compartment ........................... 3-20TTail/brake light bulb, replacing .............. 6-36
Throttle grip and cable,
checking and lubricating ..................... 6-27
Throttle grip free play, checking............ 6-17
Tires ...................................................... 6-18
U1CAE0E0.book Page 1 Friday, September 10, 2010 10:37 AM

INDEXTool kit .................................................... 6-2
Troubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-42
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-36
Turn signal switch ................................. 3-13VValve clearance .................................... 6-18
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-31
Wheel, front (for non-ABS models) ....... 6-38
Wheel, rear (for non-ABS models) ........ 6-39
Wheels .................................................. 6-20
