fuse box YAMAHA FZ6 N 2004 Owners Manual

DESCRIPTION
2-2
2
EAU10420
Right view1. Fuse box (page 6-27)
2. Rear brake fluid reservoir (page 6-18)
3. Engine oil filler cap (page 6-6)
4. Front brake fluid reservoir (page 6-18)
5. Dipstick (page 6-6)
6. Brake pedal (page 3-11)
U1B3E0E0.book Page 2 Monday, February 9, 2004 2:27 PM

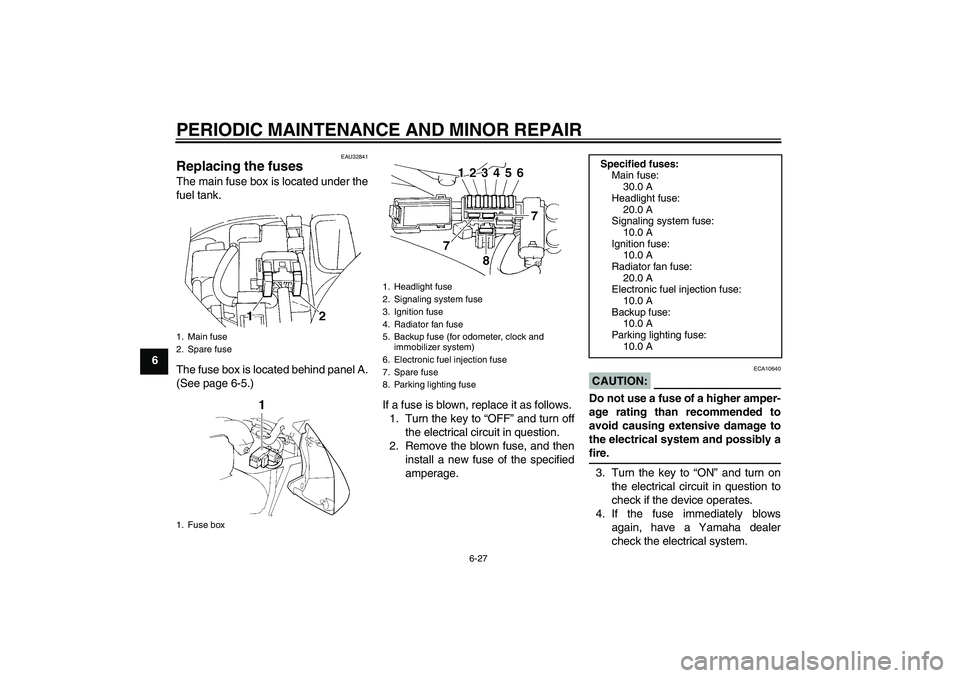

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU32841
Replacing the fuses The main fuse box is located under the
fuel tank.
The fuse box is located behind panel A.
(See page 6-5.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Spare fuse
1. Fuse box
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Backup fuse (for odometer, clock and
immobilizer system)
6. Electronic fuel injection fuse
7. Spare fuse
8. Parking lighting fuse
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Electronic fuel injection fuse:
10.0 A
Backup fuse:
10.0 A
Parking lighting fuse:
10.0 A
