PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU24201

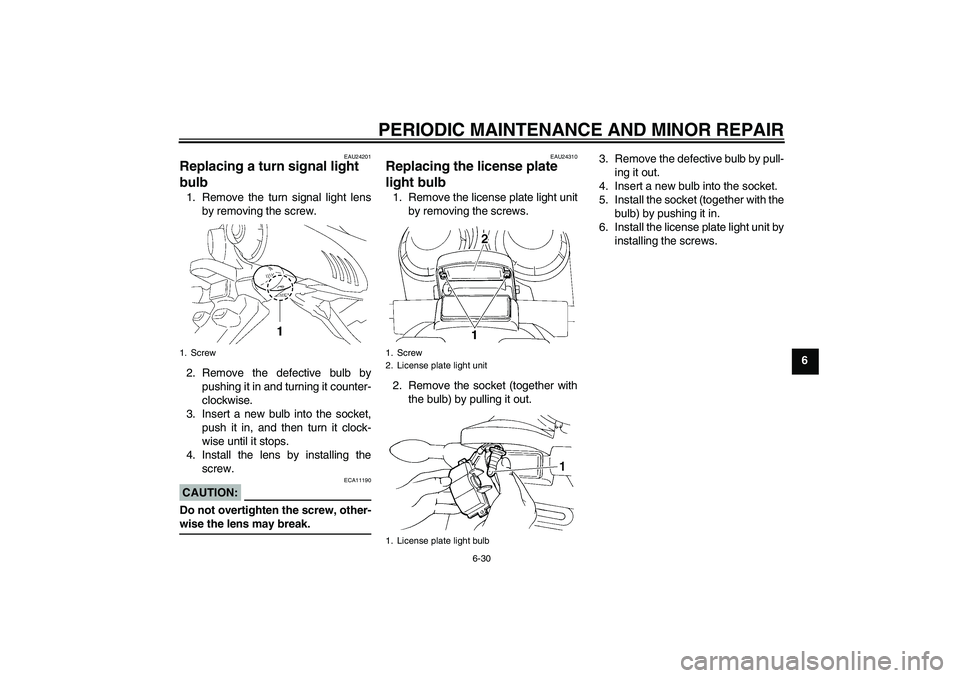

Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
EAU24310
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
1. Screw
1. Screw
2. License plate light unit
1. License plate light bulb
U1B3E0E0.book Page 30 Monday, February 9, 2004 2:27 PM

SPECIFICATIONS
8-3
8

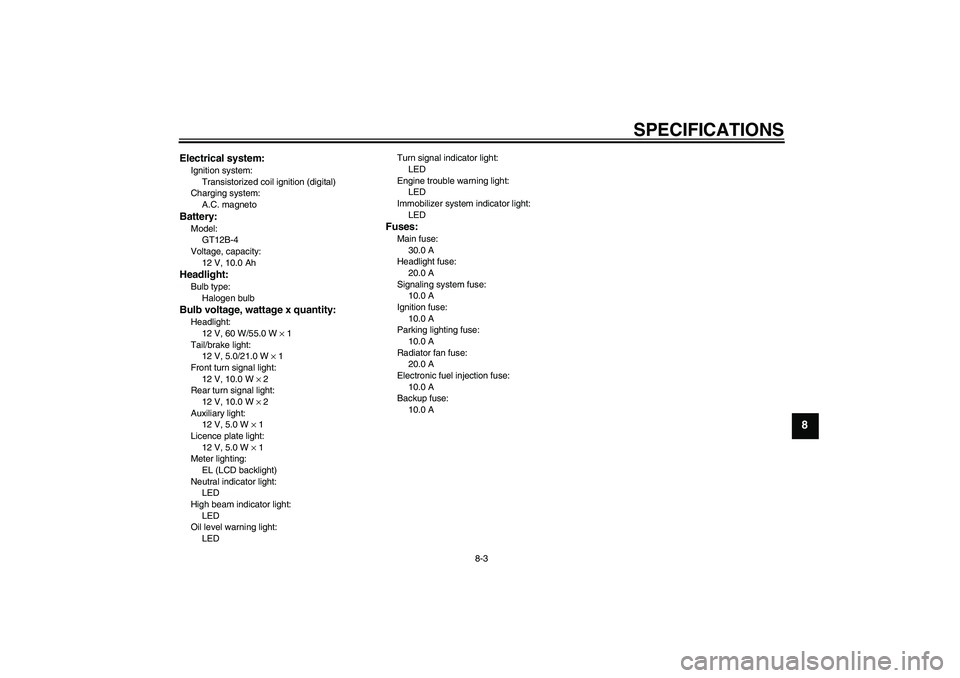

Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
A.C. magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage x quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
12 V, 5.0/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
Licence plate light:
12 V, 5.0 W × 1
Meter lighting:
EL (LCD backlight)
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Electronic fuel injection fuse:
10.0 A
Backup fuse:
10.0 A
