DESCRIPTION
2-1
2
EAU10410
Left view1. Main fuse (page 6-30)
2. Fuse box 1 (page 6-30)
3. Battery (page 6-29)
4. Air filter element (page 6-13)
5. Idle adjusting screw (page 6-15)
6. Shock absorber assembly spring preload adjusting ring (page 3-20)
7. Owner’s tool kit (page 6-1)
8. Storage compartment (page 3-19)9. Helmet holder (page 3-19)
10.Shift pedal (page 3-14)
11.Engine oil drain bolt (page 6-7)
12.Engine oil filter cartridge (page 6-7)U5S4E0E0.book Page 1 Wednesday, January 17, 2007 11:35 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. Fuse box 2 (page 6-30)
2. Rear brake fluid reservoir (page 6-21)
3. Engine oil filler cap (page 6-7)
4. Front brake fluid reservoir (page 6-21)
5. Radiator cap (page 6-10)
6. Coolant reservoir (page 6-10)
7. Coolant drain bolt (page 6-11)
8. Dipstick (page 6-7)9. Brake pedal (page 3-15)
U5S4E0E0.book Page 2 Wednesday, January 17, 2007 11:35 AM

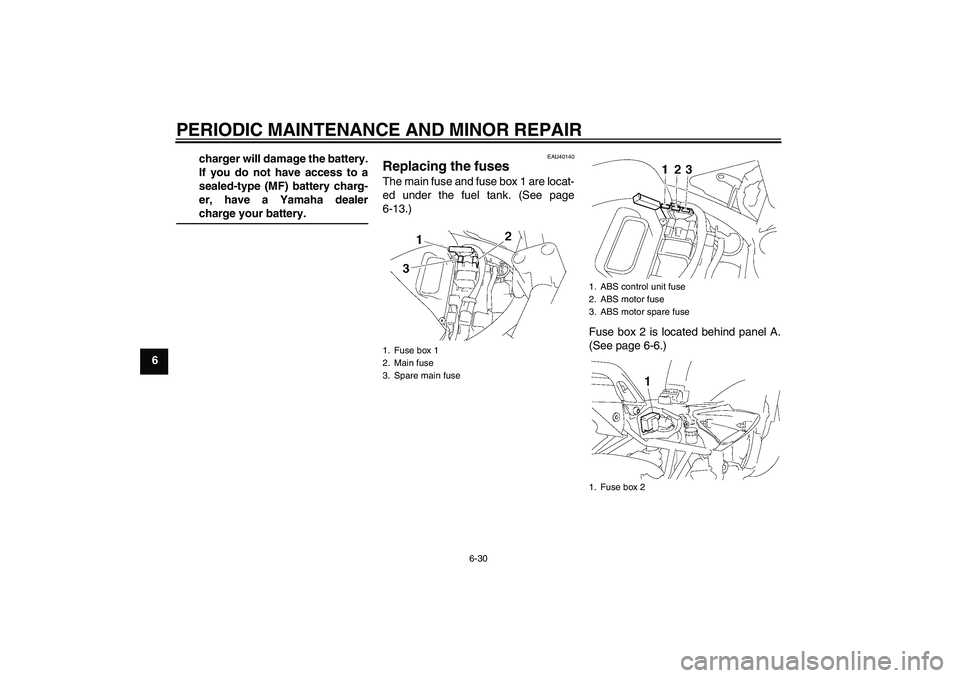

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU40140
Replacing the fuses The main fuse and fuse box 1 are locat-
ed under the fuel tank. (See page
6-13.)
Fuse box 2 is located behind panel A.
(See page 6-6.)1. Fuse box 1
2. Main fuse
3. Spare main fuse
1. ABS control unit fuse
2. ABS motor fuse
3. ABS motor spare fuse
1. Fuse box 2
