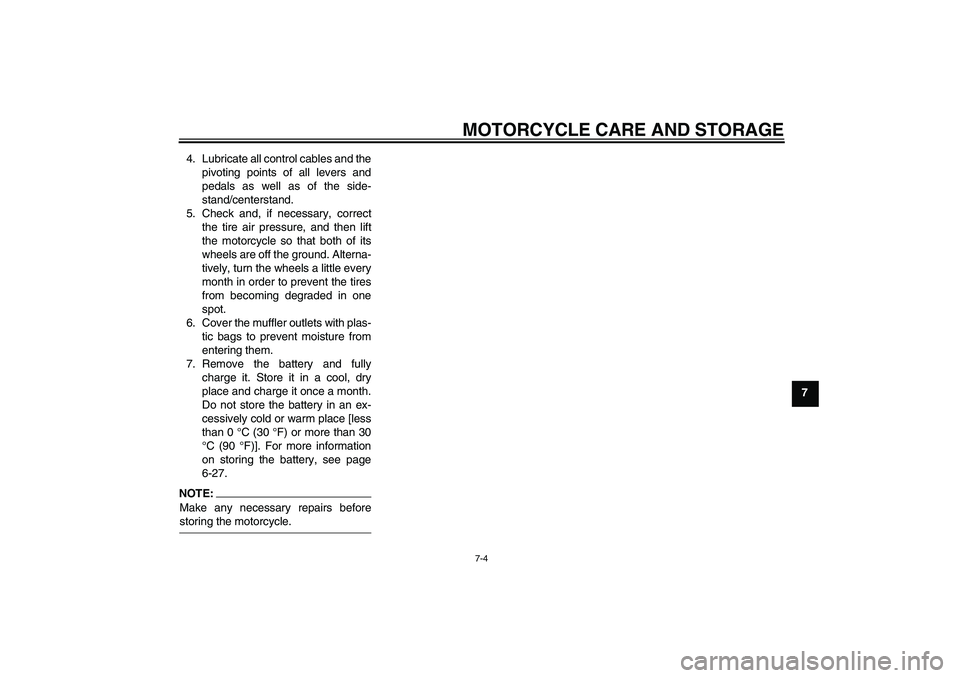

MOTORCYCLE CARE AND STORAGE
7-4
7 4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-27.
NOTE:Make any necessary repairs beforestoring the motorcycle.
5VXE1.book Page 4 Monday, February 9, 2004 5:39 PM

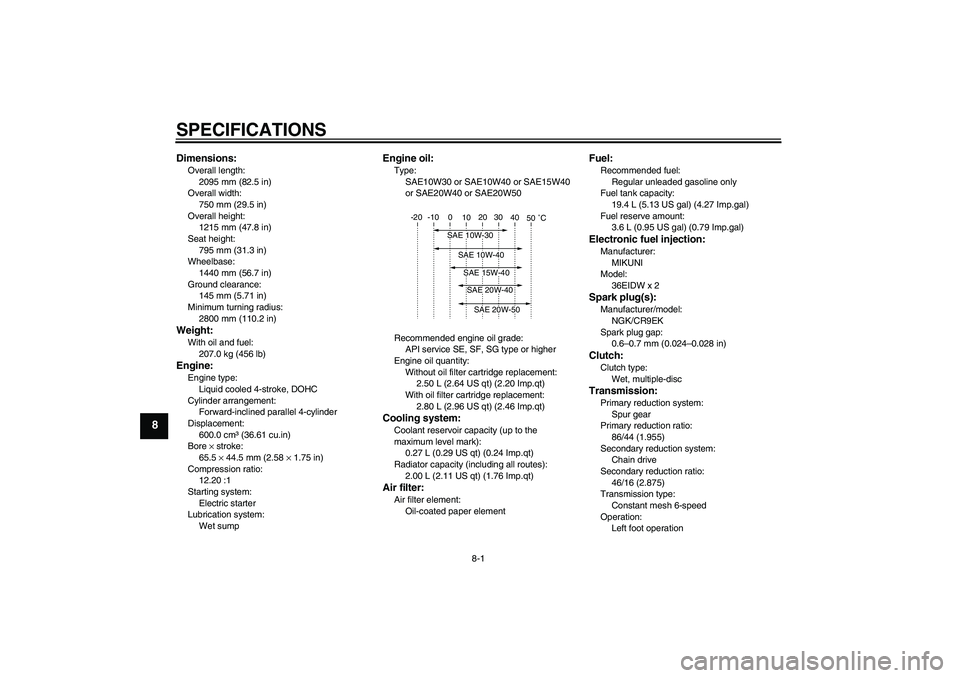

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2095 mm (82.5 in)
Overall width:
750 mm (29.5 in)
Overall height:
1215 mm (47.8 in)
Seat height:
795 mm (31.3 in)
Wheelbase:
1440 mm (56.7 in)
Ground clearance:
145 mm (5.71 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:With oil and fuel:
207.0 kg (456 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
600.0 cm³ (36.61 cu.in)
Bore × stroke:
65.5 × 44.5 mm (2.58 × 1.75 in)
Compression ratio:
12.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt) (2.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.27 L (0.29 US qt) (0.24 Imp.qt)
Radiator capacity (including all routes):
2.00 L (2.11 US qt) (1.76 Imp.qt)Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
19.4 L (5.13 US gal) (4.27 Imp.gal)
Fuel reserve amount:
3.6 L (0.95 US gal) (0.79 Imp.gal)Electronic fuel injection:Manufacturer:
MIKUNI
Model:
36EIDW x 2Spark plug(s):Manufacturer/model:
NGK/CR9EK
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
86/44 (1.955)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
46/16 (2.875)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
5VXE1.book Page 1 Monday, February 9, 2004 5:39 PM

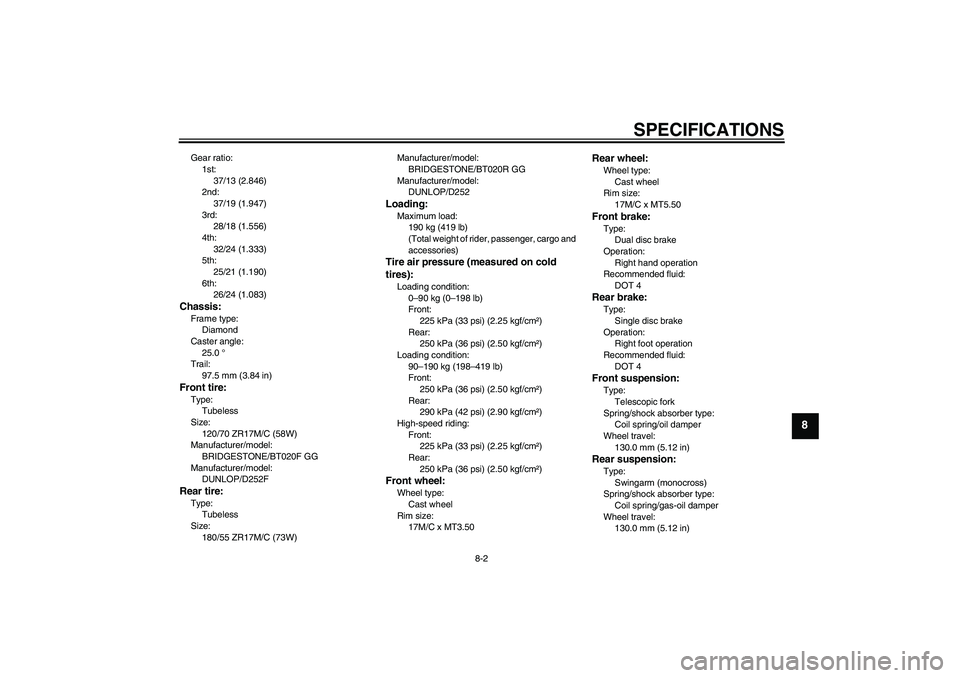

SPECIFICATIONS
8-2
8
Gear ratio:
1st:
37/13 (2.846)
2nd:
37/19 (1.947)
3rd:
28/18 (1.556)
4th:
32/24 (1.333)
5th:
25/21 (1.190)
6th:
26/24 (1.083)Chassis:Frame type:
Diamond
Caster angle:
25.0 °
Trail:
97.5 mm (3.84 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT020F GG
Manufacturer/model:
DUNLOP/D252FRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)Manufacturer/model:
BRIDGESTONE/BT020R GG
Manufacturer/model:
DUNLOP/D252
Loading:Maximum load:
190 kg (419 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Loading condition:
90–190 kg (198–419 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
130.0 mm (5.12 in)
5VXE1.book Page 2 Monday, February 9, 2004 5:39 PM

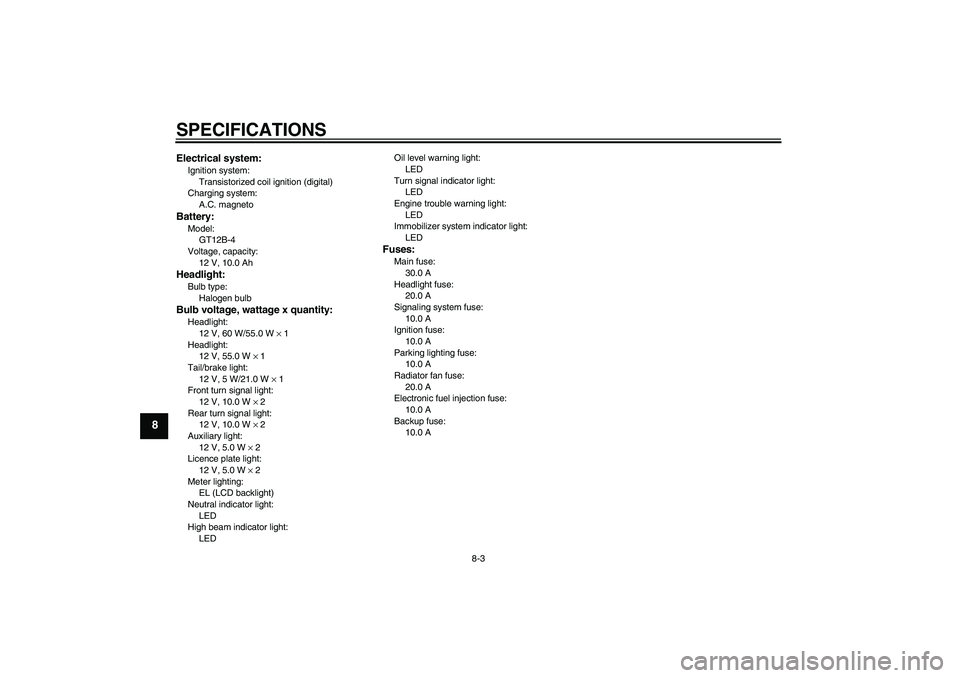

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
A.C. magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage x quantity:Headlight:
12 V, 60 W/55.0 W × 1
Headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
Licence plate light:
12 V, 5.0 W × 2
Meter lighting:
EL (LCD backlight)
Neutral indicator light:
LED
High beam indicator light:
LEDOil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Electronic fuel injection fuse:
10.0 A
Backup fuse:
10.0 A
5VXE1.book Page 3 Monday, February 9, 2004 5:39 PM

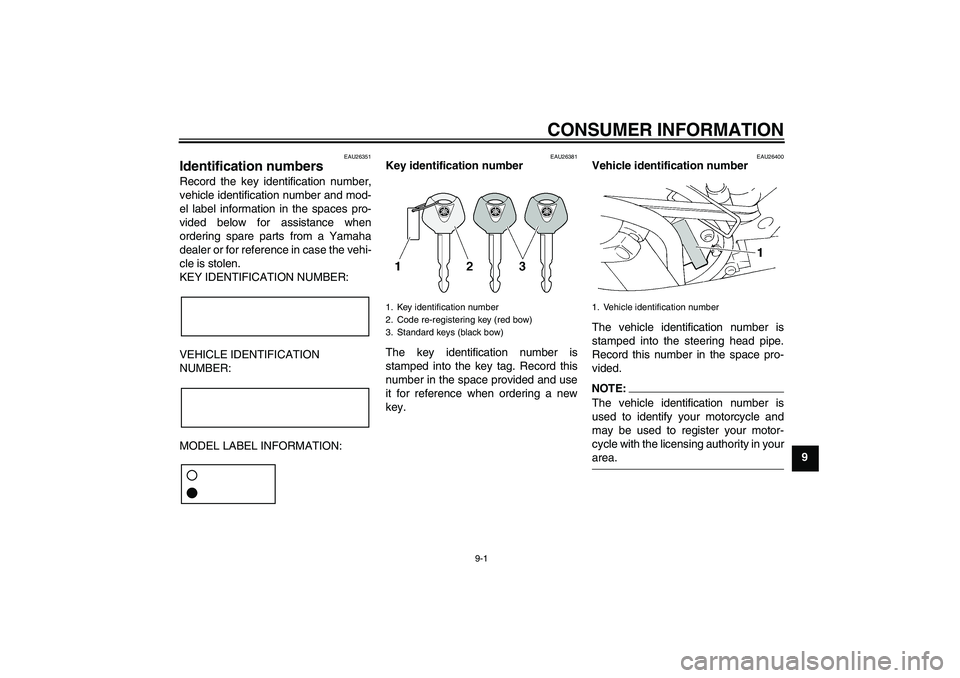

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
5VXE1.book Page 1 Monday, February 9, 2004 5:39 PM

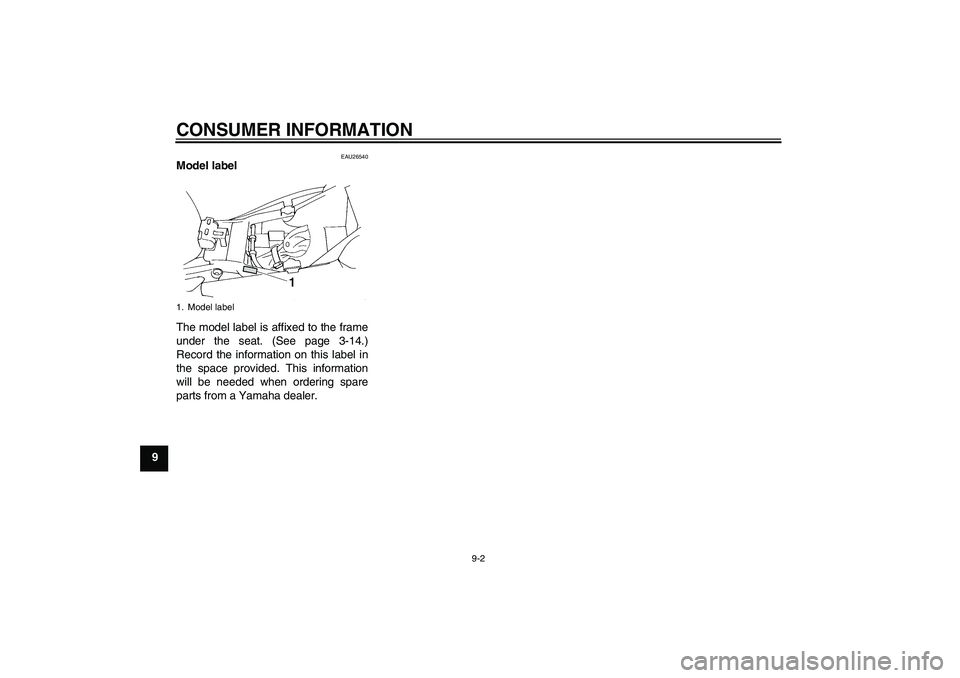

CONSUMER INFORMATION
9-2
9
EAU26540
Model label
The model label is affixed to the frame
under the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label5VXE1.book Page 2 Monday, February 9, 2004 5:39 PM

INDEX
AAir filter element, replacing ................... 6-11
Anti-theft alarm (optional) ....................... 3-8
Auxiliary light bulb, replacing ................ 6-32BBattery .................................................. 6-27
Brake and clutch levers, checking
and lubricating .................................... 6-24
Brake and shift pedals, checking
and lubricating .................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever ........................................... 3-11
Brake pedal .......................................... 3-11
Brake pedal position, adjusting............. 6-18CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Centerstand and sidestand,
checking and lubricating ..................... 6-25
Clutch lever........................................... 3-10
Clutch lever free play, adjusting ........... 6-17
Coolant ................................................. 6-10DDimmer switch ........................................ 3-9
Drive chain, lubricating ......................... 6-22
Drive chain slack .................................. 6-21EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-13
Engine oil and oil filter cartridge ............. 6-7
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-4
FFront and rear brake pads,
checking .............................................. 6-19
Front fork, checking...............................6-25
Fuel ....................................................... 3-12
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-13
Fuel tank cap......................................... 3-11
Fuses, replacing .................................... 6-28HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-29
High beam indicator light......................... 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-17
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLCD tachometer ...................................... 3-5
License plate light bulb, replacing ......... 6-31MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-6NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-4
PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-19SSafety information ................................... 1-1
Seat ...................................................... 3-14
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shock absorber assembly, adjusting .... 3-15
Sidestand .............................................. 3-16
Spark plugs, checking............................. 6-6
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Storage compartment ........................... 3-14TTail/brake light bulb, replacing .............. 6-30
Throttle cable free play, adjusting ......... 6-14
Throttle grip and cable, checking
and lubricating .................................... 6-23
Tires ...................................................... 6-14
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator lights ...................... 3-3
5VXE1.book Page 1 Monday, February 9, 2004 5:39 PM

INDEXTurn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-9VValve clearance, adjusting .................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-27
Wheel (front) ......................................... 6-33
Wheel (rear) .......................................... 6-34
Wheels .................................................. 6-17
5VXE1.book Page 2 Monday, February 9, 2004 5:39 PM

5VXE1.book Page 3 Monday, February 9, 2004 5:39 PM

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2003.07-1.2×4 CR
(E)5VX-28199-E1
FZ6-S
OWNER’S MANUAL
