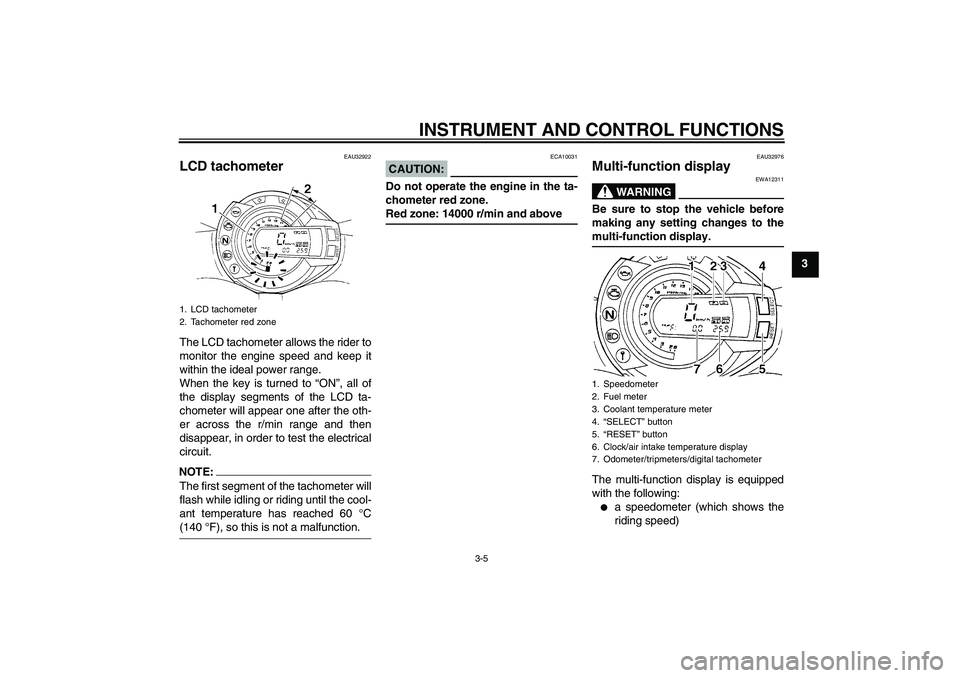

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU32922
LCD tachometer The LCD tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, all of
the display segments of the LCD ta-
chometer will appear one after the oth-
er across the r/min range and then
disappear, in order to test the electrical
circuit.NOTE:The first segment of the tachometer will
flash while idling or riding until the cool-
ant temperature has reached 60 °C(140 °F), so this is not a malfunction.
CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 14000 r/min and above
EAU32976
Multi-function display
WARNING
EWA12311
Be sure to stop the vehicle before
making any setting changes to themulti-function display.
The multi-function display is equipped
with the following:

a speedometer (which shows the
riding speed)
1. LCD tachometer
2. Tachometer red zone
1. Speedometer
2. Fuel meter
3. Coolant temperature meter
4.“SELECT” button
5.“RESET” button
6. Clock/air intake temperature display
7. Odometer/tripmeters/digital tachometer
U5VXE2E0.book Page 5 Wednesday, July 7, 2004 11:32 AM

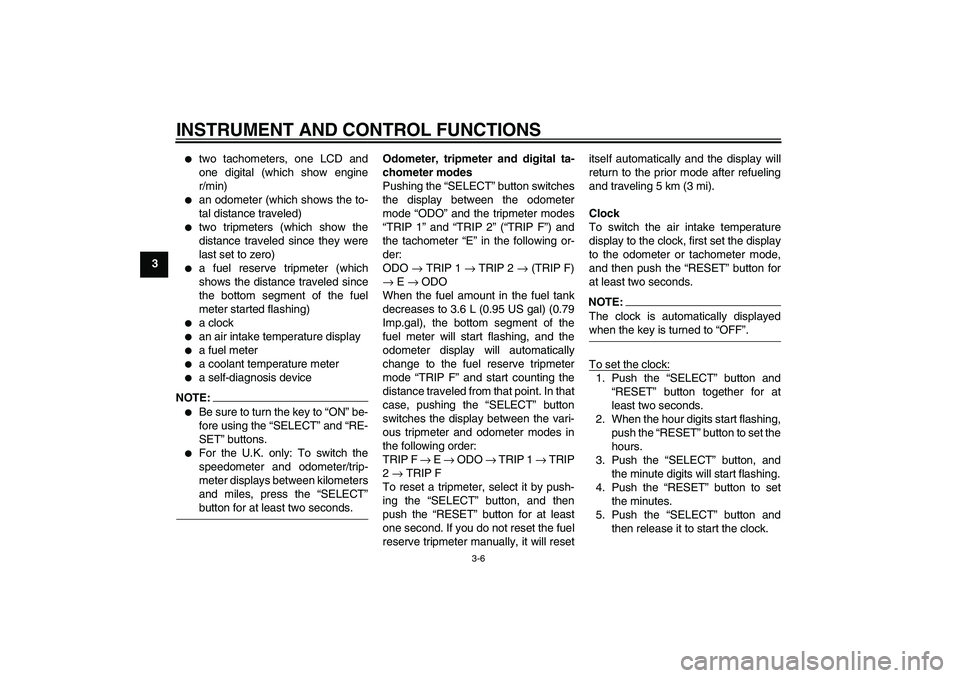

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3


two tachometers, one LCD and
one digital (which show engine
r/min)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter started flashing)


a clock


an air intake temperature display


a fuel meter


a coolant temperature meter


a self-diagnosis device
NOTE:

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”button for at least two seconds.Odometer, tripmeter and digital ta-
chometer modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” (“TRIP F”) and
the tachometer “E” in the following or-
der:
ODO → TRIP 1 → TRIP 2 → (TRIP F)
→ E → ODO
When the fuel amount in the fuel tank
decreases to 3.6 L (0.95 US gal) (0.79
Imp.gal), the bottom segment of the
fuel meter will start flashing, and the
odometer display will automatically
change to the fuel reserve tripmeter
mode “TRIP F” and start counting the
distance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
TRIP F → E → ODO → TRIP 1 → TRIP
2 → TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will resetitself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Clock
To switch the air intake temperature
display to the clock, first set the display
to the odometer or tachometer mode,
and then push the “RESET” button for
at least two seconds.
NOTE:The clock is automatically displayedwhen the key is turned to “OFF”.
To set the clock:1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
U5VXE2E0.book Page 6 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17705
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.


From 50000 km, repeat the maintenance intervals starting from 10000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km
4 Air filter elementReplace.√
5ClutchCheck operation.
Adjust.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
U5VXE2E0.book Page 2 Wednesday, July 7, 2004 11:32 AM

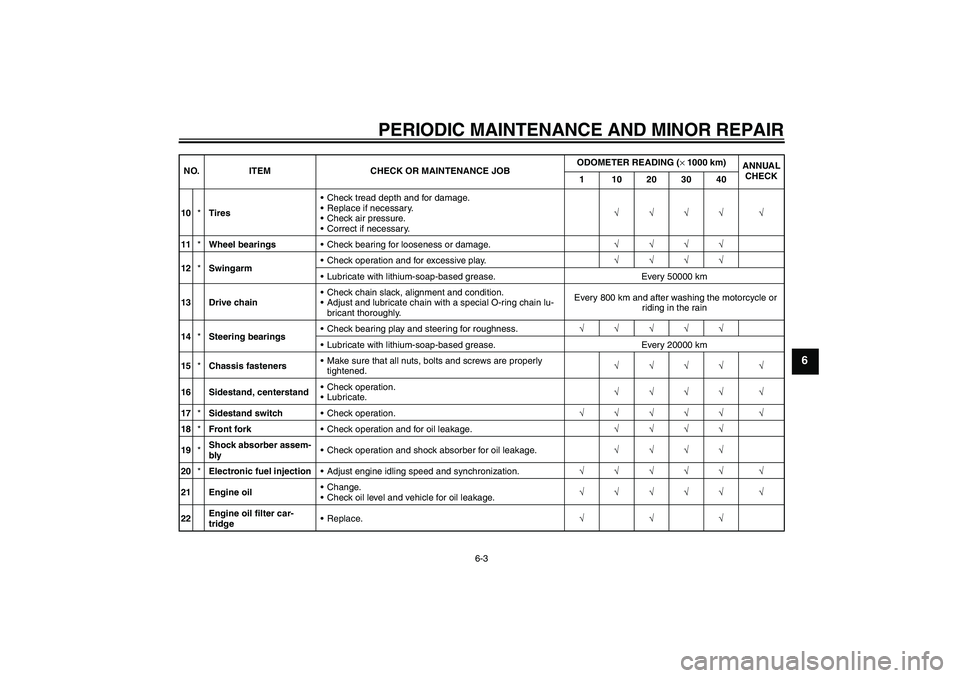

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50000 km
13 Drive chainCheck chain slack, alignment and condition.
Adjust and lubricate chain with a special O-ring chain lu-
bricant thoroughly. Every 800 km and after washing the motorcycle or
riding in the rain
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
16 Sidestand, centerstandCheck operation.
Lubricate.√√√√ √
17*Sidestand switchCheck operation.√√√√√ √
18*Front forkCheck operation and for oil leakage.√√√√
19*Shock absorber assem-
blyCheck operation and shock absorber for oil leakage.√√√√
20*Electronic fuel injectionAdjust engine idling speed and synchronization.√√√√√ √
21 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
22Engine oil filter car-
tridgeReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U5VXE2E0.book Page 3 Wednesday, July 7, 2004 11:32 AM

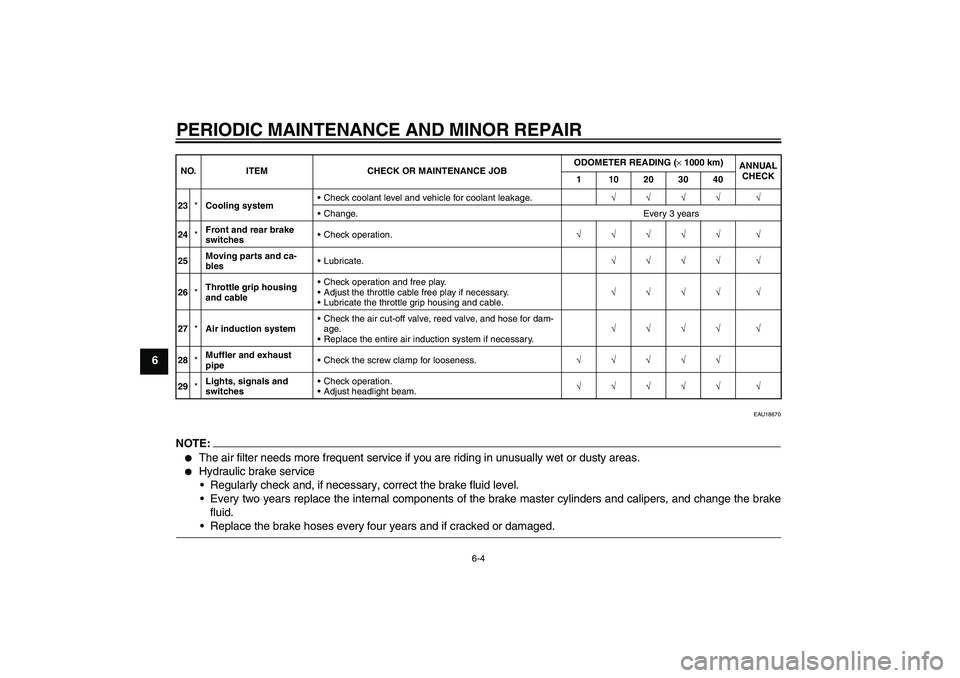

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU18670
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.Replace the brake hoses every four years and if cracked or damaged.
23*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
24*Front and rear brake
switchesCheck operation.√√√√√ √
25Moving parts and ca-
blesLubricate.√√√√ √
26*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
27*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace the entire air induction system if necessary.√√√√ √
28*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040U5VXE2E0.book Page 4 Wednesday, July 7, 2004 11:32 AM

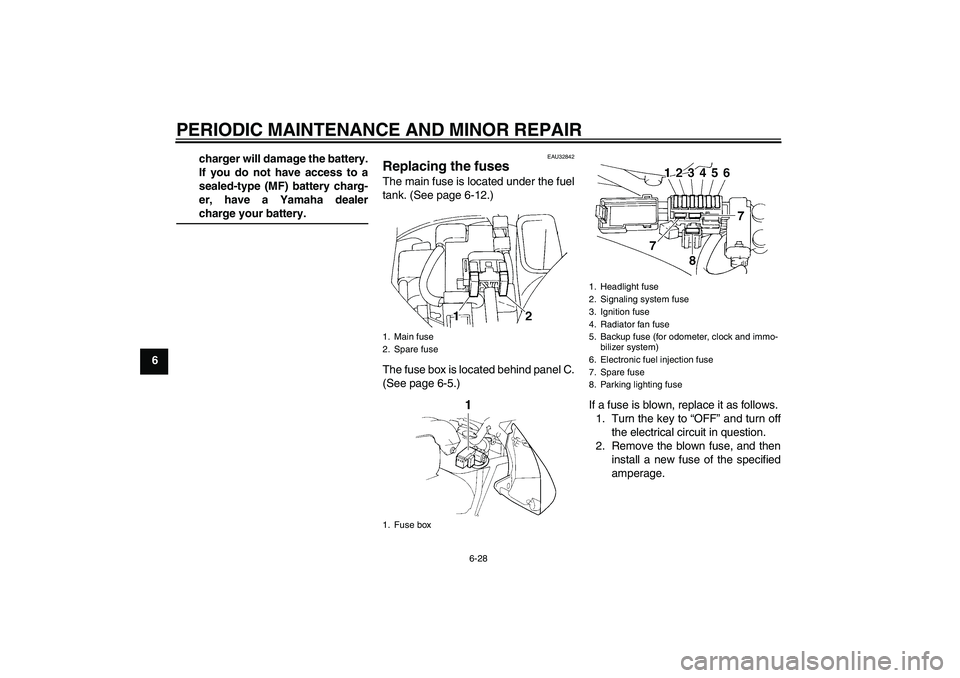

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU32842
Replacing the fuses The main fuse is located under the fuel
tank. (See page 6-12.)
The fuse box is located behind panel C.
(See page 6-5.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Main fuse
2. Spare fuse
1. Fuse box
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. Electronic fuel injection fuse
7. Spare fuse
8. Parking lighting fuse
