MOTORCYCLE CARE AND STORAGE
7-2
7 After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:Salt sprayed on roads in the winter mayremain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces to prevent cor-
rosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11130


Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
U4P5E0E0.book Page 2 Wednesday, December 14, 2005 11:15 AM

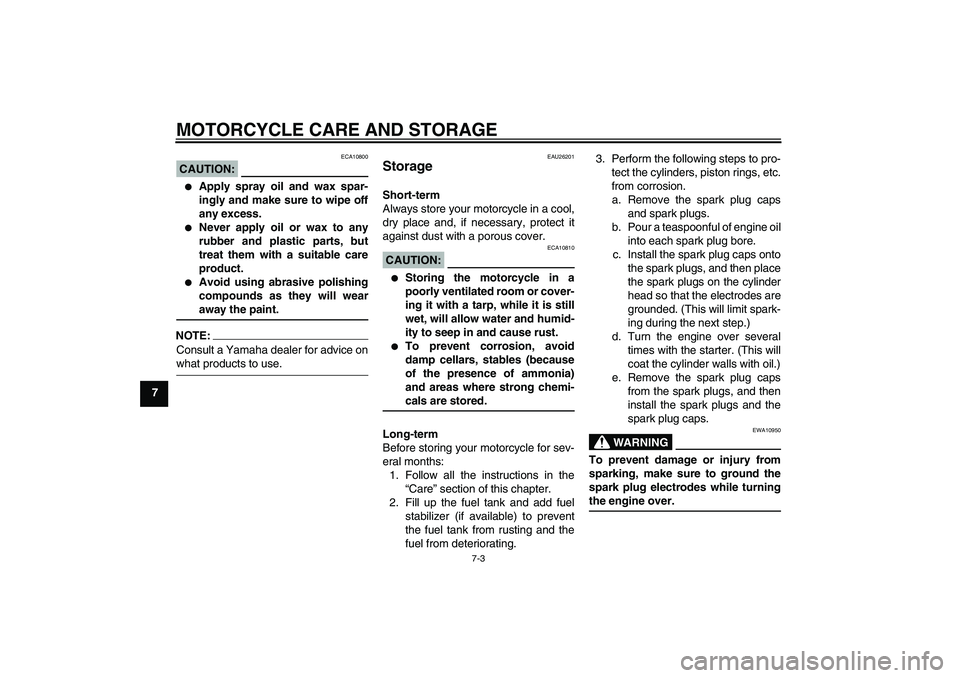

MOTORCYCLE CARE AND STORAGE
7-3
7
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU26201
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
U4P5E0E0.book Page 3 Wednesday, December 14, 2005 11:15 AM

MOTORCYCLE CARE AND STORAGE
7-4
7 4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-30.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U4P5E0E0.book Page 4 Wednesday, December 14, 2005 11:15 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2095 mm (82.5 in)
Overall width:
750 mm (29.5 in)
Overall height:
1215 mm (47.8 in)
Seat height:
795 mm (31.3 in)
Wheelbase:
1440 mm (56.7 in)
Ground clearance:
145 mm (5.71 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:With oil and fuel:
212.0 kg (467 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
600.0 cm³ (36.61 cu.in)
Bore × stroke:
65.5 × 44.5 mm (2.58 × 1.75 in)
Compression ratio:
12.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt) (2.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.27 L (0.29 US qt) (0.24 Imp.qt)
Radiator capacity (including all routes):
2.00 L (2.11 US qt) (1.76 Imp.qt)Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
19.4 L (5.13 US gal) (4.27 Imp.gal)
Fuel reserve amount:
3.6 L (0.95 US gal) (0.79 Imp.gal)Fuel injection:Manufacturer:
MIKUNI
Model/quantity:
36EIDW x 2Spark plug (s):Manufacturer/model:
NGK/CR9EK
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
86/44 (1.955)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
46/16 (2.875)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
U4P5E0E0.book Page 1 Wednesday, December 14, 2005 11:15 AM

SPECIFICATIONS
8-2
8
Gear ratio:
1st:
37/13 (2.846)
2nd:
37/19 (1.947)
3rd:
28/18 (1.556)
4th:
32/24 (1.333)
5th:
25/21 (1.190)
6th:
26/24 (1.083)Chassis:Frame type:
Diamond
Caster angle:
25.00 °
Trail:
97.5 mm (3.84 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT020F GG
Manufacturer/model:
DUNLOP/D252FRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)Manufacturer/model:
BRIDGESTONE/BT020R GG
Manufacturer/model:
DUNLOP/D252
Loading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Loading condition:
90–185 kg (198–408 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
130.0 mm (5.12 in)
U4P5E0E0.book Page 2 Wednesday, December 14, 2005 11:15 AM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 1
Headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
EL backlight LCD
Neutral indicator light:
LED
High beam indicator light:
LEDOil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Backup fuse:
10.0 A
U4P5E0E0.book Page 3 Wednesday, December 14, 2005 11:15 AM

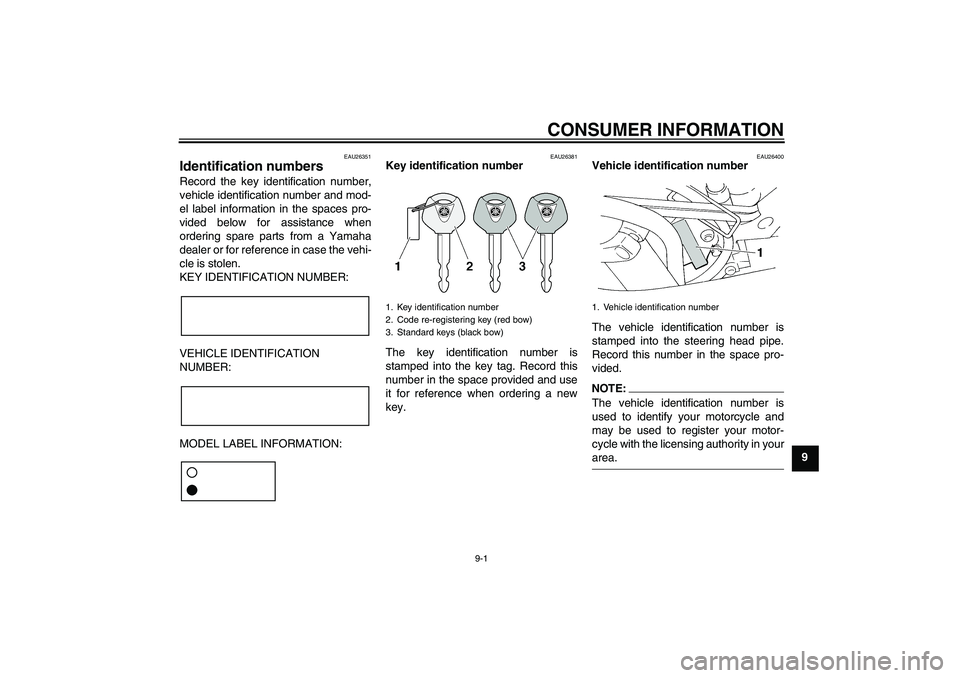

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U4P5E0E0.book Page 1 Wednesday, December 14, 2005 11:15 AM

CONSUMER INFORMATION
9-2
9
EAU26540

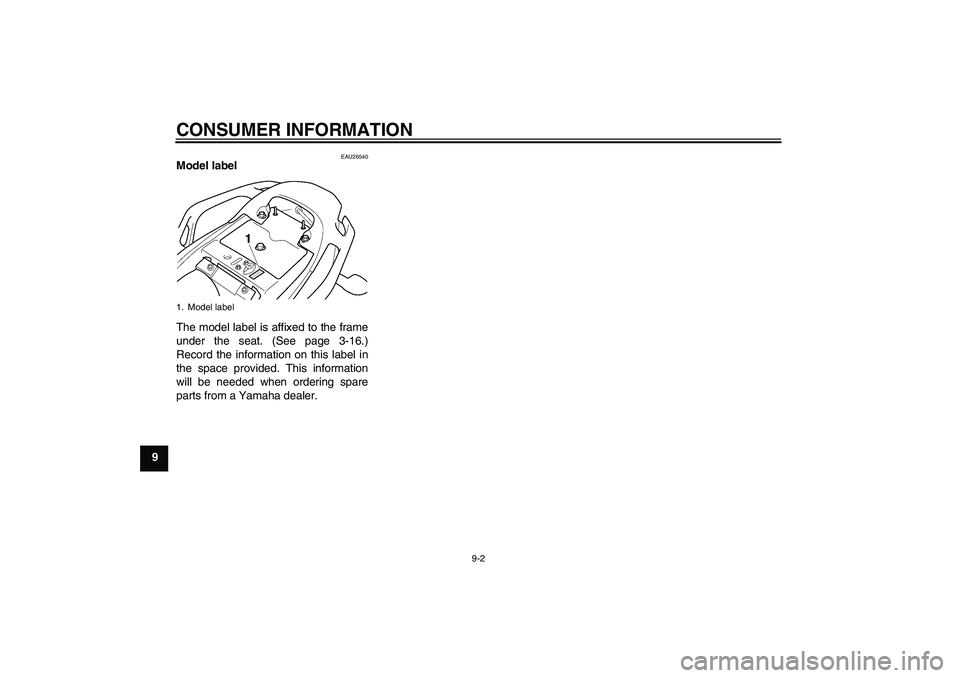

Model label
The model label is affixed to the frame
under the seat. (See page 3-16.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model labelU4P5E0E0.book Page 2 Wednesday, December 14, 2005 11:15 AM

INDEX
AABS ...................................................... 3-13
ABS warning light ................................... 3-4
Air filter element, replacing ................... 6-15
Anti-theft alarm (optional) ..................... 3-10
Auxiliary light bulb, replacing ................ 6-36BBattery .................................................. 6-30
Brake and clutch levers,
checking and lubricating ..................... 6-27
Brake and shift pedals,
checking and lubricating ..................... 6-26
Brake fluid, changing ............................ 6-23
Brake fluid level, checking .................... 6-22
Brake lever ........................................... 3-12
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-25
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Centerstand and sidestand,
checking and lubricating ..................... 6-27
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-20
Coolant ................................................. 6-11DDimmer switch ...................................... 3-10
Drive chain, cleaning and lubricating .... 6-25
Drive chain slack .................................. 6-23EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-16
Engine oil and oil filter cartridge ............. 6-8
Engine stop switch................................ 3-11Engine trouble warning light .................... 3-4
FFront and rear brake pads, checking .... 6-21
Front fork, checking...............................6-28
Fuel ....................................................... 3-14
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-15
Fuel tank cap......................................... 3-13
Fuses, replacing .................................... 6-31HHandlebar switches ............................... 3-10
Hazard switch........................................ 3-11
Headlight bulb, replacing....................... 6-33
High beam indicator light......................... 3-4
Horn switch ........................................... 3-11IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-19
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLCD tachometer ...................................... 3-5
License plate light bulb, replacing ......... 6-35MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-6NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-4
PPanels, removing and installing .............. 6-6
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-10
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-21SSafety information ................................... 1-1
Seat ...................................................... 3-16
Shifting .................................................... 5-2
Shift pedal ............................................. 3-12
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-18
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-11
Steering, checking ................................ 6-29
Storage ................................................... 7-3
Storage compartment ........................... 3-16
Swingarm pivots, lubricating ................. 6-28TTail/brake light bulb, replacing .............. 6-34
Throttle cable free play, checking ......... 6-17
Throttle grip and cable,
checking and lubricating ..................... 6-26
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
U4P5E0E0.book Page 1 Wednesday, December 14, 2005 11:15 AM

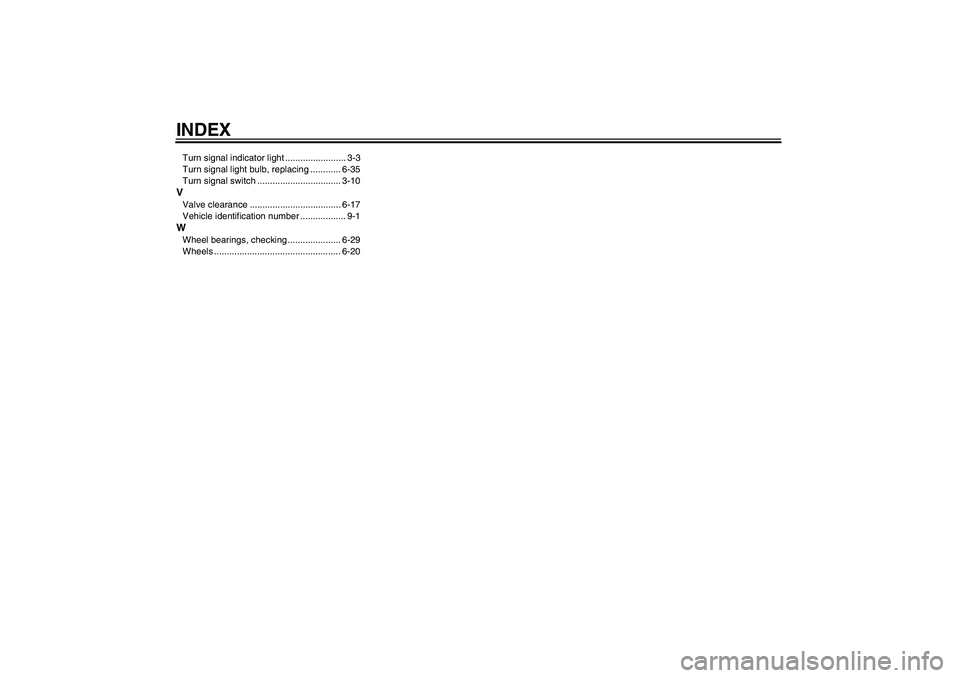

INDEXTurn signal indicator light ........................ 3-3
Turn signal light bulb, replacing ............ 6-35
Turn signal switch ................................. 3-10VValve clearance .................................... 6-17
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-29
Wheels .................................................. 6-20
U4P5E0E0.book Page 2 Wednesday, December 14, 2005 11:15 AM
