MOTORCYCLE CARE AND STORAGE
7-4
7 3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U4S8E1E0.book Page 4 Monday, July 2, 2007 10:33 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2095 mm (82.5 in)
Overall width:
750 mm (29.5 in)
Overall height:
1210 mm (47.6 in)
Seat height:
795 mm (31.3 in)
Wheelbase:
1440 mm (56.7 in)
Ground clearance:
145 mm (5.71 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:With oil and fuel:
FZ6-SAHG 212.0 kg (467 lb)
FZ6-SHG 207.0 kg (456 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
600.0 cm³
Bore × stroke:
65.5 × 44.5 mm (2.58 × 1.75 in)
Compression ratio:
12.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30, SAE10W40, SAE15W40,
SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt) (2.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
2.00 L (2.11 US qt) (1.76 Imp.qt)Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
19.4 L (5.13 US gal) (4.27 Imp.gal)
Fuel reserve amount:
3.6 L (0.95 US gal) (0.79 Imp.gal)Fuel injection:Throttle body:
Manufacturer:
MIKUNI
Type/quantity:
36EIDW-B1/1Spark plug (s):Manufacturer/model:
NGK/CR9EK
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
86/44 (1.955)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
46/16 (2.875)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U4S8E1E0.book Page 1 Monday, July 2, 2007 10:33 AM

SPECIFICATIONS
8-2
8
Gear ratio:
1st:
37/13 (2.846)
2nd:
37/19 (1.947)
3rd:
28/18 (1.556)
4th:
32/24 (1.333)
5th:
25/21 (1.190)
6th:
26/24 (1.083)Chassis:Frame type:
Diamond
Caster angle:
25.00 °
Trail:
97.5 mm (3.84 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT020F GG
Manufacturer/model:
DUNLOP/D252FRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)Manufacturer/model:
BRIDGESTONE/BT020R GG
Manufacturer/model:
DUNLOP/D252
Loading:Maximum load:
FZ6-SAHG 185 kg (408 lb)
FZ6-SHG 190 kg (419 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Loading condition:
FZ6-SAHG 90–185 kg (198–408 lb)
FZ6-SHG 90–190 kg (198–419 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)Front wheel:Wheel type:
Cast wheelRim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
U4S8E1E0.book Page 2 Monday, July 2, 2007 10:33 AM

SPECIFICATIONS
8-3
8
Wheel travel:
130.0 mm (5.12 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 1
Headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LEDHigh beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
FZ6-SAHG LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
FZ6-SAHG 10.0 A
ABS motor fuse:
FZ6-SAHG 30.0 ABackup fuse:
10.0 A
U4S8E1E0.book Page 3 Monday, July 2, 2007 10:33 AM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U4S8E1E0.book Page 1 Monday, July 2, 2007 10:33 AM

CONSUMER INFORMATION
9-2
9
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-18.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model labelU4S8E1E0.book Page 2 Monday, July 2, 2007 10:33 AM

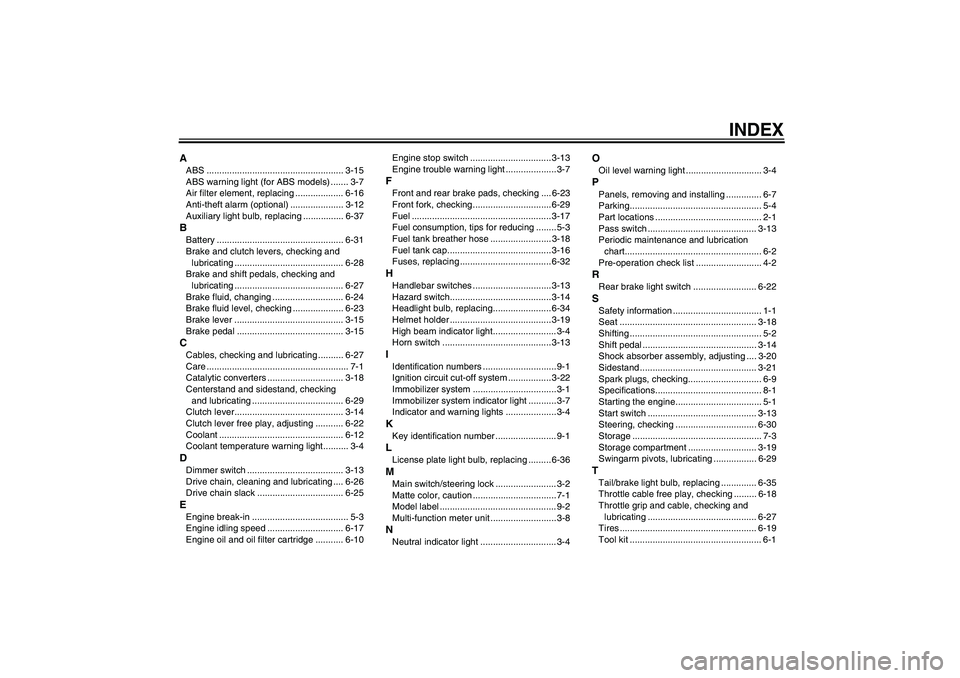

INDEX
AABS ...................................................... 3-15
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-16
Anti-theft alarm (optional) ..................... 3-12
Auxiliary light bulb, replacing ................ 6-37BBattery .................................................. 6-31
Brake and clutch levers, checking and
lubricating ........................................... 6-28
Brake and shift pedals, checking and
lubricating ........................................... 6-27
Brake fluid, changing ............................ 6-24
Brake fluid level, checking .................... 6-23
Brake lever ........................................... 3-15
Brake pedal .......................................... 3-15CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converters .............................. 3-18
Centerstand and sidestand, checking
and lubricating .................................... 6-29
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-22
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-4DDimmer switch ...................................... 3-13
Drive chain, cleaning and lubricating .... 6-26
Drive chain slack .................................. 6-25EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-17
Engine oil and oil filter cartridge ........... 6-10Engine stop switch ................................ 3-13
Engine trouble warning light .................... 3-7
FFront and rear brake pads, checking .... 6-23
Front fork, checking...............................6-29
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-18
Fuel tank cap......................................... 3-16
Fuses, replacing .................................... 6-32HHandlebar switches ............................... 3-13
Hazard switch........................................ 3-14
Headlight bulb, replacing....................... 6-34
Helmet holder ........................................ 3-19
High beam indicator light......................... 3-4
Horn switch ........................................... 3-13IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-22
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-7
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-36MMain switch/steering lock ........................ 3-2
Matte color, caution .................................7-1
Model label .............................................. 9-2
Multi-function meter unit .......................... 3-8NNeutral indicator light .............................. 3-4
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-7
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch ......................... 6-22SSafety information ................................... 1-1
Seat ...................................................... 3-18
Shifting .................................................... 5-2
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-20
Sidestand .............................................. 3-21
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-13
Steering, checking ................................ 6-30
Storage ................................................... 7-3
Storage compartment ........................... 3-19
Swingarm pivots, lubricating ................. 6-29TTail/brake light bulb, replacing .............. 6-35
Throttle cable free play, checking ......... 6-18
Throttle grip and cable, checking and
lubricating ........................................... 6-27
Tires ...................................................... 6-19
Tool kit .................................................... 6-1
U4S8E1E0.book Page 1 Monday, July 2, 2007 10:33 AM

INDEXTroubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-42
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-36
Turn signal switch ................................. 3-13VValve clearance .................................... 6-18
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-31
Wheel (front) (FZ6-SHG) ...................... 6-38
Wheel (rear) (FZ6-SHG) ....................... 6-39
Wheels .................................................. 6-21
U4S8E1E0.book Page 2 Monday, July 2, 2007 10:33 AM

U4S8E1E0.book Page 3 Monday, July 2, 2007 10:33 AM

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2007.07-0.5×1 CR
(E)
