Features and functions
25
System” on page 31 for information on using
the remote control transmitter.)
The Yamaha Security System and low-RPM
mode settings can only be selected using the
remote control transmitter.
Store the remote control transmitter carefully
so it will not be lost. When operating the wa-
tercraft, store the transmitter in the transmitter
holder provided in the glove compartment.
NOTICE
ECJ00751

The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.

Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.

Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.

Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.

Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer.
TIP:

While the engine is running, input from the
remote control transmitter is not received.

If you accidentally lose your remote control
transmitter, contact a Yamaha dealer.
EJU31150Engine stop switch
Push the engine stop switch (red button) to
stop the engine normally.
EJU31161Engine shut-off switch
Attach one end of the engine shut-off cord
(lanyard) to your left wrist, and then insert the
clip on the other end under the engine shut-off
switch (black button). The engine will stop au-
tomatically when the clip is removed from the
1Transmitter holder
1
1Engine stop switch
1
UF2R70E0.book Page 25 Thursday, November 6, 2008 10:05 AM

Features and functions
26

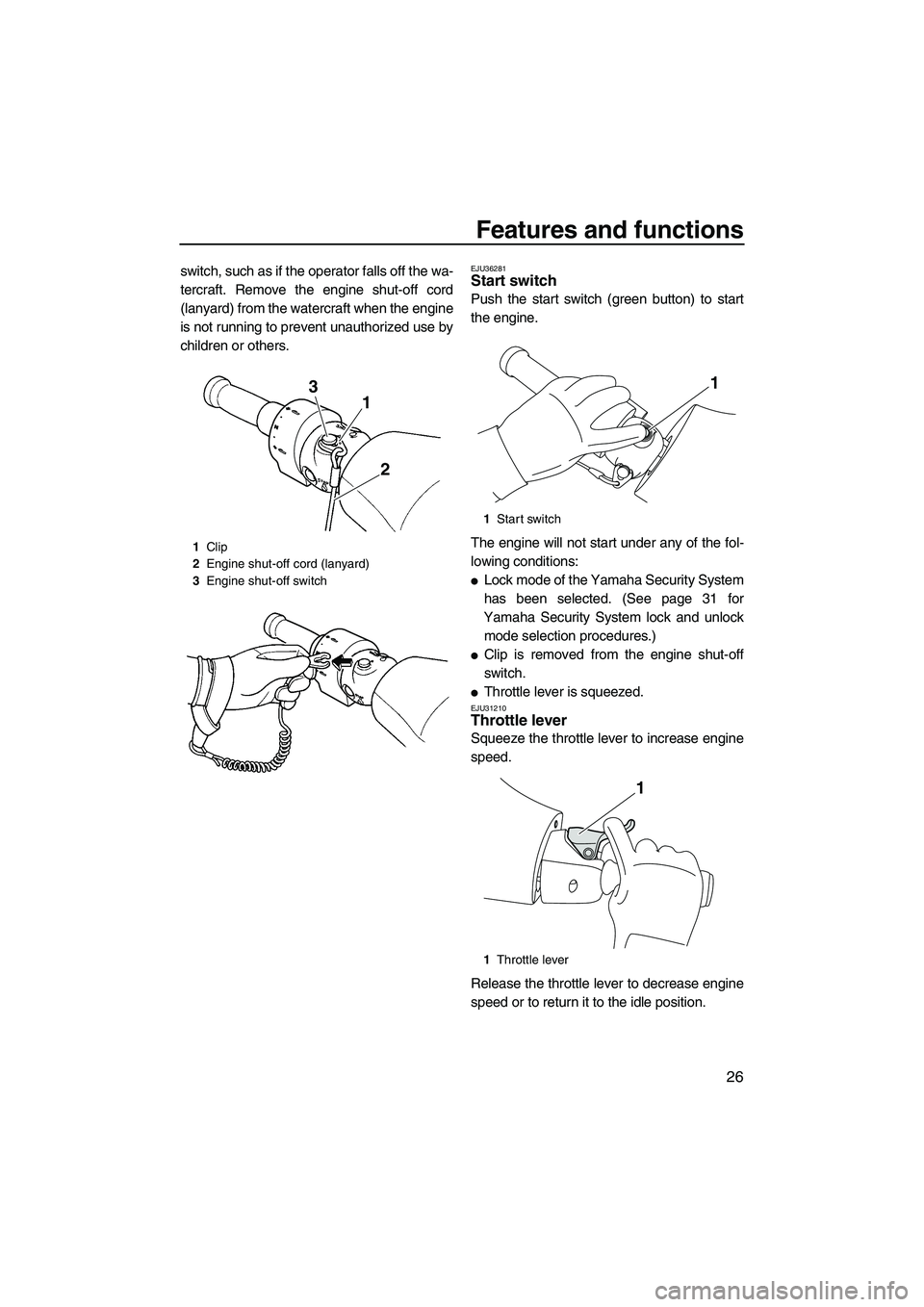

switch, such as if the operator falls off the wa-
tercraft. Remove the engine shut-off cord
(lanyard) from the watercraft when the engine
is not running to prevent unauthorized use by
children or others.EJU36281Start switch
Push the start switch (green button) to start
the engine.
The engine will not start under any of the fol-
lowing conditions:

Lock mode of the Yamaha Security System
has been selected. (See page 31 for
Yamaha Security System lock and unlock
mode selection procedures.)

Clip is removed from the engine shut-off
switch.

Throttle lever is squeezed.EJU31210Throttle lever
Squeeze the throttle lever to increase engine
speed.
Release the throttle lever to decrease engine
speed or to return it to the idle position.
1Clip
2Engine shut-off cord (lanyard)
3Engine shut-off switch
1 3
2
1Start switch
1Throttle lever
1
1
UF2R70E0.book Page 26 Thursday, November 6, 2008 10:05 AM

Features and functions
27
EJU36740Cooling water pilot outlets
This watercraft is equipped with cooling water
pilot outlets on the port (left) and starboard
(right) sides of the watercraft.
When the engine is running, cooling water is
circulated in the engine, and then it is dis-
charged from the pilot outlets.
To check for proper operation of the cooling
system, check that water is being discharged
from the port (left) pilot outlets. If water is not
being discharged from these outlets, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and check
for the cause. (See pages 36 and 83 for more
information.)
TIP:

If the cooling water passages are dry, it will
take about 60 seconds for the water to
reach the outlets after the engine is started.

Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.
EJU31260Steering system
Your watercraft can be steered by turning the
handlebars in the direction you wish to travel.
When the handlebars are turned, the angle of
the jet thrust nozzle is changed, and the direc-
tion of the watercraft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn, ex-
cept at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but you
can turn more sharply if you apply throttle
while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
1Handlebar
2Jet thrust nozzle
1
2
UF2R70E0.book Page 27 Thursday, November 6, 2008 10:05 AM

Features and functions
28
Once the engine slows down, the watercraft
will no longer turn in response to handlebar in-
put until you apply throttle again or you reach
trolling speed.
EJU37340Telescopic steering system
The position of the handlebars can be adjust-
ed up or down using the lock lever.
The handlebars can be adjusted to three po-
sitions.
To adjust the handlebar position:
(1) Pull the lock lever up, and then move the
handlebars up or down to the desired po-
sition. WARNING! Never pull the lock
lever during operation, otherwise the
handlebars may suddenly change po-
sition, which may lead to an accident.
[EWJ01270]
(2) Check that the lock lever returns to its
original position and that the handlebars
are locked in place.
EJU31301Shift lever
The shift lever is located on the starboard
(right) side of the watercraft and is used to
control the reverse gate, which allows the wa-
tercraft to move in reverse or forward.
When the shift lever is in the reverse position,
the watercraft can be launched from a trailer,
or backed up out of tight spots where you can-
not turn around easily.
1Lock lever
1
1Shift lever
2Reverse position
3Forward position
3 2 1
UF2R70E0.book Page 28 Thursday, November 6, 2008 10:05 AM

Features and functions
29
EJU31312Quick Shift Trim System (QSTS)
selector
The QSTS selector is located at the left han-
dlebar grip and is used to adjust the trim angle
of the watercraft.
Operating the QSTS selector changes the an-
gle of the jet thrust nozzle vertically. This
changes the trim angle of the watercraft.There are 5 positions: 2 bow-down positions
(a) and (b), neutral “N”, and 2 bow-up posi-
tions (c) and (d).
To change the trim angle:
(1) Reduce engine speed to less than 3000
r/min.
(2) Squeeze the QSTS selector lock lever,
and then turn the QSTS selector to the
desired position. NOTICE: Do not turn
the QSTS selector while operating the
watercraft at an engine speed of 3000
r/min or more, otherwise damage
could occur to the QSTS.
[ECJ00012]
(3) Release the lock lever to lock the QSTS
selector.
The neutral “N” position will provide good per-
formance for most operating conditions.
1Quick Shift Trim System (QSTS) selector
2QSTS selector lock lever
(c)
(d)(a)
(b)
(b)
(a) (d)
(c)
UF2R70E0.book Page 29 Thursday, November 6, 2008 10:05 AM

Features and functions
31
EJU34880Stern eyes
The stern eyes are located at the stern of the
watercraft.
The stern eyes are used to attach a rope to
the watercraft when transporting or mooring it.
EJU37400Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system are selected using the remote
control transmitter that is included with this
watercraft. The engine cannot be started if the
security system is in the lock mode. The en-
gine can only be started in the unlock mode.
(See page 24 for information on using the re-
mote control transmitter.)
TIP:
The lock and unlock modes of this system can
only be selected while the engine is stopped.
EJU37410Yamaha Security System settings
The Yamaha Security System settings will be
confirmed by the number of beeps when the
remote control transmitter is operated, and by
the “UNLOCK” indicator light of the dual ana-
log meter unit. (See page 33 for more infor-
mation on the dual analog meter unit.)
TIP:

The beeper sounds two times for the nor-
mal operation mode or three times for the L-
MODE (low-RPM mode). (See page 32 for
L-MODE selection procedures.)

If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting is selected.
To select the lock mode:
Press the lock button on the remote control
transmitter briefly. The beeper sounds once
and the “UNLOCK” indicator light blinks once,
then goes off. This indicates the lock mode is
selected.
To select the unlock mode:
Press the “L-Mode” (unlock) button on the re-
mote control transmitter briefly. The beeper
sounds two or three times and the “UNLOCK”
indicator light blinks two or three times, then
1Stern eye
1
Number of
beepsYa m a h a S e c u r i t y
System mode“UN-
LOCK” in-
dicator
light
Lock Goes off
Unlock
(normal operation
mode)Comes
on
Unlock
(L-MODE)Comes
on
1Lock button
2“UNLOCK” indicator light
2
1
UF2R70E0.book Page 31 Thursday, November 6, 2008 10:05 AM

Features and functions
32
comes on. This indicates the unlock mode is
selected.
EJU37420L-MODE (low-RPM mode)
The L-MODE limits the engine speed to ap-
proximately 70% of the maximum engine
speed.
The L-MODE activation and deactivation can
only be selected using the remote control
transmitter. (See page 24 for information on
using the remote control transmitter.)
TIP:
The L-MODE can only be selected when the
engine is stopped in the unlock mode of the
Yamaha Security System.
Activating and deactivating the L-MODE
Activation of the L-MODE will be confirmed by
the number of beeps when the remote control
transmitter is operated, and by the “L-MODE”indicator light of the dual analog meter unit.
(See page 33 for more information on the dual
analog meter unit.)
TIP:
If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit performs the initial op-
eration, and then the setting is selected.
To activate the L-MODE:
Press the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds three times
and the “UNLOCK” indicator light blinks three
times, then comes on, the “L-MODE” indicator
light comes on and the L-MODE is activated.
TIP:
If the L-MODE is selected immediately after
the information display turns off, the “L-
MODE” indicator light will not come on. The
“L-MODE” indicator light will come on when
the engine is started.
1“L-Mode” (unlock) button
2“UNLOCK” indicator light
1Remote control transmitter
2
1
Number of
beepsL-MODE operation“L-
MODE”
indicator
light
ActivatedComes
on
Deactivated Goes off
1“L-Mode” (unlock) button
2“L-MODE” indicator light
2
1
UF2R70E0.book Page 32 Thursday, November 6, 2008 10:05 AM

Features and functions
33
To deactivate the L-MODE:
Press the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds two times and
the “UNLOCK” indicator light blinks two times,
then comes on, the “L-MODE” indicator light
goes off and the L-MODE is deactivated.
When the L-MODE is deactivated, the water-
craft returns to the normal operation mode.
EJU37431Dual analog meter unit
The dual analog meter unit displays various
watercraft information.
Dual analog meter unit initial operation
When the dual analog meter unit starts oper-
ating, the speedometer and tachometer make
one sweep, all segments of the information
display and all indicator lights come on. After
2 seconds, the “WARNING” indicator light, the
“L-MODE” indicator light, and the warning in-
dicators in the information display go off, and
then the unit starts to operate normally.
TIP:
The “UNLOCK” indicator light will go off when
the engine is started.Dual analog meter unit standby state
If the dual analog meter unit does not receive
any operation input within 25 seconds after
the engine stops, the unit will turn off and en-
ter a standby state. When the engine is start-
ed again, the display and the indicator lights
will return to their state before the unit turned
off, and then the unit starts to operate normal-
ly.
EJU37440Speedometer
The speedometer shows the watercraft speed
against water.
The large inner numbers on the meter show
the watercraft speed in miles per hour “MPH”
and the small outer numbers show the speed
in kilometers per hour “km/h”.
EJU37240Tachometer
The tachometer shows the engine speed.
The large inner numbers on the meter show
the engine speed × 1000 RPM (r/min).
1Speedometer
2Information display
3Tachometer
4“Hour Volt” button
5“UNLOCK” indicator light
6“L-MODE” indicator light
7“WARNING” indicator light
123
7 6 5 4
UF2R70E0.book Page 33 Thursday, November 6, 2008 10:05 AM

Features and functions
34
EJU37250Information display
The information display shows watercraft op-
erating conditions.
EJU37261Hour meter/voltmeter
The hour meter/voltmeter can be used as an
hour meter or a voltmeter.
TIP:
The hour meter is selected at the Yamaha
factory.
Hour meter
The hour meter shows the hours of engine op-
eration that have elapsed since the watercraft
was new.To switch to the hour meter from the voltme-
ter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches from the voltmeter
to the hour meter.
Voltmeter
The voltmeter shows the battery voltage.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage has dropped significant-
ly, “LO” is displayed on the voltmeter. If the
battery voltage has risen significantly, “HI” is
displayed. If “HI” or “LO” is displayed, immedi-
ately return to shore and have a Yamaha
dealer service the watercraft.
1Fuel level meter
2Fuel indicator
3Engine overheat warning indicator
4Check engine warning indicator
5Oil pressure warning indicator
6Hour meter/voltmeter
1Hour meter/voltmeter
12345
6
1
1“Hour Volt” button
2Hour meter
1
2
UF2R70E0.book Page 34 Thursday, November 6, 2008 10:05 AM

Features and functions
35
To switch to the voltmeter from the hour
meter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches from the hour
meter to the voltmeter.
EJU37270Fuel level meter
The fuel level meter is provided for convenient
fuel level checking while riding.
The fuel level meter has four segments which
show the amount of fuel remaining in the fuel
tank. The display segments of the fuel level
meter disappear one at a time as the fuel level
decreases.
TIP:
The fuel level is most accurate when the wa-
tercraft is sitting level on a trailer or in the wa-
ter.
EJU37280Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est fuel level segment, the fuel indicator, and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently.
If this occurs, refill the fuel tank as soon as
possible.
The warning signals will be cleared when the
engine is restarted after the fuel tank is re-
filled.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37290Oil pressure warning
If the oil pressure drops significantly, the
“WARNING” indicator light and the oil pres-
sure warning indicator blink, and the buzzer
sounds intermittently. At the same time, the
1“Hour Volt” button
2Vo l t m e t e r
1Fuel level meter
1
2
1
1“Hour Volt” button
1
UF2R70E0.book Page 35 Thursday, November 6, 2008 10:05 AM
