Features and functions
25
System” on page 31 for information on using
the remote control transmitter.)
The Yamaha Security System and low-RPM
mode settings can only be selected using the
remote control transmitter.
Store the remote control transmitter carefully
so it will not be lost. When operating the wa-
tercraft, store the transmitter in the transmitter
holder provided in the glove compartment.
NOTICE
ECJ00751

The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.

Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.

Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.

Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.

Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer.
TIP:

While the engine is running, input from the
remote control transmitter is not received.

If you accidentally lose your remote control
transmitter, contact a Yamaha dealer.
EJU31150Engine stop switch
Push the engine stop switch (red button) to
stop the engine normally.
EJU31161Engine shut-off switch
Attach one end of the engine shut-off cord
(lanyard) to your left wrist, and then insert the
clip on the other end under the engine shut-off
switch (black button). The engine will stop au-
tomatically when the clip is removed from the
1Transmitter holder
1
1Engine stop switch
1
UF2R70E0.book Page 25 Thursday, November 6, 2008 10:05 AM

Features and functions
35
To switch to the voltmeter from the hour
meter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches from the hour
meter to the voltmeter.
EJU37270Fuel level meter
The fuel level meter is provided for convenient
fuel level checking while riding.
The fuel level meter has four segments which
show the amount of fuel remaining in the fuel
tank. The display segments of the fuel level
meter disappear one at a time as the fuel level
decreases.
TIP:
The fuel level is most accurate when the wa-
tercraft is sitting level on a trailer or in the wa-
ter.
EJU37280Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est fuel level segment, the fuel indicator, and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently.
If this occurs, refill the fuel tank as soon as
possible.
The warning signals will be cleared when the
engine is restarted after the fuel tank is re-
filled.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37290Oil pressure warning
If the oil pressure drops significantly, the
“WARNING” indicator light and the oil pres-
sure warning indicator blink, and the buzzer
sounds intermittently. At the same time, the
1“Hour Volt” button
2Vo l t m e t e r
1Fuel level meter
1
2
1
1“Hour Volt” button
1
UF2R70E0.book Page 35 Thursday, November 6, 2008 10:05 AM

Features and functions
36
maximum engine speed is limited to help pre-
vent damage.
If this occurs, immediately reduce the engine
speed, return to shore, and then check the en-
gine oil level. (See page 45 for engine oil level
checking procedures.) If the oil level is suffi-
cient, have a Yamaha dealer check the water-
craft.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37300Engine overheat warning
If the engine temperature rises significantly,
the “WARNING” indicator light and the engine
overheat warning indicator blink, and the
buzzer sounds intermittently. Then, the
“WARNING” indicator light and the engine
overheat warning indicator stop blinking and
remain on, and the buzzer sounds continu-ously. After the light and indicator start to blink
and the buzzer sounds, the maximum engine
speed is limited to help prevent damage.
If this occurs, immediately reduce the engine
speed, return to shore, and then check for wa-
ter discharge at the port (left) cooling water pi-
lot outlets while the engine is running. If there
is no discharge of water, shut the engine off,
and then check the jet intake for clogging.
(See page 83 for jet intake cleaning proce-
dures.) NOTICE: If you cannot locate and
correct the cause of the overheating, con-
sult a Yamaha dealer. Continuing to oper-
ate at higher speeds could result in severe
engine damage.
[ECJ00041]
1“Hour Volt” button
1
UF2R70E0.book Page 36 Thursday, November 6, 2008 10:05 AM

Features and functions
37
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37310Check engine warning
If a sensor malfunction or a short circuit is de-
tected, the “WARNING” indicator light and the
check engine warning indicator blink, and the
buzzer sounds intermittently.
If this occurs, immediately reduce the engine
speed, return to shore, and have a Yamaha
dealer check the engine.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37320Storage compartments
A front storage compartment, glove compart-
ment, and watertight compartment are provid-
ed.
Only the securely closed watertight compart-
ment is waterproof. If you carry objects that
must be kept dry, such as the manuals, put
them in a waterproof bag.
Make sure that the storage compartments are
closed securely before operating the water-
craft.
EJU37330Front storage compartment
The front storage compartment is located at
the bow.
1“Hour Volt” button
1
1“Hour Volt” button
1
UF2R70E0.book Page 37 Thursday, November 6, 2008 10:05 AM

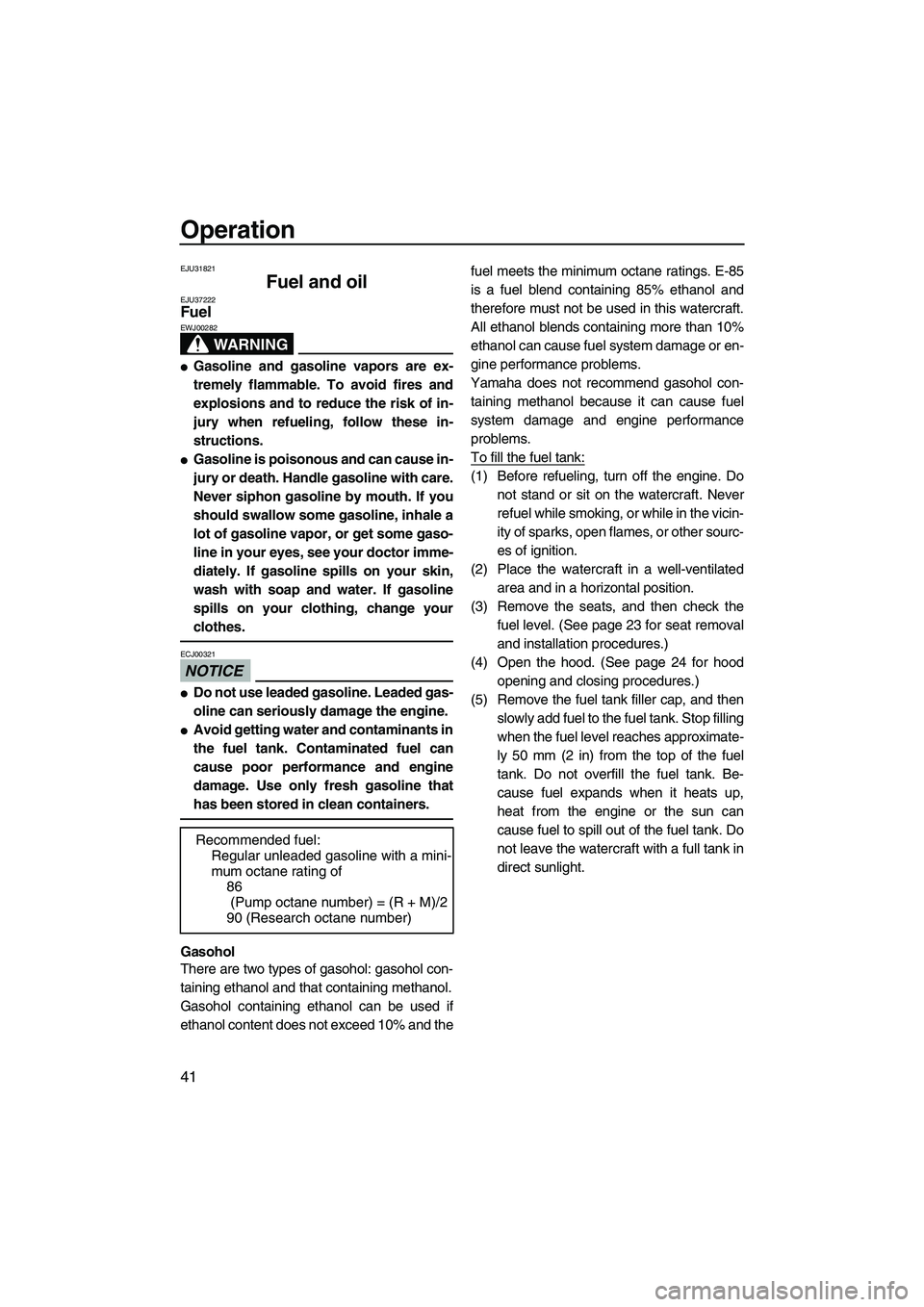

Operation
41
EJU31821
Fuel and oil EJU37222Fuel
WARNING
EWJ00282

Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.

Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
NOTICE
ECJ00321

Do not use leaded gasoline. Leaded gas-
oline can seriously damage the engine.

Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and thefuel meets the minimum octane ratings. E-85
is a fuel blend containing 85% ethanol and
therefore must not be used in this watercraft.
All ethanol blends containing more than 10%
ethanol can cause fuel system damage or en-
gine performance problems.
Yamaha does not recommend gasohol con-
taining methanol because it can cause fuel
system damage and engine performance
problems.
To fill the fuel tank:
(1) Before refueling, turn off the engine. Do
not stand or sit on the watercraft. Never
refuel while smoking, or while in the vicin-
ity of sparks, open flames, or other sourc-
es of ignition.
(2) Place the watercraft in a well-ventilated
area and in a horizontal position.
(3) Remove the seats, and then check the
fuel level. (See page 23 for seat removal
and installation procedures.)
(4) Open the hood. (See page 24 for hood
opening and closing procedures.)
(5) Remove the fuel tank filler cap, and then
slowly add fuel to the fuel tank. Stop filling
when the fuel level reaches approximate-
ly 50 mm (2 in) from the top of the fuel
tank. Do not overfill the fuel tank. Be-
cause fuel expands when it heats up,
heat from the engine or the sun can
cause fuel to spill out of the fuel tank. Do
not leave the watercraft with a full tank in
direct sunlight. Recommended fuel:
Regular unleaded gasoline with a mini-
mum octane rating of
86
(Pump octane number) = (R + M)/2
90 (Research octane number)
UF2R70E0.book Page 41 Thursday, November 6, 2008 10:05 AM

Operation
56
EJU32901
Operating your watercraft EJU32941Getting to know your watercraft
Operating your watercraft requires skills ac-
quired through practice over a period of time.
Take the time to learn the basic techniques
well before attempting more difficult maneu-
vers.
Operating your new watercraft can be a very
enjoyable activity, providing you with hours of
pleasure. However, it is essential to familiar-
ize yourself with the operation of the water-
craft to achieve the skill level necessary to
enjoy riding safely.
Before operating this watercraft, read this
owner’s/operator’s manual, the Riding Prac-
tice Guide, the Riding Instruction card, and all
labels on the watercraft. Pay particular atten-
tion to the safety information on pages 10.
These materials should give you an under-
standing of the watercraft and its operation.
Remember: This watercraft is designed to
carry the operator and 1 passenger. Never
exceed the maximum load limit or allow more
than 2 persons to ride the watercraft at any
time.
EJU36041Learning to operate your watercraft
Before operating the watercraft, always per-
form the pre-operation checks listed on page
43. The short time spent checking the water-
craft will reward you with added safety and re-
liability.
Check local laws before operating your water-
craft.
Operate defensively at safe speeds and keep
a safe distance away from people, objects,and other watercraft. Select a wide area to
learn in, where there is good visibility and light
boat traffic.
Use the buddy system—operate with some-
one nearby. Scan constantly for people, ob-
jects, and other watercraft. Be alert for
conditions that limit your visibility or block your
vision of others.
Attach the engine shut-off cord (lanyard) to
your left wrist and keep it free from the handle-
bars so that the engine stops if you, the oper-
ator, fall off.
Wear a personal flotation device (PFD). All
riders must wear a PFD that is approved by
the appropriate authorities and is suitable for
personal watercraft use.
Wear protective clothing. Severe internal inju-
ries can occur if water is forced into body cav-
ities as a result of falling into the water or
being near the jet thrust nozzle. Normal swim-
wear does not adequately protect against
forceful water entry into the rectum and vagi-
na. All riders must wear a wetsuit bottom or
clothing that provides equivalent protection.
Such clothing includes thick, tightly woven,
sturdy and snug-fitting apparel such as den-
im, but does not include spandex or similar
fabrics, like those used in bicycle shorts. A full
wetsuit can also protect against hypothermia
(subnormal body temperature) and abra-
sions. Maximum load:
160 kg (353 lb)
Load is the total weight of cargo, oper-
ator, and passenger.
UF2R70E0.book Page 56 Thursday, November 6, 2008 10:05 AM

Trouble recovery
81
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible41
Stale or contaminat-
edHave serviced by
Yamaha dealer72
Fuel tank Water or dirt present Have serviced by
Yamaha dealer72
Spark plug Fouled or defective Replace 74
Incorrect heat range Replace 74
Gap incorrect Adjust 74
Spark plug
capLoose Connect properly 74
Cracked, torn, or
damagedHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinksFuel level Empty Refill as soon as pos-
sible41
Oil pressure
warningOil pressure dropped Have serviced by
Yamaha dealer35
Engine over-
heatedJet intake clogged Clean
83
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer37 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2R70E0.book Page 81 Thursday, November 6, 2008 10:05 AM
