Safety information
11
EJU30761

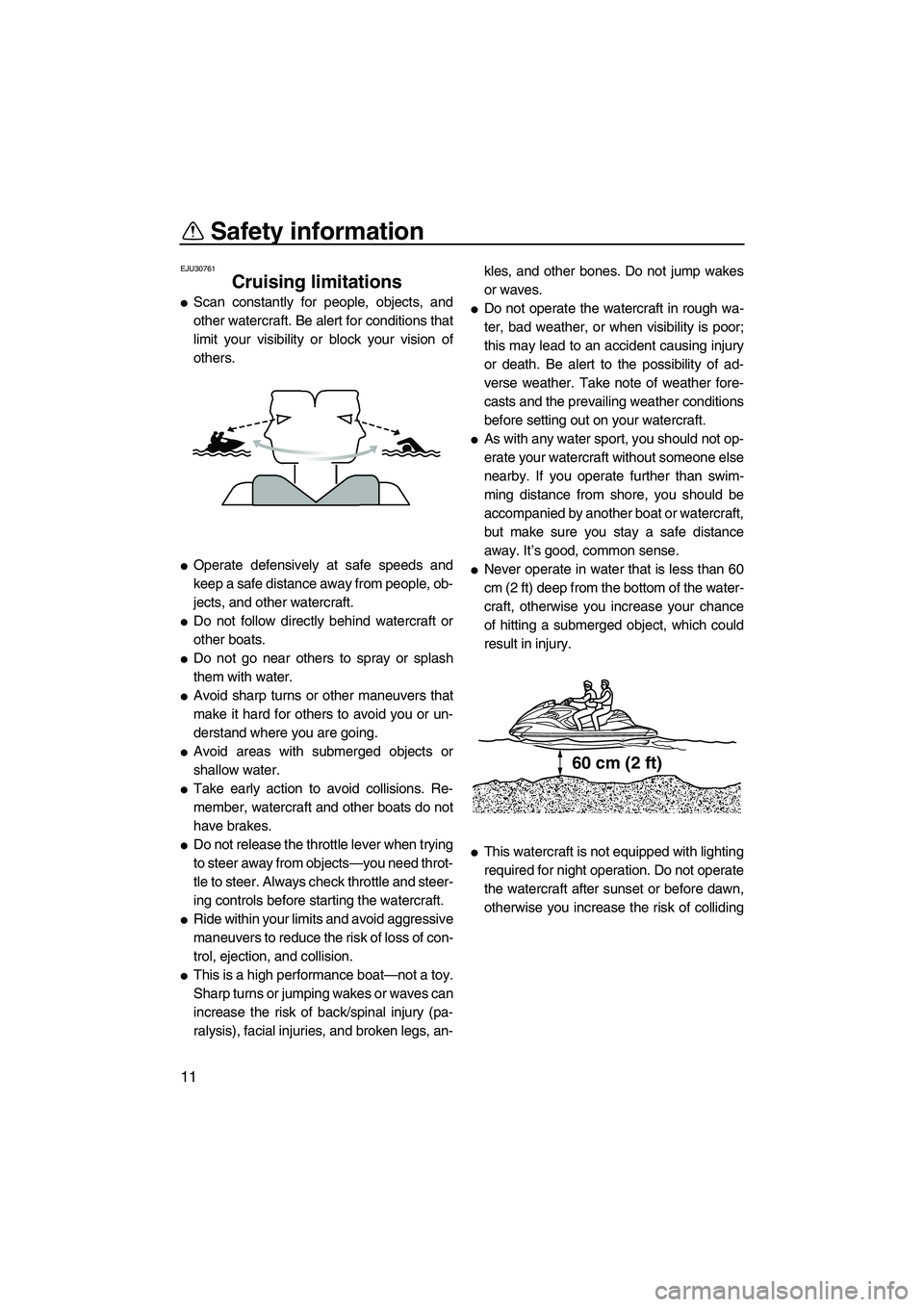

Cruising limitations

Scan constantly for people, objects, and
other watercraft. Be alert for conditions that
limit your visibility or block your vision of
others.

Operate defensively at safe speeds and
keep a safe distance away from people, ob-
jects, and other watercraft.

Do not follow directly behind watercraft or
other boats.

Do not go near others to spray or splash
them with water.

Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.

Avoid areas with submerged objects or
shallow water.

Take early action to avoid collisions. Re-
member, watercraft and other boats do not
have brakes.

Do not release the throttle lever when trying
to steer away from objects—you need throt-
tle to steer. Always check throttle and steer-
ing controls before starting the watercraft.

Ride within your limits and avoid aggressive
maneuvers to reduce the risk of loss of con-
trol, ejection, and collision.

This is a high performance boat—not a toy.
Sharp turns or jumping wakes or waves can
increase the risk of back/spinal injury (pa-
ralysis), facial injuries, and broken legs, an-kles, and other bones. Do not jump wakes
or waves.

Do not operate the watercraft in rough wa-
ter, bad weather, or when visibility is poor;
this may lead to an accident causing injury
or death. Be alert to the possibility of ad-
verse weather. Take note of weather fore-
casts and the prevailing weather conditions
before setting out on your watercraft.

As with any water sport, you should not op-
erate your watercraft without someone else
nearby. If you operate further than swim-
ming distance from shore, you should be
accompanied by another boat or watercraft,
but make sure you stay a safe distance
away. It’s good, common sense.

Never operate in water that is less than 60
cm (2 ft) deep from the bottom of the water-
craft, otherwise you increase your chance
of hitting a submerged object, which could
result in injury.

This watercraft is not equipped with lighting
required for night operation. Do not operate
the watercraft after sunset or before dawn,
otherwise you increase the risk of colliding
60 cm (2 ft)
UF2R70E0.book Page 11 Thursday, November 6, 2008 10:05 AM

Features and functions
21
Control system
1234
6
7 5
10
11121314 9 8
1Quick Shift Trim System (QSTS) selector
2QSTS selector lock lever
3Start switch
4Engine shut-off switch
5Clip
6Engine stop switch
7Engine shut-off cord (lanyard)
8Dual analog meter unit
9Rearview mirrors
10Glove compartment
11Remote control transmitter
12Beverage holder
13Shift lever
14Throttle lever
UF2R70E0.book Page 21 Thursday, November 6, 2008 10:05 AM

Features and functions
23
EJU31022
Operation of controls and other
functions

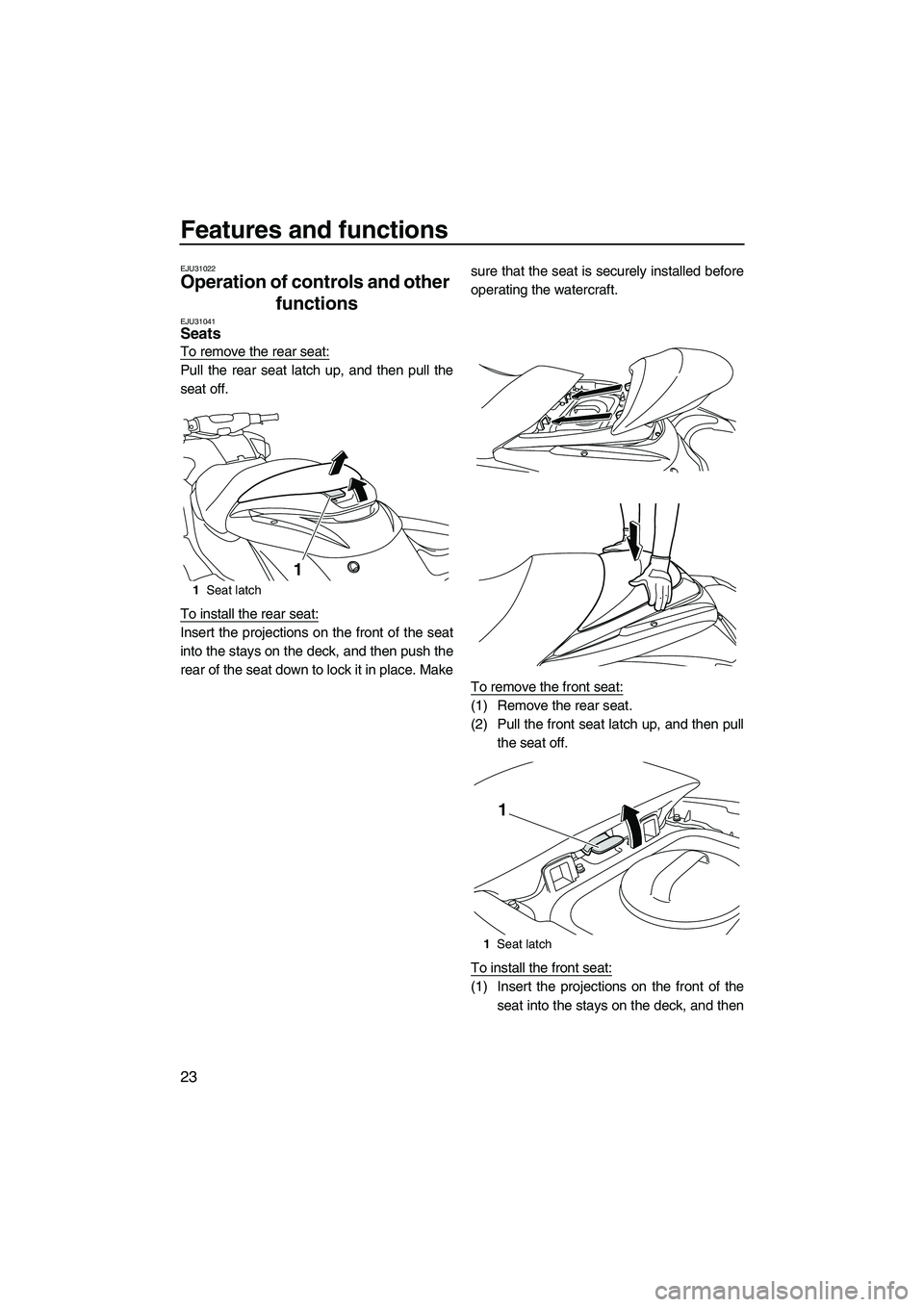

EJU31041Seats
To remove the rear seat:
Pull the rear seat latch up, and then pull the
seat off.
To install the rear seat:
Insert the projections on the front of the seat
into the stays on the deck, and then push the
rear of the seat down to lock it in place. Makesure that the seat is securely installed before
operating the watercraft.
To remove the front seat:
(1) Remove the rear seat.
(2) Pull the front seat latch up, and then pull
the seat off.
To install the front seat:
(1) Insert the projections on the front of the
seat into the stays on the deck, and then
1Seat latch
1
1Seat latch
1
UF2R70E0.book Page 23 Thursday, November 6, 2008 10:05 AM

Features and functions
24
push the rear of the seat down to lock it in
place.
(2) Install the rear seat. Make sure that the
seats are securely installed before oper-
ating the watercraft.
EJU31063Hood
To open the hood, push the hood latch, and
then lift up the hood.To close the hood, push down on the rear of
the hood until it latches securely. Make sure
that the hood is securely closed before oper-
ating the watercraft.
EJU36691Fuel tank filler cap
The fuel tank filler cap is located under the
hood.
To remove the fuel tank filler cap, open the
hood, and then turn the cap counterclockwise.
(See page 24 for hood opening and closing
procedures.)
To install the fuel tank filler cap, turn it clock-
wise until it stops. Make sure that the fuel tank
filler cap and the hood are securely closed be-
fore operating the watercraft.
EJU36621Remote control transmitter
The Yamaha Security System and low-RPM
mode settings are selected using the remote
control transmitter. (See “Yamaha Security1Hood latch
1
1Fuel tank filler cap
1
UF2R70E0.book Page 24 Thursday, November 6, 2008 10:05 AM

Features and functions
26
switch, such as if the operator falls off the wa-
tercraft. Remove the engine shut-off cord
(lanyard) from the watercraft when the engine
is not running to prevent unauthorized use by
children or others.EJU36281Start switch
Push the start switch (green button) to start
the engine.
The engine will not start under any of the fol-
lowing conditions:

Lock mode of the Yamaha Security System
has been selected. (See page 31 for
Yamaha Security System lock and unlock
mode selection procedures.)

Clip is removed from the engine shut-off
switch.

Throttle lever is squeezed.EJU31210Throttle lever
Squeeze the throttle lever to increase engine
speed.
Release the throttle lever to decrease engine
speed or to return it to the idle position.
1Clip
2Engine shut-off cord (lanyard)
3Engine shut-off switch
1 3
2
1Start switch
1Throttle lever
1
1
UF2R70E0.book Page 26 Thursday, November 6, 2008 10:05 AM

Features and functions
28
Once the engine slows down, the watercraft
will no longer turn in response to handlebar in-
put until you apply throttle again or you reach
trolling speed.
EJU37340Telescopic steering system
The position of the handlebars can be adjust-
ed up or down using the lock lever.
The handlebars can be adjusted to three po-
sitions.
To adjust the handlebar position:
(1) Pull the lock lever up, and then move the
handlebars up or down to the desired po-
sition. WARNING! Never pull the lock
lever during operation, otherwise the
handlebars may suddenly change po-
sition, which may lead to an accident.
[EWJ01270]
(2) Check that the lock lever returns to its
original position and that the handlebars
are locked in place.
EJU31301Shift lever
The shift lever is located on the starboard
(right) side of the watercraft and is used to
control the reverse gate, which allows the wa-
tercraft to move in reverse or forward.
When the shift lever is in the reverse position,
the watercraft can be launched from a trailer,
or backed up out of tight spots where you can-
not turn around easily.
1Lock lever
1
1Shift lever
2Reverse position
3Forward position
3 2 1
UF2R70E0.book Page 28 Thursday, November 6, 2008 10:05 AM

Features and functions
29
EJU31312Quick Shift Trim System (QSTS)
selector
The QSTS selector is located at the left han-
dlebar grip and is used to adjust the trim angle
of the watercraft.
Operating the QSTS selector changes the an-
gle of the jet thrust nozzle vertically. This
changes the trim angle of the watercraft.There are 5 positions: 2 bow-down positions
(a) and (b), neutral “N”, and 2 bow-up posi-
tions (c) and (d).
To change the trim angle:
(1) Reduce engine speed to less than 3000
r/min.
(2) Squeeze the QSTS selector lock lever,
and then turn the QSTS selector to the
desired position. NOTICE: Do not turn
the QSTS selector while operating the
watercraft at an engine speed of 3000
r/min or more, otherwise damage
could occur to the QSTS.
[ECJ00012]
(3) Release the lock lever to lock the QSTS
selector.
The neutral “N” position will provide good per-
formance for most operating conditions.
1Quick Shift Trim System (QSTS) selector
2QSTS selector lock lever
(c)
(d)(a)
(b)
(b)
(a) (d)
(c)
UF2R70E0.book Page 29 Thursday, November 6, 2008 10:05 AM

Features and functions
31
EJU34880Stern eyes
The stern eyes are located at the stern of the
watercraft.
The stern eyes are used to attach a rope to
the watercraft when transporting or mooring it.
EJU37400Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system are selected using the remote
control transmitter that is included with this
watercraft. The engine cannot be started if the
security system is in the lock mode. The en-
gine can only be started in the unlock mode.
(See page 24 for information on using the re-
mote control transmitter.)
TIP:
The lock and unlock modes of this system can
only be selected while the engine is stopped.
EJU37410Yamaha Security System settings
The Yamaha Security System settings will be
confirmed by the number of beeps when the
remote control transmitter is operated, and by
the “UNLOCK” indicator light of the dual ana-
log meter unit. (See page 33 for more infor-
mation on the dual analog meter unit.)
TIP:

The beeper sounds two times for the nor-
mal operation mode or three times for the L-
MODE (low-RPM mode). (See page 32 for
L-MODE selection procedures.)

If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting is selected.
To select the lock mode:
Press the lock button on the remote control
transmitter briefly. The beeper sounds once
and the “UNLOCK” indicator light blinks once,
then goes off. This indicates the lock mode is
selected.
To select the unlock mode:
Press the “L-Mode” (unlock) button on the re-
mote control transmitter briefly. The beeper
sounds two or three times and the “UNLOCK”
indicator light blinks two or three times, then
1Stern eye
1
Number of
beepsYa m a h a S e c u r i t y
System mode“UN-
LOCK” in-
dicator
light
Lock Goes off
Unlock
(normal operation
mode)Comes
on
Unlock
(L-MODE)Comes
on
1Lock button
2“UNLOCK” indicator light
2
1
UF2R70E0.book Page 31 Thursday, November 6, 2008 10:05 AM

Features and functions
32
comes on. This indicates the unlock mode is
selected.
EJU37420L-MODE (low-RPM mode)
The L-MODE limits the engine speed to ap-
proximately 70% of the maximum engine
speed.
The L-MODE activation and deactivation can
only be selected using the remote control
transmitter. (See page 24 for information on
using the remote control transmitter.)
TIP:
The L-MODE can only be selected when the
engine is stopped in the unlock mode of the
Yamaha Security System.
Activating and deactivating the L-MODE
Activation of the L-MODE will be confirmed by
the number of beeps when the remote control
transmitter is operated, and by the “L-MODE”indicator light of the dual analog meter unit.
(See page 33 for more information on the dual
analog meter unit.)
TIP:
If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit performs the initial op-
eration, and then the setting is selected.
To activate the L-MODE:
Press the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds three times
and the “UNLOCK” indicator light blinks three
times, then comes on, the “L-MODE” indicator
light comes on and the L-MODE is activated.
TIP:
If the L-MODE is selected immediately after
the information display turns off, the “L-
MODE” indicator light will not come on. The
“L-MODE” indicator light will come on when
the engine is started.
1“L-Mode” (unlock) button
2“UNLOCK” indicator light
1Remote control transmitter
2
1
Number of
beepsL-MODE operation“L-
MODE”
indicator
light
ActivatedComes
on
Deactivated Goes off
1“L-Mode” (unlock) button
2“L-MODE” indicator light
2
1
UF2R70E0.book Page 32 Thursday, November 6, 2008 10:05 AM

Features and functions
33
To deactivate the L-MODE:
Press the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds two times and
the “UNLOCK” indicator light blinks two times,
then comes on, the “L-MODE” indicator light
goes off and the L-MODE is deactivated.
When the L-MODE is deactivated, the water-
craft returns to the normal operation mode.
EJU37431Dual analog meter unit
The dual analog meter unit displays various
watercraft information.
Dual analog meter unit initial operation
When the dual analog meter unit starts oper-
ating, the speedometer and tachometer make
one sweep, all segments of the information
display and all indicator lights come on. After
2 seconds, the “WARNING” indicator light, the
“L-MODE” indicator light, and the warning in-
dicators in the information display go off, and
then the unit starts to operate normally.
TIP:
The “UNLOCK” indicator light will go off when
the engine is started.Dual analog meter unit standby state
If the dual analog meter unit does not receive
any operation input within 25 seconds after
the engine stops, the unit will turn off and en-
ter a standby state. When the engine is start-
ed again, the display and the indicator lights
will return to their state before the unit turned
off, and then the unit starts to operate normal-
ly.
EJU37440Speedometer
The speedometer shows the watercraft speed
against water.
The large inner numbers on the meter show
the watercraft speed in miles per hour “MPH”
and the small outer numbers show the speed
in kilometers per hour “km/h”.
EJU37240Tachometer
The tachometer shows the engine speed.
The large inner numbers on the meter show
the engine speed × 1000 RPM (r/min).
1Speedometer
2Information display
3Tachometer
4“Hour Volt” button
5“UNLOCK” indicator light
6“L-MODE” indicator light
7“WARNING” indicator light
123
7 6 5 4
UF2R70E0.book Page 33 Thursday, November 6, 2008 10:05 AM
