Control function operation
24
EJU31024
Watercraft control functions EJU41390Remote control transmitter
The Yamaha Security System and Low RPM
Mode settings can be selected by operating
the remote control transmitter. (See page 25
for Yamaha Security System setting proce-
dures and page 32 for Low RPM Mode activa-
tion procedures.)
Since the watercraft is programmed to recog-
nize the internal code from this transmitter
only, the settings can only be selected with
this transmitter.
If you accidentally lose your remote control
transmitter or if it is not operating properly,
contact a Yamaha dealer.
When operating the watercraft, always keep
the transmitter with you, such as by storing itin the transmitter holder in the beverage hold-
er, so that it is not lost.
NOTICE
ECJ00752

The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.

Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.

Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.

Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.

Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer. Refer
to local hazardous waste regulations
when disposing of transmitter batteries.
1Remote control transmitter
1Transmitter holder
1
UF2R71E0.book Page 24 Monday, July 13, 2009 11:28 AM

Control function operation
25
EJU31384Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system can be selected by operating
the remote control transmitter that is included
with this watercraft. The engine cannot be
started if the lock mode of the security system
is selected. The engine can only be started if
the unlock mode is selected. (See page 24 for
information on the remote control transmitter.)
TIP:
The Yamaha Security System settings can
only be selected while the engine is stopped.
EJU37412Yamaha Security System settings
The Yamaha Security System settings will be
confirmed by the number of beeps when the
remote control transmitter is operated, and by
the “UNLOCK” indicator light of the dual ana-
log meter unit. (See page 34 for information
on the dual analog meter unit.)
TIP:

The beeper sounds two times for the nor-
mal operation mode or three times for the
Low RPM Mode. (See page 32 for Low
RPM Mode activation procedures.)

If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting is selected.To select the lock mode:
Push the lock button on the remote control
transmitter briefly. The beeper sounds once
and the “UNLOCK” indicator light blinks once,
then goes off. This indicates the lock mode is
selected.
To select the unlock mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter briefly. The beeper
sounds two or three times and the “UNLOCK”
indicator light blinks two or three times, then
comes on. This indicates the unlock mode is
selected.
Number of
beepsYamaha Security
System mode“UN-
LOCK” in-
dicator
light
Lock Goes off
Unlock
(normal operation
mode)Comes
on
Unlock
(Low RPM Mode)Comes
on
1Lock button
2“UNLOCK” indicator light
1“L-Mode” (unlock) button
2“UNLOCK” indicator light
1
2
L-Mode1
2
UF2R71E0.book Page 25 Monday, July 13, 2009 11:28 AM

Control function operation
26
EJU31152Engine stop switch“”
The engine stop switch (red button) stops the
engine when the switch is pushed.
EJU31163Engine shut-off switch“”
The engine shut-off switch automatically
stops the engine when the clip, on the end of
the engine shut-off cord (lanyard), is removed
from the switch, such as if the operator falls off
the watercraft.
Insert the clip under the engine shut-off switch
before starting the engine.
When the engine is not running, remove the
clip from the engine shut-off switch to preventaccidental starting or unauthorized operation
by children or others.
EJU36284Start switch“”
NOTICE
ECJ01310
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
The start switch (green button) starts the en-
gine when the switch is pushed.
Release the start switch as soon as the en-
gine starts to run. If the engine does not start
in 5 seconds, release the start switch, wait 15
seconds, and then try again. NOTICE: Never
push the start switch while the engine is
running. Do not operate the start switch
for more than 5 seconds, otherwise the
battery will be discharged and the engine
1Engine stop switch
1Engine shut-off switch
2Clip
3Engine shut-off cord (lanyard)
1
2
1
3
UF2R71E0.book Page 26 Monday, July 13, 2009 11:28 AM

Control function operation
27
will not start. Also, the starter motor could
be damaged.
[ECJ01040]
The engine will not start under any of the fol-
lowing conditions:

Lock mode of the Yamaha Security System
has been selected. (See page 25 for
Yamaha Security System setting proce-
dures.)

Clip is removed from the engine shut-off
switch.

Throttle lever is squeezed.EJU31211Throttle lever
The throttle lever increases the engine speed
when the lever is squeezed.
The throttle lever returns automatically to its
fully closed (idle) position when released.
EJU31261Steering system
By turning the handlebars in the direction you
wish to travel, the angle of the jet thrust nozzle
is changed, and the direction of the watercraft
is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn, ex-
cept at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but you
can turn more sharply if you apply throttle
while turning the handlebars. The OTS sys-
tem does not function below planing speeds
or when the engine is off. Once the engine
slows down, the watercraft will no longer turn
1Start switch
1Throttle lever
1
1
1Handlebar
2Jet thrust nozzle
1
2
UF2R71E0.book Page 27 Monday, July 13, 2009 11:28 AM

Control function operation
28
in response to handlebar input until you apply
throttle again or you reach trolling speed.
EJU37341Telescopic steering system
The position of the handlebars can be adjust-
ed up or down by operating the lock lever.
The handlebars can be adjusted to three po-
sitions.
To adjust the handlebar position:
(1) Pull the lock lever up to disengage the
handlebar lock, and then move the han-
dlebars up or down to the desired posi-
tion. WARNING! Never pull the lock
lever during operation, otherwise the
handlebars may suddenly change po-
sition, which may lead to an accident.
[EWJ01270]
(2) Make sure that the lock lever returns to its
original position and that the handlebars
are securely locked in place.
EJU36743Cooling water pilot outlets
When the engine is running, some of the cool-
ing water that is circulated in the engine is dis-
charged from the cooling water pilot outlets.
There are cooling water pilot outlets on the
port (left) and starboard (right) sides of the
watercraft. To check for proper operation of
the cooling system, make sure that water is
being discharged from the port (left) pilot out-
lets. If water is not being discharged from
these outlets, stop the engine and check the
jet intake for clogging. (See page 89 for infor-
mation on the jet intake.)
TIP:

It will take about 60 seconds for the water to
reach the outlets after the engine is started.
1Lock lever
1
1Cooling water pilot outlet (port [left] side)
1
UF2R71E0.book Page 28 Monday, July 13, 2009 11:28 AM

Control function operation
29

Water discharge may not be constant when
the engine is running at idling speed. If this
occurs, apply a little throttle to make sure
that water discharges properly.

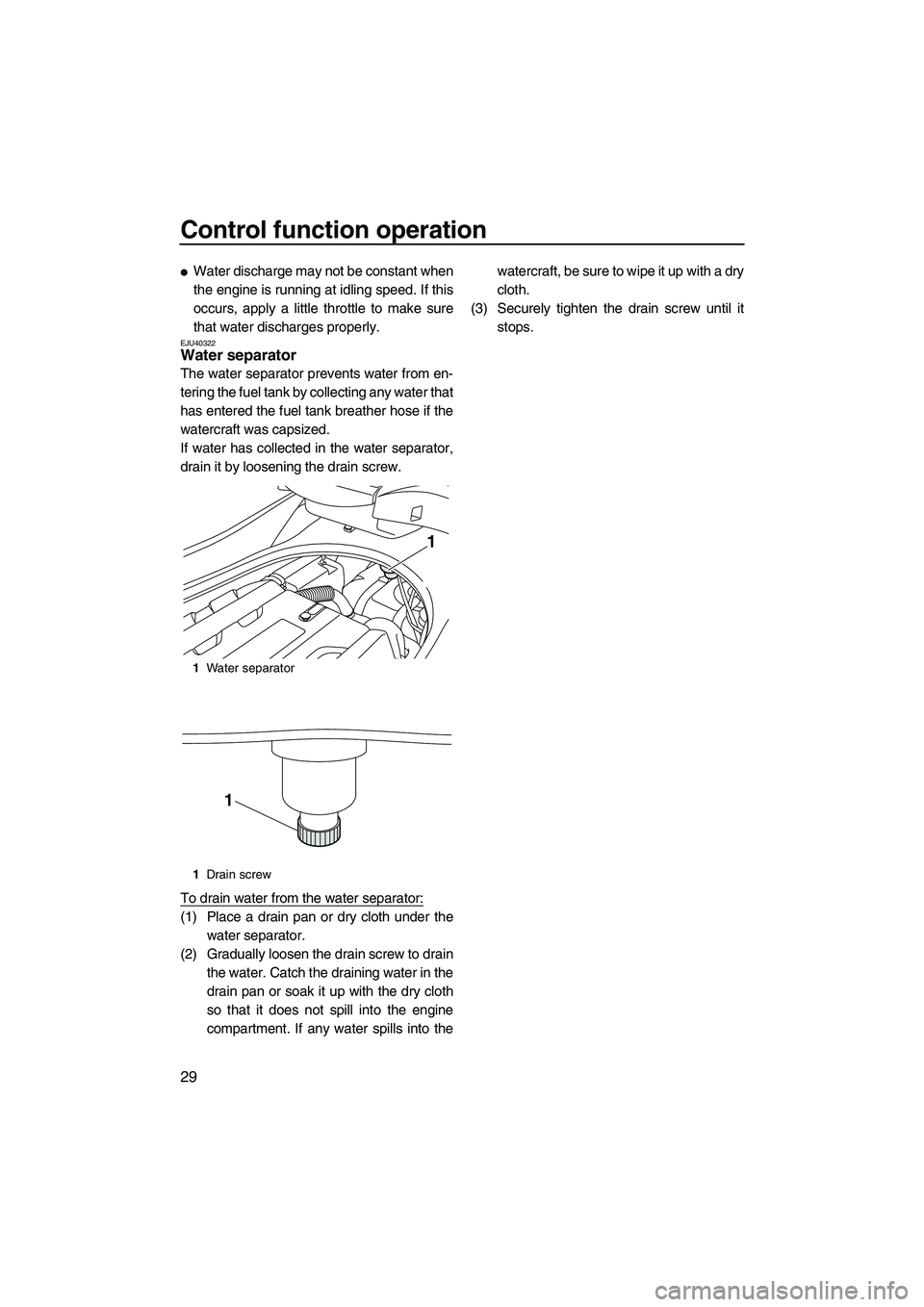

EJU40322Water separator
The water separator prevents water from en-
tering the fuel tank by collecting any water that
has entered the fuel tank breather hose if the
watercraft was capsized.
If water has collected in the water separator,
drain it by loosening the drain screw.
To drain water from the water separator:
(1) Place a drain pan or dry cloth under the
water separator.
(2) Gradually loosen the drain screw to drain
the water. Catch the draining water in the
drain pan or soak it up with the dry cloth
so that it does not spill into the engine
compartment. If any water spills into thewatercraft, be sure to wipe it up with a dry
cloth.
(3) Securely tighten the drain screw until it
stops.
1Water separator
1Drain screw
1
1
UF2R71E0.book Page 29 Monday, July 13, 2009 11:28 AM

Watercraft operation
30
EJU40011
Watercraft operation functions
EJU37182Reverse system
WARNING
EWJ01230

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.

Make sure that there are no obstacles or
people behind you before shifting into
reverse.

Do not touch the reverse gate while the
shift lever is being operated, otherwise
you could be pinched.
When the shift lever is moved to the reverse
position, the reverse gate lowers and deflects
the water jet being discharged from the jet
thrust nozzle. This allows the watercraft to
move in reverse.
To shift into reverse:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Pull the shift lever rearward until it stops
in the reverse position. The reverse gatewill lower and the watercraft will start
moving in reverse at trolling speed.
TIP:
This model is equipped with a function which
limits the engine speed in reverse.
To shift into forward:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Push the shift lever forward until it stops
in the forward position. The reverse gate
will rise and the watercraft will start mov-
ing forward at trolling speed.
1Shift lever
2Reverse position
3Forward position
1Reverse gate
2Forward position
3Reverse position
3 2 1
12
3
UF2R71E0.book Page 30 Monday, July 13, 2009 11:28 AM

Watercraft operation
31
EJU31317Quick Shift Trim System (Q.S.T.S.)
The Q.S.T.S. selector is integrated with the
left handlebar grip and is operated to change
the vertical angle of the jet thrust nozzle,
which adjusts the trim angle of the watercraft.
There are 5 positions: neutral, 2 bow-down
positions (a) and (b), and 2 bow-up positions
(c) and (d).
Bow-down positions (a) and (b)
The bow will go down, causing the trim angle
to decrease.
Vertical movement of the bow will be reduced
and the watercraft will get up on plane more
quickly when accelerating.
Bow-up positions (c) and (d)
The bow will go up, causing the trim angle to
increase.
There is less water resistance, therefore,
straight-ahead acceleration is enhanced.
TIP:
The watercraft performance characteristics
according to the trim angle change depending
on the operating conditions.
To change the trim angle:
(1) Reduce engine speed to less than 3000
r/min.
(2) Squeeze the Q.S.T.S. selector lock lever,
and then turn the Q.S.T.S. selector to the
desired position. NOTICE: Do not turn
the Q.S.T.S. selector while operating
the watercraft at an engine speed of
1Q.S.T.S. selector
(c)
(d)(a)
(b)
(b)
(a) (d)
(c)
1
(d)
(c)
(b)N
(a)
UF2R71E0.book Page 31 Monday, July 13, 2009 11:28 AM

Watercraft operation
32
3000 r/min or more, otherwise damage
could occur to the Q.S.T.S.
[ECJ00013]
(3) Release the lock lever, and then make
sure that the Q.S.T.S. selector is securely
locked in place.
EJU40000
Watercraft operation modes
EJU37422Low RPM Mode
When the Low RPM Mode is activated, maxi-
mum engine speed (r/min) is limited to ap-
proximately 70% of the maximum engine
speed in the normal operation mode.
The Low RPM Mode can only be activated
and deactivated by operating the remote con-
trol transmitter. (See page 24 for information
on the remote control transmitter.)
TIP:
The Low RPM Mode can only be activated
when the engine is stopped in the unlock
mode of the Yamaha Security System.
Activating and deactivating the Low RPM
Mode
Activation of the Low RPM Mode will be con-
firmed by the number of beeps when the re-
mote control transmitter is operated, and by
the “L-MODE” indicator light of the dual ana-
log meter unit. (See page 34 for information
on the dual analog meter unit.)
1Q.S.T.S. selector
2Q.S.T.S. selector lock lever1Remote control transmitter
UF2R71E0.book Page 32 Monday, July 13, 2009 11:28 AM

Watercraft operation
33
TIP:
If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting is selected.
To activate the Low RPM Mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds three times
and the “UNLOCK” indicator light blinks three
times, then comes on, the “L-MODE” indicator
light comes on and the Low RPM Mode is ac-
tivated.
TIP:
If the Low RPM Mode is activated immediate-
ly after the information display turns off, the
“L-MODE” indicator light will not come on. The
“L-MODE” indicator light will come on when
the engine is started.
To deactivate the Low RPM Mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-onds. Once the beeper sounds two times and
the “UNLOCK” indicator light blinks two times,
then comes on, the “L-MODE” indicator light
goes off and the Low RPM Mode is deactivat-
ed. When the Low RPM Mode is deactivated,
the watercraft returns to the normal operation
mode.
Number of
beepsLow RPM Mode
operation“L-
MODE”
indicator
light
ActivatedComes
on
Deactivated Goes off
1“L-Mode” (unlock) button
2“L-MODE” indicator light
L-Mode1
2
UF2R71E0.book Page 33 Monday, July 13, 2009 11:28 AM
