Safety information
15
EJU36850
Hazard information

Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.

Do not touch the hot muffler or engine dur-
ing or immediately after engine operation;
they can cause serious burns.
EJU30920
Watercraft characteristics

Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds should
you attempt to steer the watercraft after re-
leasing the throttle lever. The OTS system
assists in turning by continuing to supply
some thrust while the watercraft is deceler-
ating, but you can turn more sharply if you
apply throttle while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed.
Practice turning in an open area without ob-
stacles until you have a good feel for this
maneuver.

This watercraft is water-jet propelled. The
jet pump is directly connected to the engine.
This means that jet thrust will produce some
movement whenever the engine is running.
There is no “neutral” position. You are in ei-
ther “forward” or “reverse”, depending upon
the shift lever position.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or im-
pact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
legs, ankles, and other bones. You could
also damage the shift mechanism.
UF2R71E0.book Page 15 Monday, July 13, 2009 11:28 AM

Description
22
1234
675
10
1112 1314 9 8
1Q.S.T.S. selector (page 31)
2Q.S.T.S. selector lock lever (page 31)
3Start switch (page 26)
4Engine shut-off switch (page 26)
5Clip (page 26)
6Engine stop switch (page 26)
7Engine shut-off cord (lanyard) (page 26)
8Dual analog meter unit (page 34)
9Rearview mirror
10Glove compartment (page 42)
11Remote control transmitter (page 24)
12Beverage holder (page 44)
13Shift lever (page 30)
14Throttle lever (page 27)
UF2R71E0.book Page 22 Monday, July 13, 2009 11:28 AM

Control function operation
25
EJU31384Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system can be selected by operating
the remote control transmitter that is included
with this watercraft. The engine cannot be
started if the lock mode of the security system
is selected. The engine can only be started if
the unlock mode is selected. (See page 24 for
information on the remote control transmitter.)
TIP:
The Yamaha Security System settings can
only be selected while the engine is stopped.
EJU37412Yamaha Security System settings
The Yamaha Security System settings will be
confirmed by the number of beeps when the
remote control transmitter is operated, and by
the “UNLOCK” indicator light of the dual ana-
log meter unit. (See page 34 for information
on the dual analog meter unit.)
TIP:

The beeper sounds two times for the nor-
mal operation mode or three times for the
Low RPM Mode. (See page 32 for Low
RPM Mode activation procedures.)

If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting is selected.To select the lock mode:
Push the lock button on the remote control
transmitter briefly. The beeper sounds once
and the “UNLOCK” indicator light blinks once,
then goes off. This indicates the lock mode is
selected.
To select the unlock mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter briefly. The beeper
sounds two or three times and the “UNLOCK”
indicator light blinks two or three times, then
comes on. This indicates the unlock mode is
selected.
Number of
beepsYamaha Security
System mode“UN-
LOCK” in-
dicator
light
Lock Goes off
Unlock
(normal operation
mode)Comes
on
Unlock
(Low RPM Mode)Comes
on
1Lock button
2“UNLOCK” indicator light
1“L-Mode” (unlock) button
2“UNLOCK” indicator light
1
2
L-Mode1
2
UF2R71E0.book Page 25 Monday, July 13, 2009 11:28 AM

Control function operation
26
EJU31152Engine stop switch“”
The engine stop switch (red button) stops the
engine when the switch is pushed.
EJU31163Engine shut-off switch“”
The engine shut-off switch automatically
stops the engine when the clip, on the end of
the engine shut-off cord (lanyard), is removed
from the switch, such as if the operator falls off
the watercraft.
Insert the clip under the engine shut-off switch
before starting the engine.
When the engine is not running, remove the
clip from the engine shut-off switch to preventaccidental starting or unauthorized operation
by children or others.
EJU36284Start switch“”
NOTICE
ECJ01310
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
The start switch (green button) starts the en-
gine when the switch is pushed.
Release the start switch as soon as the en-
gine starts to run. If the engine does not start
in 5 seconds, release the start switch, wait 15
seconds, and then try again. NOTICE: Never
push the start switch while the engine is
running. Do not operate the start switch
for more than 5 seconds, otherwise the
battery will be discharged and the engine
1Engine stop switch
1Engine shut-off switch
2Clip
3Engine shut-off cord (lanyard)
1
2
1
3
UF2R71E0.book Page 26 Monday, July 13, 2009 11:28 AM

Control function operation
28
in response to handlebar input until you apply
throttle again or you reach trolling speed.
EJU37341Telescopic steering system
The position of the handlebars can be adjust-
ed up or down by operating the lock lever.
The handlebars can be adjusted to three po-
sitions.
To adjust the handlebar position:
(1) Pull the lock lever up to disengage the
handlebar lock, and then move the han-
dlebars up or down to the desired posi-
tion. WARNING! Never pull the lock
lever during operation, otherwise the
handlebars may suddenly change po-
sition, which may lead to an accident.
[EWJ01270]
(2) Make sure that the lock lever returns to its
original position and that the handlebars
are securely locked in place.
EJU36743Cooling water pilot outlets
When the engine is running, some of the cool-
ing water that is circulated in the engine is dis-
charged from the cooling water pilot outlets.
There are cooling water pilot outlets on the
port (left) and starboard (right) sides of the
watercraft. To check for proper operation of
the cooling system, make sure that water is
being discharged from the port (left) pilot out-
lets. If water is not being discharged from
these outlets, stop the engine and check the
jet intake for clogging. (See page 89 for infor-
mation on the jet intake.)
TIP:

It will take about 60 seconds for the water to
reach the outlets after the engine is started.
1Lock lever
1
1Cooling water pilot outlet (port [left] side)
1
UF2R71E0.book Page 28 Monday, July 13, 2009 11:28 AM

Watercraft operation
30
EJU40011
Watercraft operation functions
EJU37182Reverse system
WARNING
EWJ01230

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.

Make sure that there are no obstacles or
people behind you before shifting into
reverse.

Do not touch the reverse gate while the
shift lever is being operated, otherwise
you could be pinched.
When the shift lever is moved to the reverse
position, the reverse gate lowers and deflects
the water jet being discharged from the jet
thrust nozzle. This allows the watercraft to
move in reverse.
To shift into reverse:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Pull the shift lever rearward until it stops
in the reverse position. The reverse gatewill lower and the watercraft will start
moving in reverse at trolling speed.
TIP:
This model is equipped with a function which
limits the engine speed in reverse.
To shift into forward:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Push the shift lever forward until it stops
in the forward position. The reverse gate
will rise and the watercraft will start mov-
ing forward at trolling speed.
1Shift lever
2Reverse position
3Forward position
1Reverse gate
2Forward position
3Reverse position
3 2 1
12
3
UF2R71E0.book Page 30 Monday, July 13, 2009 11:28 AM

Instrument operation
34
EJU37432
Dual analog meter unit
The dual analog meter unit displays various
watercraft information.
Dual analog meter unit initial operation
When the dual analog meter unit is activated,
the speedometer and tachometer make one
sweep, all of the display segments and indica-
tor lights come on. After 2 seconds, the
“WARNING” indicator light and the warning
indicators in the information display go off,
and then the unit starts to operate normally.
TIP:
The “UNLOCK” indicator light will go off when
the engine is started.
Dual analog meter unit standby state
If the dual analog meter unit does not receive
any operation input within 25 seconds after
the engine stops, the unit will turn off and en-
ter a standby state. When the engine is start-
ed again, the displays return to their state
before the unit turned off, and then the unit
starts to operate normally.
EJU37441Speedometer
The speedometer shows the watercraft speed
against water.
The small outer numbers on the meter show
the watercraft speed in kilometers per hour
“km/h” and the large inner numbers show the
speed in miles per hour “MPH”.
EJU37242Tachometer
The tachometer shows the engine speed.
The inner numbers on the meter show the en-
gine speed × 1000 RPM (r/min).
1Speedometer
2Information display
3Tachometer
4“Hour Volt” button
5“UNLOCK” indicator light
6“L-MODE” indicator light
7“WARNING” indicator light
123
7 6 5 4
UF2R71E0.book Page 34 Monday, July 13, 2009 11:28 AM

Instrument operation
36

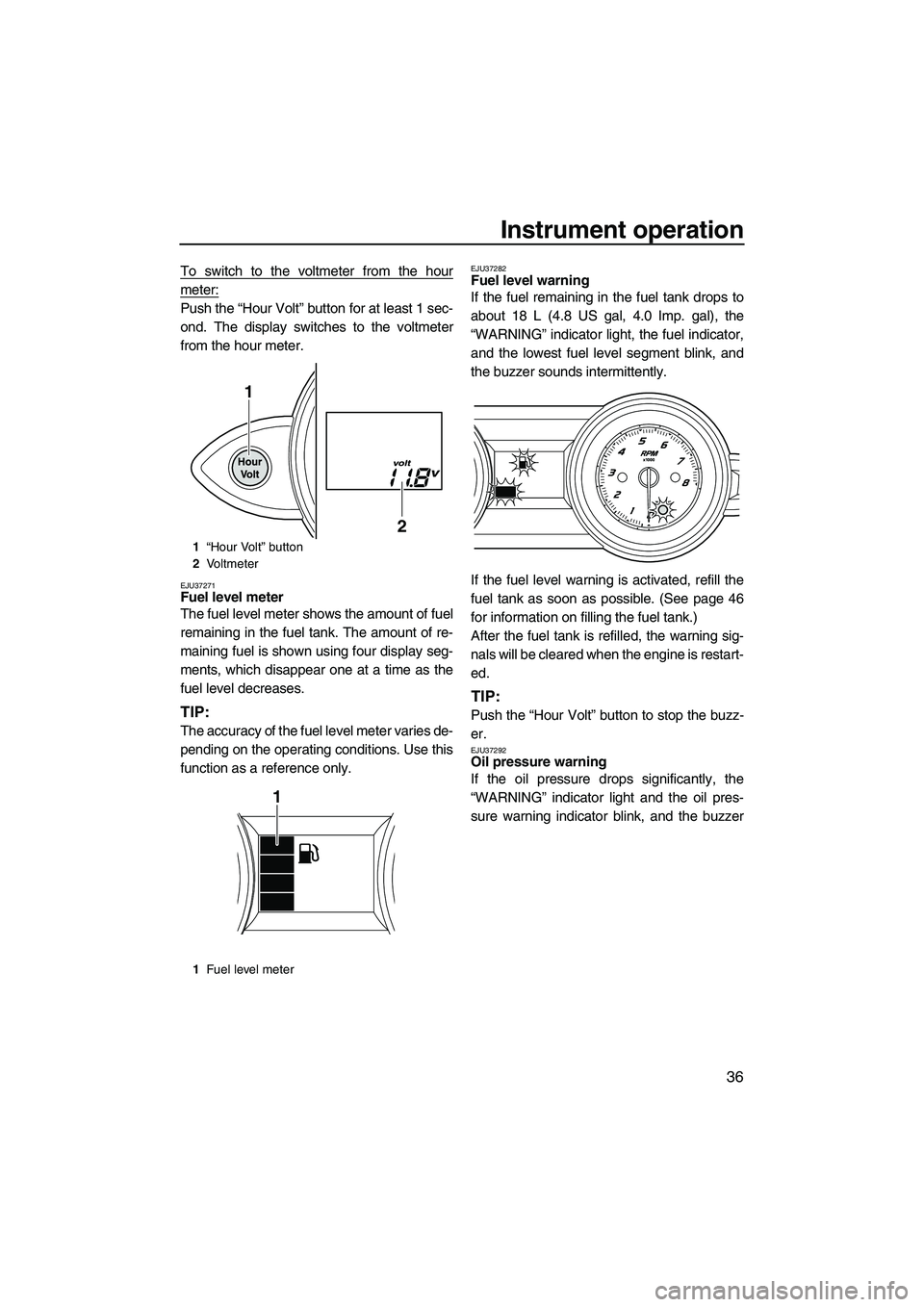

To switch to the voltmeter from the hour
meter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches to the voltmeter
from the hour meter.
EJU37271Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using four display seg-
ments, which disappear one at a time as the
fuel level decreases.
TIP:
The accuracy of the fuel level meter varies de-
pending on the operating conditions. Use this
function as a reference only.
EJU37282Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the
“WARNING” indicator light, the fuel indicator,
and the lowest fuel level segment blink, and
the buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 46
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is restart-
ed.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37292Oil pressure warning
If the oil pressure drops significantly, the
“WARNING” indicator light and the oil pres-
sure warning indicator blink, and the buzzer
1“Hour Volt” button
2Vo l t m e t e r
1Fuel level meter
1
2
1
UF2R71E0.book Page 36 Monday, July 13, 2009 11:28 AM
