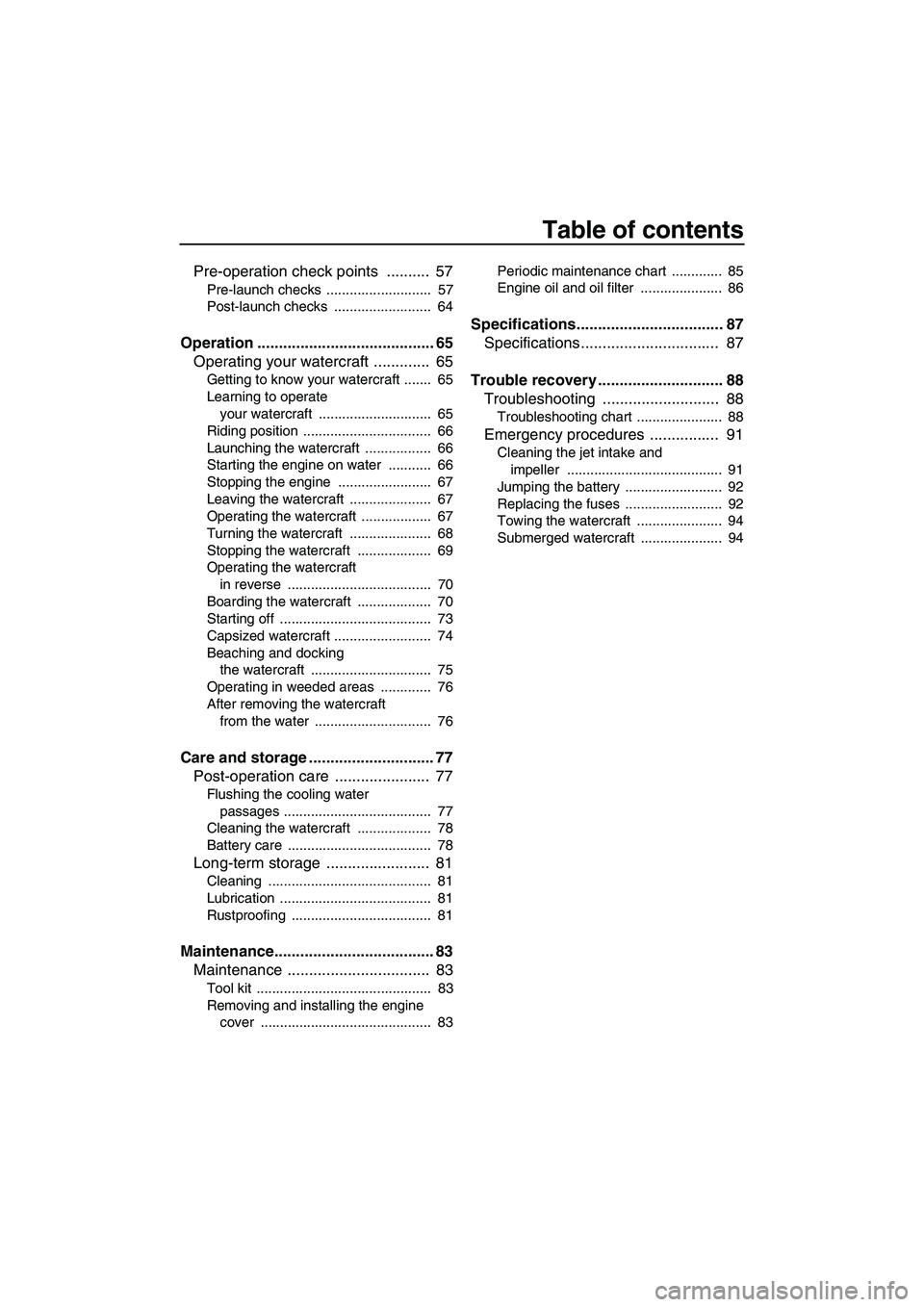

Table of contents
Pre-operation check points .......... 57
Pre-launch checks ........................... 57
Post-launch checks ......................... 64
Operation ......................................... 65
Operating your watercraft ............. 65
Getting to know your watercraft ....... 65
Learning to operate
your watercraft ............................. 65
Riding position ................................. 66
Launching the watercraft ................. 66
Starting the engine on water ........... 66
Stopping the engine ........................ 67
Leaving the watercraft ..................... 67
Operating the watercraft .................. 67
Turning the watercraft ..................... 68
Stopping the watercraft ................... 69
Operating the watercraft
in reverse ..................................... 70
Boarding the watercraft ................... 70
Starting off ....................................... 73
Capsized watercraft ......................... 74
Beaching and docking
the watercraft ............................... 75
Operating in weeded areas ............. 76
After removing the watercraft
from the water .............................. 76
Care and storage ............................. 77
Post-operation care ...................... 77
Flushing the cooling water
passages ...................................... 77
Cleaning the watercraft ................... 78
Battery care ..................................... 78
Long-term storage ........................ 81
Cleaning .......................................... 81
Lubrication ....................................... 81
Rustproofing .................................... 81
Maintenance..................................... 83
Maintenance ................................. 83
Tool kit ............................................. 83
Removing and installing the engine
cover ............................................ 83Periodic maintenance chart ............. 85
Engine oil and oil filter ..................... 86
Specifications.................................. 87
Specifications ................................ 87
Trouble recovery ............................. 88
Troubleshooting ........................... 88
Troubleshooting chart ...................... 88
Emergency procedures ................ 91
Cleaning the jet intake and
impeller ........................................ 91
Jumping the battery ......................... 92
Replacing the fuses ......................... 92
Towing the watercraft ...................... 94
Submerged watercraft ..................... 94
UF2C71E0.book Page 2 Friday, July 10, 2009 1:31 PM

Trouble recovery
88
EJU34561

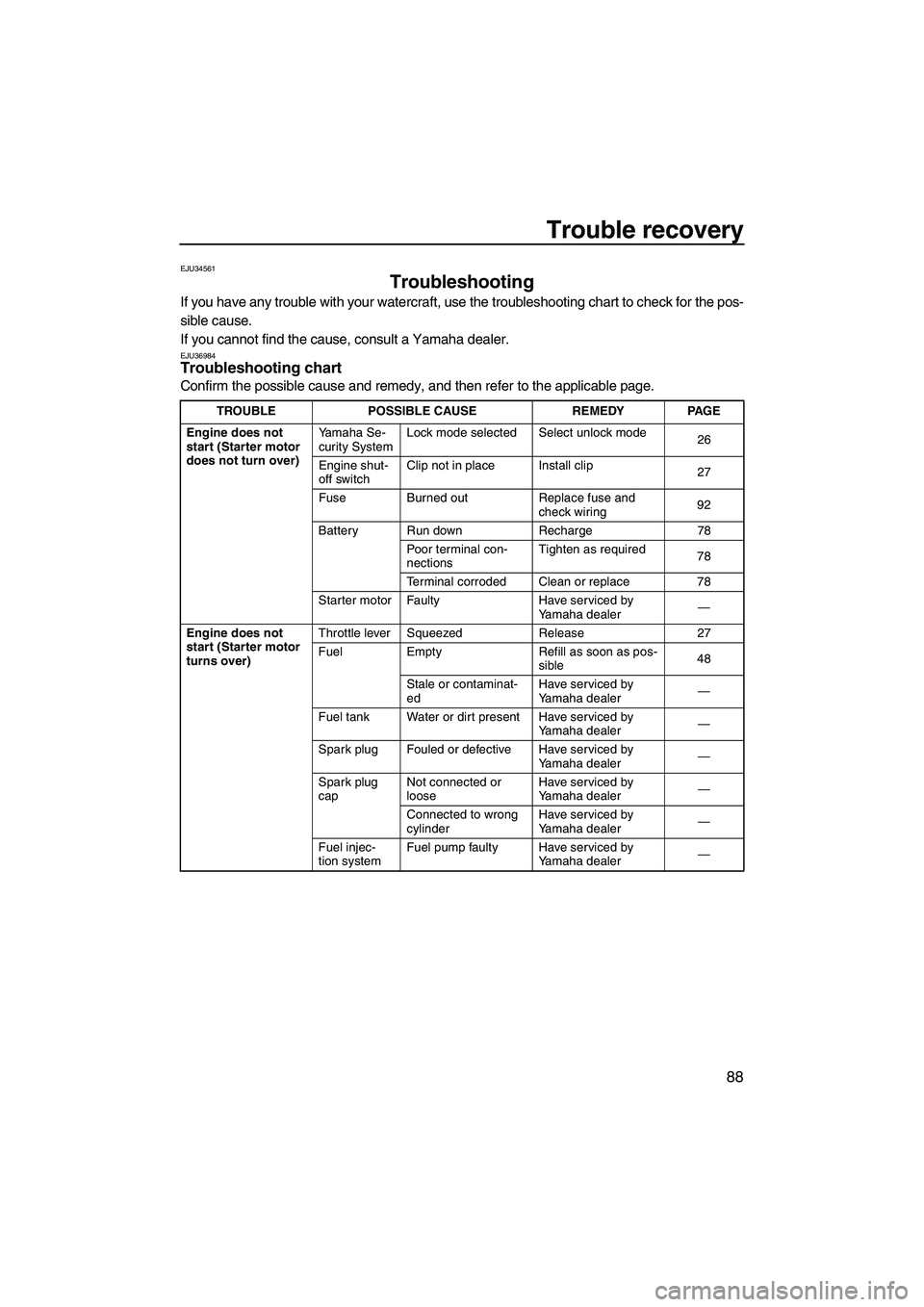

Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the pos-
sible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU36984Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity SystemLock mode selected Select unlock mode
26
Engine shut-
off switchClip not in place Install clip
27
Fuse Burned out Replace fuse and
check wiring92
Battery Run down Recharge 78
Poor terminal con-
nectionsTighten as required
78
Terminal corroded Clean or replace 78
Starter motor Faulty Have serviced by
Yamaha dealer—
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 27
Fuel Empty Refill as soon as pos-
sible48
Stale or contaminat-
edHave serviced by
Yamaha dealer—
Fuel tank Water or dirt present Have serviced by
Yamaha dealer—
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Connected to wrong
cylinderHave serviced by
Yamaha dealer—
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF2C71E0.book Page 88 Friday, July 10, 2009 1:31 PM
