Maintenance
85
(3) Lift up the engine cover to remove it.
To install the engine cover:
(1) Place the engine cover in its original posi-
tion, and then push it down.
(2) Install the engine cover screws, and then
tighten them to the specified torque.
(3) Securely install the seats in their original
positions.
1Engine cover
Tightening torque:
Engine cover screw:
4.5 Nm (0.46 kgf-m, 3.3 ft-lb)
1
UF2C73E0.book Page 85 Monday, June 13, 2011 8:52 AM
Page 92 of 106

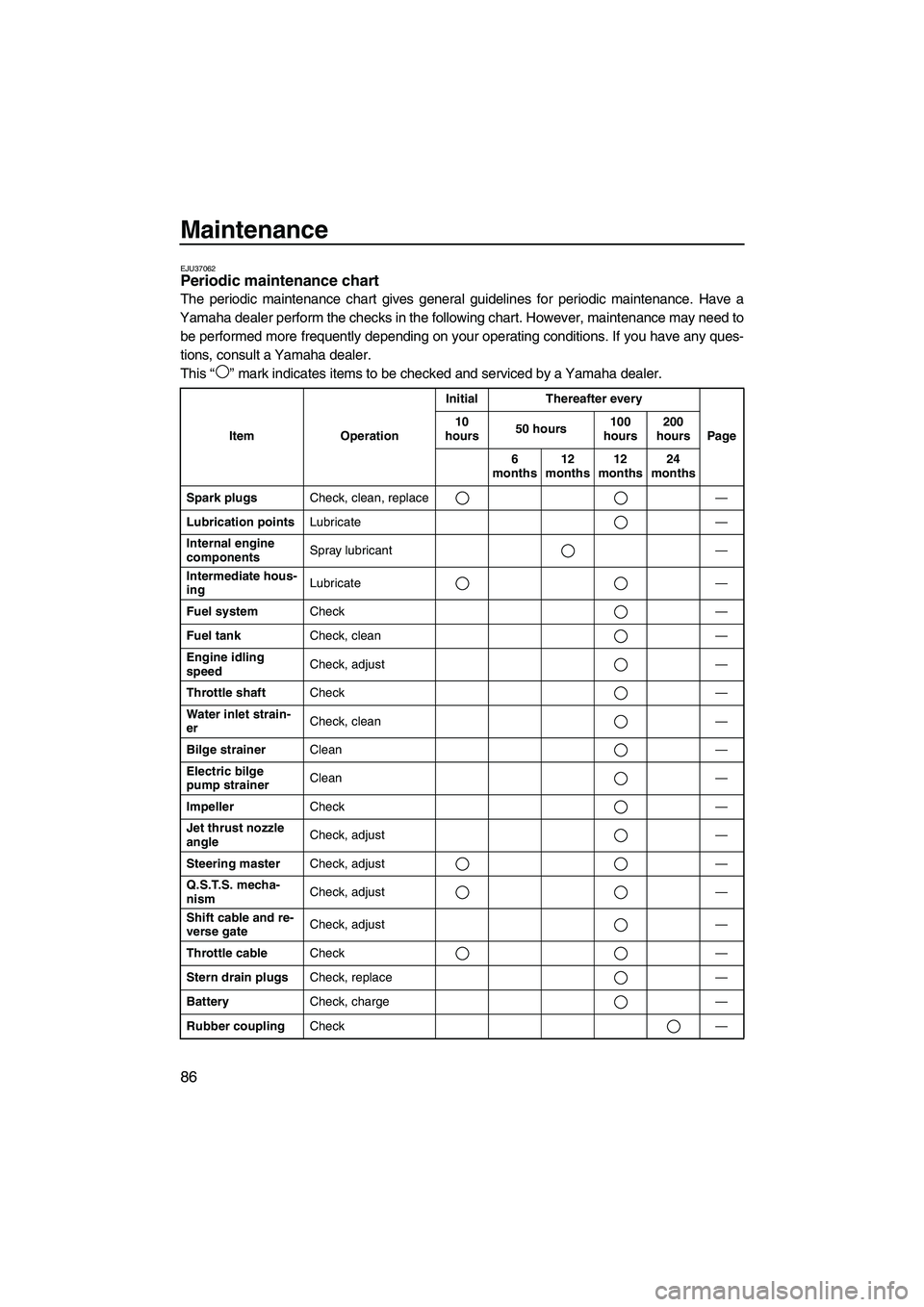

Maintenance
86
EJU37062Periodic maintenance chart
The periodic maintenance chart gives general guidelines for periodic maintenance. Have a
Yamaha dealer perform the checks in the following chart. However, maintenance may need to
be performed more frequently depending on your operating conditions. If you have any ques-
tions, consult a Yamaha dealer.
This“” mark indicates items to be checked and serviced by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50 hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, replace—
Lubrication pointsLubricate—
Internal engine
componentsSpray lubricant—
Intermediate hous-
ingLubricate—
Fuel systemCheck—
Fuel tankCheck, clean—
Engine idling
speedCheck, adjust—
Throttle shaftCheck—
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
Electric bilge
pump strainerClean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust—
Steering masterCheck, adjust—
Q.S.T.S. mecha-
nismCheck, adjust—
Shift cable and re-
verse gateCheck, adjust—
Throttle cableCheck—
Stern drain plugsCheck, replace—
BatteryCheck, charge—
Rubber couplingCheck—
UF2C73E0.book Page 86 Monday, June 13, 2011 8:52 AM
Page 93 of 106

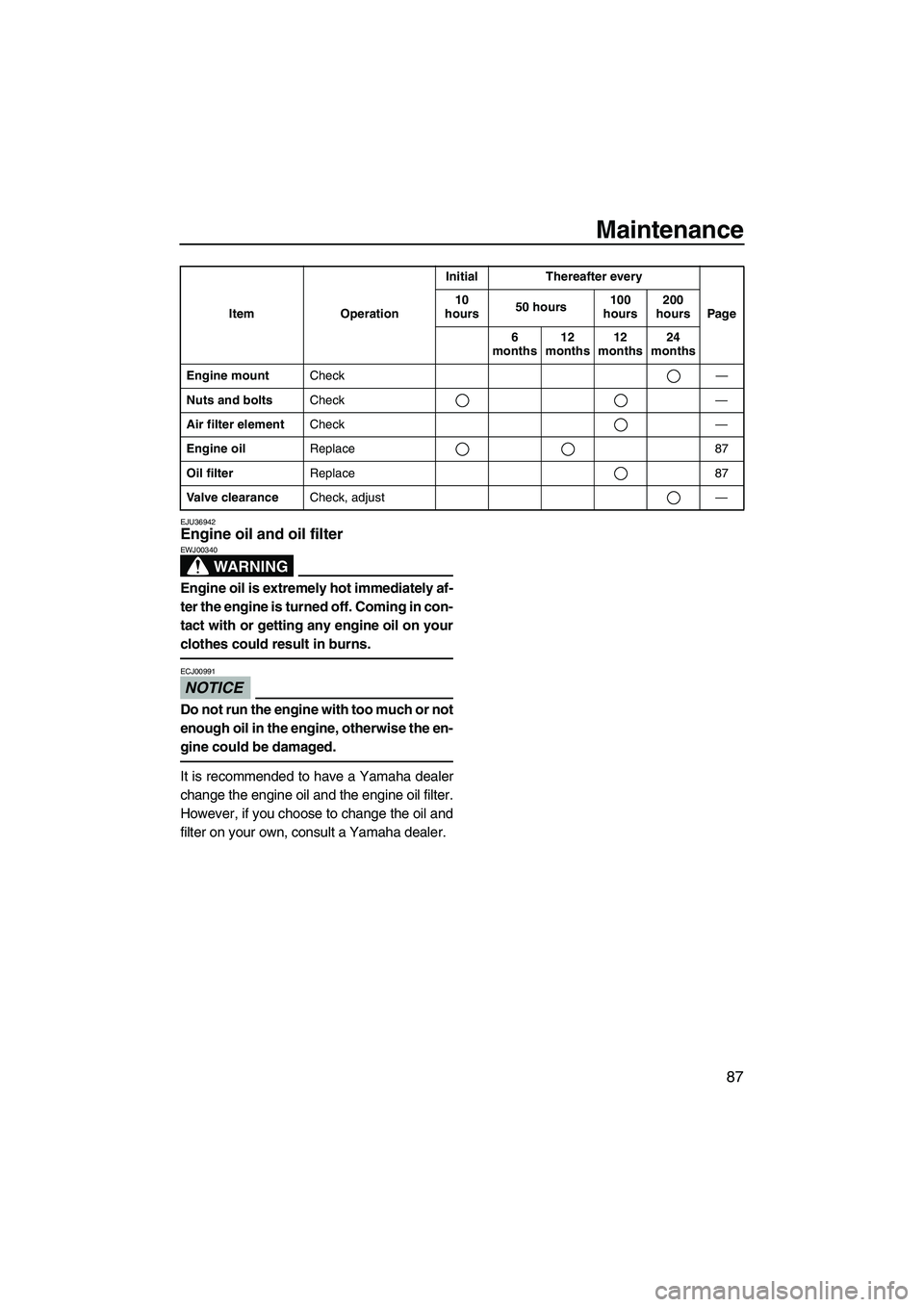

Maintenance
87
EJU36942Engine oil and oil filter
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ00991
Do not run the engine with too much or not
enough oil in the engine, otherwise the en-
gine could be damaged.
It is recommended to have a Yamaha dealer
change the engine oil and the engine oil filter.
However, if you choose to change the oil and
filter on your own, consult a Yamaha dealer.
Engine mountCheck—
Nuts and boltsCheck—
Air filter elementCheck—
Engine oilReplace 87
Oil filterReplace 87
Valve clearanceCheck, adjust— Item OperationInitial Thereafter every
Page 10
hours50 hours100
hours200
hours
6
months12
months12
months24
months
UF2C73E0.book Page 87 Monday, June 13, 2011 8:52 AM
Page 94 of 106

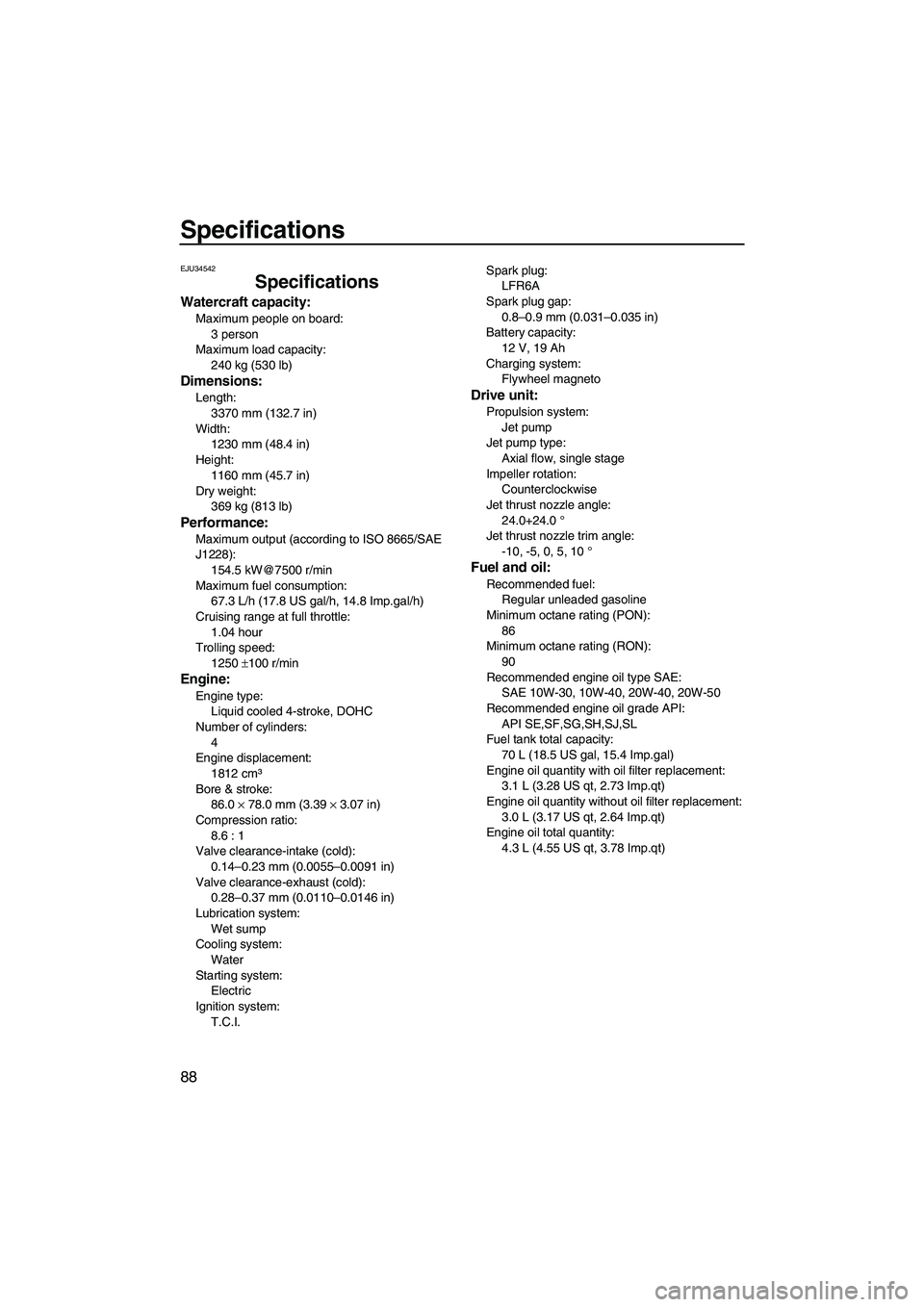

Specifications
88
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
3370 mm (132.7 in)
Width:
1230 mm (48.4 in)
Height:
1160 mm (45.7 in)
Dry weight:
369 kg (813 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
154.5 kW@7500 r/min
Maximum fuel consumption:
67.3 L/h (17.8 US gal/h, 14.8 Imp.gal/h)
Cruising range at full throttle:
1.04 hour
Trolling speed:
1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore & stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
8.6 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
Electric
Ignition system:
T.C.I.Spark plug:
LFR6A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Engine oil quantity without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2C73E0.book Page 88 Monday, June 13, 2011 8:52 AM
Page 95 of 106

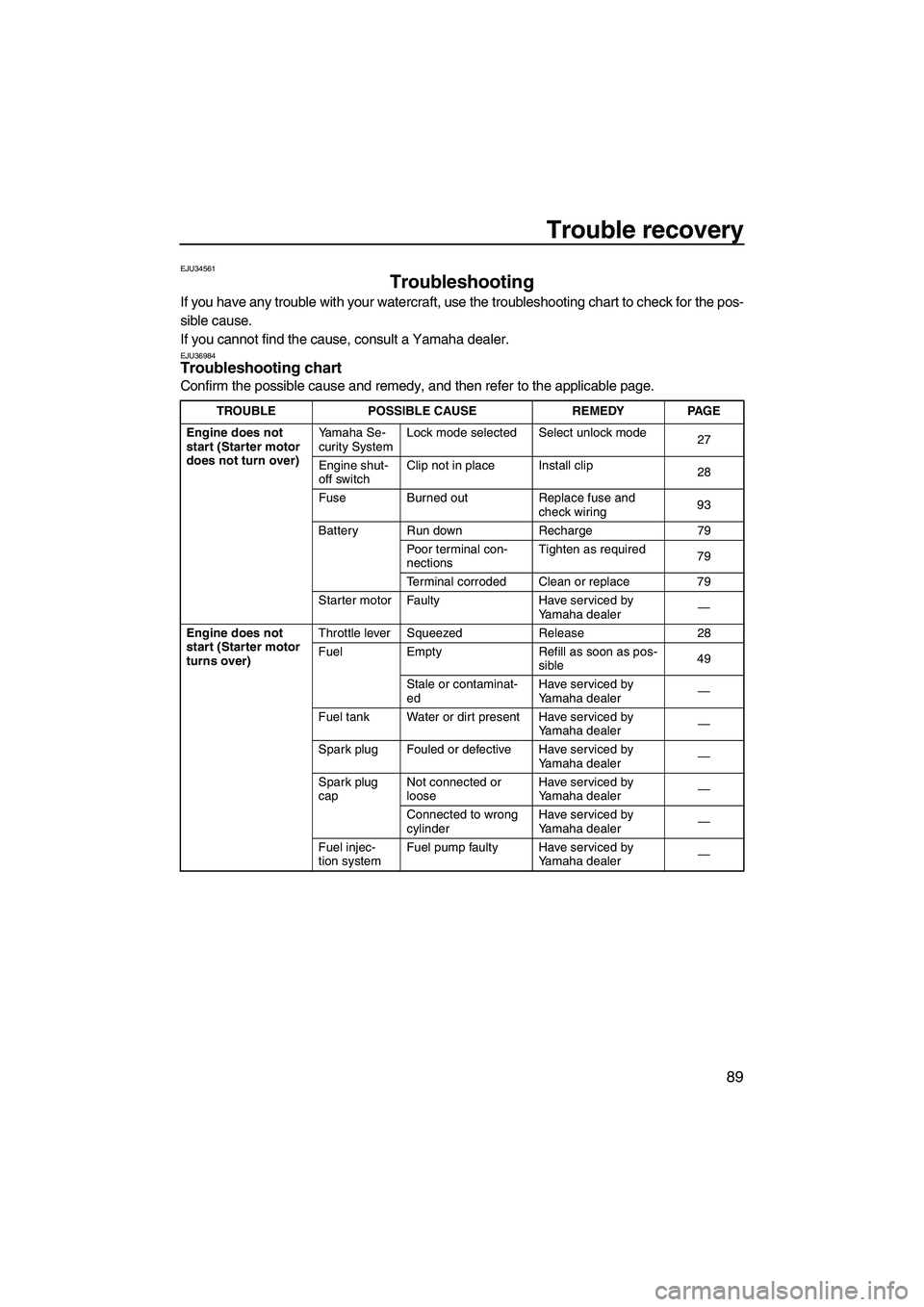

Trouble recovery
89
EJU34561
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the pos-
sible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU36984Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity SystemLock mode selected Select unlock mode
27
Engine shut-
off switchClip not in place Install clip
28
Fuse Burned out Replace fuse and
check wiring93
Battery Run down Recharge 79
Poor terminal con-
nectionsTighten as required
79
Terminal corroded Clean or replace 79
Starter motor Faulty Have serviced by
Yamaha dealer—
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 28
Fuel Empty Refill as soon as pos-
sible49
Stale or contaminat-
edHave serviced by
Yamaha dealer—
Fuel tank Water or dirt present Have serviced by
Yamaha dealer—
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Connected to wrong
cylinderHave serviced by
Yamaha dealer—
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF2C73E0.book Page 89 Monday, June 13, 2011 8:52 AM
Page 96 of 106

Trouble recovery
90
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible49
Stale or contaminat-
edHave serviced by
Yamaha dealer—
Fuel tank Water or dirt present Have serviced by
Yamaha dealer—
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Incorrect heat range Have serviced by
Yamaha dealer—
Gap incorrect Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Cracked, torn, or
damagedHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinks or
comes onFuel level Empty Refill as soon as pos-
sible49
Oil pressure
warningOil pressure dropped Have serviced by
Yamaha dealer38
Engine over-
heatedJet intake clogged Clean
92
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer39 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2C73E0.book Page 90 Monday, June 13, 2011 8:52 AM
Page 97 of 106

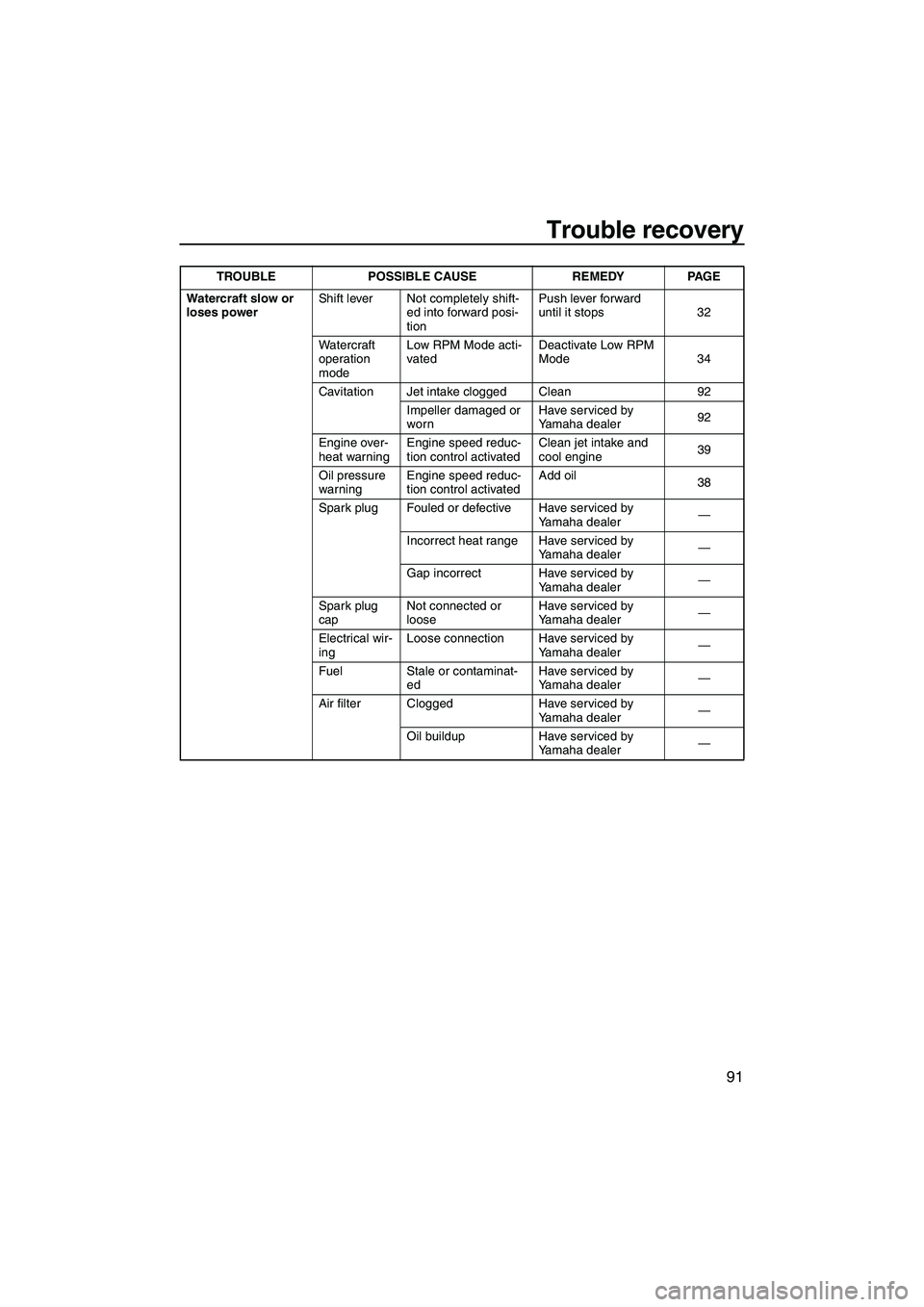

Trouble recovery
91
Watercraft slow or
loses powerShift lever Not completely shift-
ed into forward posi-
tionPush lever forward
until it stops 32
Watercraft
operation
modeLow RPM Mode acti-
vatedDeactivate Low RPM
Mode 34
Cavitation Jet intake clogged Clean 92
Impeller damaged or
wornHave serviced by
Yamaha dealer92
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine39
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
38
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Incorrect heat range Have serviced by
Yamaha dealer—
Gap incorrect Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer—
Air filter Clogged Have serviced by
Yamaha dealer—
Oil buildup Have serviced by
Yamaha dealer— TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2C73E0.book Page 91 Monday, June 13, 2011 8:52 AM
Page 98 of 106

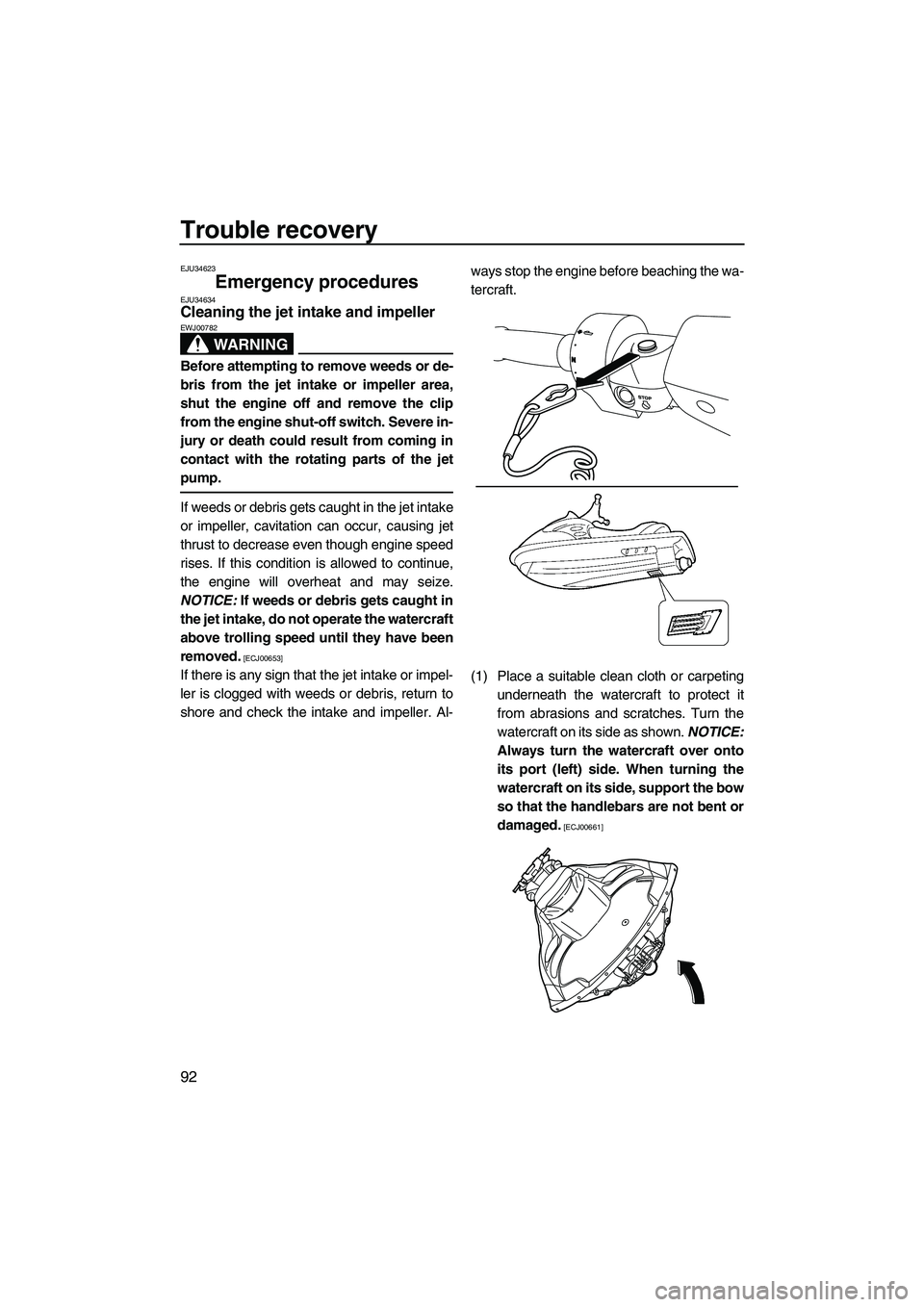

Trouble recovery
92
EJU34623
Emergency procedures EJU34634Cleaning the jet intake and impeller
WARNING
EWJ00782
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the watercraft
above trolling speed until they have been
removed.
[ECJ00653]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-ways stop the engine before beaching the wa-
tercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown. NOTICE:
Always turn the watercraft over onto
its port (left) side. When turning the
watercraft on its side, support the bow
so that the handlebars are not bent or
damaged.
[ECJ00661]
UF2C73E0.book Page 92 Monday, June 13, 2011 8:52 AM
Page 99 of 106

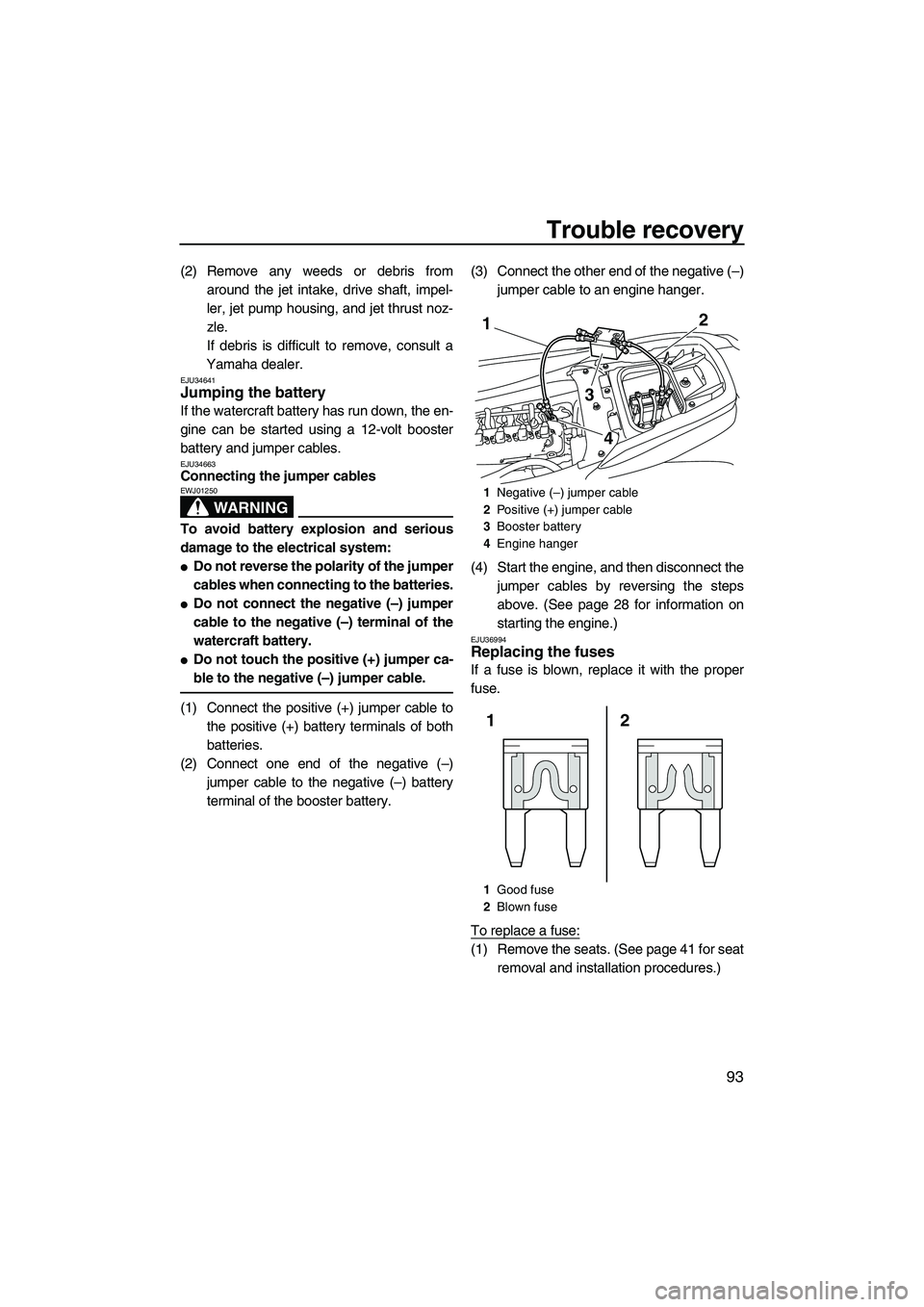

Trouble recovery
93
(2) Remove any weeds or debris from
around the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU34641Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34663Connecting the jumper cables
WARNING
EWJ01250
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batteries.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to
the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–)
jumper cable to the negative (–) battery
terminal of the booster battery.(3) Connect the other end of the negative (–)
jumper cable to an engine hanger.
(4) Start the engine, and then disconnect the
jumper cables by reversing the steps
above. (See page 28 for information on
starting the engine.)
EJU36994Replacing the fuses
If a fuse is blown, replace it with the proper
fuse.
To replace a fuse:
(1) Remove the seats. (See page 41 for seat
removal and installation procedures.)
1Negative (–) jumper cable
2Positive (+) jumper cable
3Booster battery
4Engine hanger
1Good fuse
2Blown fuse
2
3 1
4
2 1
UF2C73E0.book Page 93 Monday, June 13, 2011 8:52 AM
Page 100 of 106

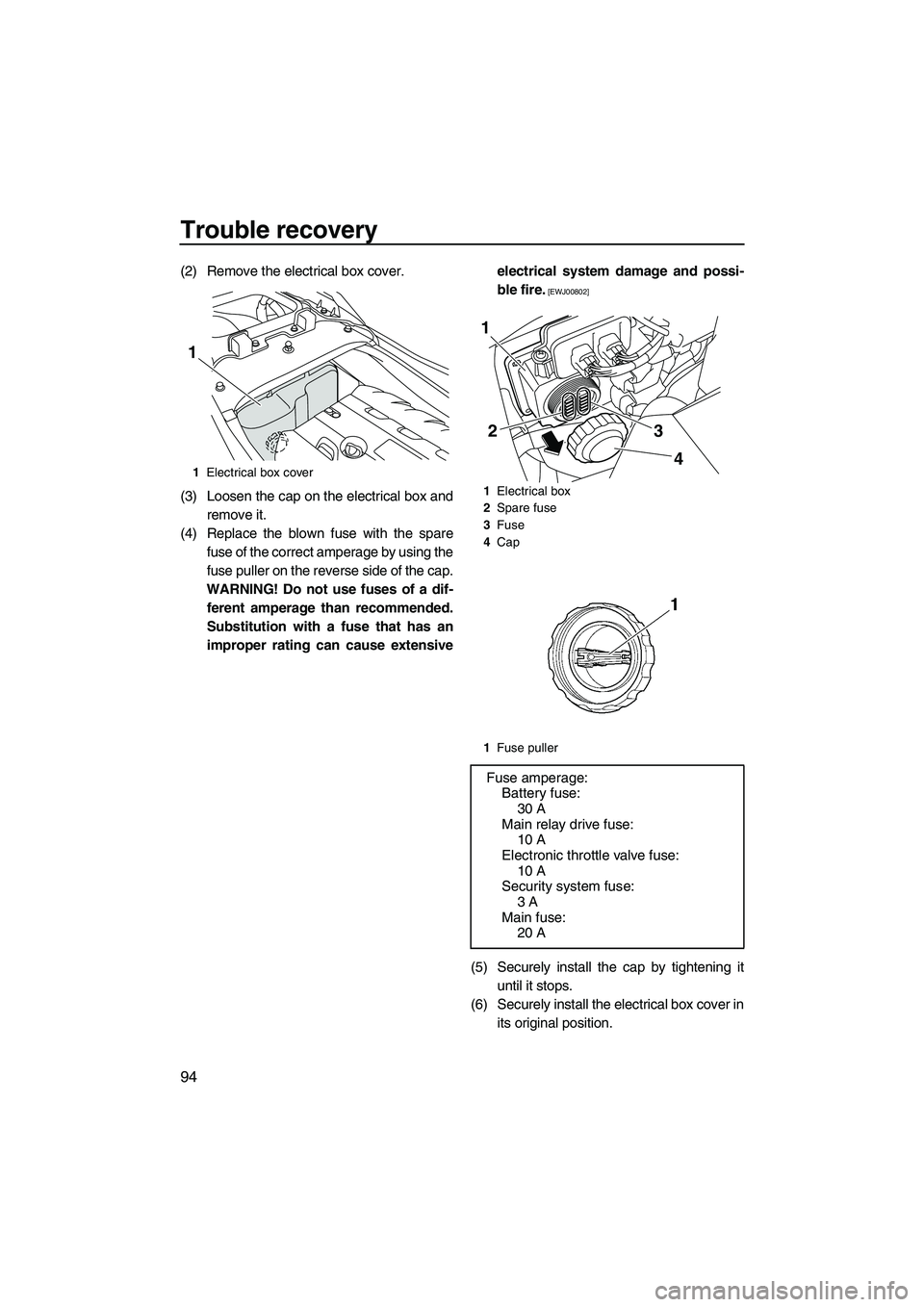

Trouble recovery
94
(2) Remove the electrical box cover.
(3) Loosen the cap on the electrical box and
remove it.
(4) Replace the blown fuse with the spare
fuse of the correct amperage by using the
fuse puller on the reverse side of the cap.
WARNING! Do not use fuses of a dif-
ferent amperage than recommended.
Substitution with a fuse that has an
improper rating can cause extensiveelectrical system damage and possi-
ble fire.
[EWJ00802]
(5) Securely install the cap by tightening it
until it stops.
(6) Securely install the electrical box cover in
its original position.
1Electrical box cover
1
1Electrical box
2Spare fuse
3Fuse
4Cap
1Fuse puller
Fuse amperage:
Battery fuse:
30 A
Main relay drive fuse:
10 A
Electronic throttle valve fuse:
10 A
Security system fuse:
3 A
Main fuse:
20 A
3 2
4
1
UF2C73E0.book Page 94 Monday, June 13, 2011 8:52 AM
