Trouble recovery
95
(2) Remove any weeds or debris fromaround the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.

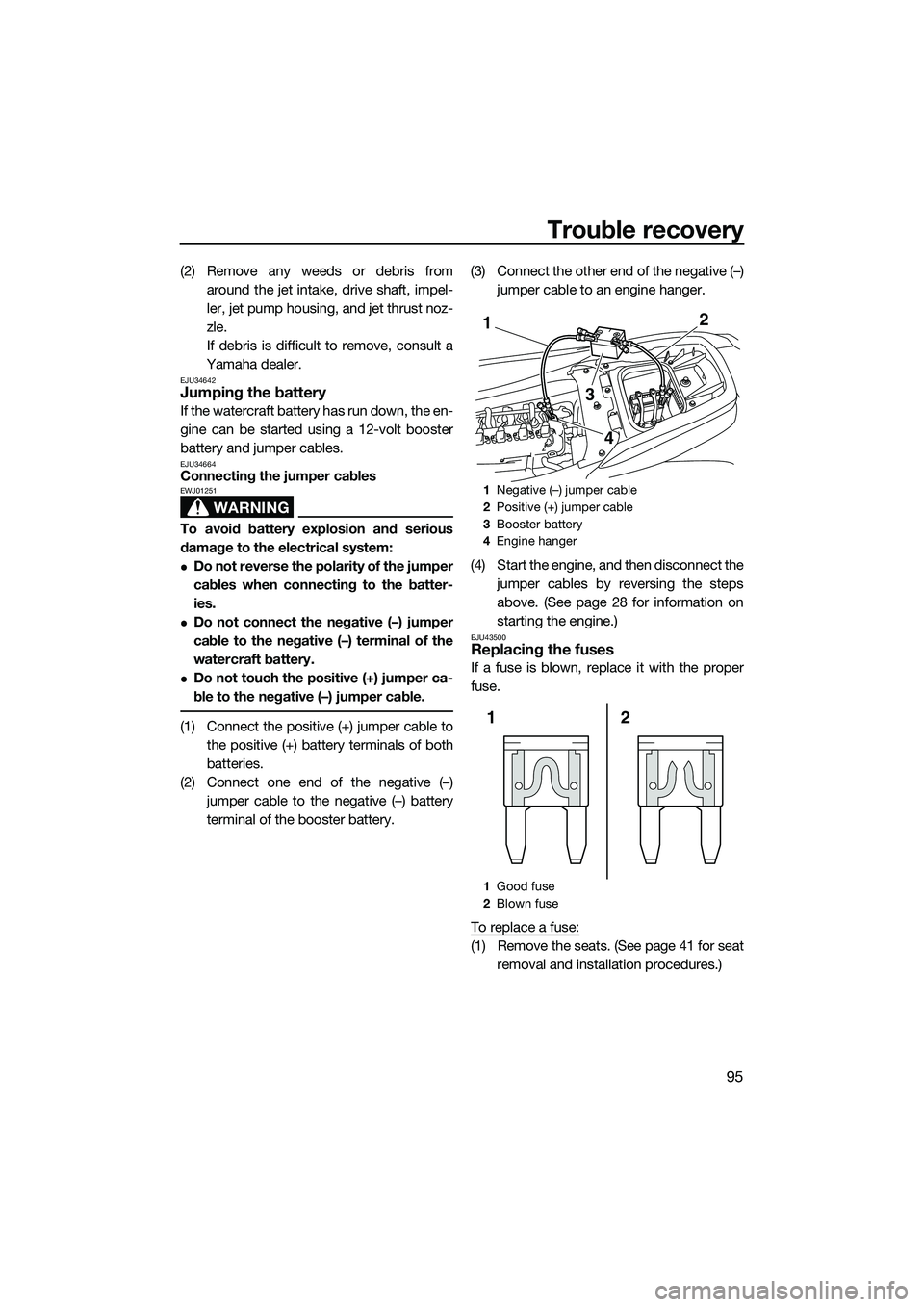

EJU34642Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34664Connecting the jumper cables
WARNING
EWJ01251
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batter-
ies.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–) jumper cable to the negative (–) battery
terminal of the booster battery. (3) Connect the other end of the negative (–)
jumper cable to an engine hanger.
(4) Start the engine, and then disconnect the jumper cables by reversing the steps
above. (See page 28 for information on
starting the engine.)
EJU43500Replacing the fuses
If a fuse is blown, replace it with the proper
fuse.
To replace a fuse:
(1) Remove the seats. (See page 41 for seatremoval and installation procedures.)
1Negative (–) jumper cable
2 Positive (+) jumper cable
3 Booster battery
4 Engine hanger
1 Good fuse
2 Blown fuse
2
3
1
4
2
1
UF3K71E0.book Page 95 Monday, August 18, 2014 2:54 PM

Trouble recovery
96

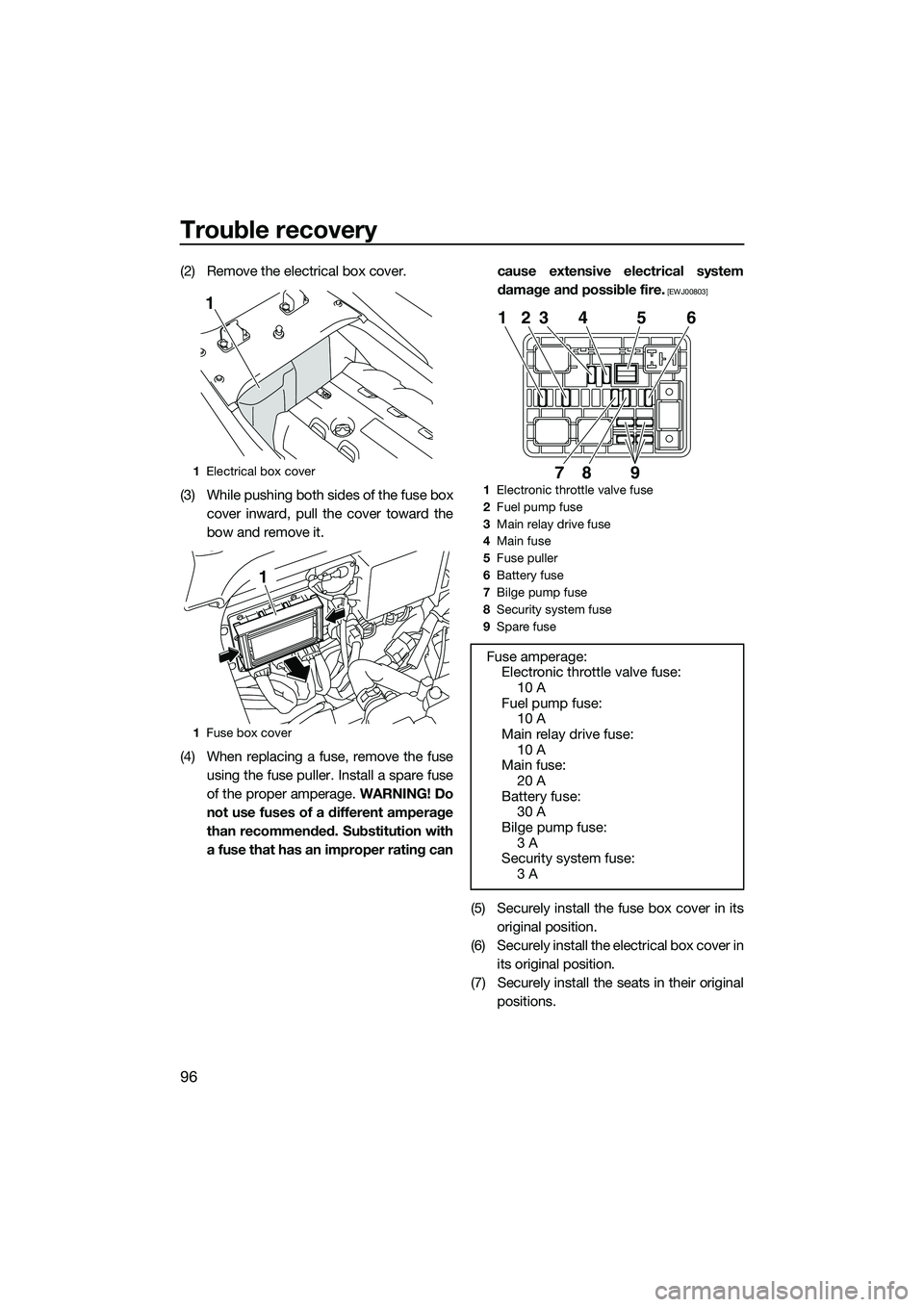

(2) Remove the electrical box cover.
(3) While pushing both sides of the fuse boxcover inward, pull the cover toward the
bow and remove it.
(4) When replacing a fuse, remove the fuse using the fuse puller. Install a spare fuse
of the proper amperage. WARNING! Do
not use fuses of a different amperage
than recommended. Substitution with
a fuse that has an improper rating can cause extensive electrical system
damage and possible fire.
[EWJ00803]
(5) Securely install the fuse box cover in its
original position.
(6) Securely install the electrical box cover in its original position.
(7) Securely install the seats in their original positions.
1Electrical box cover
1 Fuse box cover
1
1
1Electronic throttle valve fuse
2 Fuel pump fuse
3 Main relay drive fuse
4 Main fuse
5 Fuse puller
6 Battery fuse
7 Bilge pump fuse
8 Security system fuse
9 Spare fuse
Fuse amperage:
Electronic throttle valve fuse: 10 A
Fuel pump fuse: 10 A
Main relay drive fuse:
10 A
Main fuse: 20 A
Battery fuse: 30 A
Bilge pump fuse:
3 A
Security system fuse: 3 A
1
9
23 4 5 6
87
UF3K71E0.book Page 96 Monday, August 18, 2014 2:54 PM

Trouble recovery
97
If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.

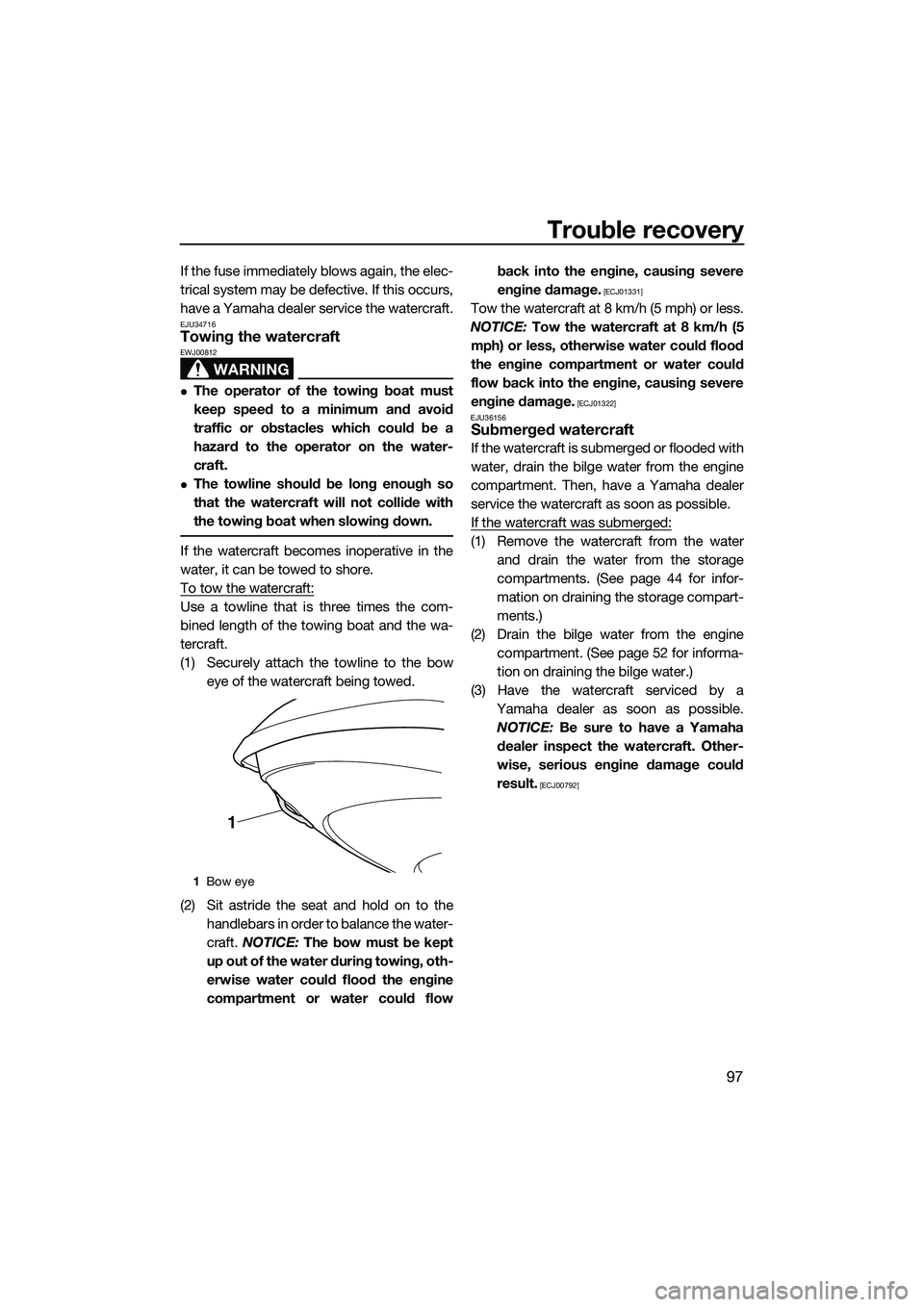

EJU34716Towing the watercraft
WARNING
EWJ00812
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the boweye of the watercraft being towed.
(2) Sit astride the seat and hold on to the handlebars in order to balance the water-
craft. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow back into the engine, causing severe
engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]
EJU36156
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
If the watercraft was submerged:
(1) Remove the watercraft from the water and drain the water from the storage
compartments. (See page 44 for infor-
mation on draining the storage compart-
ments.)
(2) Drain the bilge water from the engine compartment. (See page 52 for informa-
tion on draining the bilge water.)
(3) Have the watercraft serviced by a Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could
result.
[ECJ00792]
1 Bow eye
1
UF3K71E0.book Page 97 Monday, August 18, 2014 2:54 PM

98
Index
A
After removing the watercraft from the water ..................................................... 78
B
Battery care.............................................. 80
Battery checks ......................................... 59
Battery, jumping ....................................... 95
Beaching and docking the watercraft ...... 77
Beverage holder ....................................... 46
Bilge water check..................................... 59
Bilge water, draining ................................ 52
Bilge water, draining on land ................... 52
Bilge water, draining on water ................. 53
Boarding alone ......................................... 73
Boarding and starting off from a dock ..... 76
Boarding the watercraft ........................... 72
Boarding with passenger(s) ..................... 73
Bow eye ................................................... 43
Bow storage compartment ...................... 44
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 76
Check engine warning ............................. 39
Cleaning ................................................... 83
Cleaning the watercraft ............................ 80
Cleat ......................................................... 43
Cooling water pilot outlet check .............. 65
Cooling water pilot outlets ....................... 30
Craft Identification Number (CIN)............... 1
Cruising limitations................................... 12
D
Dual analog meter unit ............................. 36
Dual analog meter unit check .................. 65
E
Emergency procedures ............................ 94
Engine break-in ........................................ 55
Engine compartment check ..................... 58
Engine cover, removing and installing ..... 85
Engine idling speed check ....................... 66
Engine oil ................................................. 51
Engine oil and oil filter .............................. 89
Engine oil level check............................... 59
Engine oil requirements ........................... 51
Engine overheat warning ......................... 39
Engine serial number ................................. 1 Engine shut-off cord (lanyard) check ....... 63
Engine shut-off switch ............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 59
Enjoy your watercraft responsibly ............ 20
Equipment ................................................ 41
F
Fire extinguisher check ............................ 64
Fire extinguisher holder and cover........... 47
Fire extinguisher holder, cover, and
band checks ......................................... 64
Flushing the cooling water passages....... 79
Fuel .......................................................... 49
Fuel level check........................................ 58
Fuel level meter ........................................ 38
Fuel level warning..................................... 38
Fuel requirements .................................... 49
Fuel system checks ................................. 58
Fuses, replacing ....................................... 95
G
Getting to know your watercraft .............. 67
Glossary, watercraft ................................. 21
Glove compartment ................................. 45
H
Handgrips................................................. 42
Hazard information................................... 16
Hood check .............................................. 65
Hour meter/voltmeter ............................... 37
Hull and deck check ................................ 64
I
Identification numbers ............................... 1
Information display................................... 37
J
Jet intake and impeller, cleaning.............. 94
Jet intake checks ..................................... 64
Jumper cables, connecting ...................... 95
L
Labels, important ....................................... 4
Labels, other .............................................. 9
Labels, warning .......................................... 5
Launching the watercraft ......................... 68
Learning to operate your watercraft......... 67
Leaving the watercraft.............................. 69
Limitations on who may operate the watercraft .............................................. 11
UF3K71E0.book Page 98 Monday, August 18, 2014 2:54 PM

Index
99
Long-term storage ................................... 83
Low RPM Mode ....................................... 34
Lubrication ............................................... 83
M
Main components, location of ................. 22
Maintenance ............................................ 85
Manufactured date label ............................ 2
Model information ...................................... 2
O
Oil pressure warning ................................ 38
Operating in weeded areas ...................... 78
Operating the watercraft .......................... 69
Operating the watercraft in reverse ......... 72
Operating your watercraft ........................ 67
Operation requirements ........................... 13
P
Periodic maintenance chart ..................... 87
Post-launch checks ................................. 65
Post-operation care ................................. 79
Pre-launch checks ................................... 58
Pre-operation check points ..................... 58
Pre-operation checklist ............................ 56
Primary Identification (PRI-ID) number ...... 1
Q
Quick Shift Trim System (Q.S.T.S.) .......... 32
Quick Shift Trim System (Q.S.T.S.) checks .................................................. 61
R
Reboarding grip ....................................... 42
Reboarding step ...................................... 42
Recommended equipment ...................... 15
Remote control transmitter ...................... 26
Remote control transmitter check ........... 62
Reverse system........................................ 32
Reverse system checks ........................... 61
Riding position ......................................... 68
Rustproofing ............................................ 83
S
Safe boating rules .................................... 19
Safety equipment check .......................... 64
Seats ........................................................ 41
Speedometer ........................................... 36
Start switch .............................................. 28
Starting off ............................................... 75
Starting off from a trailer .......................... 76 Starting the engine on water .................... 68
Steering system ....................................... 29
Steering system checks ........................... 60
Stern drain plug checks ........................... 64
Stern eyes ................................................ 43
Stopping the engine ................................. 69
Stopping the watercraft ........................... 71
Storage compartment checks.................. 63
Storage compartments ............................ 44
Submerged watercraft ............................. 97
Switch checks .......................................... 63
T
Tachometer .............................................. 36
Telescopic steering system...................... 30
Telescopic steering system checks ......... 61
Throttle lever ............................................ 29
Throttle lever checks ................................ 62
Tool kit ..................................................... 85
Towing the watercraft .............................. 97
Transporting on a trailer ........................... 54
Troubleshooting ....................................... 91
Troubleshooting chart .............................. 91
Turning the watercraft .............................. 70
W
Wakeboarding and water-skiing .............. 18
Water separator ....................................... 31
Water separator check ............................. 58
Watercraft characteristics ........................ 16
Watercraft control functions..................... 26
Watercraft operation functions ................ 32
Watercraft operation modes .................... 34
Watertight storage compartment ............. 46
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF3K71E0.book Page 99 Monday, August 18, 2014 2:54 PM

Printed in U.S.A.
August 2014–0.1 × 1 CR
UF3K71E0.book Page 1 Monday, August 18, 2014 2:54 PM
