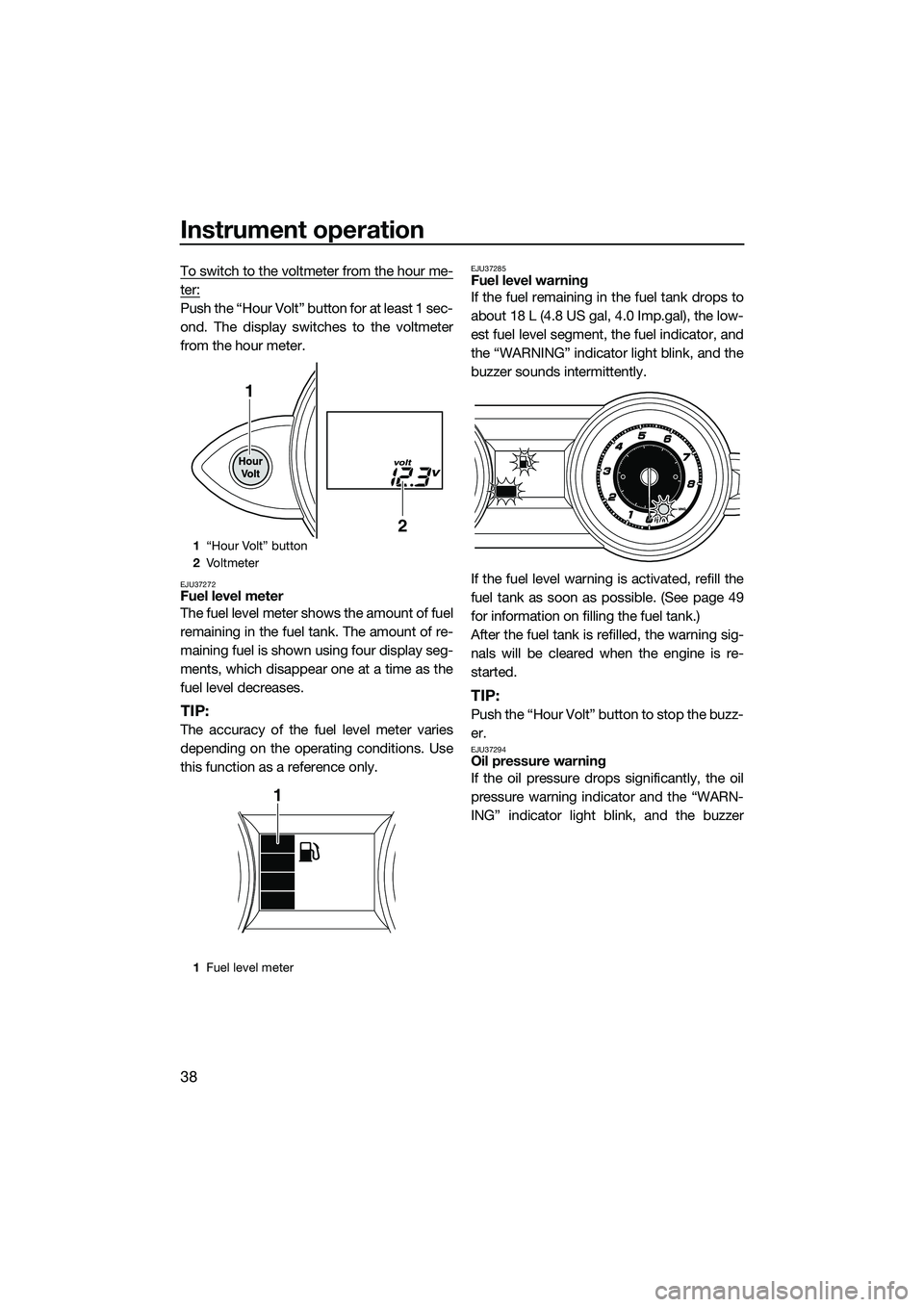

Instrument operation
38
To switch to the voltmeter from the hour me-
ter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches to the voltmeter
from the hour meter.
EJU37272Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using four display seg-
ments, which disappear one at a time as the
fuel level decreases.
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
EJU37285Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp.gal), the low-
est fuel level segment, the fuel indicator, and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 49
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is re-
started.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37294Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator and the “WARN-
ING” indicator light blink, and the buzzer
1“Hour Volt” button
2 Vo l t m et e r
1 Fuel level meter
1
2
1
UF3K71E0.book Page 38 Monday, August 18, 2014 2:54 PM

Care and storage
80
ter flows out continually from the jet
thrust nozzle.
(7) Run the engine at idling speed for about 3 minutes watching the engine condition.
If the engine stops while flushing, turn
the water supply off immediately and
perform the procedure again from step 6.
NOTICE: Do not supply water to the
cooling water passages when the en-
gine is not running. The water could
flow back through the muffler into the
engine, causing severe engine dam-
age.
[ECJ00123]
(8) Turn the water supply off.
(9) Discharge the remaining water out of the cooling water passages by alternately
squeezing and releasing the throttle lever
quickly for 10 to 15 seconds.
(10) Stop the engine.
(11) Remove the garden hose adapter, and then securely install the flushing hose
connector cap by tightening it until it
stops.
(12) Securely install the watertight storage compartment and seats in their original
positions.
EJU33736Cleaning the watercraft
(1) Remove the seats. (See page 41 for seatremoval and installation procedures.)
(2) Rinse the engine and engine compart- ment with a small amount of water. NOTICE:
Do not use high-pressure
water when rinsing the engine or en-
gine compartment as severe engine
damage could result.
[ECJ00572]
(3) Drain the water from the engine com- partment. (See page 52 for information
on draining the bilge water.)
(4) Wipe the engine and engine compart- ment with a dry cloth.
(5) Wash down the hull, deck, and jet pump with fresh water.
(6) Wipe the hull, deck, and jet pump with a dry cloth.
(7) Wipe all vinyl and rubber components, such as the seats and engine compart-
ment seals, with a vinyl protectant.
(8) To minimize corrosion, spray metallic parts of the hull, deck, and engine with a
rust inhibitor.
(9) Allow the engine compartment to air dry completely before installing the seats.
(10) Securely install the seats in their original positions.
EJU33687Battery care
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft, check it, and then store it in a cool, dry
place.
WARNING
EWJ00792
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call a physician im-
mediately.
UF3K71E0.book Page 80 Monday, August 18, 2014 2:54 PM

Trouble recovery
93
Watercraft slow or
loses powerShift lever Not completely shift-
ed into forward posi-
tion Push lever forward
until it stops 32
Watercraft
operation
mode Low RPM Mode acti-
vated
Deactivate Low RPM
Mode 34
Cavitation Jet intake clogged Clean 94 Impeller damaged or
worn Have serviced by
Yamaha dealer
94
Engine over-
heat warning Engine speed reduc-
tion control activated Clean jet intake and
cool engine
39
Oil pressure
warning Engine speed reduc-
tion control activated Add oil
38
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Spark plug
cap Not connected or
loose Have serviced by
Yamaha dealer
—
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel Stale or contaminat- ed Have serviced by
Yamaha dealer
—
Incorrect octane
number Use correct fuel
49
Air filter Clogged Have serviced by Yamaha dealer—
Oil buildup Have serviced by Yamaha dealer —
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3K71E0.book Page 93 Monday, August 18, 2014 2:54 PM

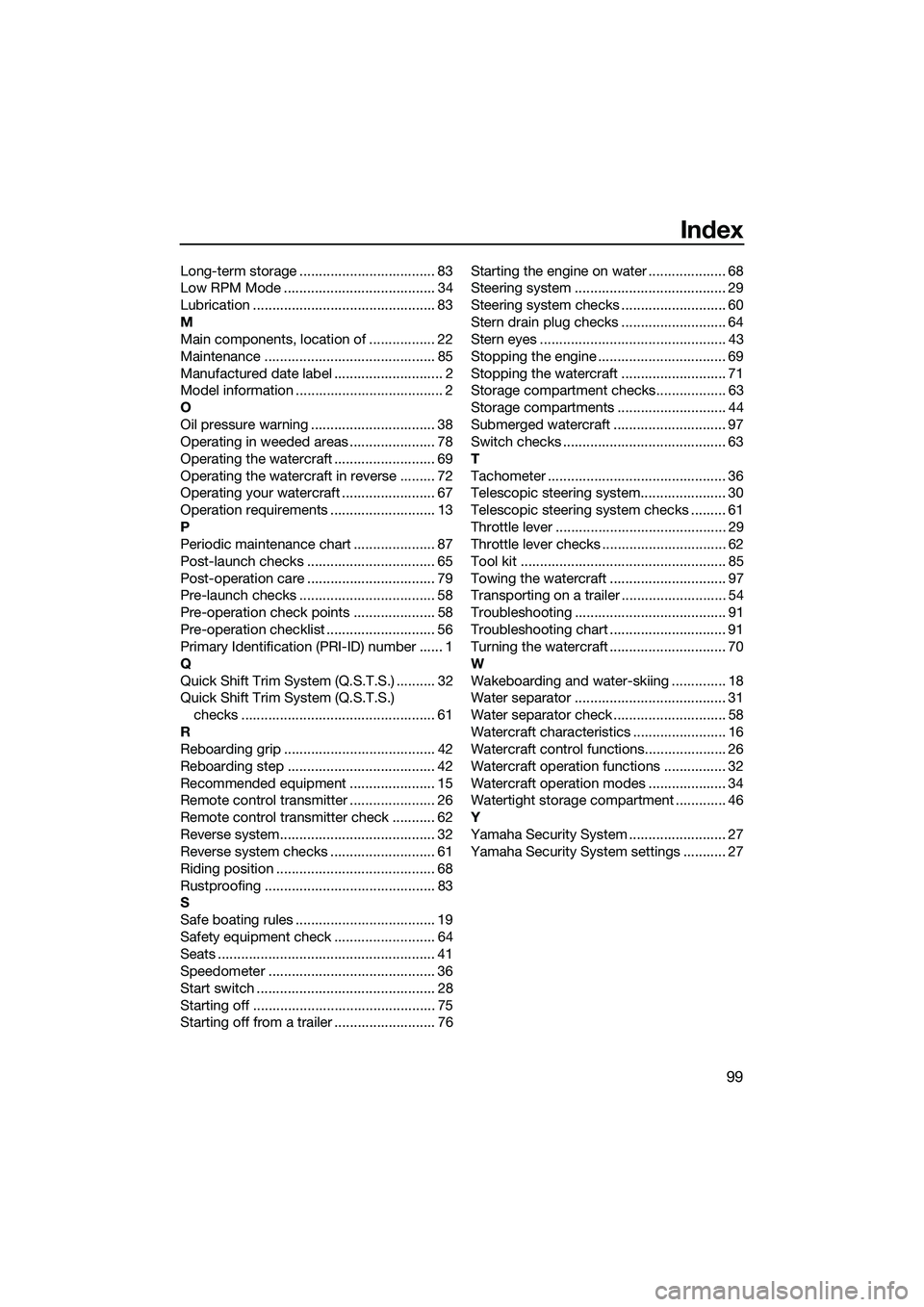

Index
99
Long-term storage ................................... 83
Low RPM Mode ....................................... 34
Lubrication ............................................... 83
M
Main components, location of ................. 22
Maintenance ............................................ 85
Manufactured date label ............................ 2
Model information ...................................... 2
O
Oil pressure warning ................................ 38
Operating in weeded areas ...................... 78
Operating the watercraft .......................... 69
Operating the watercraft in reverse ......... 72
Operating your watercraft ........................ 67
Operation requirements ........................... 13
P
Periodic maintenance chart ..................... 87
Post-launch checks ................................. 65
Post-operation care ................................. 79
Pre-launch checks ................................... 58
Pre-operation check points ..................... 58
Pre-operation checklist ............................ 56
Primary Identification (PRI-ID) number ...... 1
Q
Quick Shift Trim System (Q.S.T.S.) .......... 32
Quick Shift Trim System (Q.S.T.S.) checks .................................................. 61
R
Reboarding grip ....................................... 42
Reboarding step ...................................... 42
Recommended equipment ...................... 15
Remote control transmitter ...................... 26
Remote control transmitter check ........... 62
Reverse system........................................ 32
Reverse system checks ........................... 61
Riding position ......................................... 68
Rustproofing ............................................ 83
S
Safe boating rules .................................... 19
Safety equipment check .......................... 64
Seats ........................................................ 41
Speedometer ........................................... 36
Start switch .............................................. 28
Starting off ............................................... 75
Starting off from a trailer .......................... 76 Starting the engine on water .................... 68
Steering system ....................................... 29
Steering system checks ........................... 60
Stern drain plug checks ........................... 64
Stern eyes ................................................ 43
Stopping the engine ................................. 69
Stopping the watercraft ........................... 71
Storage compartment checks.................. 63
Storage compartments ............................ 44
Submerged watercraft ............................. 97
Switch checks .......................................... 63
T
Tachometer .............................................. 36
Telescopic steering system...................... 30
Telescopic steering system checks ......... 61
Throttle lever ............................................ 29
Throttle lever checks ................................ 62
Tool kit ..................................................... 85
Towing the watercraft .............................. 97
Transporting on a trailer ........................... 54
Troubleshooting ....................................... 91
Troubleshooting chart .............................. 91
Turning the watercraft .............................. 70
W
Wakeboarding and water-skiing .............. 18
Water separator ....................................... 31
Water separator check ............................. 58
Watercraft characteristics ........................ 16
Watercraft control functions..................... 26
Watercraft operation functions ................ 32
Watercraft operation modes .................... 34
Watertight storage compartment ............. 46
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF3K71E0.book Page 99 Monday, August 18, 2014 2:54 PM
