YAMAHA GP1200 2001 Owners Manual

5-8
E
EJU00604a
Submerged watercraft
If the watercraft is submerged or flooded
with water, follow the procedure below and
consult a Yamaha dealer as soon as possi-
ble. Failure to do so may result in serious
engine damage!
1. Beach the watercraft and remove the
stern drain plugs to drain the water from
the engine compartment.
2. Turn the fuel cock knob to “OFF.”
3. Remove the spark plugs and dry them
with a cloth.
4. Without reinstalling the spark plugs,
crank the engine until all the water in the
cylinders has been drained.
5. Install the stern drain plugs and the
spark plugs.
6. Turn the fuel cock to “ON.”
7. Launch the watercraft into the water, and
then run the engine for at least
10 minutes. If the engine will not start,
repeat steps above.
8. Turn the engine off. Turn the fuel cock to
“OFF.”
9. Have the watercraft inspected by a
Yamaha dealer as soon as possible.

E
–MEMO–

E
6
EJU00608

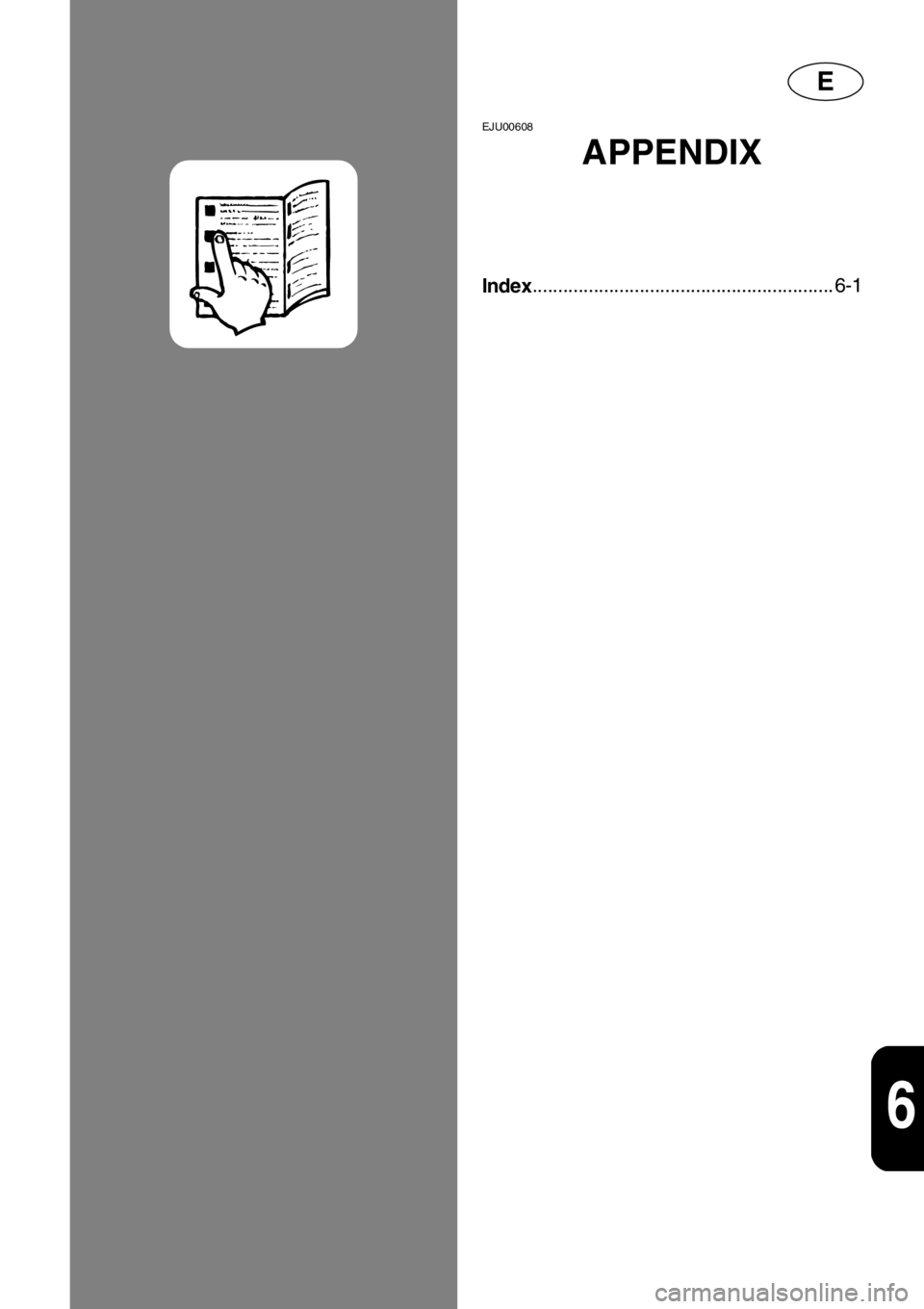

APPENDIX
Index........................................................... 6-1

6-1
E
EJU00609
Index
2-stroke engine oil ................................... 3-4
A
Adjusting the carburetor ........................ 4-20
Adjusting the trolling speed ................... 4-20
Adjusting the Yamaha Adjustable
Sponson (Y.A.S.) .................................. 4-22
B
Battery .............................................. 3-8, 4-4
Beaching the watercraft ........................ 3-30
Bilge ........................................................ 3-7
Bleeding the oil injection pump ............. 4-21
Boarding alone ...................................... 3-23
Boarding and starting in deep water ..... 3-23
Boarding with a passenger.................... 3-24
Bow down.............................................. 2-12
Bow up .................................................. 2-12
C
Capsized watercraft .............................. 3-25
Caution labels ......................................... 1-6
Choke lever ............................................. 2-8
Cleaning and adjusting the spark
plugs...................................................... 4-14
Cleaning the jet intake and impeller ........ 5-4
Cleaning the watercraft ........................... 4-5
Connecting the jumper cables................. 5-6
Cooling water pilot outlet .............. 2-10, 3-12
Cruising limitations .................................. 1-9
D
Docking the watercraft .......................... 3-30
E
Emergency procedures ........................... 5-4
Engine break-in ..................................... 3-13
Engine compartment ............................... 3-6
Engine overheat warning indicator ........ 2-19
Engine overheat warning system .......... 2-13
Engine serial number .............................. 1-1
Engine shut-off cord (lanyard) ............... 3-11
Engine shut-off switch ............................. 2-8
Engine stop switch .................................. 2-8
Enjoy your watercraft responsibly ......... 1-14F
Filling the fuel tank .................................. 3-3
Filling the oil tank .................................... 3-4
Fire extinguisher ...................................... 3-9
Flushing the cooling system .................... 4-1
Front storage compartment ................... 2-20
Fuel and oil.............................................. 3-1
Fuel and oil systems ............................... 3-6
Fuel cock knob ........................................ 2-7
Fuel filter ............................................... 4-10
Fuel meter ............................................. 2-17
Fuel system ............................................. 4-3
Fuel tank ............................................... 4-10
Fuel tank filler cap ................................... 2-6
Fuel warning indicator ........................... 2-18
G
Gasohol ................................................... 3-2
Gasoline .................................................. 3-1
Getting to know your watercraft ............ 3-19
Glove compartment ............................... 2-21
H
Handgrip ................................................ 2-14
Hazard information ................................ 1-12
Hood........................................................ 2-6
Hour meter ............................................ 2-17
Hull Identification Number (HIN).............. 1-1
I
Identification numbers ............................. 1-1
Important labels ....................................... 1-2
Inspecting and adjusting the throttle
cable...................................................... 4-12
Inspecting the battery ............................ 4-18
Inspecting the fuel system ....................... 4-9
Inspecting the oil injection system ......... 4-11
Inspecting the QSTS mechanism .......... 4-13
Inspecting the steering cable................ 4-12
J
Jet unit................................................... 3-11
Jumping the battery ................................. 5-5
L
Label location .......................................... 1-2
Learning to operate your watercraft ...... 3-19
Leaving the watercraft ........................... 3-18

6-2
E
Limitations on who may operate the
watercraft ................................................ 1-8
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-15
M
Maintenance and adjustments ................ 4-6
Multifunction information center ... 2-15, 3-12
O
Oil filter .................................................. 4-11
Oil tank .................................................. 4-11
Oil tank filler cap...................................... 2-6
Oil warning indicator.............................. 2-18
Operating your watercraft...................... 3-19
Operation .............................................. 3-13
Operation of controls and other
functions .................................................. 2-5
Operation requirements ........................ 1-10
Other labels ............................................. 1-7
Owner’s/Operator’s Manual and tool kit .. 4-7
P
Periodic maintenance chart..................... 4-8
Post-operation checks........................... 3-31
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
Q
Quick Shift Trim System (QSTS)
selector.................................................. 2-11
R
Replacing the fuse ................................ 4-21
Reset button .......................................... 2-16
Riding watercraft with a passenger ....... 3-20
Rough water operation .......................... 3-30
S
Safe boating rules ................................. 1-14
Safety information ................................... 1-8
Seat ......................................................... 2-5
Specifications ........................................ 4-23
Speedometer......................................... 2-16
Starting and boarding in shallow
water ..................................................... 3-22Starting from a dock .............................. 3-22
Starting the engine ................................ 3-15
Starting the watercraft ........................... 3-21
Start switch.............................................. 2-9
Steering system ...........................2-10, 3-10
Stopping the engine .............................. 3-18
Stopping the watercraft ......................... 3-29
Storage.................................................... 4-1
Storage compartments .......................... 2-20
Submerged watercraft ............................. 5-8
Switches ................................................ 3-12
T
Tachometer ........................................... 2-16
Throttle .................................................. 3-10
Throttle lever ........................................... 2-9
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-33
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-27
W
Warning labels ........................................ 1-3
Watercraft characteristics ...................... 1-13
Water separator ...................................... 3-7
Y
Yamaha Adjustable Sponson (Y.A.S.) .. 2-21

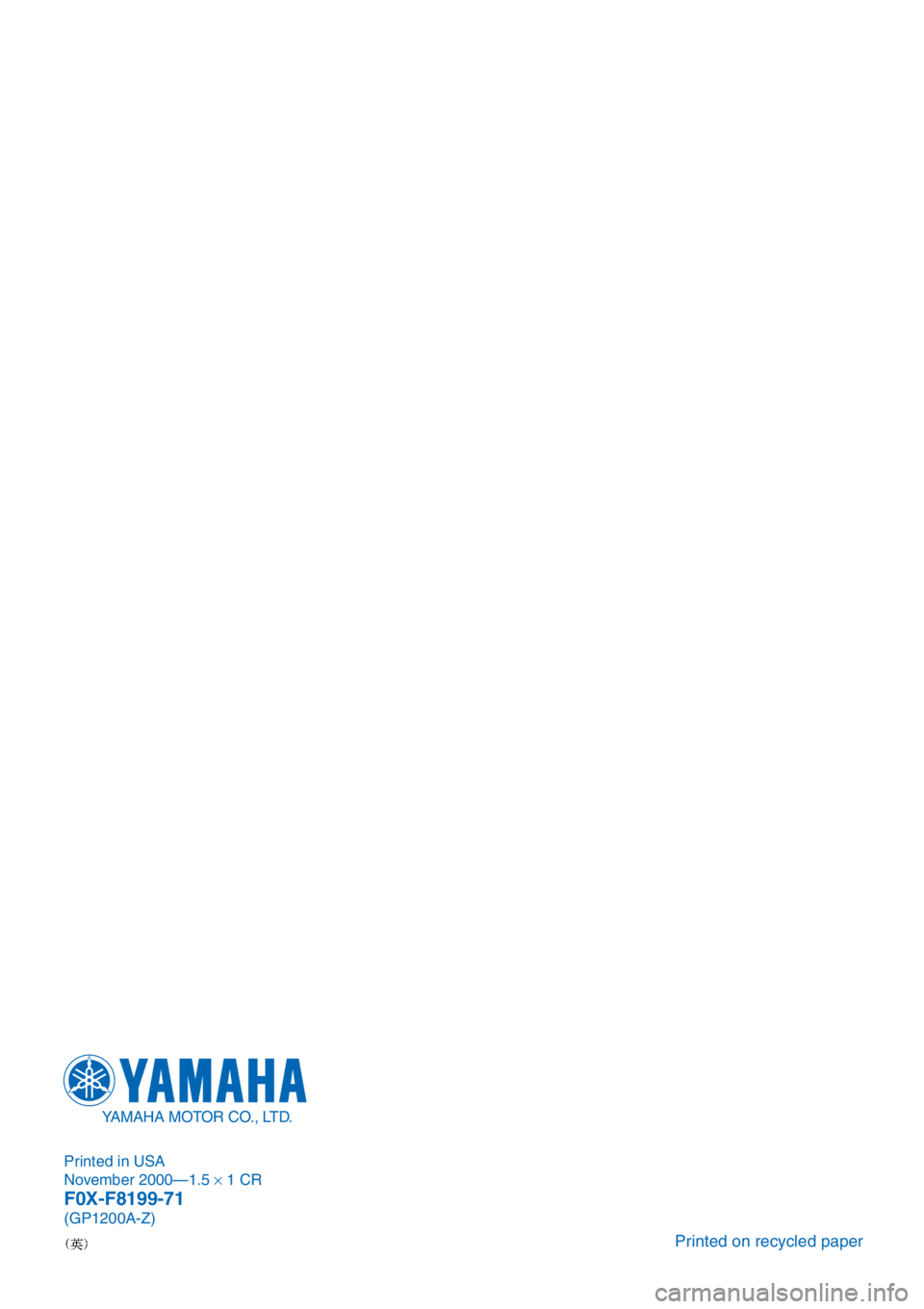

64C-9-15-6 4/25/0 4:19 PM Page 124

Printed in USA
November 2000—1.5 × 1 CR
F0X-F8199-71(GP1200A-Z)
Printed on recycled paper
YAMAHA MOTOR CO., LTD.
