stop start YAMAHA GP1200 2002 Owners Manual

1-12
E

Do not attempt to modify this watercraft!
Modifications to your watercraft may
reduce safety and reliability, and render
the watercraft unsafe or illegal for use.

Attach the engine shut-off cord (lanyard)
to wrist and keep it free from the handle-
bars so that the engine stops if the opera-
tor falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.

Scan carefully for swimmers and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.

Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or you maneuver more quickly than other
boaters expect, you risk a collision.

Maintain a safe distance from other boats
or watercraft, and also watch for boats’ ski
ropes or fishing lines. Obey the “Safe
boating rules” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-14.)
EJU01382
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.

Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.

Watch
A watch is helpful so you will know how
long you have been operating.

Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF0X72.book Page 12 Friday, August 3, 2001 11:13 AM

E
2
EJU01007
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Seat ........................................................ 2-5
Hood ....................................................... 2-6
Fuel tank filler cap .................................. 2-6
Oil tank filler cap ..................................... 2-6
Fuel cock knob ....................................... 2-7
Engine stop switch ................................. 2-8
Engine shut-off switch ............................ 2-8
Choke lever ............................................ 2-8
Throttle lever .......................................... 2-9
Start switch ............................................. 2-9
Cooling water pilot outlet ..................... 2-10
Steering system ................................... 2-10
Quick Shift Trim System (QSTS)
selector ................................................. 2-11
Handgrip ............................................... 2-12
Engine overheat warning system ........ 2-13
Multifunction information center .......... 2-15
Tachometer .......................................... 2-16
Speedometer ....................................... 2-16
Reset button ......................................... 2-16
Fuel meter ............................................ 2-17
Hour meter ........................................... 2-17
Fuel warning indicator .......................... 2-18
Oil warning indicator ............................ 2-18
Engine overheat warning indicator ...... 2-19
Storage compartments ........................ 2-20
Yamaha Adjustable Sponson
(Y.A.S.) ................................................. 2-21
UF0X72.book Page 1 Friday, August 3, 2001 11:13 AM

2-3
E
1Engine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
2Engine stop switch
Push to stop the engine normally.
3Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
4Quick Shift Trim System (QSTS) selector
Use to select the trim angle of the watercraft.
5Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
6Start switch
Push to start the engine.
7Multifunction information center
Use to check watercraft operation.8Throttle lever
Use to accelerate and decelerate.
9Choke lever
0Oil tank filler cap
AFuel cock knob
BStern drain plugs
Use to drain water in the bilge when the water-
craft is on dry land.
CJet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.
DRide plate
UF0X72.book Page 3 Friday, August 3, 2001 11:13 AM

2-8
E
EJU01015
Engine stop switch
Push this switch 1 (red button) to stop
the engine normally.
EJU01016
Engine shut-off switch
Insert the clip 1, on the end of the engine
shut-off cord 2, under the engine shut-off
switch 3 (black button). The engine will stop
automatically when the clip is removed from
the switch, such as if the operator falls off
the watercraft.
WARNING@
Always attach the engine shut-off cord
to your wrist and the clip to the engine
shut-off switch BEFORE starting the
engine.

To prevent accidental starting of the
engine or unauthorized use by chil-
dren or others, always remove the clip
from the shut-off switch when the
engine is not running.
@
EJU01017
Choke lever
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by the
choke.
Move the lever 1 in direction a to turn
the choke on.
Move the lever in direction b to turn the
choke off.
UF0X72.book Page 8 Friday, August 3, 2001 11:13 AM

2-10
E
EJU01020
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlets.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlets.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlets. If water is not
being discharged from the outlets, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and
check for the cause. (See pages 2-13 and
5-4 for further instructions.)
NOTE:@ If the cooling water passages are dry, it will
take about 20 seconds for the water to reach
the outlet after the engine is started.
@
EJU01021
Steering system
Your watercraft can be steered by turning
the handlebars 1 the same direction you
wish to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed,
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
direction of a turn, the throttle must always
be open when attempting a turn, except at
trolling speed.
UF0X72.book Page 10 Friday, August 3, 2001 11:13 AM

2-13
E
EJU01026
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the warn-
ing light and the engine overheat warning
indicator begin to blink, and the buzzer
sounds intermittently.
When this occurs, reduce the engine
speed and beach the watercraft. Check for
water discharge. If there is no discharge of
water at the cooling water pilot outlet, whole
the engine is running, check the intake grate
and impeller for clogging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@
Return to shore at low speed if over-
heat warning indicator and buzzer
come on. If you ignore these signals,
engine will stop running and cannot be
restarted until exhaust system cools
down.

Have your watercraft inspected and
serviced by a Yamaha dealer if engine
stops due to overheating.
@
UF0X72.book Page 13 Friday, August 3, 2001 11:13 AM

2-14
E
If the overheat warning is ignored, engine
and exhaust system heat may increase, par-
ticularly if the watercraft is operated at
higher speeds. When this occurs, the warn-
ing light, the engine overheat warning indi-
cator and the buzzer will change from
intermittently to continuously on, and the
overheat system will stop ignition to the
engine to reduce the risk of severe over-
heating. The engine cannot be started until
it cools down, so it may be necessary to
have the watercraft towed back to the
beach. (See “Towing the watercraft” on page
5-7 for towing procedures.)
NOTE:@ Press the reset button on the multifunction
information center to stop the buzzer.
@
UF0X72.book Page 14 Friday, August 3, 2001 11:13 AM

2-15
E
EJU01027
Multifunction information
center
This meter contains following functions for
the help and convenience of operation.
1
Tachometer
2
Speedometer
3
Fuel meter
4
Hour meter
5
Warning light
6
Oil warning indicator
7
Engine overheat warning indicator
8
Fuel warning indicator
9
Reset button
CAUTION:@
Do not run the engine at full throttle or
more than 15 seconds to check the
meter for operation on land. The
engine could overheat.

Use the specified resistor-type spark
plug and cap, otherwise the meter may
function erratically.
@
NOTE:@ All display light up and the buzzer sounds
twice after the engine starts. Then, the
meter will operate normally after few sec-
onds. The current display will continue to
operate for 30 seconds after the engine
stops.
@
UF0X72.book Page 15 Friday, August 3, 2001 11:13 AM

E
3
EJU01040

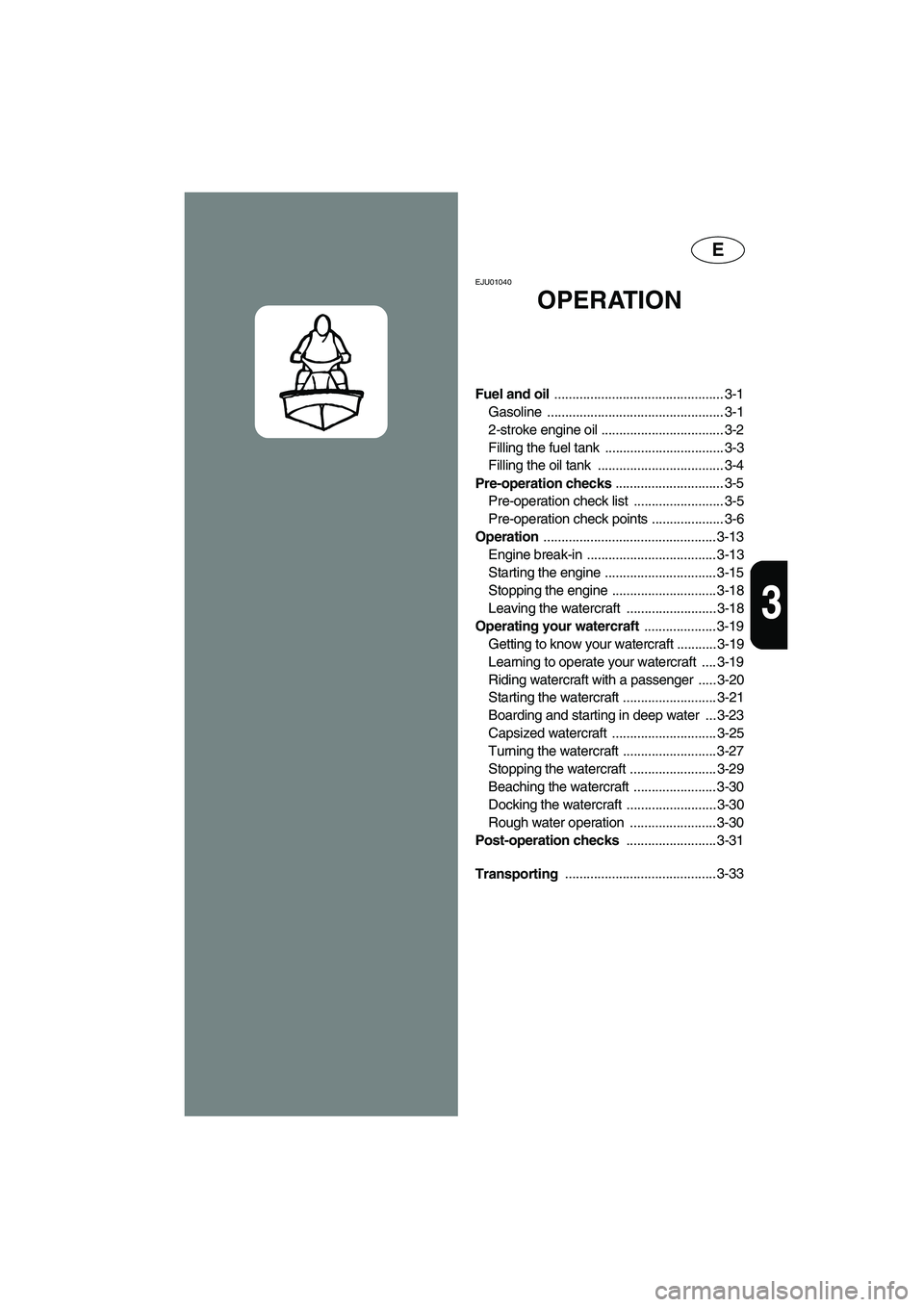

OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
2-stroke engine oil .................................. 3-2
Filling the fuel tank ................................. 3-3
Filling the oil tank ................................... 3-4
Pre-operation checks .............................. 3-5
Pre-operation check list ......................... 3-5
Pre-operation check points .................... 3-6
Operation ................................................ 3-13
Engine break-in .................................... 3-13
Starting the engine ............................... 3-15
Stopping the engine ............................. 3-18
Leaving the watercraft ......................... 3-18
Operating your watercraft .................... 3-19
Getting to know your watercraft ........... 3-19
Learning to operate your watercraft .... 3-19
Riding watercraft with a passenger ..... 3-20
Starting the watercraft .......................... 3-21
Boarding and starting in deep water ... 3-23
Capsized watercraft ............................. 3-25
Turning the watercraft .......................... 3-27
Stopping the watercraft ........................ 3-29
Beaching the watercraft ....................... 3-30
Docking the watercraft ......................... 3-30
Rough water operation ........................ 3-30
Post-operation checks ......................... 3-31
Transporting .......................................... 3-33
UF0X72.book Page 1 Friday, August 3, 2001 11:13 AM

3-5
E
EJU01346
Pre-operation checks
EJU01047
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
POC-F0X7E
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove the seat and front storage compartment
to ventilate engine compartment. Check for fuel
vapors or loose electrical connections3-6
Bilge Check for water and fuel residue and remove if
necessary3-7
Throttle Check that the throttle lever springs back 3-10
Steering system Check for proper steering system operation 3-10
Fuel and oil Check fuel and oil level and add if necessary
Check hoses and tanks for leakage3-6
Water separator Check for water and drain if necessary 3-7
Battery Check electrolyte level and battery condition 3-8
Hood Check that the hood is properly secured 2-6
Seat Check that the seat is properly secured 2-5
Hull/Deck Check the hull and deck for cracks or other dam-
age—
Jet unit Check for debris and remove if necessary 3-11
Fire extinguisher Check the condition and replace if necessary 3-9
Engine shut-off cord Check condition and replace is frayed or broken 3-11
Switches Check the start switch, engine stop switch and
engine shut-off switch for proper operation when
the watercraft is in the water3-12
Cooling water pilot outlet Check that water is discharged while the engine
is running and the watercraft is in the water3-12
Multifunction information center Check for warning indications and proper opera-
tion3-12
UF0X72.book Page 5 Friday, August 3, 2001 11:13 AM
