check oil YAMAHA GP1200 2003 Owners Manual

2-3
E
1Engine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
2Engine stop switch
Push to stop the engine normally.
3Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
4Quick Shift Trim System (QSTS) selector
Use to select the trim angle of the watercraft.
5Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
6Start switch
Push to start the engine.
7Multifunction information center
Use to check watercraft operation.8Throttle lever
Use to accelerate and decelerate.
9Choke lever
0Oil tank filler cap
AFuel cock knob
BStern drain plugs
Use to drain water in the bilge when the water-
craft is on dry land.
CJet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.
DRide plate
UF0X73.book Page 3 Thursday, July 11, 2002 3:56 PM

2-15
E
EJU01027
Multifunction information
center
This meter contains following functions for
the help and convenience of operation.
1
Tachometer
2
Speedometer
3
Fuel meter
4
Hour meter
5
Warning light
6
Oil warning indicator
7
Engine overheat warning indicator
8
Fuel warning indicator
9
Reset button
CAUTION:@
Do not run the engine at full throttle or
more than 15 seconds to check the
meter for operation on land. The
engine could overheat.

Use the specified resistor-type spark
plug and cap, otherwise the meter may
function erratically.
@
NOTE:@ All display light up and the buzzer sounds
twice after the engine starts. Then, the
meter will operate normally after few sec-
onds. The current display will continue to
operate for 30 seconds after the engine
stops.
@
UF0X73.book Page 15 Thursday, July 11, 2002 3:56 PM

2-18
E
EJU01033
Fuel warning indicator
If the fuel remaining in the tank drops to
about 13 L (3.4 US gal, 2.9 Imp gal), the
lowest two fuel level segments, the fuel
warning indicator and the warning light
begin to blink. The buzzer also starts sound-
ing intermittently.
The warning signals will be cleared when
the engine restarts after refilling fuel.
EJU01034
Oil warning indicator
If the oil remaining in the tank drops to
about 1.7 L (0.45 US gal, 0.37 Imp gal) or
the oil filter is clogged, the oil warning indi-
cator and the warning light begin to blink.
The buzzer also starts sounding intermit-
tently.
If the oil warning indicators begin to blink,
refill with engine oil as soon as possible.
The warning signals will be cleared when
the engine restarts after refilling engine oil.
NOTE:@ If the warning indicators blink with adequate
oil in the tank, check the oil filter for clog-
ging.
@
UF0X73.book Page 18 Thursday, July 11, 2002 3:56 PM

E
3
EJU01040
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
2-stroke engine oil .................................. 3-2
Filling the fuel tank ................................. 3-3
Filling the oil tank ................................... 3-4
Pre-operation checks .............................. 3-5
Pre-operation check list ......................... 3-5
Pre-operation check points .................... 3-6
Operation ................................................ 3-13
Engine break-in .................................... 3-13
Starting the engine ............................... 3-15
Stopping the engine ............................. 3-18
Leaving the watercraft ......................... 3-18
Operating your watercraft .................... 3-19
Getting to know your watercraft ........... 3-19
Learning to operate your watercraft .... 3-19
Riding watercraft with a passenger ..... 3-20
Starting the watercraft .......................... 3-21
Boarding and starting in deep water ... 3-23
Capsized watercraft ............................. 3-25
Turning the watercraft .......................... 3-27
Stopping the watercraft ........................ 3-29
Beaching the watercraft ....................... 3-30
Docking the watercraft ......................... 3-30
Rough water operation ........................ 3-30
Post-operation checks ......................... 3-31
Transporting .......................................... 3-33
UF0X73.book Page 1 Thursday, July 11, 2002 3:56 PM

3-5
E
EJU01346
Pre-operation checks
EJU01347
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
POC-***
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove the seat and front storage compartment
to ventilate engine compartment. Check for fuel
vapors or loose electrical connections3-6
Bilge Check for water and fuel residue and remove if
necessary3-7
Throttle Check that the throttle lever springs back 3-10
Steering system Check for proper steering system operation 3-10
Fuel and oil Check fuel and oil level and add if necessary
Check hoses and tanks for leakage3-6
Water separator Check for water and drain if necessary 3-7
Battery Check electrolyte level and battery condition 3-8
Hood Check that the hood is properly secured 2-6
Seat Check that the seat is properly secured 2-5
Hull/Deck Check the hull and deck for cracks or other dam-
age—
Jet unit Check for debris and remove if necessary 3-11
Fire extinguisher Check the condition and replace if necessary 3-9
Engine shut-off cord Check condition and replace is frayed or broken 3-11
Switches Check the start switch, engine stop switch and
engine shut-off switch for proper operation when
the watercraft is in the water3-12
Cooling water pilot outlet Check that water is discharged while the engine
is running and the watercraft is in the water3-12
Multifunction information center Check for warning indications and proper opera-
tion3-12
UF0X73.book Page 5 Thursday, July 11, 2002 3:56 PM

3-6
E
EJU01048
Pre-operation check points
EJU01050
Engine compartment
Ventilate the engine compar tment before
each use.
To ventilate the engine compartment,
remove seat and front storage compart-
ment. (See page 2-5 for seat, and 2-20 for
front storage compartment.) Allow the
engine compartment to remain open for a
few minutes to allow any fuel vapors to
escape. Also, check for loose electrical con-
nections.
WARNING@ Failure to ventilate the engine compart-
ment could result in fire or explosion. Do
not start the engine if there is a fuel leak
or a loose electrical connection.
@
EJU01051
Fuel and oil systems
Check the fuel system for leakage, cracks
or malfunctions before each use. (See page
4-9 for check points and correct proce-
dures.)
1. Remove the fuel tank filler cap to release
any pressure that might have built up in
the fuel tank.
2. Remove seat and front storage compart-
ment. (See page 2-5 for seat, and 2-20
for front storage compartment.)
3. Check the fuel and oil levels in the tanks
and replenish if necessary. (See pages
3-3 and 3-4 for filling instructions.)
4. Turn the fuel cock to the “ON” position.
UF0X73.book Page 6 Thursday, July 11, 2002 3:56 PM

4-9
E
EJU01355
Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
PMC-***(
) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
MAINTENANCE INTERVAL
INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust




4-15
Lubrication points Lubricate


4-16
Intermediate housing Lubricate❍
*1

*2

*2 4-18
Fuel system Inspect❍❍
4-10
Fuel filter Check, clean, replace❍❍
4-11
Fuel tank Clean❍
4-11
Oil injection system Inspect, clean❍❍
4-12
Trolling speed Inspect, adjust


4-21
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush

*3 4-1
Water inlet strainer Inspect, clean❍❍
—
Bilge strainer Clean❍❍
—
Impeller Inspect

*4❍❍
—
Jet thrust nozzle angle Inspect


4-13
QSTS mechanism Inspect, adjust

*4❍❍
4-14
Throttle lever Check operation

*4 3-10
Throttle cable Inspect, adjust❍❍
4-13
Choke lever Check operation

*4 2-8
Choke cable Inspect, adjust❍❍
—
Stern drain plugs Inspect, replace

*4❍❍
3-7
Battery Inspect

*5❍❍
4-19
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
*1: Grease capacity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease capacity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: After every use
*4: Before every use
*5: Inspect fluid level before every use
UF0X73.book Page 9 Thursday, July 11, 2002 3:56 PM

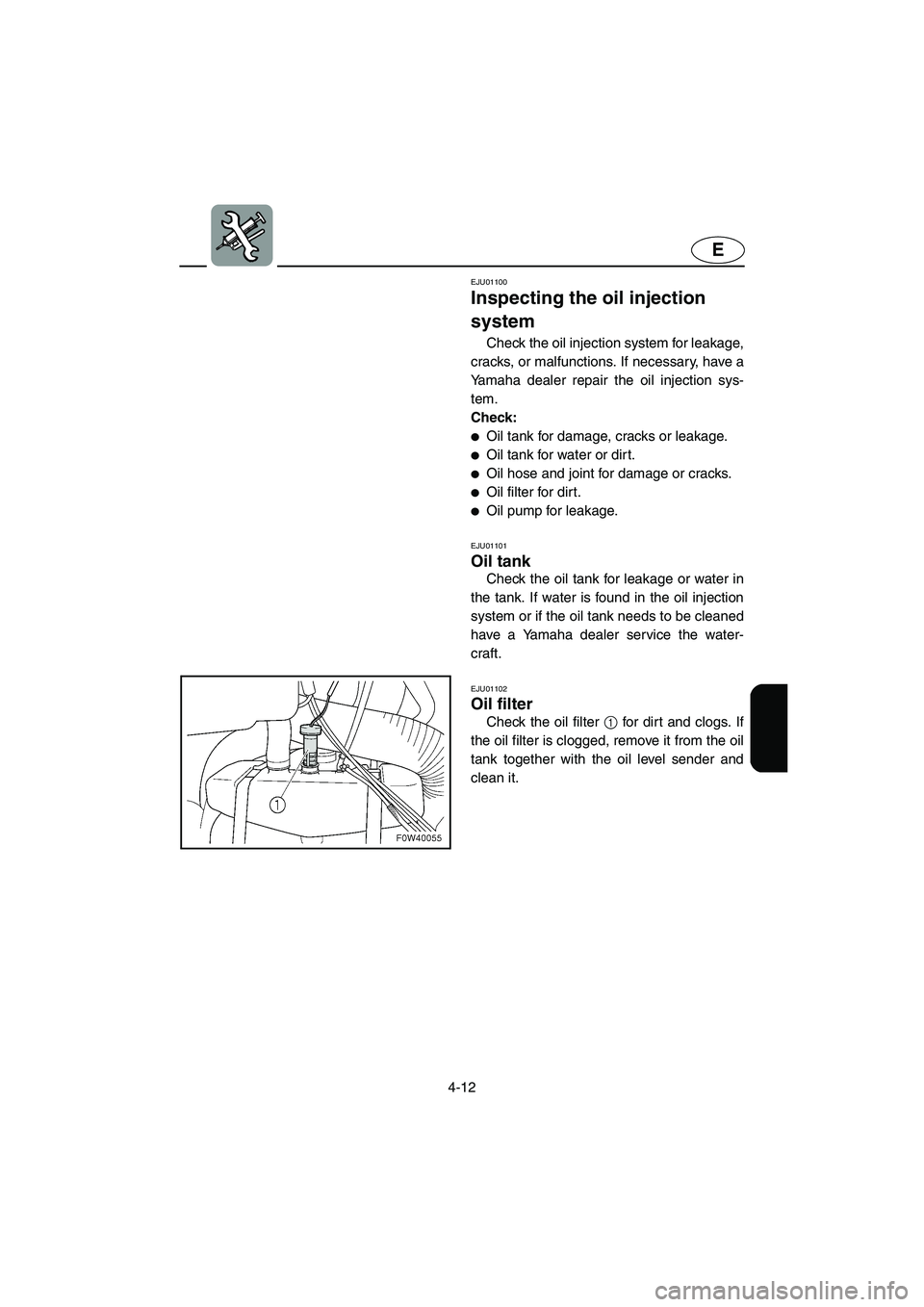

4-12
E
EJU01100
Inspecting the oil injection
system
Check the oil injection system for leakage,
cracks, or malfunctions. If necessary, have a
Yamaha dealer repair the oil injection sys-
tem.
Check:

Oil tank for damage, cracks or leakage.

Oil tank for water or dirt.

Oil hose and joint for damage or cracks.

Oil filter for dirt.

Oil pump for leakage.
EJU01101
Oil tank
Check the oil tank for leakage or water in
the tank. If water is found in the oil injection
system or if the oil tank needs to be cleaned
have a Yamaha dealer service the water-
craft.
EJU01102
Oil filter
Check the oil filter 1 for dirt and clogs. If
the oil filter is clogged, remove it from the oil
tank together with the oil level sender and
clean it.
UF0X73.book Page 12 Thursday, July 11, 2002 3:56 PM

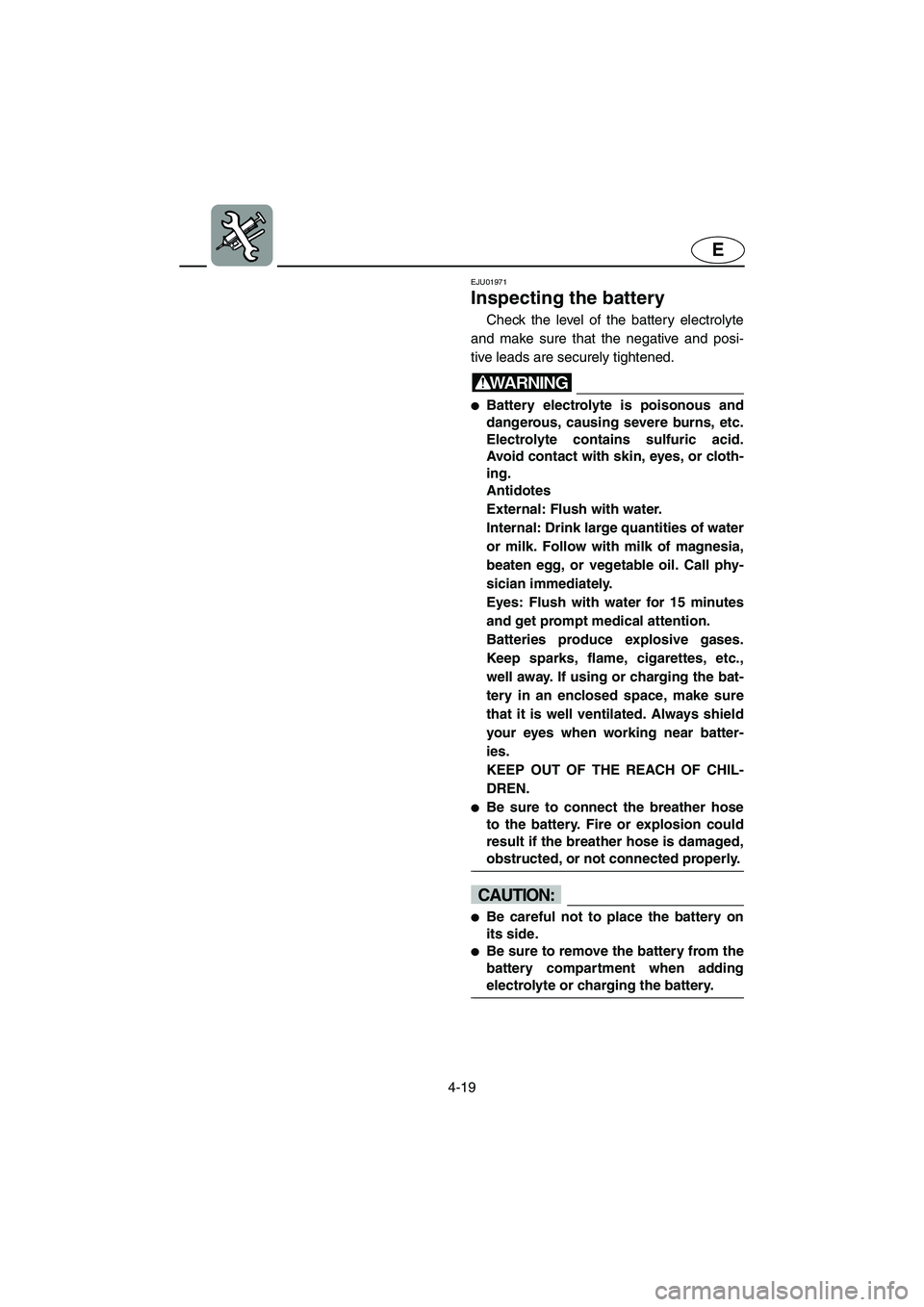

4-19
E
EJU01971
Inspecting the battery
Check the level of the battery electrolyte
and make sure that the negative and posi-
tive leads are securely tightened.
WARNING@
Battery electrolyte is poisonous and
dangerous, causing severe burns, etc.
Electrolyte contains sulfuric acid.
Avoid contact with skin, eyes, or cloth-
ing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call phy-
sician immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases.
Keep sparks, flame, cigarettes, etc.,
well away. If using or charging the bat-
tery in an enclosed space, make sure
that it is well ventilated. Always shield
your eyes when working near batter-
ies.
KEEP OUT OF THE REACH OF CHIL-
DREN.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@
Be careful not to place the battery on
its side.

Be sure to remove the battery from the
battery compartment when adding
electrolyte or charging the battery.
@
UF0X73.book Page 19 Thursday, July 11, 2002 3:56 PM

6-2
E
Limitations on who may operate the
watercraft ................................................ 1-7
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-16
M
Maintenance and adjustments ................ 4-7
Multifunction information center ... 2-15, 3-12
O
Oil filter .................................................. 4-12
Oil tank .................................................. 4-12
Oil tank filler cap...................................... 2-6
Oil warning indicator.............................. 2-18
Operating your watercraft...................... 3-19
Operation .............................................. 3-13
Operation of controls and other
functions .................................................. 2-5
Operation requirements .......................... 1-9
Other labels ............................................. 1-6
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-8
P
Periodic maintenance chart..................... 4-9
Post-operation checks........................... 3-31
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
Q
Quick Shift Trim System (QSTS)
selector.................................................. 2-11
R
Recommended equipment .................... 1-11
Replacing the fuse ................................ 4-22
Reset button .......................................... 2-16
Riding watercraft with a passenger ....... 3-20
Rough water operation .......................... 3-30
S
Safe boating rules ................................. 1-13
Safety information ................................... 1-7
Seat ......................................................... 2-5
Specifications ........................................ 4-24
Speedometer......................................... 2-16Starting and boarding in shallow
water ..................................................... 3-22
Starting from a dock .............................. 3-22
Starting the engine ................................ 3-15
Starting the watercraft ........................... 3-21
Start switch.............................................. 2-9
Steering system ...........................2-10, 3-10
Stopping the engine .............................. 3-18
Stopping the watercraft ......................... 3-29
Storage.................................................... 4-1
Storage compartments .......................... 2-20
Submerged watercraft ............................. 5-8
Switches ................................................ 3-12
T
Tachometer ........................................... 2-16
Throttle .................................................. 3-10
Throttle lever ........................................... 2-9
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-33
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-27
W
Warning labels ........................................ 1-3
Watercraft characteristics ...................... 1-12
Water separator ...................................... 3-7
Y
Yamaha Adjustable Sponson
(Y.A.S.).................................................. 2-21
UF0X73.book Page 2 Thursday, July 11, 2002 3:56 PM
