Do not attempt to modify this watercraft!
Modifications to your watercraft may
reduce safety and reliability, and render
the watercraft unsafe or illegal for use.

Attach the engine shut-off cord (lanyard)
to wrist and keep it free from the handle-
bars so that the engine stops if the opera-
tor falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.

Scan carefully for swimmers and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.

Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or you maneuver more quickly than other
boaters expect, you risk a collision.

Maintain a safe distance from other boats
or watercraft, and also watch for boats’ ski
ropes or fishing lines. Obey the “Safe
boating rules” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-16.)
EJU13820
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.

Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.

Watch
A watch is helpful so you will know how
long you have been operating.

Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF1G70.book Page 13 Wednesday, December 18, 2002 3:35 PM

E
2
EJU10070
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Seat ........................................................ 2-5
Hood ....................................................... 2-6
Fuel tank filler cap .................................. 2-6
Oil tank filler cap ..................................... 2-6
Engine stop switch ................................. 2-7
Engine shut-off switch ............................ 2-7
Throttle lever .......................................... 2-7
Start switch ............................................. 2-8
Cooling water pilot outlet ....................... 2-8
Steering system ..................................... 2-9
Quick Shift Trim System (QSTS)
selector ................................................. 2-10
Handgrip ............................................... 2-11
Engine overheat warning system ........ 2-12
Exhaust temperature warning system 2-13
Yamaha Engine Management
System (YEMS) ................................... 2-14
Multifunction information center .......... 2-15
Tachometer .......................................... 2-16
Speedometer ....................................... 2-16
Fuel meter ............................................ 2-16
Hour meter/Voltmeter .......................... 2-17
Fuel warning indicator .......................... 2-17
Oil warning indicator ............................ 2-18
Check engine warning indicator .......... 2-18
Engine overheat warning indicator ...... 2-19
Exhaust temperature warning
indicator ................................................ 2-19
Storage compartments ........................ 2-20
Yamaha Adjustable Sponson
(Y.A.S.) ................................................. 2-21
UF1G70.book Page 1 Wednesday, December 18, 2002 3:35 PM

2-3
E
1Engine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
2Engine stop switch
Push to stop the engine normally.
3Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
4Quick Shift Trim System (QSTS) selector
Use to select the trim angle of the watercraft.
5Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
6Start switch
Push to start the engine.
7Multifunction information center
Use to check watercraft operation.8Throttle lever
Use to accelerate and decelerate.
9Oil tank filler cap
0Stern drain plugs
Use to drain water in the bilge when the water-
craft is on dry land.
AJet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.
BRide plate
UF1G70.book Page 3 Wednesday, December 18, 2002 3:35 PM

2-8
E
EJU18610
Start switch
Push the start switch 1 (green button) to
start the engine.
NOTE:@ The engine will not start when the clip is
removed from the engine shut-off switch or if
the throttle lever is squeezed.
@
EJU10201
Cooling water pilot outlet
This watercraft is equipped with cooling
water pilot outlets.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlets.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlets. If water is not
being discharged from the outlets, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and
check for the cause. (See pages 2-12 and
5-4 for further instructions.)
NOTE:@ If the cooling water passages are dry, it will
take about 20 seconds for the water to reach
the outlet after the engine is started.
@
UF1G70.book Page 8 Wednesday, December 18, 2002 3:35 PM

2-12
E
EJU20450
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the warn-
ing light and the engine overheat warning
indicator begin to blink, and the buzzer
sounds intermittently.
When this occurs, reduce the engine
speed and beach the watercraft. Check for
water discharge. If there is no discharge of
water at the cooling water pilot outlet, whole
the engine is running, check the intake grate
and impeller for clogging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@ This watercraft is equipped with a cata-
lytic converter.

Return to shore at low speed if over-
heat warning indicator and buzzer
come on. If you ignore these signals,
engine will stop running and cannot be
restarted until exhaust system cools
down.

Have your watercraft inspected and
serviced by a Yamaha dealer if engine
stops due to overheating.
@
UF1G70.book Page 12 Wednesday, December 18, 2002 3:35 PM

2-15
E
EJU20161
Multifunction information
center
This meter contains following functions for
the help and convenience of operation.
1
Tachometer
2
Speedometer
3
Hour meter/Voltmeter
4
Fuel meter
5
Warning light
6
Fuel warning indicator
7
Engine overheat warning indicator
8
Oil warning indicator
9
Exhaust temperature warning indicator
0
Check engine warning indicator
A
Select button
CAUTION:@
Do not run the engine over 4,000 r/min
to check the meter for operation on
land. The engine could overheat or the
catalytic converter could result in seri-
ous damage.

Use the specified resistor-type spark
plug and cap, otherwise the meter may
function erratically.
@
NOTE:@ All display light up and the buzzer sounds
twice after the engine starts. Then, the
meter will operate normally after few sec-
onds. The current display will continue to
operate for 25 seconds after the engine
stops.
@
UF1G70.book Page 15 Wednesday, December 18, 2002 3:35 PM

2-16
E
EJU10280

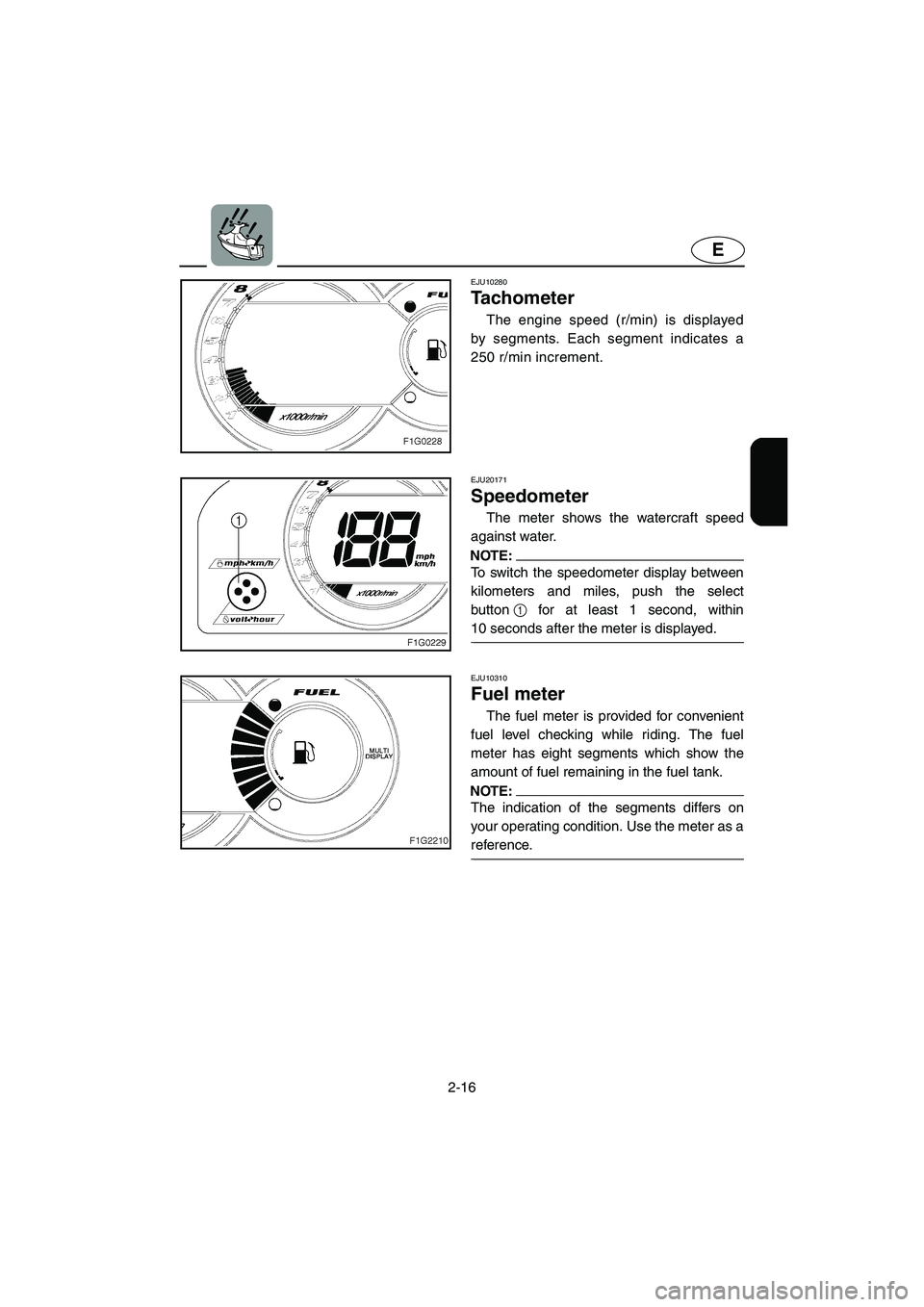

Tachometer
The engine speed (r/min) is displayed
by segments. Each segment indicates a
250 r/min increment.
EJU20171
Speedometer
The meter shows the watercraft speed
against water.
NOTE:@ To switch the speedometer display between
kilometers and miles, push the select
button1 for at least 1 second, within
10 seconds after the meter is displayed.
@
EJU10310
Fuel meter
The fuel meter is provided for convenient
fuel level checking while riding. The fuel
meter has eight segments which show the
amount of fuel remaining in the fuel tank.
NOTE:@ The indication of the segments differs on
your operating condition. Use the meter as a
reference.
@
UF1G70.book Page 16 Wednesday, December 18, 2002 3:35 PM

2-17
E
EJU20182
Hour meter/Voltmeter
NOTE:@ To switch the display between the hour
meter and voltmeter, push the select
button1 for at least 1 second after the
meter is displayed for more than 10 sec-
onds.
@
Hour meter
The hour meter is provided to make it
easy to follow the maintenance schedule.
The meter shows the hours of engine
operation that have elapsed since the water-
craft was new.
Vo l t m e t e r
The voltmeter is provided to display the
voltage of the battery.
The voltmeter displays 12 volts or more
when the battery voltage is within specifica-
tion.
If the voltage displayed is low, beach the
watercraft and, if necessary, have a Yamaha
dealer check the charging system.
EJU10330
Fuel warning indicator
If the fuel remaining in the tank drops to
about 13 L (3.4 US gal, 2.9 Imp gal), the
lowest two fuel level segments, the fuel
warning indicator and the warning light
begin to blink. The buzzer also starts sound-
ing intermittently.
The warning signals will be cleared when
the engine restarts after refilling fuel.
UF1G70.book Page 17 Wednesday, December 18, 2002 3:35 PM

2-18
E
EJU10341
Oil warning indicator
If the oil remaining in the tank drops to
about 1.7 L (0.45 US gal, 0.37 Imp gal) or
the oil filter is clogged, the oil warning indi-
cator and the warning light begin to blink.
The buzzer also starts sounding intermit-
tently.
If the oil warning indicators begin to blink,
refill with engine oil as soon as possible.
The warning signals will be cleared when
the engine restarts after refilling engine oil.
NOTE:@ If the warning indicators blink with adequate
oil in the tank, have a Yamaha dealer check
the oil filter for dirt and clogs.
@
EJU20041
Check engine warning
indicator
If a sensor malfunction or a short circuit is
detected, the warning light and indicator
begin to blink and the buzzer sounds inter-
mittently.
If this occurs, reduce the engine speed,
beach the watercraft, and have a Yamaha
dealer check the engine.
UF1G70.book Page 18 Wednesday, December 18, 2002 3:35 PM

2-19
E
EJU20050
Engine overheat warning
indicator
If the engine starts to overheat, the warn-
ing light and engine overheat warning indi-
cator begin to blink, and the buzzer sounds
intermittently.
If the watercraft continues to be operated
at higher speeds after the warning system
has been activated, the warning light,
engine overheat warning indicator and the
buzzer will change from intermittently to
continuously on. (See “Engine overheat
warning system” on page 2-12 for further
details.)
The warning signals will turn off when the
engine is started after it has cooled down.
NOTE:@ When the warnings overlap each other, their
priority is as follows:
1. Final overheat warning
2. Fuel level warning
3. Oil level warning
4. Initial overheat warning
5. Exhaust temperature warning
6. Check engine warning
@
EJU11860
Exhaust temperature warning
indicator
If the exhaust system becomes too hot,
the warning light and exhaust temperature
warning indicator begin to blink, and the
buzzer sounds intermittently. (See “Exhaust
temperature warning system” on page 2-13
for further details.)
The warning signals will turn off when the
engine is started after it has cooled down.
UF1G70.book Page 19 Wednesday, December 18, 2002 3:35 PM
