Page 40 of 120
2-15
E
EJU20161
Multifunction information
center
This meter contains following functions for
the help and convenience of operation.
1
Tachometer
2
Speedometer
3
Hour meter/Voltmeter
4
Fuel meter
5
Warning light
6
Fuel warning indicator
7
Engine overheat warning indicator
8
Oil warning indicator
9
Exhaust temperature warning indicator
0
Check engine warning indicator
A
Select button
CAUTION:@ Do not run the engine over 4,000 r/min
to check the meter for operation on
land. The engine could overheat or the
catalytic converter could result in seri-
ous damage.
Use the specified resistor-type spark
plug and cap, otherwise the meter may
function erratically.
@
NOTE:@ All display light up and the buzzer sounds
twice after the engine starts. Then, the
meter will operate normally after few sec-
onds. The current display will continue to
operate for 25 seconds after the engine
stops.
@
UF1G70.book Page 15 Wednesday, December 18, 2002 3:35 PM

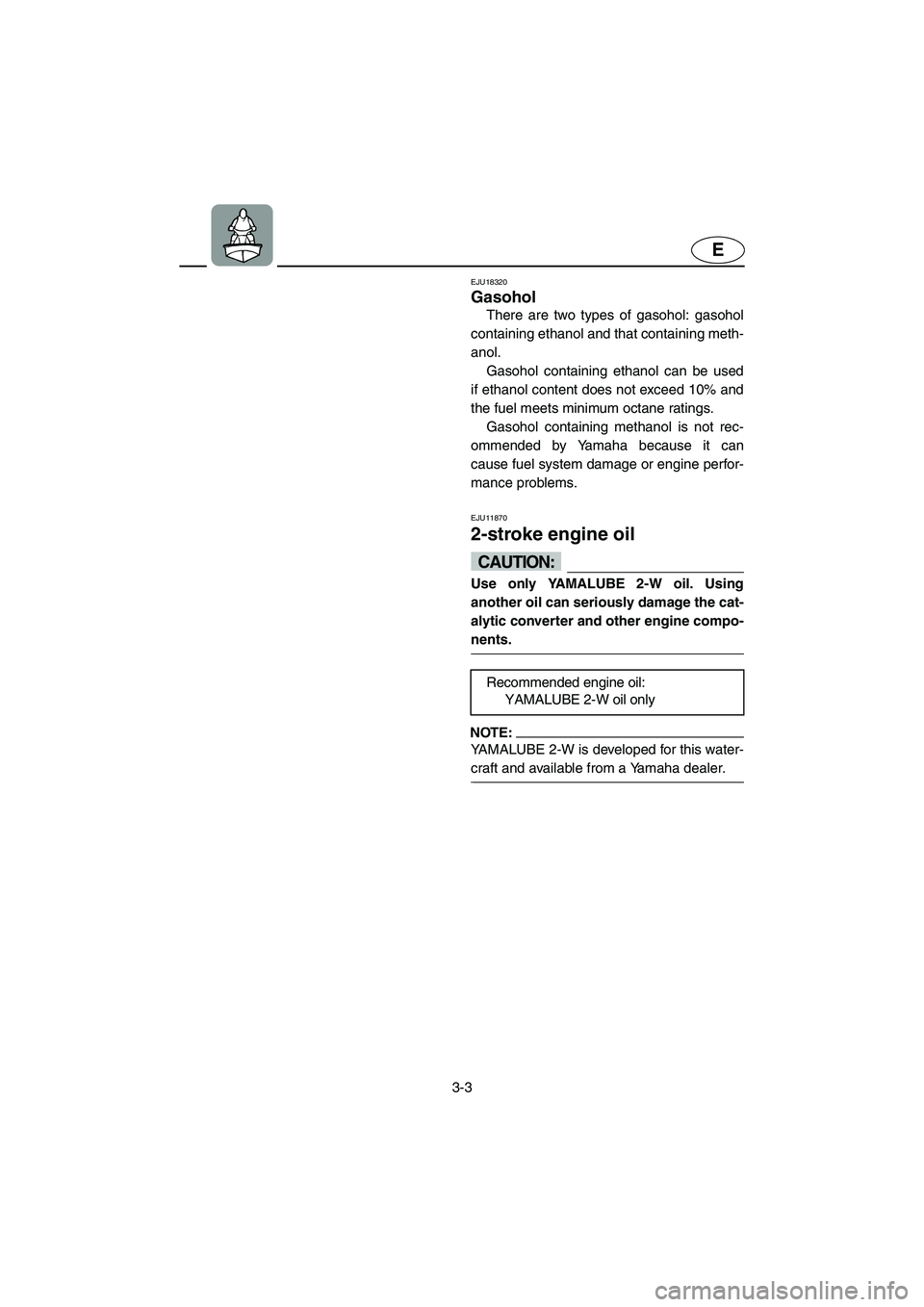

Page 50 of 120
3-3
E
EJU18320
Gasohol
There are two types of gasohol: gasohol
containing ethanol and that containing meth-
anol.
Gasohol containing ethanol can be used
if ethanol content does not exceed 10% and
the fuel meets minimum octane ratings.
Gasohol containing methanol is not rec-
ommended by Yamaha because it can
cause fuel system damage or engine perfor-
mance problems.
EJU11870
2-stroke engine oil
CAUTION:@ Use only YAMALUBE 2-W oil. Using
another oil can seriously damage the cat-
alytic converter and other engine compo-
nents.
@
NOTE:@ YAMALUBE 2-W is developed for this water-
craft and available from a Yamaha dealer.
@
Recommended engine oil:
YAMALUBE 2-W oil only
UF1G70.book Page 3 Wednesday, December 18, 2002 3:35 PM
Page 104 of 120
4-23
E
EJU13590
Specifications
SPC-*** MODEL
ITEMUnit GP1300R
WATERCRAFT CAPACITY
Maximum people on board Number of people 2
Maximum load capacity kg (lb) 160 (353)
DIMENSIONS
Length mm (in) 2,930 (115.4)
Width mm (in) 1,150 (45.3)
Height mm (in) 1,020 (40.2)
Dry weight kg (lb) 297 (653)
PERFORMANCE
Maximum output kW (PS) @ r/min 121.4 (165) @ 7,000
Maximum fuel consumption L/h (US gal/h, Imp gal/h) 63.0 (16.6, 13.9)
Cruising range at full throttle hr. 1.0
Trolling speed r/min 1,250–1,450
ENGINE
Engine type 2-stroke
Number of cylinders 3
Engine displacement
cm
3 (cu in)1,297 (79.1)
Bore & stroke mm (in) 84 ×
78 (3.31 ×
3.07)
Compression ratio 5.9:1
Lubrication system Variable oil injection
Cooling system Water cooled
Starting system Electric starter
Ignition system Digital CDI
Spark plug BR8ES-11 (NGK)
Spark plug gap mm (in) 1.0–1.1 (0.039–0.043)
Battery capacity V-AH 12-19
Charging system Flywheel magneto
DRIVE UNIT
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise (viewed from rear)
Transmission Direct drive from engine
Jet thrust nozzle angle Degree 23 + 23
Trim nozzle angle Degree -5, 0, 5, 10, 15
FUEL AND OIL
Recommended fuel Regular unleaded gasoline
Minimum octane rating PON
RON86
90
Recommended engine oil YAMALUBE 2-W only
Fuel tank capacity
Total L (US gal, Imp gal) 60 (15.9, 13.2)
Oil tank capacity L (US gal, Imp gal) 5.5 (1.5, 1.2)
UF1G70.book Page 23 Wednesday, December 18, 2002 3:35 PM
