Engine overheat warning
indicator
If the engine starts to overheat, the warn-
ing light and engine overheat warning indi-
cator begin to blink, and the buzzer sounds
intermittently.
If the watercraft continues to be operated
at higher speeds after the warning system
has been activated, the warning light,
engine overheat warning indicator and the
buzzer will change from intermittently to
continuously on. (See “Engine overheat
warning system” on page 2-12 for further
details.)
The warning signals will turn off when the
engine is started after it has cooled down.
NOTE:@ When the warnings overlap each other, their
priority is as follows:
1. Final overheat warning
2. Fuel level warning
3. Oil level warning
4. Initial overheat warning
5. Exhaust temperature warning
6. Check engine warning
@
EJU11860
Exhaust temperature warning
indicator
If the exhaust system becomes too hot,
the warning light and exhaust temperature
warning indicator begin to blink, and the
buzzer sounds intermittently. (See “Exhaust
temperature warning system” on page 2-13
for further details.)
The warning signals will turn off when the
engine is started after it has cooled down.
UF1G72.book Page 19 Thursday, September 30, 2004 2:28 PM
Page 45 of 122
2-20
E
EJU10350
Storage compartments
A front storage compartment and a glove
compartment are provided.
NOTE:@ Make sure that the storage compartments
are properly secured before operating the
watercraft.
The storage compartments are not
designed to be waterproof. If you carry
objects that must be kept dry, such as the
manuals, put them in a waterproof bag.
@
EJU10370
Front storage compartment
The front storage compartment 2 is
located at the bow.
To open the front storage compartment,
push the hood latch 1 down, and then open
the hood.
NOTE:@ The front storage compartment can be
removed to access the engine compart-
ment.
@
Front storage compartment:
Capacity: 16 L (4.2 US gal, 3.5 Imp gal)
Load limit: 5 kg (11 lb)
To close the front storage compartment,
push down on the rear of the hood until it
latches securely.
UF1G72.book Page 20 Thursday, September 30, 2004 2:28 PM
Page 47 of 122
E
3
EJU10400
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
2-stroke engine oil .................................. 3-3
Filling the fuel tank ................................. 3-4
Filling the oil tank ................................... 3-5
Pre-operation checks .............................. 3-6
Pre-operation check list ......................... 3-6
Pre-operation check points .................... 3-7
Operation ................................................ 3-16
Engine break-in .................................... 3-16
Starting the engine ............................... 3-18
Stopping the engine ............................. 3-20
Leaving the watercraft ......................... 3-20
Operating your watercraft .................... 3-21
Getting to know your watercraft ........... 3-21
Learning to operate your watercraft .... 3-21
Riding watercraft with a passenger ..... 3-22
Starting the watercraft .......................... 3-23
Boarding and starting in deep water ... 3-25
Capsized watercraft ............................. 3-27
Turning the watercraft .......................... 3-29
Stopping the watercraft ........................ 3-31
Beaching the watercraft ....................... 3-32
Docking the watercraft ......................... 3-32
Rough water operation ........................ 3-32
Post-operation checks ......................... 3-33
Transporting .......................................... 3-35
UF1G72.book Page 1 Thursday, September 30, 2004 2:28 PM
Page 48 of 122
3-1
E
EJU20060
Fuel and oil
This engine uses Yamaha’s oil injection
system, which provides superior lubrication
by ensuring the proper oil ratio for all operat-
ing conditions. No fuel premixing is neces-
sary except during the engine break-in
period. Simply pour gasoline into the fuel
tank and oil into the oil tank.
The engine utilizes an electronic fuel
injection system to deliver the optimal air-
fuel mixture ratio required by the engine.
With optimal combustion conditions, this
system is able to increase startability and
improve fuel economy.
EJU19122
Gasoline
WARNING@ GASOLINE AND ITS VAPORS ARE
HIGHLY FLAMMABLE AND EXPLOSIVE!
Do not smoke when refueling, and
keep away from sparks, flames, or
other sources of ignition.
Stop engine before refueling.
Refuel in a well-ventilated area with
the watercraft in a horizontal position.
Do not stand or sit on the watercraft
while refueling in case of fire.
Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.
UF1G72.book Page 1 Thursday, September 30, 2004 2:28 PM
Page 50 of 122
3-3
E
EJU18320
Gasohol
There are two types of gasohol: gasohol
containing ethanol and that containing meth-
anol.
Gasohol containing ethanol can be used
if ethanol content does not exceed 10% and
the fuel meets minimum octane ratings.
Gasohol containing methanol is not rec-
ommended by Yamaha because it can
cause fuel system damage or engine perfor-
mance problems.
EJU11870
2-stroke engine oil
CAUTION:@ Use only YAMALUBE 2-W oil. Using
another oil can seriously damage the cat-
alytic converter and other engine compo-
nents.
@
NOTE:@ YAMALUBE 2-W is developed for this water-
craft and available from a Yamaha dealer.
@
Recommended engine oil:
YAMALUBE 2-W oil only
UF1G72.book Page 3 Thursday, September 30, 2004 2:28 PM
Page 51 of 122
3-4
E
EJU20190
Filling the fuel tank
CAUTION:@ Be careful when refueling. Avoid getting
water or other contaminants in the fuel
tank. Contaminated fuel can cause poor
running or engine damage.
@
1. Open the hood and remove the front
storage compartment, to check the fuel
level. (See page 2-20 for front storage
compartment.)
2. Open the fuel tank filler cap, and slowly
add fuel to the fuel tank.
3. Stop filling when the fuel just reaches the
bottom of the filler tube on the fuel tank.
Do not fill into the filler tube, because
fuel could spill out.
Fuel tank capacity:
Total: 60 L (15.9 US gal, 13.2 Imp gal)
UF1G72.book Page 4 Thursday, September 30, 2004 2:28 PM
Page 52 of 122
3-5
E
EJU10460
Filling the oil tank
WARNING@ Do not add gasoline to the oil tank.
Fire or explosion could result.
Oil in the bilge is a serious fire hazard.
Wipe up any spilled oil immediately.
@
CAUTION:@ Do not allow the oil tank to become com-
pletely empty. If the oil tank becomes
empty the oil injection pump must be
bled to ensure proper oil flow, otherwise
engine damage may occur. If bleeding of
the oil pump is necessary, have a
Yamaha dealer bleed it.
@
1. Remove the seat to watch the oil level.
(See page 2-5 for seat.)
2. Open the oil tank filler cap, and very
slowly add engine oil to the oil tank.
3. Stop filling when the oil just reaches the
top of oil tank visible.
Oil tank capacity:
5.5 L (1.5 US gal, 1.2 Imp gal)
UF1G72.book Page 5 Thursday, September 30, 2004 2:28 PM
Page 53 of 122
3-6
E
EJU13460
Pre-operation checks
EJU13470
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
POC-***
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove the seat and front storage compartment to
ventilate the engine compartment. Check for fuel va-
pors and loose electrical connections.3-7
Bilge Check for water and fuel and remove if necessary. 3-9
Stern drain plugs Check for proper installation. 3-9
Throttle lever Check that the throttle lever springs back smoothly. 3-12
Steering system Check for proper operation. 3-12
QSTS Check for proper operation. 3-13
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-8
Water separator Check for water and drain if necessary. 3-8
Battery Check electrolyte level and battery condition. 3-10
Hood Check that the hood is properly secured. 2-6
Seat Check that the seat is properly secured. 2-5
Hull and deck Check the hull and deck for cracks or other damage. 3-7
Jet unit Check for debris and remove if necessary. 3-14
Fire extinguisher Check condition and replace if necessary. 3-11
Engine shut-off cord Check condition and replace if frayed or broken. 3-14
Switches Check the start switch, engine stop switch, and engine
shut-off switch for proper operation.3-15
Cooling water pilot outlet Check that water is discharged while the engine is run-
ning and the watercraft is in the water.3-15
Multifunction information center Check for warning indications and proper operation. 3-15
UF1G72.book Page 6 Thursday, September 30, 2004 2:28 PM
Page 54 of 122
3-7
E
EJU10480
Pre-operation check points
EJU10500
Engine compartment
Ventilate the engine compar tment before
each use.
To ventilate the engine compartment,
remove seat and front storage compart-
ment. (See page 2-5 for seat, and 2-20 for
front storage compartment.) Allow the
engine compartment to remain open for a
few minutes to allow any fuel vapors to
escape. Also, check for loose electrical con-
nections.
WARNING@ Failure to ventilate the engine compart-
ment could result in fire or explosion. Do
not start the engine if there is a fuel leak
or a loose electrical connection.
@
EJU20570
Hull and deck
Check the hull and deck for cracks or
other damage. If any damage is found, have
a Yamaha dealer repair the watercraft.
UF1G72.book Page 7 Thursday, September 30, 2004 2:28 PM
Page 56 of 122
3-9
E

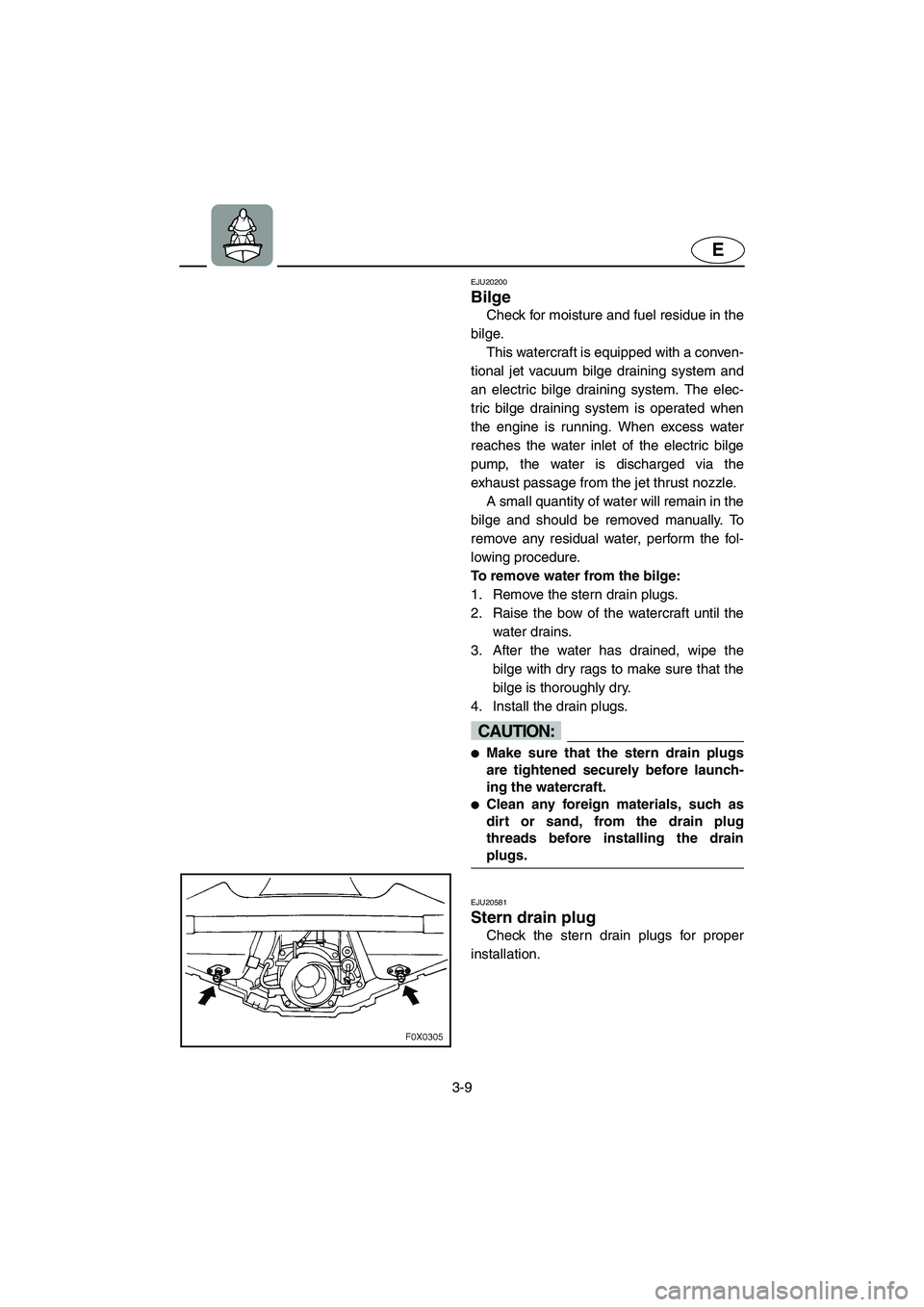

EJU20200
Bilge
Check for moisture and fuel residue in the
bilge.
This watercraft is equipped with a conven-
tional jet vacuum bilge draining system and
an electric bilge draining system. The elec-
tric bilge draining system is operated when
the engine is running. When excess water
reaches the water inlet of the electric bilge
pump, the water is discharged via the
exhaust passage from the jet thrust nozzle.
A small quantity of water will remain in the
bilge and should be removed manually. To
remove any residual water, perform the fol-
lowing procedure.
To remove water from the bilge:
1. Remove the stern drain plugs.
2. Raise the bow of the watercraft until the
water drains.
3. After the water has drained, wipe the
bilge with dry rags to make sure that the
bilge is thoroughly dry.
4. Install the drain plugs.
CAUTION:@ Make sure that the stern drain plugs
are tightened securely before launch-
ing the watercraft.
Clean any foreign materials, such as
dirt or sand, from the drain plug
threads before installing the drain
plugs.
@
EJU20581
Stern drain plug
Check the stern drain plugs for proper
installation.
UF1G72.book Page 9 Thursday, September 30, 2004 2:28 PM
