YAMAHA GP1300R 2006 Workshop Manual

3-4
E
EJU20190
Filling the fuel tank
CAUTION:@ Be careful when refueling. Avoid getting
water or other contaminants in the fuel
tank. Contaminated fuel can cause poor
running or engine damage.
@
1. Open the hood and remove the front
storage compartment, to check the fuel
level. (See page 2-20 for front storage
compartment.)
2. Open the fuel tank filler cap, and slowly
add fuel to the fuel tank.
3. Stop filling when the fuel just reaches the
bottom of the filler tube on the fuel tank.
Do not fill into the filler tube, because
fuel could spill out.
Fuel tank capacity:
Total: 60 L (15.9 US gal, 13.2 Imp gal)
UF1G73.book Page 4 Tuesday, July 12, 2005 8:55 AM

3-5
E
EJU10460
Filling the oil tank
WARNING@
Do not add gasoline to the oil tank.
Fire or explosion could result.

Oil in the bilge is a serious fire hazard.
Wipe up any spilled oil immediately.
@
CAUTION:@ Do not allow the oil tank to become com-
pletely empty. If the oil tank becomes
empty the oil injection pump must be
bled to ensure proper oil flow, otherwise
engine damage may occur. If bleeding of
the oil pump is necessary, have a
Yamaha dealer bleed it.
@
1. Remove the seat to watch the oil level.
(See page 2-5 for seat.)
2. Open the oil tank filler cap, and very
slowly add engine oil to the oil tank.
3. Stop filling when the oil just reaches the
top of oil tank visible.
Oil tank capacity:
5.5 L (1.5 US gal, 1.2 Imp gal)
UF1G73.book Page 5 Tuesday, July 12, 2005 8:55 AM

3-6
E
EJU13460
Pre-operation checks
EJU13470
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
POC-***
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove the seat and front storage compartment to
ventilate the engine compartment. Check for fuel va-
pors and loose electrical connections.3-7
Bilge Check for water and fuel and remove if necessary. 3-9
Stern drain plugs Check for proper installation. 3-9
Throttle lever Check that the throttle lever springs back smoothly. 3-12
Steering system Check for proper operation. 3-12
QSTS Check for proper operation. 3-13
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-8
Water separator Check for water and drain if necessary. 3-8
Battery Check electrolyte level and battery condition. 3-10
Hood Check that the hood is properly secured. 2-6
Seat Check that the seat is properly secured. 2-5
Hull and deck Check the hull and deck for cracks or other damage. 3-7
Jet unit Check for debris and remove if necessary. 3-14
Fire extinguisher Check condition and replace if necessary. 3-11
Engine shut-off cord Check condition and replace if frayed or broken. 3-14
Switches Check the start switch, engine stop switch, and engine
shut-off switch for proper operation.3-15
Cooling water pilot outlet Check that water is discharged while the engine is run-
ning and the watercraft is in the water.3-15
Multifunction information center Check for warning indications and proper operation. 3-15
UF1G73.book Page 6 Tuesday, July 12, 2005 8:55 AM

3-7
E
EJU10480
Pre-operation check points
EJU10500
Engine compartment
Ventilate the engine compar tment before
each use.
To ventilate the engine compartment,
remove seat and front storage compart-
ment. (See page 2-5 for seat, and 2-20 for
front storage compartment.) Allow the
engine compartment to remain open for a
few minutes to allow any fuel vapors to
escape. Also, check for loose electrical con-
nections.
WARNING@ Failure to ventilate the engine compart-
ment could result in fire or explosion. Do
not start the engine if there is a fuel leak
or a loose electrical connection.
@
EJU20570
Hull and deck
Check the hull and deck for cracks or
other damage. If any damage is found, have
a Yamaha dealer repair the watercraft.
UF1G73.book Page 7 Tuesday, July 12, 2005 8:55 AM

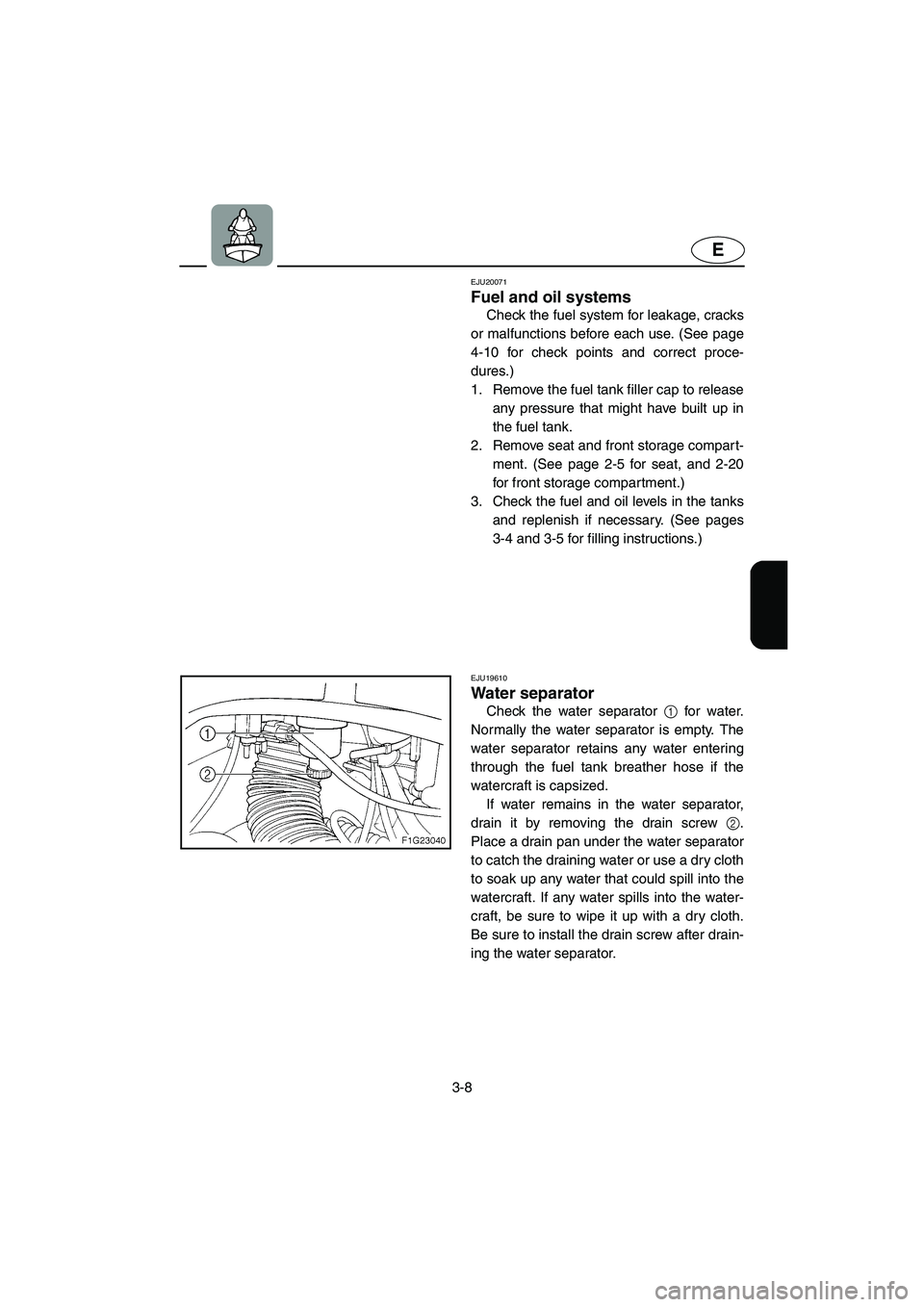

3-8
E
EJU20071
Fuel and oil systems
Check the fuel system for leakage, cracks
or malfunctions before each use. (See page
4-10 for check points and correct proce-
dures.)
1. Remove the fuel tank filler cap to release
any pressure that might have built up in
the fuel tank.
2. Remove seat and front storage compart-
ment. (See page 2-5 for seat, and 2-20
for front storage compartment.)
3. Check the fuel and oil levels in the tanks
and replenish if necessary. (See pages
3-4 and 3-5 for filling instructions.)
EJU19610
Water separator
Check the water separator 1 for water.
Normally the water separator is empty. The
water separator retains any water entering
through the fuel tank breather hose if the
watercraft is capsized.
If water remains in the water separator,
drain it by removing the drain screw 2.
Place a drain pan under the water separator
to catch the draining water or use a dry cloth
to soak up any water that could spill into the
watercraft. If any water spills into the water-
craft, be sure to wipe it up with a dry cloth.
Be sure to install the drain screw after drain-
ing the water separator.
UF1G73.book Page 8 Tuesday, July 12, 2005 8:55 AM

3-9
E
EJU20200
Bilge
Check for moisture and fuel residue in the
bilge.
This watercraft is equipped with a conven-
tional jet vacuum bilge draining system and
an electric bilge draining system. The elec-
tric bilge draining system is operated when
the engine is running. When excess water
reaches the water inlet of the electric bilge
pump, the water is discharged via the
exhaust passage from the jet thrust nozzle.
A small quantity of water will remain in the
bilge and should be removed manually. To
remove any residual water, perform the fol-
lowing procedure.
To remove water from the bilge:
1. Remove the stern drain plugs.
2. Raise the bow of the watercraft until the
water drains.
3. After the water has drained, wipe the
bilge with dry rags to make sure that the
bilge is thoroughly dry.
4. Install the drain plugs.
CAUTION:@
Make sure that the stern drain plugs
are tightened securely before launch-
ing the watercraft.

Clean any foreign materials, such as
dirt or sand, from the drain plug
threads before installing the drain
plugs.
@
EJU20581
Stern drain plug
Check the stern drain plugs for proper
installation.
UF1G73.book Page 9 Tuesday, July 12, 2005 8:55 AM

3-10
E
CAUTION:@
Make sure that the stern drain plugs
are tightened securely before launch-
ing the watercraft. Otherwise, water
may flood the engine compartment
and cause the watercraft to submerge.

Clean any foreign materials, such as
dirt or sand, from the drain plug
threads before installing the drain
plugs. Otherwise, the drain plugs may
be damaged and water may enter the
engine compartment.
@
EJU19690
Battery
Check the battery condition and the elec-
trolyte level.
Check that the battery leads are tightened
securely and there is no corrosion on the
battery terminals.
WARNING@
The battery must always be fully
charged and in good condition. Loss
of battery power may leave you
stranded. Never operate the watercraft
if the battery does not have sufficient
power to start the engine or if it shows
any other signs of decreased power.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
Make sure that the battery is securely
held in place.
1
Positive (+): Red lead
2
Negative (–): Black lead
3
Breather hose
UF1G73.book Page 10 Tuesday, July 12, 2005 8:55 AM

3-11
E
EJU10550
Fire extinguisher
Check that there is a full fire extinguisher
on board. The fire extinguisher container 1
is located in the battery compartment.
To open the fire extinguisher container
cap 2 remove the seat and turn it counter-
clockwise.
After inserting the fire extinguisher make
sure that the container cap is tightened
securely.
NOTE:@
See the instructions supplied by the fire
extinguisher manufacturer for checking
the fire extinguisher. Always keep the
extinguisher in the fire extinguisher con-
tainer.

Always carry a fire extinguisher on board.
A fire extinguisher is not standard equip-
ment with this watercraft. If you do not
have one, contact a Yamaha dealer or a
fire extinguisher dealer to obtain one
meeting the proper specifications.
@
UF1G73.book Page 11 Tuesday, July 12, 2005 8:55 AM

3-12
E
EJU18340
Throttle
Squeeze and release the throttle lever
several times to make sure that there is no
hesitation in its travel. It should be smooth
over the complete range, and spring back to
the idle position when released.
WARNING@ Before starting the engine, always check
the operation of the throttle lever.
@
EJU10570
Steering system
Check for looseness in the handlebars.
Turn them as far as possible to the right
and left to make sure that operation is
smooth and unrestricted throughout the
whole range. Make sure that the jet thrust
nozzle also changes directions as the han-
dlebars are turned, and that there is no free
play between the handlebars and the jet
thrust nozzle.
UF1G73.book Page 12 Tuesday, July 12, 2005 8:55 AM

3-13
E
EJU20620
Quick Shift Trim System (QSTS)
Check the shift lock lever and the QSTS
selector for proper operation.
1. Operate the shift lock lever and the
QSTS selector to check that they oper-
ate properly.
2. Check that the QSTS selector locks
when the lever is released.
3. Check that the selector turns smoothly
when the lever is squeezed and held in
place.
4. Check that the angle of the jet thrust
nozzle changes when the selector is
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
UF1G73.book Page 13 Tuesday, July 12, 2005 8:55 AM
