YAMAHA GP800R 2002 Owners Manual

5-6
E
EJU01121
Connecting the jumper cables
1. Connect the positive (+) jumper cable 1
to the positive (+) terminals of both bat-
teries.
2. Connect one end of the negative (–)
jumper cable 2 to the negative (–) termi-
nal of the booster battery 3.
3. Connect the other end of the negative (–)
cable to an unpainted bolt on the cylinder
head.
CAUTION:@ Do not connect the end of the jumper
cable to the negative (–) terminal on the
watercraft battery! Be sure all connec-
tions are secure and correct before
attempting to start the engine. Any
wrong connection may damage the elec-
trical system.
@
4. Start the engine, and then disconnect
the cables by reversing the steps above.
CAUTION:@
Never push the start switch while the
engine is running.

Do not operate the start switch for
more than 5 seconds, otherwise the
battery will be discharged and the
engine will not start. Also, the starter
motor may be damaged. If the engine
does not start in 5 seconds, release
the start switch, wait 15 seconds, and
try again.
@
UF0W71.book Page 6 Thursday, August 30, 2001 3:46 PM

5-7
E
EJU01122
Towing the watercraft
If the watercraft becomes inoperative in
the water, it can be towed to shore.
If the watercraft must be towed in an
emergency using a tow line, the operator
should ride the watercraft, holding onto the
handlebars.
CAUTION:@
Tow the watercraft slowly; water may
enter the air intake and flood the
engine compartment if the watercraft
is towed too fast.

Tow the watercraft using the bow
eye1 only.

The bow must be kept up out of the
water during towing to prevent water
from entering the engine compart-
ment.
@
WARNING@
The watercraft should only be towed in
an emergency.

The tow line should be long enough so
that the watercraft will not collide with
the towing boat when slowing down. A
good rule of thumb is a tow line which
is three times the combined length of
the towing boat and the watercraft. A
shorter length of rope can be used if
the watercraft is towed very slowly.

The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the rider on the watercraft.
@
UF0W71.book Page 7 Thursday, August 30, 2001 3:46 PM

5-8
E
EJU01264
Submerged watercraft
If the watercraft is submerged or flooded
with water, follow the procedure below and
consult a Yamaha dealer as soon as possi-
ble. Failure to do so may result in serious
engine damage!
1. Beach the watercraft and remove the
stern drain plugs to drain the water from
the engine compartment.
2. Turn the fuel cock knob to “OFF.”
3. Remove the spark plugs and dry them
with a cloth.
4. Without reinstalling the spark plugs,
crank the engine until all the water in the
cylinders has been drained.
5. Install the stern drain plugs and the
spark plugs.
6. Turn the fuel cock to “ON.”
7. Launch the watercraft into the water, and
then run the engine for at least 10 min-
utes. If the engine will not start, repeat
steps above.
8. Turn the engine off. Turn the fuel cock to
“OFF.”
9. Remove the silencer cap and spray a
rust inhibitor into the carburetor while
cranking the engine.
10. Have the watercraft inspected by a
Yamaha dealer as soon as possible.
UF0W71.book Page 8 Thursday, August 30, 2001 3:46 PM

E
–MEMO–
UF0W71.book Page 9 Thursday, August 30, 2001 3:46 PM

E
6
EJU01124

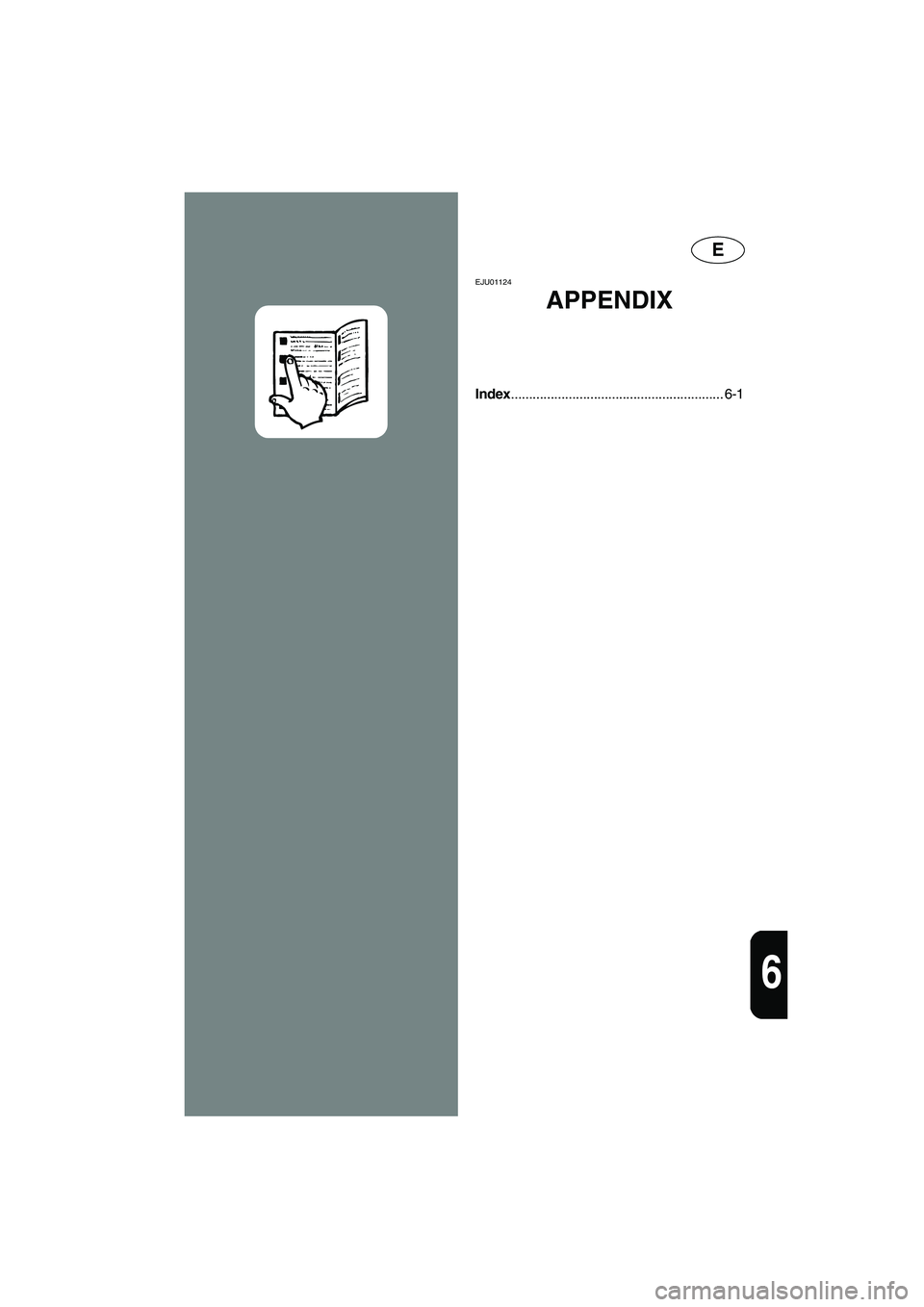

APPENDIX
Index........................................................... 6-1
UF0W71.book Page 1 Thursday, August 30, 2001 3:46 PM

6-1
E
EJU01125
Index
2-stroke engine oil ................................... 3-2
A
Adjusting the carburetor ........................ 4-21
Adjusting the trolling speed ................... 4-21
Adjusting the Yamaha Adjustable
Sponson (Y.A.S.) .................................. 4-23
Approval label of Emission control
certificate ................................................. 1-2
B
Battery .............................................. 3-8, 4-5
Beaching the watercraft ........................ 3-30
Bilge ........................................................ 3-7
Bleeding the oil injection pump ............. 4-22
Boarding alone ...................................... 3-23
Boarding and starting in deep water ..... 3-23
Boarding with a passenger.................... 3-24
Bow down.............................................. 2-12
Bow up .................................................. 2-12
C
Capsized watercraft .............................. 3-25
Caution labels ......................................... 1-8
Choke lever ............................................. 2-8
Cleaning and adjusting the spark
plugs...................................................... 4-15
Cleaning the jet intake and impeller ........ 5-4
Cleaning the watercraft ........................... 4-6
Connecting the jumper cables................. 5-6
Cooling water pilot outlet .............. 2-10, 3-12
Cruising limitations ................................ 1-11
D
Docking the watercraft .......................... 3-30
E
Emergency procedures ........................... 5-4
Emission control information ................... 1-2
Engine break-in ..................................... 3-13
Engine compartment ............................... 3-6
Engine overheat warning indicator ........ 2-17
Engine overheat warning system .......... 2-13
Engine serial number .............................. 1-1
Engine shut-off cord (lanyard) ............... 3-11Engine shut-off switch ............................. 2-8
Engine stop switch .................................. 2-8
Enjoy your watercraft responsibly ......... 1-17
F
Filling the fuel tank .................................. 3-3
Filling the oil tank .................................... 3-4
Fire extinguisher ...................................... 3-9
Flushing the cooling system .................... 4-1
Front storage compartment ................... 2-18
Fuel and oil.............................................. 3-1
Fuel and oil systems ............................... 3-6
Fuel cock knob ........................................ 2-7
Fuel filter ............................................... 4-11
Fuel meter ............................................. 2-16
Fuel system ............................................. 4-4
Fuel tank ............................................... 4-11
Fuel tank filler cap ................................... 2-6
Fuel warning indicator ........................... 2-17
G
Gasohol ................................................... 3-2
Gasoline .................................................. 3-1
Getting to know your watercraft ............ 3-19
Glove compartment ............................... 2-19
H
Handgrip ................................................ 2-12
Hazard information ................................ 1-15
Hood........................................................ 2-6
Hour meter ............................................ 2-16
Hull Identification Number (HIN).............. 1-1
I
Identification numbers ............................. 1-1
Important labels ....................................... 1-3
Inspecting and adjusting the throttle
cable...................................................... 4-13
Inspecting the battery ............................ 4-19
Inspecting the fuel system ..................... 4-10
Inspecting the oil injection system ......... 4-12
Inspecting the QSTS mechanism .......... 4-14
Inspecting the steering cable ................ 4-13
J
Jet unit................................................... 3-11
Jumping the battery ................................. 5-5
UF0W71.book Page 1 Thursday, August 30, 2001 3:46 PM

6-2
E
L
Label location .......................................... 1-3
Learning to operate your watercraft ...... 3-19
Leaving the watercraft ........................... 3-18
Limitations on who may operate the
watercraft .............................................. 1-10
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-16
M
Maintenance and adjustments ................ 4-7
Multifunction information center ... 2-14, 3-12
O
Oil filter .................................................. 4-12
Oil tank .................................................. 4-12
Oil tank filler cap...................................... 2-6
Oil warning indicator.............................. 2-17
Operating your watercraft...................... 3-19
Operation .............................................. 3-13
Operation of controls and other
functions .................................................. 2-5
Operation requirements ........................ 1-12
Other labels ............................................. 1-9
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-8
P
Periodic maintenance chart..................... 4-9
Post-operation checks........................... 3-31
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
Q
Quick Shift Trim System (QSTS)
selector.................................................. 2-11
R
Recommended equipment .................... 1-14
Replacing the fuse ................................ 4-22
Reset button .......................................... 2-15
Riding watercraft with a passenger ....... 3-20
Rough water operation .......................... 3-30S
Safe boating rules ................................. 1-16
Safety information ................................. 1-10
Seat ......................................................... 2-5
Specifications ........................................ 4-24
Speedometer......................................... 2-15
Starting and boarding in shallow
water ..................................................... 3-22
Starting from a dock .............................. 3-22
Starting the engine ................................ 3-15
Starting the watercraft ........................... 3-21
Start switch.............................................. 2-9
Steering system ...........................2-10, 3-10
Stopping the engine .............................. 3-18
Stopping the watercraft ......................... 3-29
Storage.................................................... 4-1
Storage compartments .......................... 2-18
Submerged watercraft ............................. 5-8
Switches ................................................ 3-12
T
Tachometer ........................................... 2-15
Throttle .................................................. 3-10
Throttle lever ........................................... 2-9
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-33
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-27
W
Warning labels ........................................ 1-5
Watercraft characteristics ...................... 1-15
Water separator ...................................... 3-7
Y
Yamaha Adjustable Sponson
(Y.A.S.).................................................. 2-19
UF0W71.book Page 2 Thursday, August 30, 2001 3:46 PM

UF0W71.book Page 3 Thursday, August 30, 2001 3:46 PM

E_F0W71-1.fm Page 18 Friday, August 31, 2001 9:20 AM

READ THIS MANUAL
CAREFULLY BEFORE OPERATION!
OWNER’S / OPERATOR’S
MANUAL
F0W-F8199-71
GP800R2002
Printed in USA
September 2001—0.6 × 1 CRF0W-F8199-71(GP800A-A)
(E)
Printed on recycled paper
YAMAHA MOTOR CO., LTD.
WaveRunner
