YAMAHA GP800R 2003 Owners Manual
Manufacturer: YAMAHA, Model Year: 2003, Model line: GP800R, Model: YAMAHA GP800R 2003Pages: 118, PDF Size: 9.47 MB
Page 111 of 118
5-8
E
EJU01905
Submerged watercraft
If the watercraft is submerged or flooded
with water, follow the procedure below and
consult a Yamaha dealer as soon as possi-
ble. Failure to do so may result in serious
engine damage!
In an emergency:
1. Beach the watercraft and remove the
stern drain plugs to drain the water from
the engine compartment.
2. Turn the fuel cock knob to “OFF.”
3. Remove the spark plugs and dry them
with a cloth.
4. Without reinstalling the spark plugs,
crank the engine until all the water in the
cylinders has been drained.
5. Install the stern drain plugs and the
spark plugs.
6. Turn the fuel cock to “ON.”
7. Launch the watercraft into the water, and
then run the engine for at least 10 min-
utes. If the engine does not start, repeat
steps 2–7.
8. Turn the engine off.
9. Turn the fuel cock to “OFF,” remove the
silencer cap, and then spray a rust inhib-
itor into the carburetor while cranking the
engine.
10. Have the watercraft inspected by a
Yamaha dealer as soon as possible.
UF0W72.book Page 8 Thursday, August 22, 2002 1:27 PM
Page 112 of 118
E

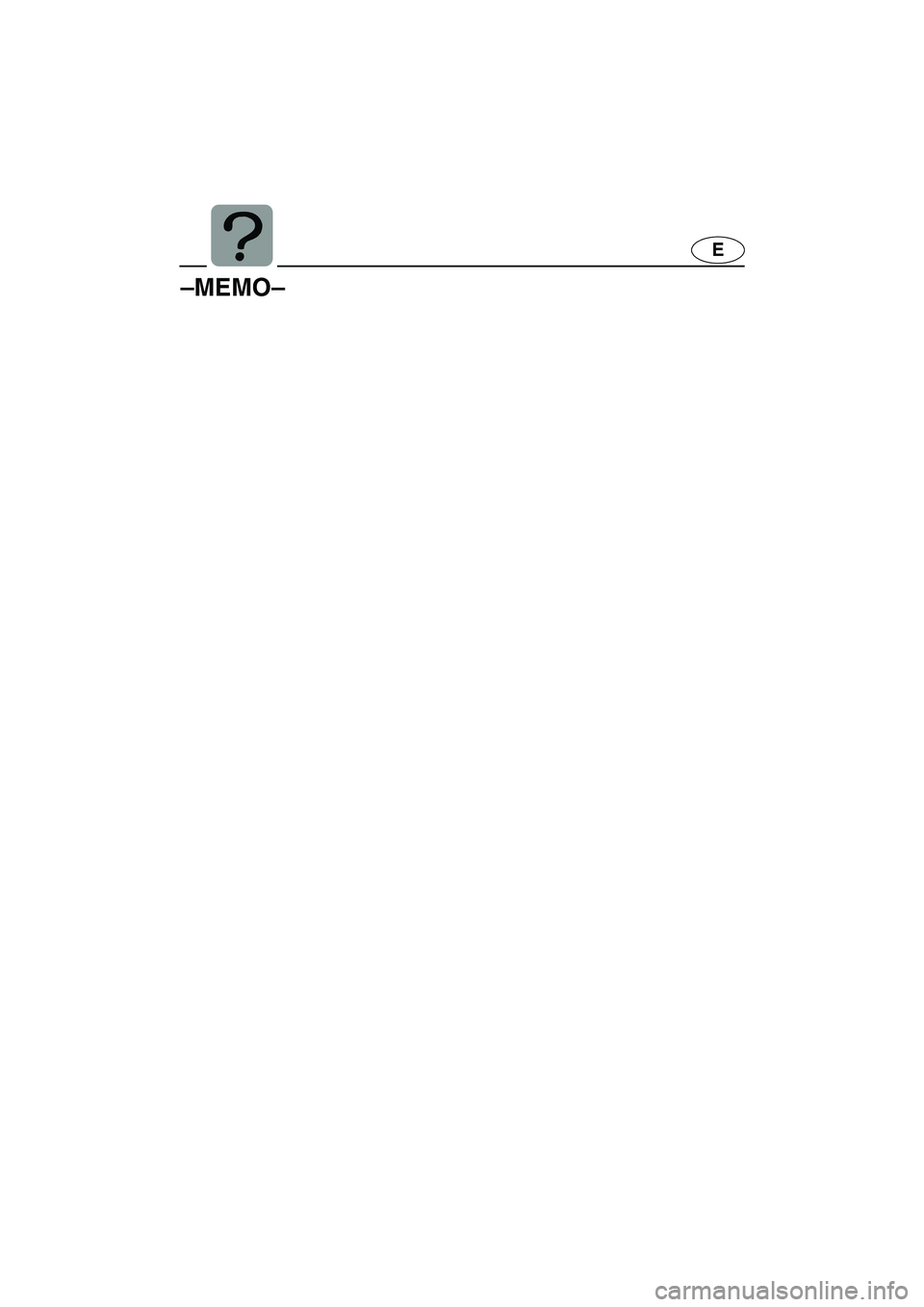

–MEMO–
UF0W72.book Page 9 Thursday, August 22, 2002 1:27 PM
Page 113 of 118
E
6
EJU01124

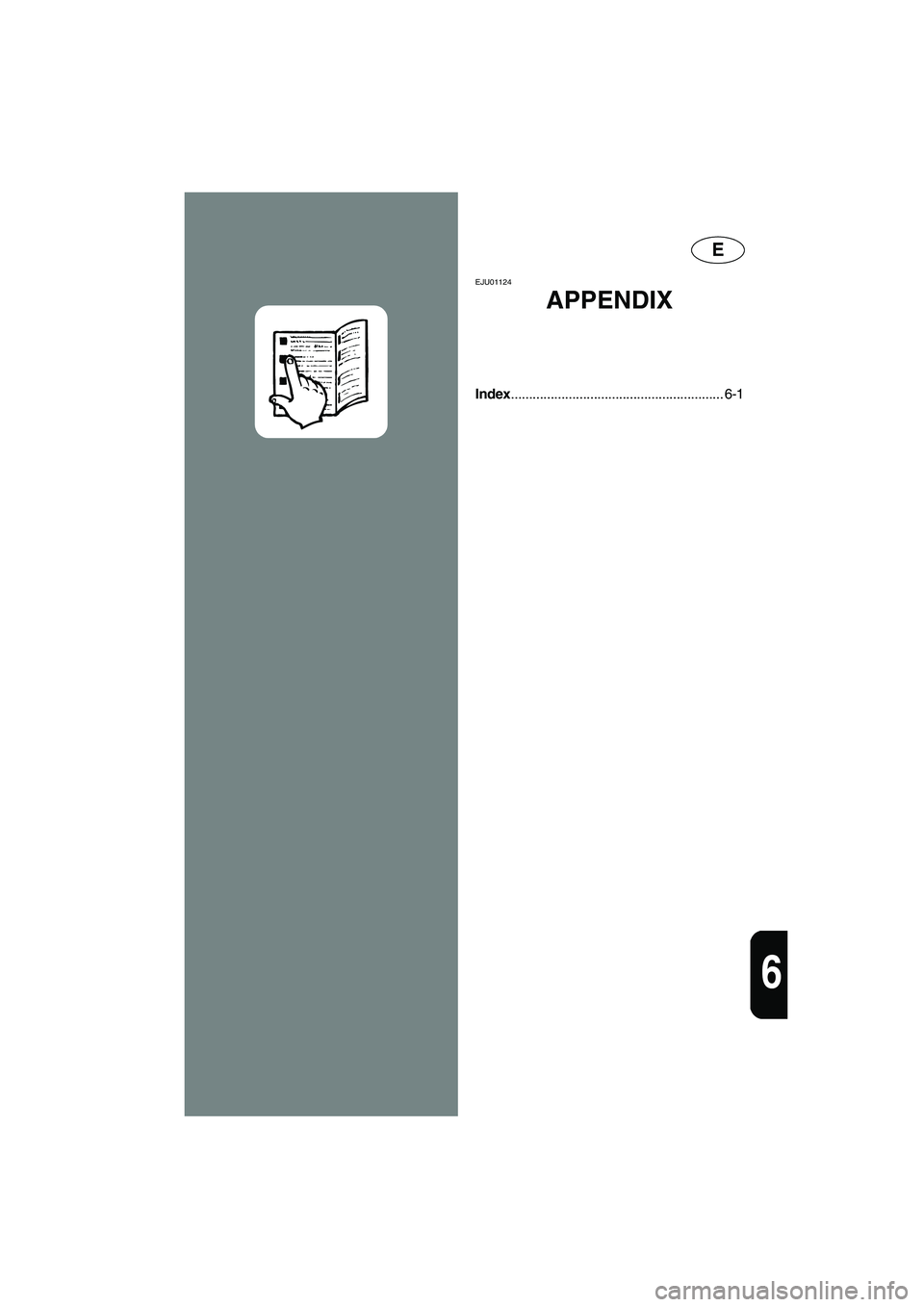

APPENDIX
Index........................................................... 6-1
UF0W72.book Page 1 Thursday, August 22, 2002 1:27 PM
Page 114 of 118
6-1
E
EJU01125
Index
2-stroke engine oil ................................... 3-2
A
Adjusting the carburetor ........................ 4-21
Adjusting the trolling speed ................... 4-21
Adjusting the Yamaha Adjustable
Sponson (Y.A.S.) .................................. 4-23
B
Battery .............................................. 3-8, 4-5
Beaching the watercraft ........................ 3-30
Bilge ........................................................ 3-7
Bleeding the oil injection pump ............. 4-22
Boarding alone ...................................... 3-23
Boarding and starting in deep water ..... 3-23
Boarding with a passenger.................... 3-24
Bow down.............................................. 2-12
Bow up .................................................. 2-12
C
Capsized watercraft .............................. 3-25
Choke lever ............................................. 2-8
Cleaning and adjusting the
spark plugs ............................................ 4-15
Cleaning the jet intake and impeller ........ 5-4
Cleaning the watercraft ........................... 4-6
Connecting the jumper cables................. 5-6
Cooling water pilot outlet .............. 2-10, 3-12
Cruising limitations .................................. 1-8
D
Docking the watercraft .......................... 3-30
E
Emergency procedures ........................... 5-4
Engine break-in ..................................... 3-13
Engine compartment ............................... 3-6
Engine overheat warning indicator ........ 2-17
Engine overheat warning system .......... 2-13
Engine serial number .............................. 1-1
Engine shut-off cord (lanyard) ............... 3-11
Engine shut-off switch ............................. 2-8
Engine stop switch .................................. 2-8
Enjoy your watercraft responsibly ......... 1-14F
Filling the fuel tank .................................. 3-3
Filling the oil tank .................................... 3-4
Fire extinguisher ...................................... 3-9
Flushing the cooling system .................... 4-1
Front storage compartment ................... 2-18
Fuel and oil.............................................. 3-1
Fuel and oil systems ............................... 3-6
Fuel cock knob ........................................ 2-7
Fuel filter ............................................... 4-11
Fuel meter ............................................. 2-16
Fuel system ............................................. 4-4
Fuel tank ............................................... 4-11
Fuel tank filler cap ................................... 2-6
Fuel warning indicator ........................... 2-17
G
Gasohol ................................................... 3-2
Gasoline .................................................. 3-1
Getting to know your watercraft ............ 3-19
Glove compartment ............................... 2-19
H
Handgrip ................................................ 2-12
Hazard information ................................ 1-12
Hood........................................................ 2-6
Hour meter ............................................ 2-16
Hull Identification Number (HIN).............. 1-1
I
Identification numbers ............................. 1-1
Important labels ....................................... 1-2
Inspecting and adjusting the
throttle cable.......................................... 4-13
Inspecting the battery ............................ 4-19
Inspecting the fuel system ..................... 4-10
Inspecting the jet thrust nozzle angle .... 4-13
Inspecting the oil injection system ......... 4-12
Inspecting the QSTS mechanism .......... 4-14
J
Jet unit................................................... 3-11
Jumping the battery ................................. 5-5
L
Label location .......................................... 1-2
Learning to operate your watercraft ...... 3-19
Leaving the watercraft ........................... 3-18
UF0W72.book Page 1 Thursday, August 22, 2002 1:27 PM
Page 115 of 118
6-2
E
Limitations on who may operate the
watercraft ................................................ 1-7
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-16
M
Maintenance and adjustments ................ 4-7
Multifunction information center ... 2-14, 3-12
O
Oil filter .................................................. 4-12
Oil tank .................................................. 4-12
Oil tank filler cap...................................... 2-6
Oil warning indicator.............................. 2-17
Operating your watercraft...................... 3-19
Operation .............................................. 3-13
Operation of controls and other
functions .................................................. 2-5
Operation requirements .......................... 1-9
Other labels ............................................. 1-6
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-8
P
Periodic maintenance chart..................... 4-9
Post-operation checks........................... 3-31
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
Q
Quick Shift Trim System (QSTS)
selector.................................................. 2-11
R
Recommended equipment .................... 1-11
Replacing the fuse ................................ 4-22
Reset button .......................................... 2-15
Riding watercraft with a passenger ....... 3-20
Rough water operation .......................... 3-30
S
Safe boating rules ................................. 1-13
Safety information ................................... 1-7
Seat ......................................................... 2-5
Specifications ........................................ 4-24
Speedometer......................................... 2-15Starting and boarding in shallow
water ..................................................... 3-22
Starting from a dock .............................. 3-22
Starting the engine ................................ 3-15
Starting the watercraft ........................... 3-21
Start switch.............................................. 2-9
Steering system ...........................2-10, 3-10
Stopping the engine .............................. 3-18
Stopping the watercraft ......................... 3-29
Storage.................................................... 4-1
Storage compartments .......................... 2-18
Submerged watercraft ............................. 5-8
Switches ................................................ 3-12
T
Tachometer ........................................... 2-15
Throttle .................................................. 3-10
Throttle lever ........................................... 2-9
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-33
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-27
W
Warning labels ........................................ 1-3
Watercraft characteristics ...................... 1-12
Water separator ...................................... 3-7
Y
Yamaha Adjustable Sponson
(Y.A.S.).................................................. 2-19
UF0W72.book Page 2 Thursday, August 22, 2002 1:27 PM
Page 116 of 118
UF0W72.book Page 3 Thursday, August 22, 2002 1:27 PM
Page 117 of 118
A5-shiro_tate.fm Page 1 Monday, May 28, 2001 12:03 PM
Page 118 of 118

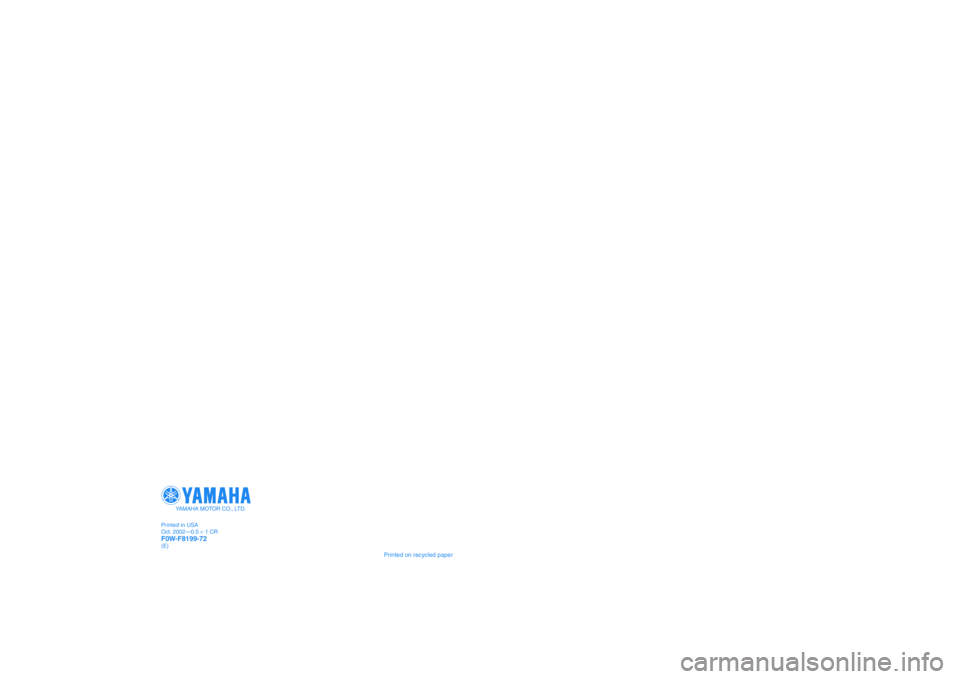

Printed on recycled paper
YAMAHA MOTOR CO., LTD.
2003
WaveRunner
GP800R
OWNER’S / OPERATOR’S
MANUAL
READ THIS MANUAL
CAREFULLY BEFORE OPERATION!
F0W-F8199-72
Printed in USA
Oct. 2002—0.5 × 1 CRF0W-F8199-72(E)
