YAMAHA GRIZZLY 125 2009 Service Manual

6-3
1
2
3
4
56
7
8
9
10
11

EBU20291

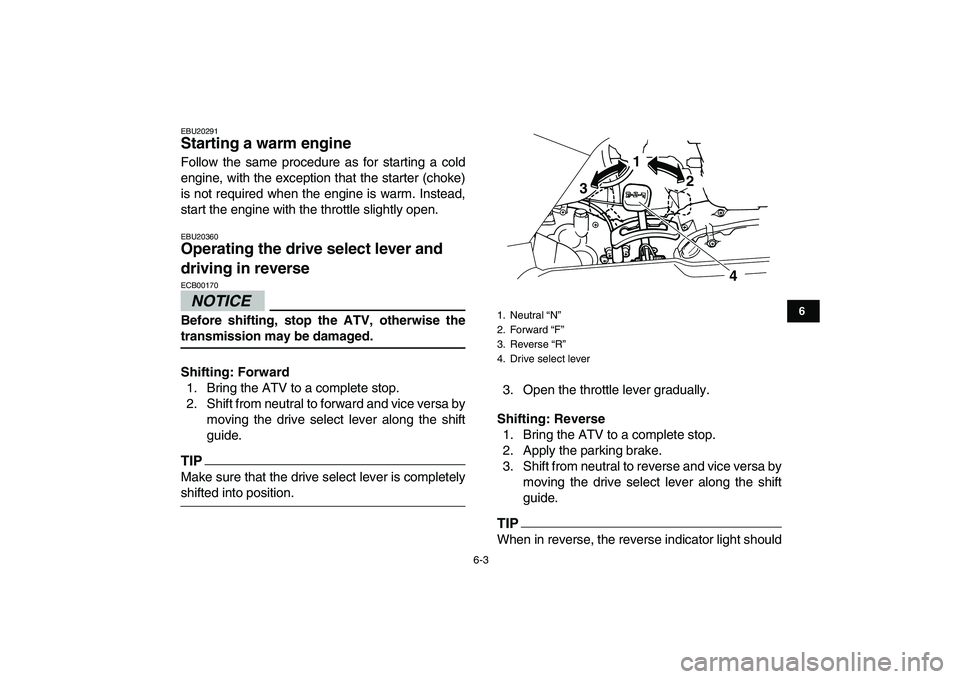

Starting a warm engine
Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.
EBU20360
Operating the drive select lever and
driving in reverse
NOTICE

ECB00170
Before shifting, stop the ATV, otherwise the
transmission may be damaged.
Shifting: Forward
1. Bring the ATV to a complete stop.
2. Shift from neutral to forward and vice versa by
moving the drive select lever along the shift
guide.
TIP

Make sure that the drive select lever is completely
shifted into position.3. Open the throttle lever gradually.
Shifting: Reverse
1. Bring the ATV to a complete stop.
2. Apply the parking brake.
3. Shift from neutral to reverse and vice versa by
moving the drive select lever along the shift
guide.
TIP

When in reverse, the reverse indicator light should
1. Neutral “N”
2. Forward “F”
3. Reverse “R”
4. Drive select lever
1
2
3
4

6-4
1
2
3
4
56
7
8
9
10
11

come on. If the indicator light does not come on,
have a Yamaha dealer check the electrical circuit.
4. Check behind for people or obstacles, and
then release the parking brake.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.
TIP

If the drive select lever is shifted into reverse while
the engine is running, the engine will stop unless
the rear brake lever or parking brake is applied.
WARNING

EWB00720
Improper operation in reverse could make you
hit an obstacle or even a person behind you,
resulting in serious injury. When you shift into
reverse, make sure there are no people or ob-
stacles behind you. When it is safe to proceed,
go slowly.
EBU20682
Engine break-in
TIP


For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or thefigures given in hours.

For ATVs not equipped with an odometer or
hour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.

6-5
1
2
3
4
56
7
8
9
10
11

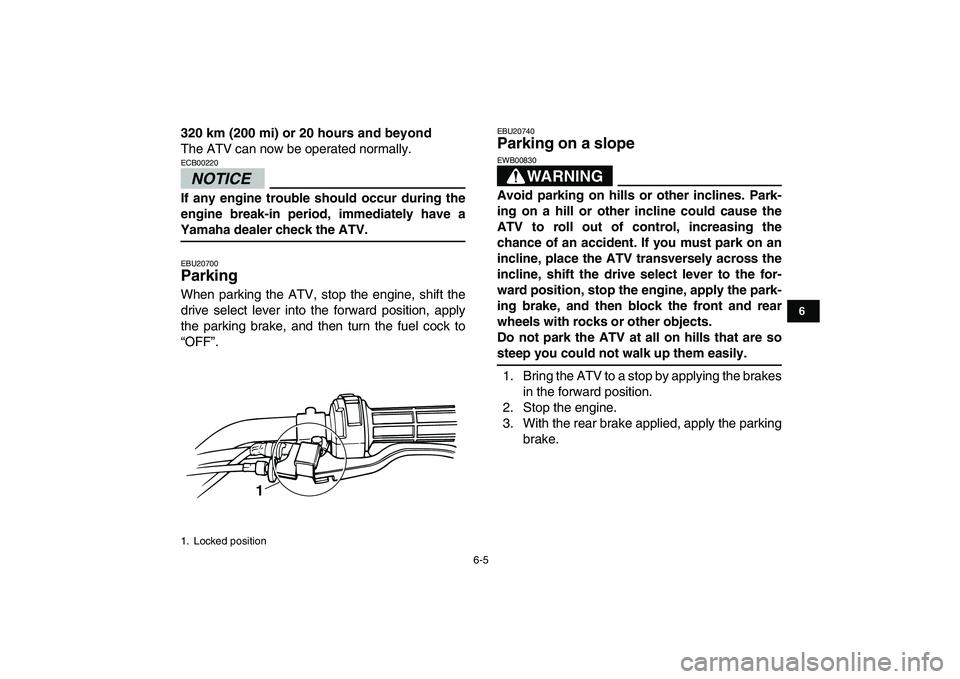

320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
NOTICE

ECB00220
If any engine trouble should occur during the
engine break-in period, immediately have a
Yamaha dealer check the ATV.
EBU20700
Parking
When parking the ATV, stop the engine, shift the
drive select lever into the forward position, apply
the parking brake, and then turn the fuel cock to
“OFF”.
EBU20740
Parking on a slope
WARNING
EWB00830
Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, shift the drive select lever to the for-
ward position, stop the engine, apply the park-
ing brake, and then block the front and rear
wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in the forward position.
2. Stop the engine.
3. With the rear brake applied, apply the parking
brake.
1. Locked position
1

6-6
1
2
3
4
56
7
8
9
10
11

EBU20910

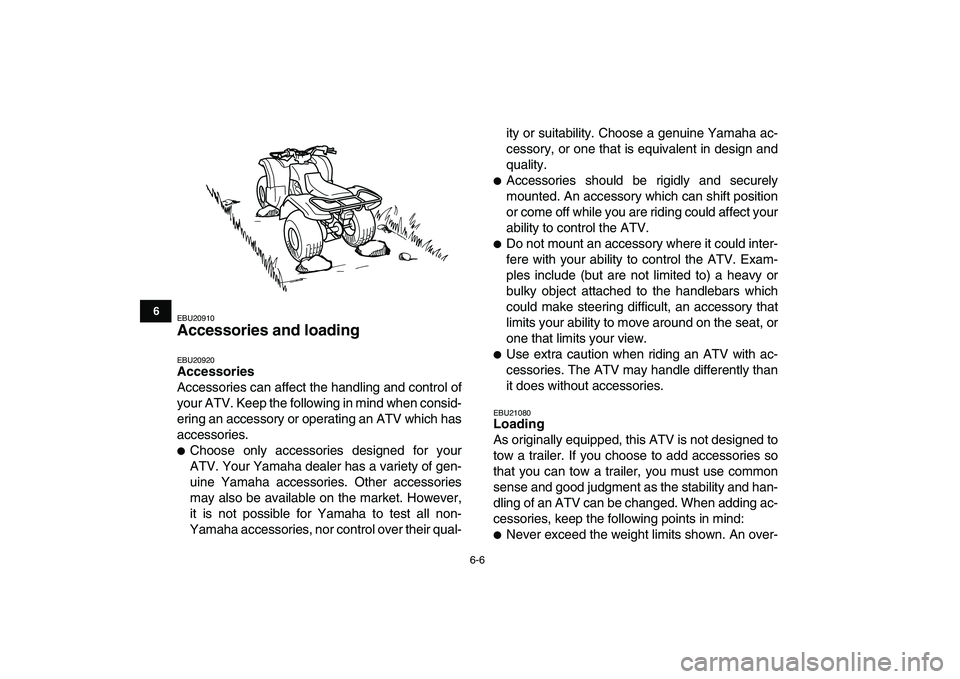

Accessories and loading
EBU20920
Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
accessories.

Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of gen-
uine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all non-
Yamaha accessories, nor control over their qual-ity or suitability. Choose a genuine Yamaha ac-
cessory, or one that is equivalent in design and
quality.

Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.

Do not mount an accessory where it could inter-
fere with your ability to control the ATV. Exam-
ples include (but are not limited to) a heavy or
bulky object attached to the handlebars which
could make steering difficult, an accessory that
limits your ability to move around on the seat, or
one that limits your view.

Use extra caution when riding an ATV with ac-
cessories. The ATV may handle differently than
it does without accessories.
EBU21080
Loading
As originally equipped, this ATV is not designed to
tow a trailer. If you choose to add accessories so
that you can tow a trailer, you must use common
sense and good judgment as the stability and han-
dling of an ATV can be changed. When adding ac-
cessories, keep the following points in mind:

Never exceed the weight limits shown. An over-

6-7
1
2
3
4
56
7
8
9
10
11

loaded ATV can be unstable.

If you are carrying cargo and towing a trailer, in-
clude the tongue weight in the maximum ATV
load limit.

Load cargo on the carriers as close to the center
of the ATV as possible. Put cargo at the rear of
the front carrier, at the front of the rear carrier,
and center it.

Tie down cargo securely to the carriers. Make
sure cargo in the trailer cannot move around. A
shifting load can cause an accident.

Make sure the load does not interfere with con-
trols or your ability to see where you are going.

Ride more slowly than you would without a load.
The more weight you carry, the slower you
should go.

Allow more braking distance. A heavier ATVtakes longer to stop.

Avoid making sharp turns unless at very slow
speeds.

Avoid hills and rough terrain. Choose terrain
carefully. Added weight affects the stability and
handling of the ATV.WARNING
EWB00820
Never exceed the stated load capacity for this
ATV. Overloading this ATV or carrying or tow-
ing cargo improperly could cause changes in
ATV handling which could lead to an accident.
Cargo should be properly distributed and se-
curely attached. Reduce speed when carrying
cargo or pulling a trailer. Allow greater dis-
tance for braking.
MAXIMUM LOADING LIMIT
ATV loading limit (total weight of rider, cargo,
accessories, and tongue):
105.0 kg (231 lb)
Front carrier:
5.0 kg (11 lb)
Rear carrier:
10.0 kg (22 lb)

7-1
1
2
3
4
5
67
8
9
10
11

EBU21141
RIDING YOUR ATV

7-2
1
2
3
4
5
67
8
9
10
11

EBU21313

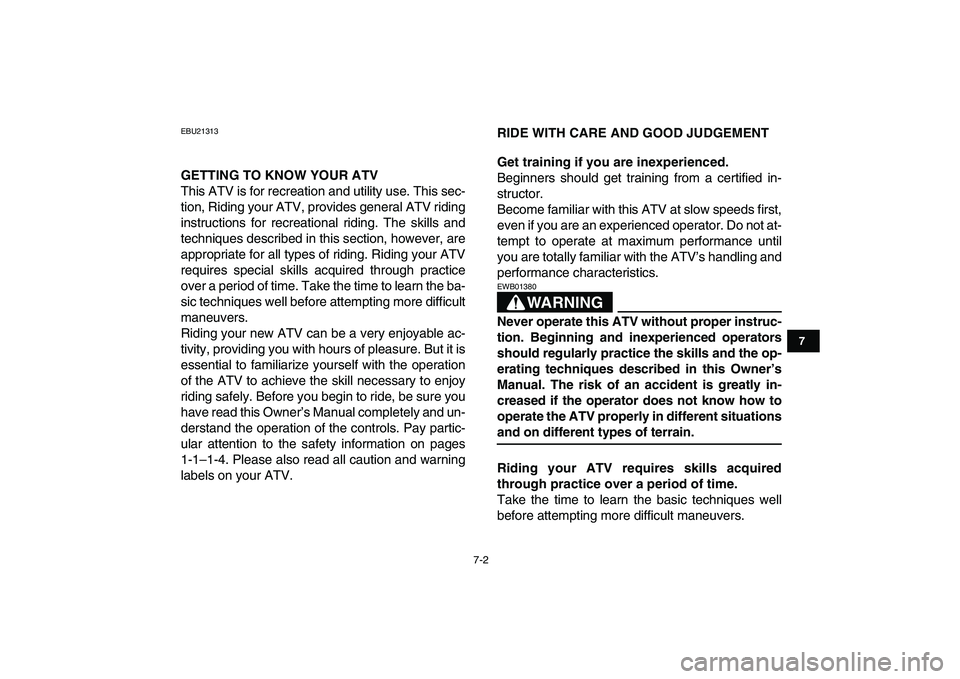

GETTING TO KNOW YOUR ATV
This ATV is for recreation and utility use. This sec-
tion, Riding your ATV, provides general ATV riding
instructions for recreational riding. The skills and
techniques described in this section, however, are
appropriate for all types of riding. Riding your ATV
requires special skills acquired through practice
over a period of time. Take the time to learn the ba-
sic techniques well before attempting more difficult
maneuvers.
Riding your new ATV can be a very enjoyable ac-
tivity, providing you with hours of pleasure. But it is
essential to familiarize yourself with the operation
of the ATV to achieve the skill necessary to enjoy
riding safely. Before you begin to ride, be sure you
have read this Owner’s Manual completely and un-
derstand the operation of the controls. Pay partic-
ular attention to the safety information on pages
1-1–1-4. Please also read all caution and warning
labels on your ATV.
RIDE WITH CARE AND GOOD JUDGEMENT
Get training if you are inexperienced.
Beginners should get training from a certified in-
structor.
Become familiar with this ATV at slow speeds first,
even if you are an experienced operator. Do not at-
tempt to operate at maximum performance until
you are totally familiar with the ATV’s handling and
performance characteristics.
WARNING

EWB01380
Never operate this ATV without proper instruc-
tion. Beginning and inexperienced operators
should regularly practice the skills and the op-
erating techniques described in this Owner’s
Manual. The risk of an accident is greatly in-
creased if the operator does not know how to
operate the ATV properly in different situations
and on different types of terrain.
Riding your ATV requires skills acquired
through practice over a period of time.
Take the time to learn the basic techniques well
before attempting more difficult maneuvers.

7-3
1
2
3
4
5
67
8
9
10
11

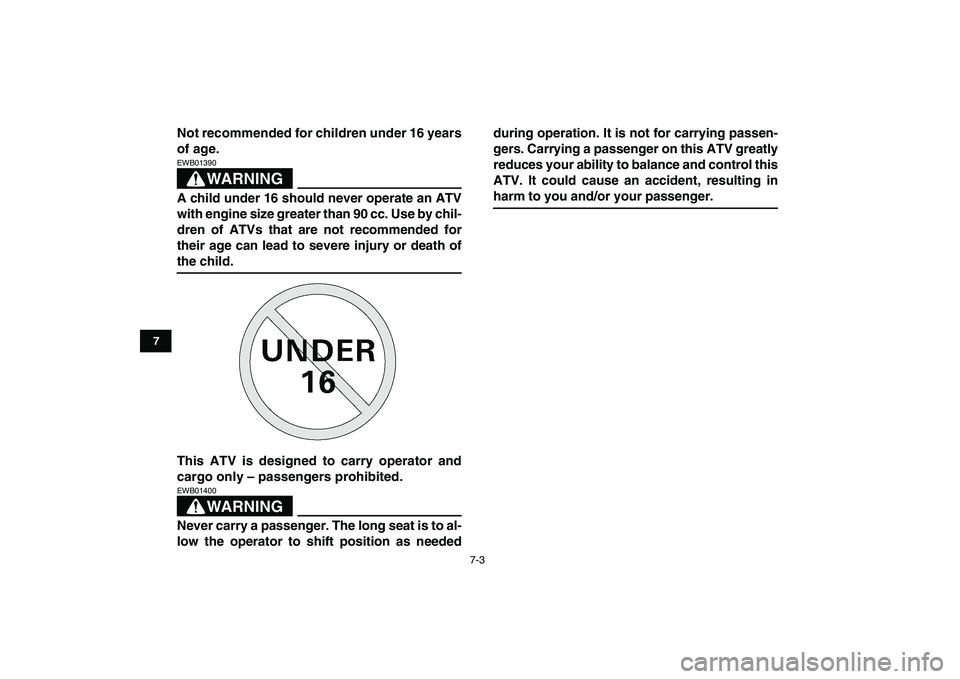

Not recommended for children under 16 years
of age.
WARNING

EWB01390
A child under 16 should never operate an ATV
with engine size greater than 90 cc. Use by chil-
dren of ATVs that are not recommended for
their age can lead to severe injury or death of
the child.
This ATV is designed to carry operator and
cargo only – passengers prohibited.
WARNING

EWB01400
Never carry a passenger. The long seat is to al-
low the operator to shift position as neededduring operation. It is not for carrying passen-
gers. Carrying a passenger on this ATV greatly
reduces your ability to balance and control this
ATV. It could cause an accident, resulting in
harm to you and/or your passenger.

7-4
1
2
3
4
5
67
8
9
10
11

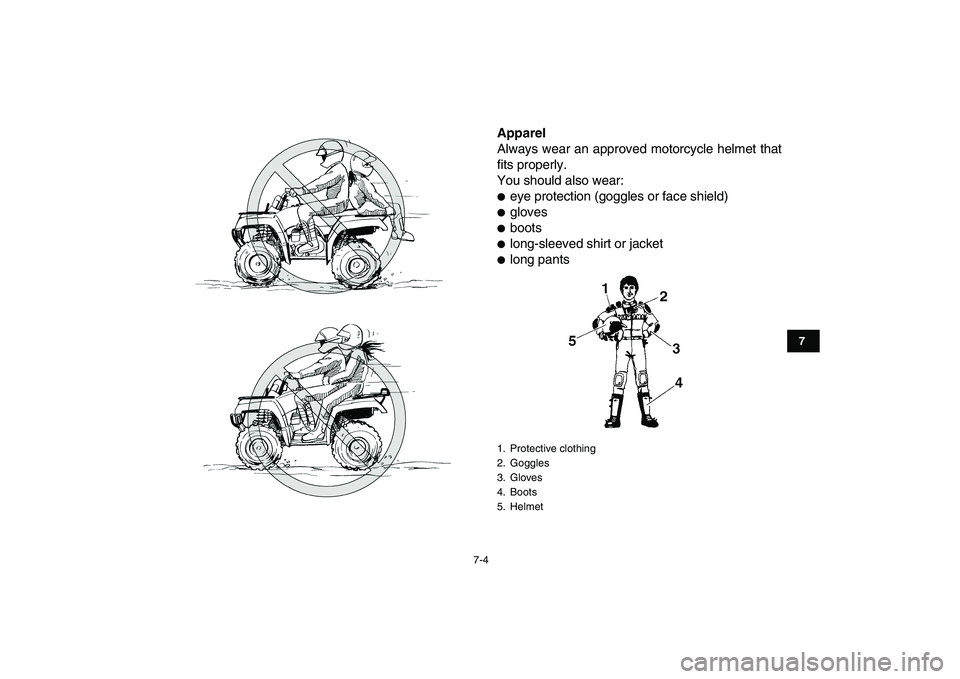

Apparel
Always wear an approved motorcycle helmet that
fits properly.
You should also wear:

eye protection (goggles or face shield)

gloves

boots

long-sleeved shirt or jacket

long pants
1. Protective clothing
2. Goggles
3. Gloves
4. Boots
5. Helmet

7-5
1
2
3
4
5
67
8
9
10
11

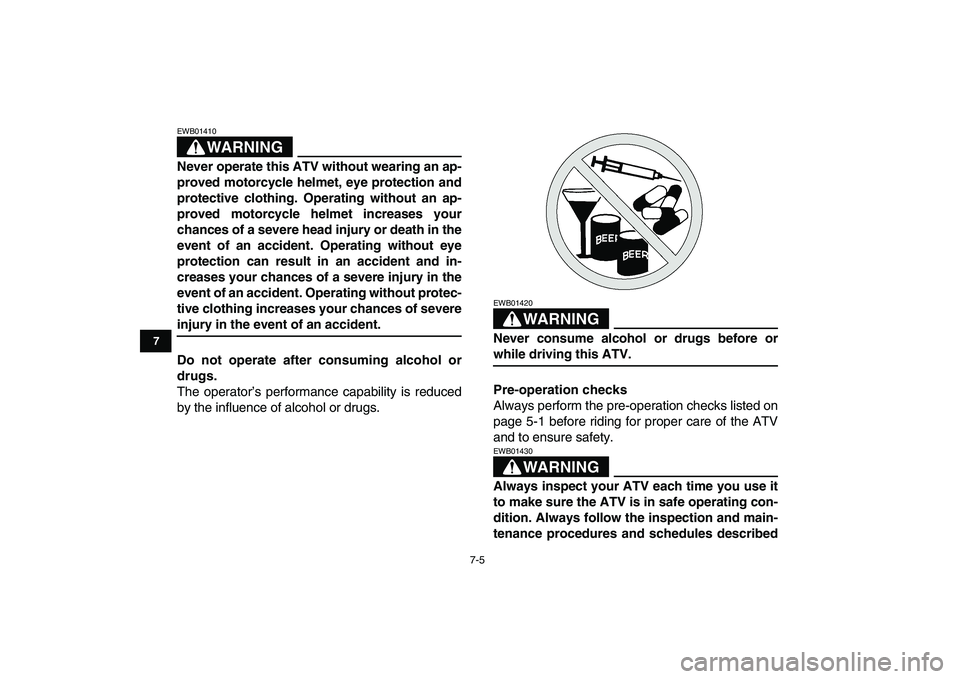

WARNING

EWB01410
Never operate this ATV without wearing an ap-
proved motorcycle helmet, eye protection and
protective clothing. Operating without an ap-
proved motorcycle helmet increases your
chances of a severe head injury or death in the
event of an accident. Operating without eye
protection can result in an accident and in-
creases your chances of a severe injury in the
event of an accident. Operating without protec-
tive clothing increases your chances of severe
injury in the event of an accident.
Do not operate after consuming alcohol or
drugs.
The operator’s performance capability is reduced
by the influence of alcohol or drugs.
WARNING

EWB01420
Never consume alcohol or drugs before or
while driving this ATV.
Pre-operation checks
Always perform the pre-operation checks listed on
page 5-1 before riding for proper care of the ATV
and to ensure safety.
WARNING
EWB01430
Always inspect your ATV each time you use it
to make sure the ATV is in safe operating con-
dition. Always follow the inspection and main-
tenance procedures and schedules described
