accident. You could also wear out the brakes
prematurely.

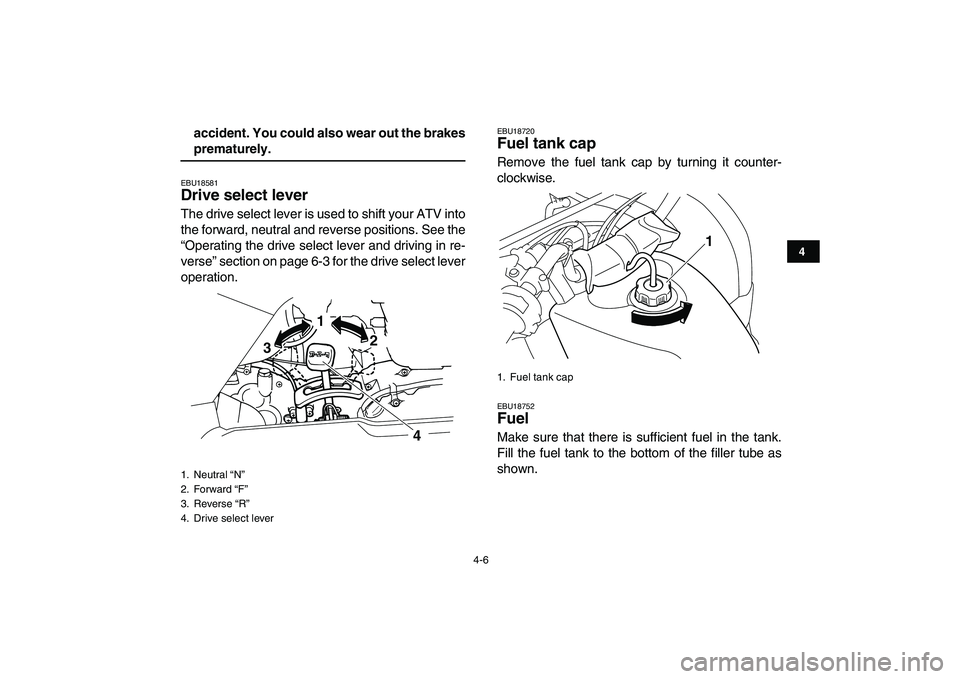

EBU18581
Drive select lever
The drive select lever is used to shift your ATV into
the forward, neutral and reverse positions. See the
“Operating the drive select lever and driving in re-
verse” section on page 6-3 for the drive select lever
operation.
EBU18720
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EBU18752
Fuel
Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.
1. Neutral “N”
2. Forward “F”
3. Reverse “R”
4. Drive select lever
1
2
3
4

1. Fuel tank cap
1

8-43
1
2
3
4
5
6
78
9
10
11

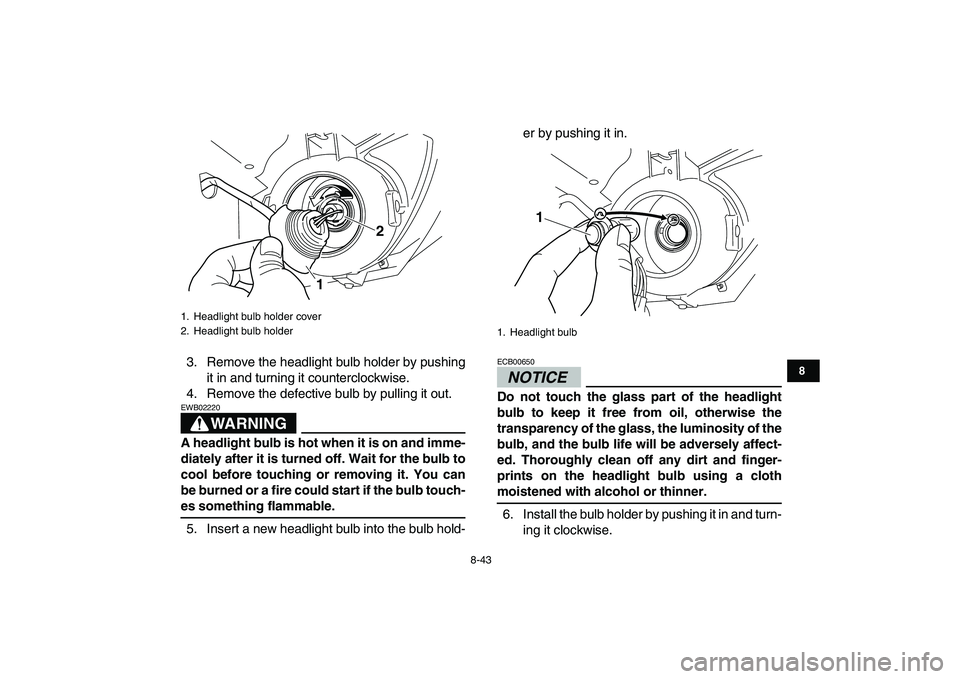

3. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise.
4. Remove the defective bulb by pulling it out.
WARNING

EWB02220
A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable.
5. Insert a new headlight bulb into the bulb hold-er by pushing it in.
NOTICE
ECB00650
Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner.
6. Install the bulb holder by pushing it in and turn-
ing it clockwise.
1. Headlight bulb holder cover
2. Headlight bulb holder
12

1. Headlight bulb1

8-44
1
2
3
4
5
6
78
9
10
11

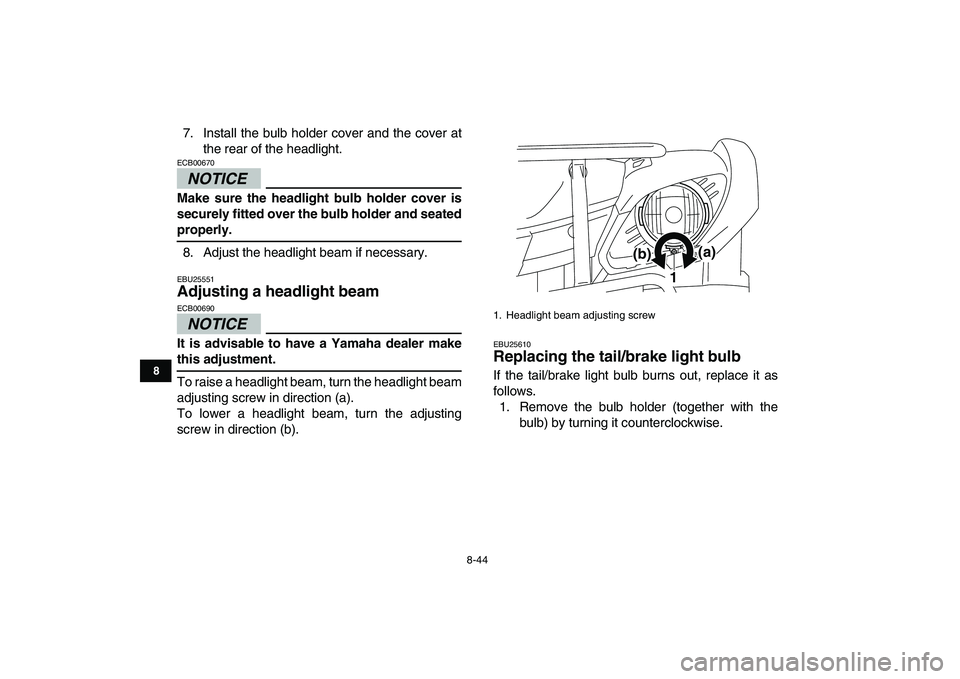

7. Install the bulb holder cover and the cover at
the rear of the headlight.
NOTICE

ECB00670
Make sure the headlight bulb holder cover is
securely fitted over the bulb holder and seated
properly.
8. Adjust the headlight beam if necessary.
EBU25551
Adjusting a headlight beam
NOTICE

ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the headlight beam
adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25610
Replacing the tail/brake light bulb
If the tail/brake light bulb burns out, replace it as
follows.
1. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
1. Headlight beam adjusting screw
1(a)
(b)

8-45
1
2
3
4
5
6
78
9
10
11

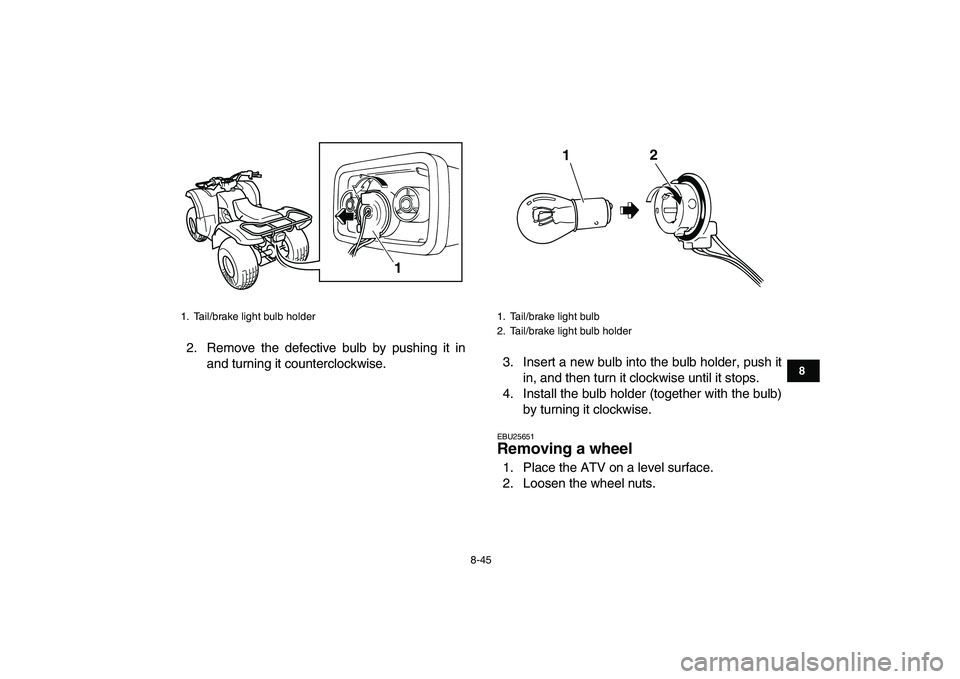

2. Remove the defective bulb by pushing it in
and turning it counterclockwise.3. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb)
by turning it clockwise.
EBU25651
Removing a wheel
1. Place the ATV on a level surface.
2. Loosen the wheel nuts.
1. Tail/brake light bulb holder
1

1. Tail/brake light bulb
2. Tail/brake light bulb holder
12
