TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ............................................... 4-1
Indicator lights ........................................... 4-1
Handlebar switches ................................... 4-2
Throttle lever ............................................. 4-3
Speed limiter ............................................. 4-3
Front brake lever ....................................... 4-4
Rear brake lever ........................................ 4-4
Parking brake ............................................ 4-5
Drive select lever ....................................... 4-6
Fuel tank cap ............................................. 4-6
Fuel ........................................................... 4-6
Fuel cock ................................................... 4-8
Starter (choke) .......................................... 4-9Seat ......................................................... 4-10
Front carrier ............................................. 4-11
Rear carrier .............................................. 4-11
PRE-OPERATION CHECKS ..........................5-1
Fuel ............................................................ 5-3
Engine oil ................................................... 5-3
Transmission oil ......................................... 5-3
Front and rear brakes ................................ 5-3
Throttle lever .............................................. 5-3
Drive chain ................................................. 5-3
Tires ........................................................... 5-3
Chassis fasteners ...................................... 5-5
Instruments, lights and switches ................ 5-6
Battery ....................................................... 5-6
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine .............................. 6-2
Operating the drive select lever and
driving in reverse .....................................6-3
Engine break-in .......................................... 6-4
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6

RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGMENT ............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............ 7-9
TURNING YOUR ATV ............................. 7-12
CLIMBING UPHILL .................................. 7-13
RIDING DOWNHILL................................. 7-16
CROSSING A SLOPE.............................. 7-17
CROSSING THROUGH SHALLOW
WATER .................................................. 7-18
RIDING OVER ROUGH TERRAIN .......... 7-20
SLIDING AND SKIDDING ........................ 7-20
WHAT TO DO IF... ................................... 7-21
WHAT TO DO... ....................................... 7-21
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system .......................... 8-3
General maintenance and lubrication
chart ........................................................ 8-5
Checking the spark plug ............................ 8-8
Engine oil .................................................. 8-9
Transmission oil ...................................... 8-12
Cleaning the engine and V-belt case
air filter elements ................................... 8-15
Cleaning the spark arrester ..................... 8-21V-belt case drain plug .............................. 8-23
Adjusting the carburetor ........................... 8-23
Adjusting the engine idling speed ............ 8-23
Adjusting the throttle cable free play ........ 8-24
Valve clearance ....................................... 8-25
Brakes ...................................................... 8-26
Checking the front and rear brake
shoes .....................................................8-26
Adjusting the front brake lever free
play ........................................................8-27
Adjusting the rear brake lever free
play ........................................................8-31
Drive chain slack ...................................... 8-32
Lubricating the drive chain ....................... 8-35
Checking and lubricating the cables ........ 8-36
Checking and lubricating the front
and rear brake levers .............................8-36
Checking the wheel hub bearings ............ 8-37
Lubricating the upper and lower arm
pivots .....................................................8-37
Lubricating the front knuckle pivots ......... 8-38
Lubricating the steering shaft ................... 8-38
Battery ..................................................... 8-39
Replacing the fuse ................................... 8-42
Replacing a headlight bulb ...................... 8-43
Adjusting a headlight beam ..................... 8-45
Replacing the tail/brake light bulb ............ 8-45
Removing a wheel ................................... 8-46
Installing a wheel ..................................... 8-46

4-2
1
2
34
5
6
7
8
9
10
11

EBU18061
Handlebar switches
EBU18080
Engine stop switch “/”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “ ”.
EBU18101
Start switch “”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.
EBU18152
Light switch “/ /OFF”
Set this switch to “ ” to turn on the low beams
and the taillight. Set the switch to “ ” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.
NOTICE

ECB00041
Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. See page 8-39 for battery charging
information.
EBU18170
Horn switch “”
Press the switch to sound the horn.
1. Horn switch “ ”
2. Light switch “ / /OFF”
3. Engine stop switch “ / ”
4. Start switch “ ”
2
3
41

5-2
1
2
3
45
6
7
8
9
10
11

Throttle lever

Make sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.

Check cable free play, and adjust if necessary.5-3, 8-24
Control cables

Make sure that operation is smooth. Lubricate if necessary. 8-36
Drive chain

Check chain slack, and adjust if necessary.

Check chain condition. Lubricate if necessary.5-3, 8-32, 8-35
Wheels and tires

Check wheel condition, and replace if damaged.

Check tire condition and tread depth. Replace if necessary.

Check air pressure. Correct if necessary.5-3
Brake levers

Make sure that operation is smooth. Lubricate lever pivoting points
if necessary.8-36
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened. 5-5
Instruments, lights and
switches

Check operation, and correct if necessary. 5-6
Battery

Check electrolyte level. Fill with distilled water if necessary. 5-6, 8-39
ITEM ROUTINE PAGE

5-6
1
2
3
45
6
7
8
9
10
11

erly tightened.
EBU19850
Instruments, lights and switches
Check that all instruments, lights and switches are
working properly. Correct if necessary.
EBU19860
Battery
Check the fluid level in the battery. Fill with distilled
water if necessary. (See page 8-39.)

6-2
1
2
3
4
56
7
8
9
10
11

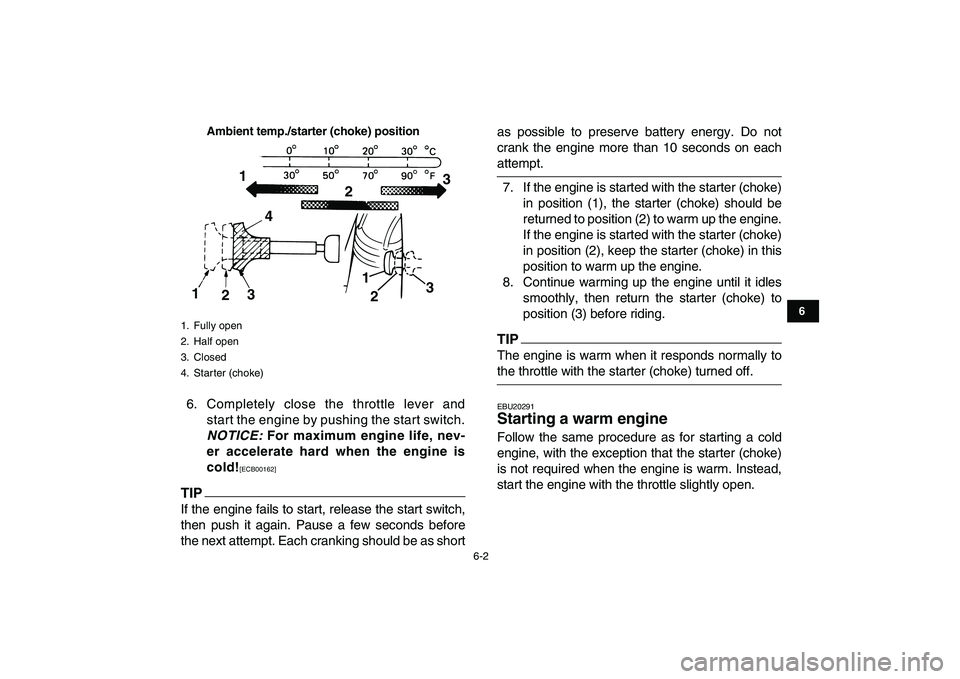

Ambient temp./starter (choke) position

6. Completely close the throttle lever and
start the engine by pushing the start switch.
NOTICE:
For maximum engine life, nev-
er accelerate hard when the engine is
cold!
[ECB00162]

TIP

If the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as shortas possible to preserve battery energy. Do not
crank the engine more than 10 seconds on each
attempt.
7. If the engine is started with the starter (choke)
in position (1), the starter (choke) should be
returned to position (2) to warm up the engine.
If the engine is started with the starter (choke)
in position (2), keep the starter (choke) in this
position to warm up the engine.
8. Continue warming up the engine until it idles
smoothly, then return the starter (choke) to
position (3) before riding.
TIP

The engine is warm when it responds normally to
the throttle with the starter (choke) turned off.
EBU20291
Starting a warm engine
Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.
1. Fully open
2. Half open
3. Closed
4. Starter (choke)
1
23
4
1
231
23

8-7
1
2
3
4
5
6
78
9
10
11

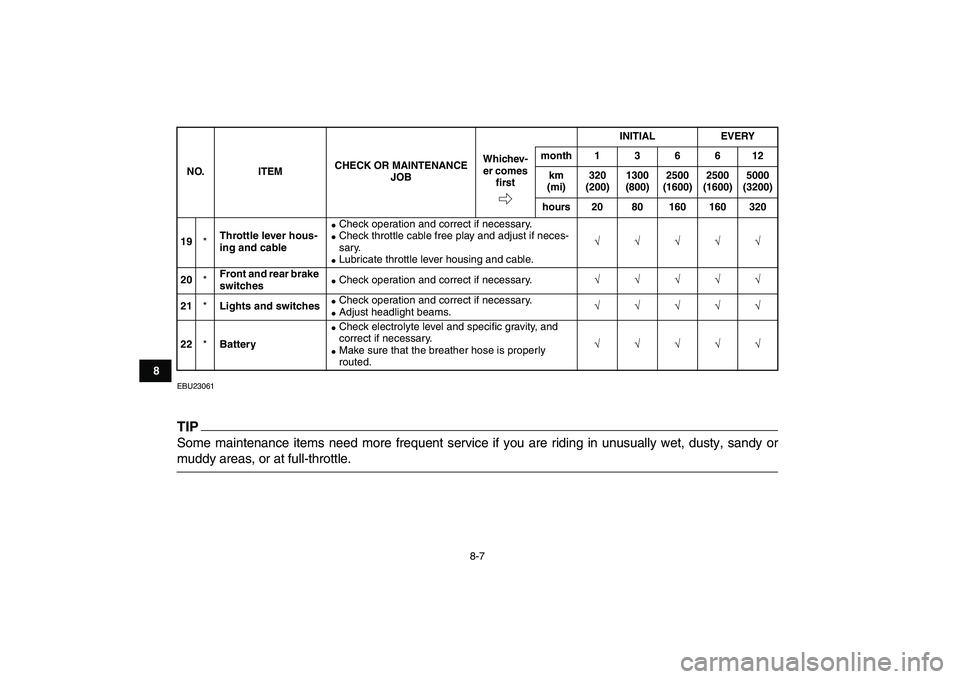

EBU23061
TIP

Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.
19
*
Throttle lever hous-
ing and cable

Check operation and correct if necessary.

Check throttle cable free play and adjust if neces-
sary.

Lubricate throttle lever housing and cable.
√√√√√
20
*
Front and rear brake
switches


Check operation and correct if necessary.
√√√√√
21
*
Lights and switches


Check operation and correct if necessary.

Adjust headlight beams.
√√√√√
22
*
Battery

Check electrolyte level and specific gravity, and
correct if necessary.

Make sure that the breather hose is properly
routed.
√√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth 1 3 6 6 12
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320

8-39
1
2
3
4
5
6
78
9
10
11

EBU25122

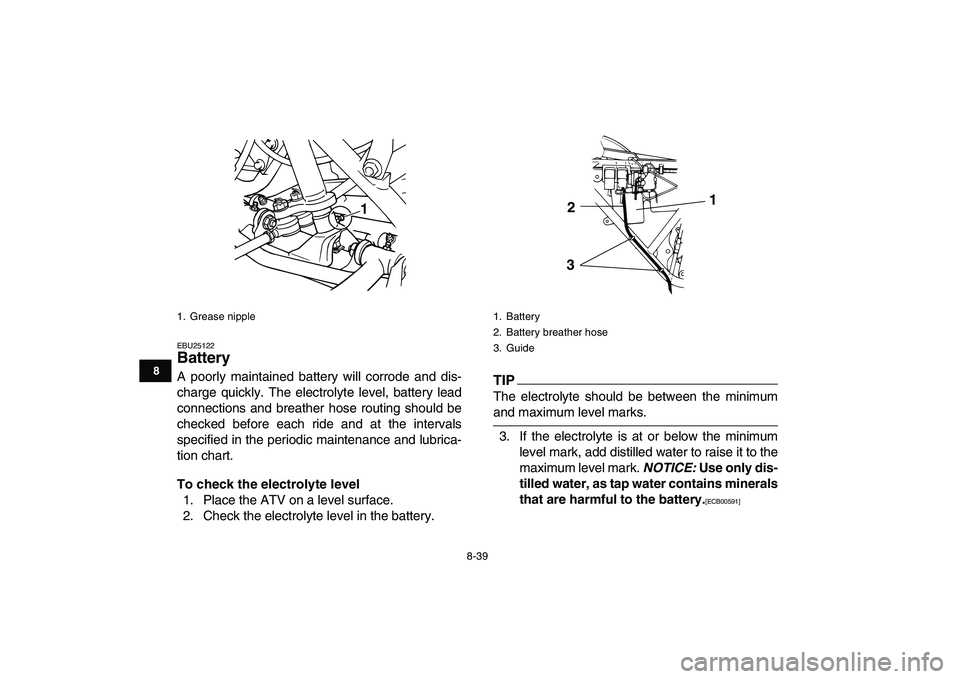

Battery
A poorly maintained battery will corrode and dis-
charge quickly. The electrolyte level, battery lead
connections and breather hose routing should be
checked before each ride and at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the electrolyte level
1. Place the ATV on a level surface.
2. Check the electrolyte level in the battery.TIP

The electrolyte should be between the minimum
and maximum level marks.
3. If the electrolyte is at or below the minimum
level mark, add distilled water to raise it to the
maximum level mark.
NOTICE:
Use only dis-
tilled water, as tap water contains minerals
that are harmful to the battery.
[ECB00591]

1. Grease nipple
1

1. Battery
2. Battery breather hose
3. Guide
1
2
3

8-40
1
2
3
4
5
6
78
9
10
11
WARNING

EWB02160
Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
4. Check and, if necessary, tighten the battery
lead connections and correct the breather
hose routing.
To store the battery
If the ATV will not be used for more than one
month, the battery will need to be removed and
stored as follows.
1. Disconnect the negative lead first and then the
positive lead.
NOTICE:
When removing the
battery, the main switch must be off, and
the negative lead must be disconnected
before the positive lead.

[ECB01001]

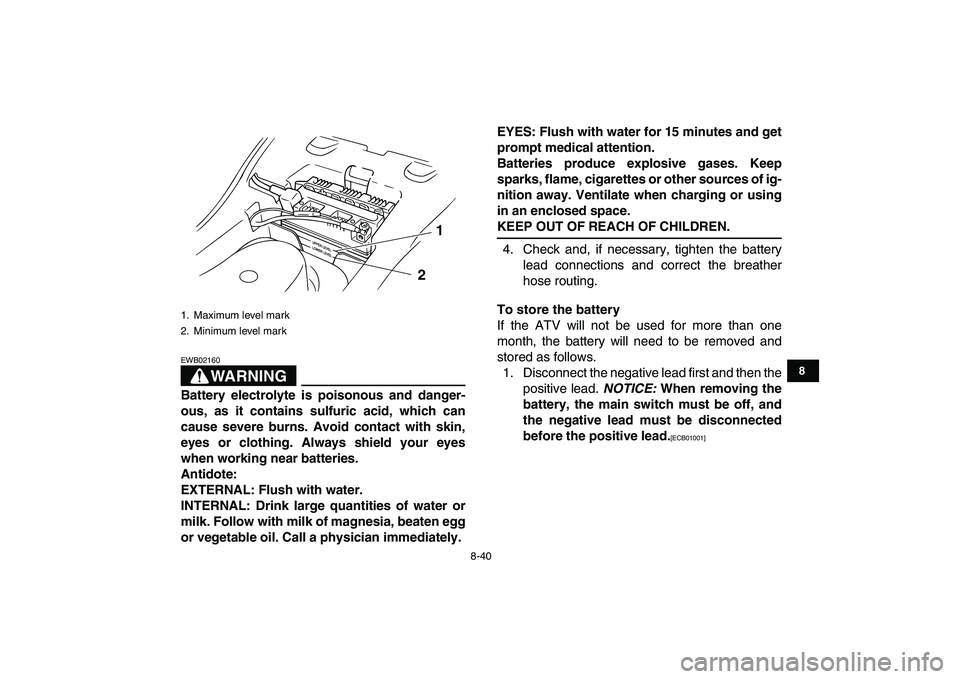

1. Maximum level mark
2. Minimum level mark
1
2

8-41
1
2
3
4
5
6
78
9
10
11

2. Remove the battery, fully charge it, and then
place it in a cool, dry place.
NOTICE:
Do not
leave or store the battery on its side.
[ECB00601]

3. If the battery will be stored for more than two
months, check the specific gravity of the elec-
trolyte at least once a month and fully charge
the battery whenever necessary.
To install the battery
TIP

Be sure the battery is fully charged.
1. Install the battery.
2. Connect the positive lead first, and then con-
nect the negative lead.
3. Make sure that the breather hose is properly
routed, in good condition, and not obstructed.
NOTICE:
If the breather hose is positioned
in such a way that the frame is exposed to
electrolyte or gas expelled from the bat-
tery, the frame could suffer structural and
external damages.
[ECB00611]

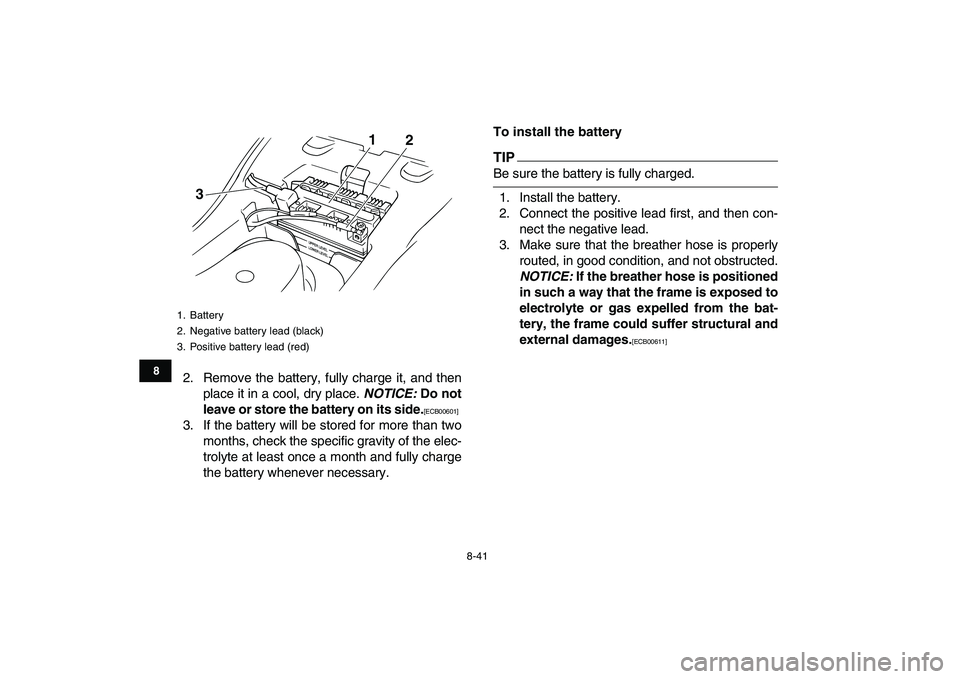

1. Battery
2. Negative battery lead (black)
3. Positive battery lead (red)
1
2
3
