TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ............................................... 4-1
Indicator lights ........................................... 4-1
Handlebar switches ................................... 4-2
Throttle lever ............................................. 4-3
Speed limiter ............................................. 4-3
Front brake lever ....................................... 4-4
Rear brake lever ........................................ 4-4
Parking brake ............................................ 4-5
Drive select lever ....................................... 4-6
Fuel tank cap ............................................. 4-6
Fuel ........................................................... 4-6
Fuel cock ................................................... 4-8
Starter (choke) .......................................... 4-9Seat ......................................................... 4-10
Front carrier ............................................. 4-11
Rear carrier .............................................. 4-11
PRE-OPERATION CHECKS ..........................5-1
Fuel ............................................................ 5-3
Engine oil ................................................... 5-3
Transmission oil ......................................... 5-3
Front and rear brakes ................................ 5-3
Throttle lever .............................................. 5-3
Drive chain ................................................. 5-3
Tires ........................................................... 5-3
Chassis fasteners ...................................... 5-5
Instruments, lights and switches ................ 5-6
Battery ....................................................... 5-6
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine .............................. 6-2
Operating the drive select lever and
driving in reverse .....................................6-3
Engine break-in .......................................... 6-4
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6

RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGMENT ............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............ 7-9
TURNING YOUR ATV ............................. 7-12
CLIMBING UPHILL .................................. 7-13
RIDING DOWNHILL................................. 7-16
CROSSING A SLOPE.............................. 7-17
CROSSING THROUGH SHALLOW
WATER .................................................. 7-18
RIDING OVER ROUGH TERRAIN .......... 7-20
SLIDING AND SKIDDING ........................ 7-20
WHAT TO DO IF... ................................... 7-21
WHAT TO DO... ....................................... 7-21
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system .......................... 8-3
General maintenance and lubrication
chart ........................................................ 8-5
Checking the spark plug ............................ 8-8
Engine oil .................................................. 8-9
Transmission oil ...................................... 8-12
Cleaning the engine and V-belt case
air filter elements ................................... 8-15
Cleaning the spark arrester ..................... 8-21V-belt case drain plug .............................. 8-23
Adjusting the carburetor ........................... 8-23
Adjusting the engine idling speed ............ 8-23
Adjusting the throttle cable free play ........ 8-24
Valve clearance ....................................... 8-25
Brakes ...................................................... 8-26
Checking the front and rear brake
shoes .....................................................8-26
Adjusting the front brake lever free
play ........................................................8-27
Adjusting the rear brake lever free
play ........................................................8-31
Drive chain slack ...................................... 8-32
Lubricating the drive chain ....................... 8-35
Checking and lubricating the cables ........ 8-36
Checking and lubricating the front
and rear brake levers .............................8-36
Checking the wheel hub bearings ............ 8-37
Lubricating the upper and lower arm
pivots .....................................................8-37
Lubricating the front knuckle pivots ......... 8-38
Lubricating the steering shaft ................... 8-38
Battery ..................................................... 8-39
Replacing the fuse ................................... 8-42
Replacing a headlight bulb ...................... 8-43
Adjusting a headlight beam ..................... 8-45
Replacing the tail/brake light bulb ............ 8-45
Removing a wheel ................................... 8-46
Installing a wheel ..................................... 8-46

2-3
12
3
4
5
6
7
8
9
10
11

speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.

Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.

Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.

Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or peoplebehind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.

Always use the size and type of tires specified in
this manual.

Always maintain proper tire pressure as de-
scribed in this manual.

Never modify an ATV through improper installa-
tion or use of accessories.

Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING

EWB00071
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
and you can quickly be overcome and unable

4-3
1
2
34
5
6
7
8
9
10
11

EBU18281
Throttle lever
Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18322
Speed limiter
Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 1.0–3.0 mm (0.04–0.12 in).
(See page 8-24.)
WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]

1. Throttle lever
1

5-1
1
2
3
45
6
7
8
9
10
11

EBU19201
PRE-OPERATION CHECKS
EBU19224
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING

EWB00481
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
Fuel


Check fuel level in fuel tank, and add recommended fuel if neces-
sary.

Check fuel line for leakage. Correct if necessary.4-6, 5-3
Engine oil

Check oil level in engine, and add recommended oil to specified
level if necessary.

Check ATV for oil leakage. Correct if necessary.5-3, 8-9
Transmission oil

Check oil level in transmission case, and add recommended oil to
specified level if necessary.

Check ATV for oil leakage. Correct if necessary.5-3, 8-12
Front brake

Check operation, and correct if necessary.

Lubricate cable if necessary.

Check lever free play, and adjust if necessary.5-3, 8-26, 8-27
Rear brake

Check operation, and correct if necessary.

Lubricate cable if necessary.

Check lever free play, and adjust if necessary.5-3, 8-26, 8-31

5-3
1
2
3
45
6
7
8
9
10
11

EBU19541
Fuel
Make sure that there is sufficient fuel in the tank.
(See page 4-6.)
EBU19560
Engine oil
Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-9.)
EBU19580
Transmission oil
Make sure that the transmission oil is at the speci-
fied level. Add oil as necessary. (See page 8-12.)
EBU19651
Front and rear brakes
Brake levers

Check for correct free play in the brake levers. If
the free play is incorrect, adjust it. (See pages
8-27 and 8-31.)

Check operation of the levers. They should
move smoothly and there should be a firm feel-
ing when the brake is applied. If not, have the
ATV checked by a Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brakes for wear. (See page 8-26.)
EBU19761
Throttle lever
Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.
EBU19770
Drive chain
Check the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-32.)
EBU19794
Tires
Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
Tire pressure
Use the low-pressure tire gauge to check and ad-
just tire pressures when the tires are cold. Tire

6-1
1
2
3
4
56
7
8
9
10
11

EBU19880
OPERATION
EBU19901
Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWB00631
Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.
EBU29720
Starting a cold engine
NOTICE

ECB00150
See the “Engine break-in” section on page 6-4
prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the key to “ON” and the engine stop
switch to “”.
4. Shift the drive select lever into the neutral po-sition. The neutral indicator light should come
on. If the indicator light does not come on,
have a Yamaha dealer check the electrical cir-
cuit.
TIP

The engine can be started only when the drive se-
lect lever is in the neutral position.
5. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature
below 5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 °C (30 °F) and 30 °C (90 °F).
Position (3):
Cold engine start with ambient temperature
above 25 °C (80 °F).

6-4
1
2
3
4
56
7
8
9
10
11

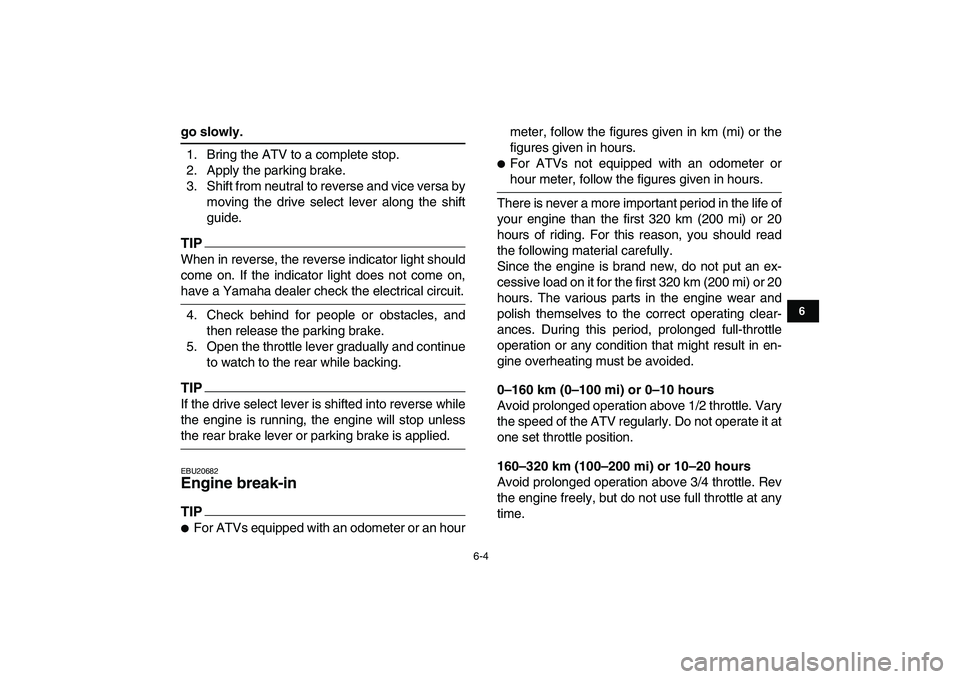

go slowly.
1. Bring the ATV to a complete stop.
2. Apply the parking brake.
3. Shift from neutral to reverse and vice versa by
moving the drive select lever along the shift
guide.
TIP

When in reverse, the reverse indicator light should
come on. If the indicator light does not come on,
have a Yamaha dealer check the electrical circuit.
4. Check behind for people or obstacles, and
then release the parking brake.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.
TIP

If the drive select lever is shifted into reverse while
the engine is running, the engine will stop unless
the rear brake lever or parking brake is applied.
EBU20682
Engine break-in
TIP


For ATVs equipped with an odometer or an hourmeter, follow the figures given in km (mi) or the
figures given in hours.

For ATVs not equipped with an odometer or
hour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.

6-5
1
2
3
4
56
7
8
9
10
11

320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
NOTICE

ECB00220
If any engine trouble should occur during the
engine break-in period, immediately have a
Yamaha dealer check the ATV.

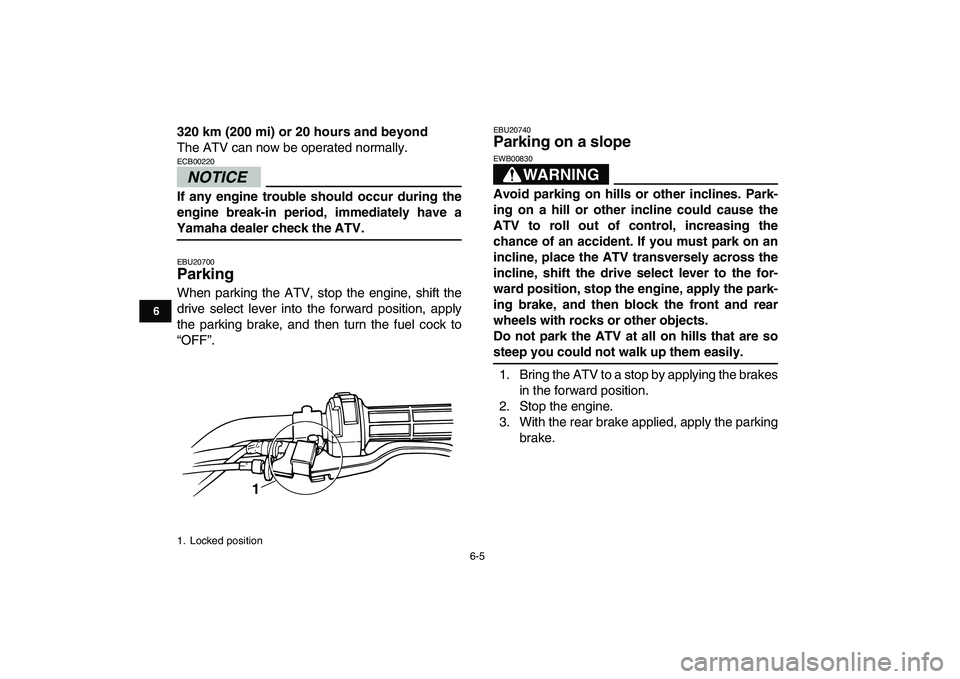

EBU20700
Parking
When parking the ATV, stop the engine, shift the
drive select lever into the forward position, apply
the parking brake, and then turn the fuel cock to
“OFF”.
EBU20740
Parking on a slope WARNING
EWB00830
Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, shift the drive select lever to the for-
ward position, stop the engine, apply the park-
ing brake, and then block the front and rear
wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in the forward position.
2. Stop the engine.
3. With the rear brake applied, apply the parking
brake.
1. Locked position
1

7-8
1
2
3
4
5
67
8
9
10
11

Modifications and accessories
Never modify this ATV through improper installa-
tion or use of accessories or other modification. All
parts and accessories added to this ATV should be
genuine Yamaha or equivalent components de-
signed for use on this ATV and should be installed
and used according to instructions. If you have
questions, consult an authorized ATV dealer.
WARNING! Operating this ATV with improper
modifications may cause changes in handling
which in some situations could lead to an acci-
dent.
[EWB01491]
Exhaust system
WARNING

EWB01501

Dry grass or brush or other combustible ma-
terial accumulated around the engine area
could catch fire. Do not operate, idle, or park
the ATV in dry grass or other dry ground cov-
er. Keep the engine area free of dry grass,
brush, or other combustible material.

Someone touching the exhaust system dur-
ing or after operation could be burned. Do
not touch the hot exhaust system. Do not
park the ATV in a place where others might
be likely to touch it.
The muffler and other engine parts become ex-
tremely hot during operation and remain hot after
the engine has stopped. To reduce the risk of fire
during operation or after leaving the ATV, do not let
brush, grass and other materials collect under the
vehicle, near the muffler or exhaust pipe, or next to
other hot parts. Check under the vehicle after op-
erating in areas where combustible materials may
have collected. Do not idle or park the vehicle in
long dry grass or other dry ground cover.
To prevent burns, avoid touching the exhaust sys-
tem. Park the ATV in a place where pedestrians or
