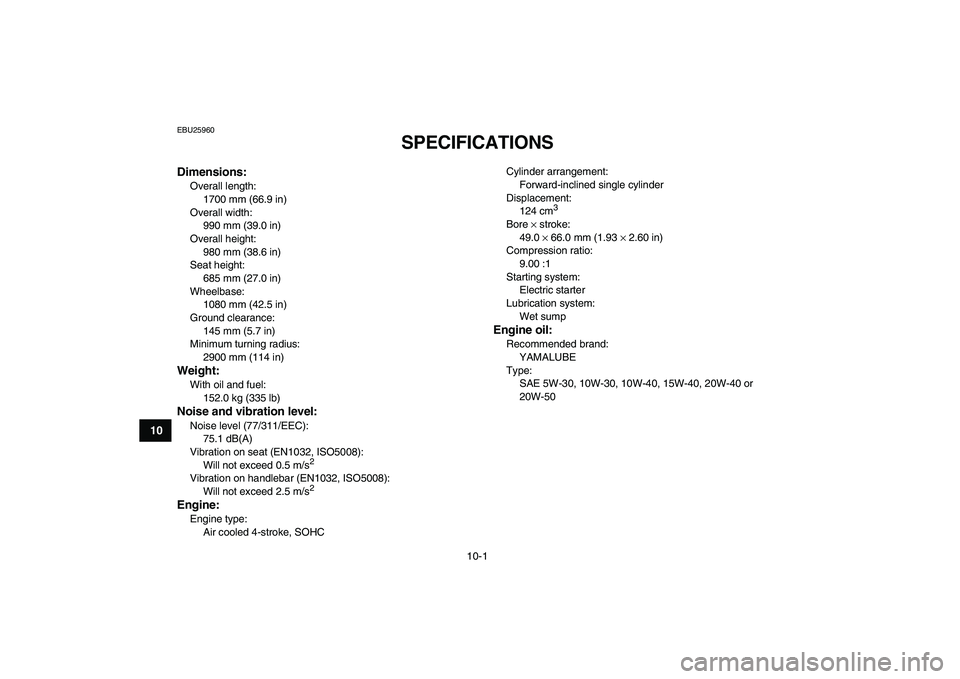

SPECIFICATIONS
EBU2597E
Dimensions:
Overall length:
1700 mm (66.9 in)
Overall width:
990 mm (39.0 in)
Overall height:
980 mm (38.6 in)
Seat height:
685 mm (27.0 in)
Wheelbase:
1080 mm (42.5 in)
Ground clearance:
145 mm (5.7 in)
Minimum turning radius:
2900 mm (114 in)
Weight:
With oil and fuel:
152.0 kg (335 lb)
Noise and vibration level:
Noise level (77/311/EEC):
75.1 dB(A)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s
2

Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s
2

Engine:
Engine type:
Air cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
124 cm
3

Bore
×
stroke:
49.0
×
66.0 mm (1.93
×
2.60 in)
Compression ratio:
9.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Recommended brand:
YAMALUBE
Type:
SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or
20W-50
