YAMAHA GRIZZLY 250 2011 Owner's Guide

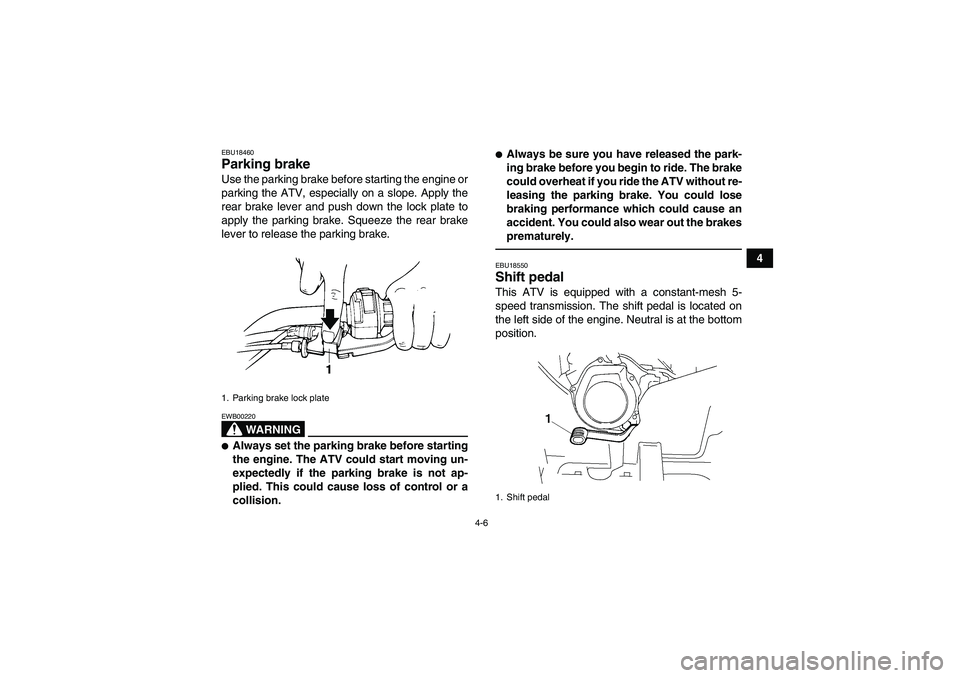

4-6
4
EBU18460Parking brake Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking brake. Squeeze the rear brake
lever to release the parking brake.
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakes
prematurely.EBU18550Shift pedal This ATV is equipped with a constant-mesh 5-
speed transmission. The shift pedal is located on
the left side of the engine. Neutral is at the bottom
position.
1. Parking brake lock plate
1. Shift pedal
U1P066E0.book Page 6 Thursday, August 5, 2010 4:15 PM

4-7
4
EBU18571Drive select lever The drive select lever is used for driving the ATV
either forward or in reverse. See the “Operating the
drive select lever and driving in reverse” section on
page 6-3 for the drive select lever operation.EBU27610Recoil starter Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
EWB02370Shift the transmission into the neutral position
and apply the parking brake before starting the
engine, otherwise the ATV could start to move
unexpectedly, which could cause an accident.EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
1. Drive select lever
1. Recoil starter
U1P066E0.book Page 7 Thursday, August 5, 2010 4:15 PM

4-8
4
EBU18754Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.1. Before refueling, turn off the engine and be
sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinityof sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling,
be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel reach-
es the bottom of the filler tube. Because fuel
expands when it heats up, heat from the en-
gine or the sun can cause fuel to spill out of
the fuel tank.1. Fuel tank cap
1. Fuel tank filler tube
2. Maximum fuel level
U1P066E0.book Page 8 Thursday, August 5, 2010 4:15 PM

4-9
4
3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00981]
4. Turn the fuel tank cap fully clockwise to make
sure it is securely closed.
WARNING
EWB02531Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor,
or get some gasoline in your eyes, see yourdoctor immediately. If gasoline spills on your
skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of un-
leaded fuel will extend spark plug life and reduce
maintenance costs.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations. Recommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or
higher
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
1.6 L (0.42 US gal, 0.35 Imp.gal)
U1P066E0.book Page 9 Thursday, August 5, 2010 4:15 PM

4-10
4 OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.
1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
U1P066E0.book Page 10 Thursday, August 5, 2010 4:15 PM

4-11
4RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke)“” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18881Seat To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.
1. Arrow mark positioned over “RES”
1. Starter (choke)“”
U1P066E0.book Page 11 Thursday, August 5, 2010 4:15 PM

4-12
4
To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
EBU18921Storage compartment NOTICEECB00130Do not store metal or sharply edged objects,
like tools, in the storage compartment. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-
age compartment.The storage compartment is located under the
seat. (See page 4-11.)
1. Seat
2. Seat lock lever
1. Projection
2. Seat holder
U1P066E0.book Page 12 Thursday, August 5, 2010 4:15 PM

4-13
4When storing any documents in the storage com-
partment, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the ATV,
be careful not to let any water enter the storage
compartment.
TIPThere is a check hose at the bottom of the storage
compartment. If any water collects in this hose, re-
move the hose, empty it, and then install it.
EBU18962Front carrier
Do not exceed the load limit of 30.0 kg (66 lb) for
the front carrier.
Do not exceed the maximum load of 165.0 kg
(364 lb) for the ATV.EBU18972Rear carrier
Do not exceed the load limit of 45.0 kg (99 lb) for
the rear carrier.
Do not exceed the maximum load of 165.0 kg
(364 lb) for the ATV.
1. Storage compartment
1. Storage compartment check hose
U1P066E0.book Page 13 Thursday, August 5, 2010 4:15 PM

4-14
4
EBU19023Adjusting the rear shock absorber as-
sembly The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.NOTICEECB01090Never turn the adjusting mechanism beyond
the minimum and maximum settings.Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
U1P066E0.book Page 14 Thursday, August 5, 2010 4:15 PM

4-15
4
1. Special wrenchSpring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
5
U1P066E0.book Page 15 Thursday, August 5, 2010 4:15 PM
