10-1
10
EBU25960

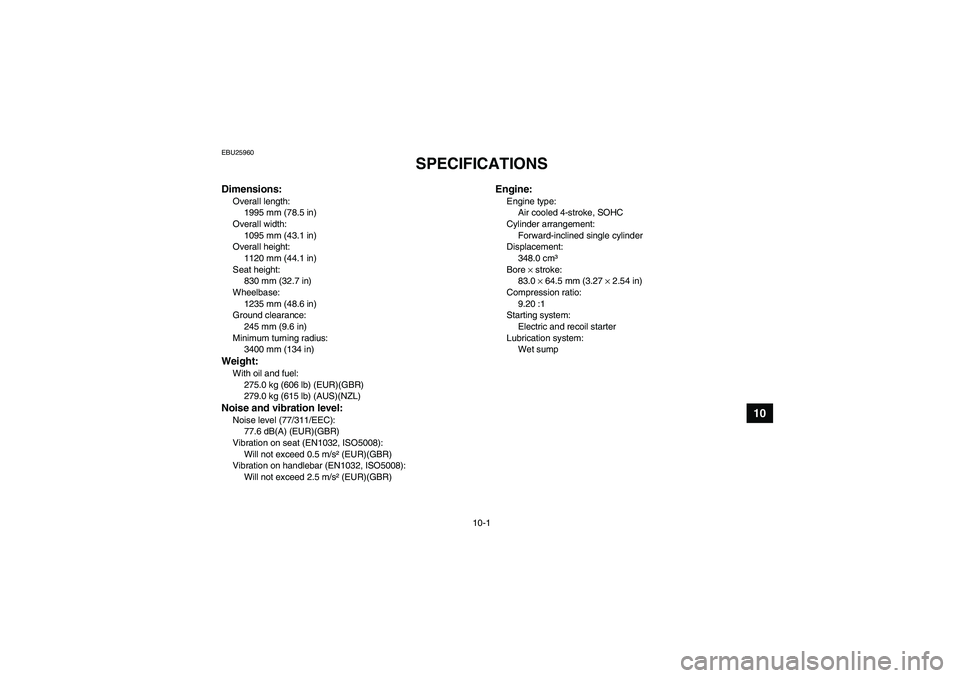

SPECIFICATIONS
Dimensions:Overall length:
1995 mm (78.5 in)
Overall width:
1095 mm (43.1 in)
Overall height:
1120 mm (44.1 in)
Seat height:
830 mm (32.7 in)
Wheelbase:
1235 mm (48.6 in)
Ground clearance:
245 mm (9.6 in)
Minimum turning radius:
3400 mm (134 in)Weight:With oil and fuel:
275.0 kg (606 lb) (EUR)(GBR)
279.0 kg (615 lb) (AUS)(NZL)Noise and vibration level:Noise level (77/311/EEC):
77.6 dB(A) (EUR)(GBR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (EUR)(GBR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s² (EUR)(GBR)
Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
348.0 cm³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)
Compression ratio:
9.20 :1
Starting system:
Electric and recoil starter
Lubrication system:
Wet sump
