YAMAHA GRIZZLY 350 2009 Owners Manual

9-2
9
WARNING
EWB02310Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out thelinings.EBU25932Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.NOTICEECB00720
Storing the ATV in a poorly ventilated room
or covering it with a tarp while it is still wet,
will allow water and humidity to seep in and
cause rust.
To prevent corrosion, avoid damp cellars,
stables (because of the presence of ammo-
nia) and areas where strong chemicals arestored.Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-
ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.
5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore. Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1 oz
of stabilizer to each gallon of fuel)
U4S262E0.book Page 2 Tuesday, June 10, 2008 11:40 AM

9-3

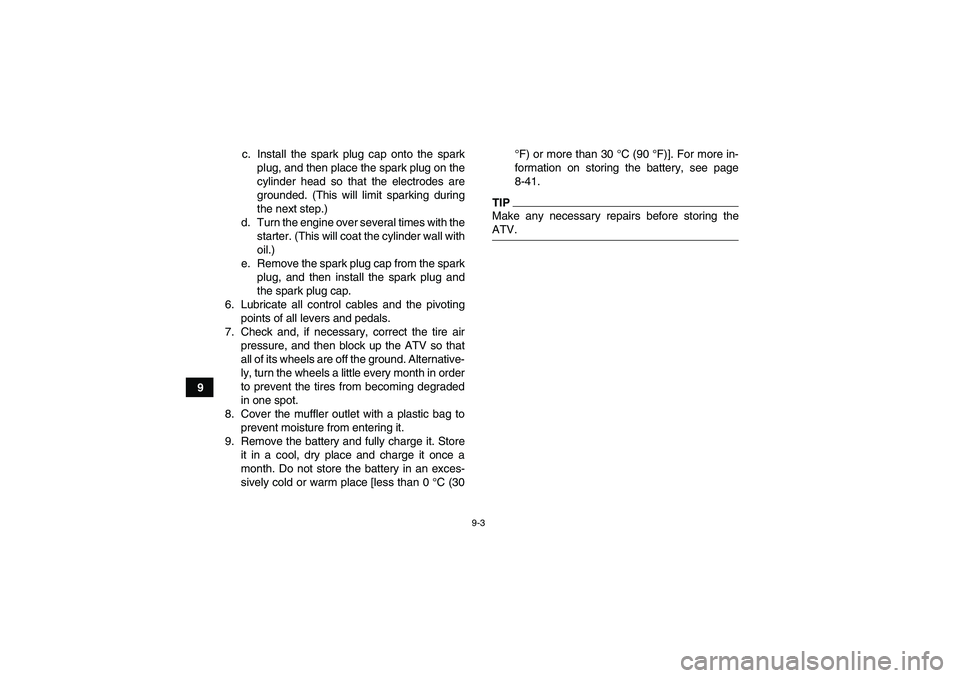

9c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-41.
TIPMake any necessary repairs before storing theATV.
U4S262E0.book Page 3 Tuesday, June 10, 2008 11:40 AM

10-1
10
EBU25960

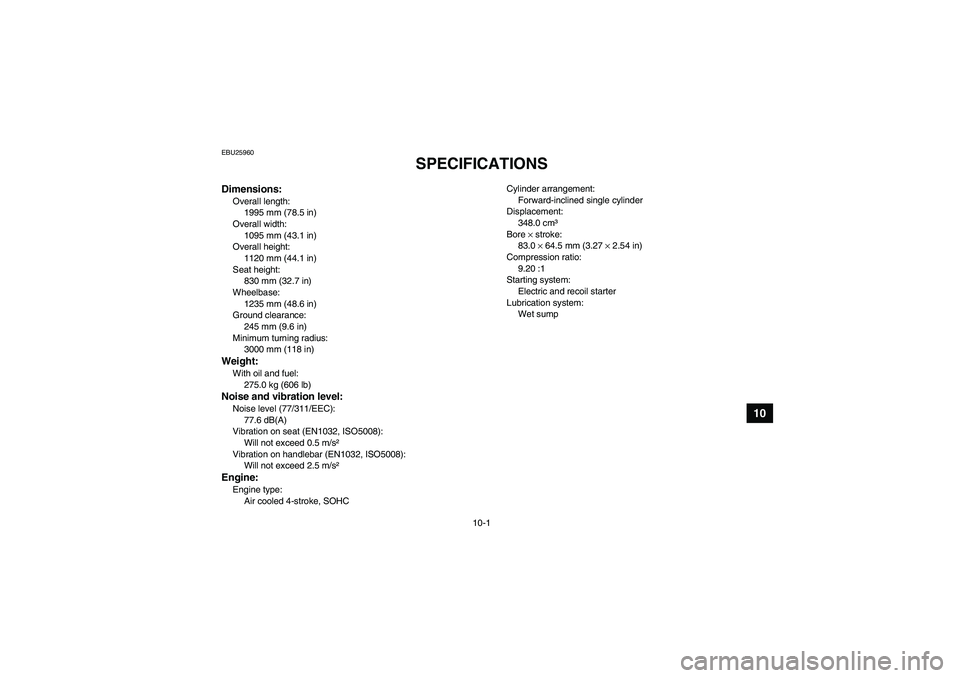

SPECIFICATIONS
Dimensions:Overall length:
1995 mm (78.5 in)
Overall width:
1095 mm (43.1 in)
Overall height:
1120 mm (44.1 in)
Seat height:
830 mm (32.7 in)
Wheelbase:
1235 mm (48.6 in)
Ground clearance:
245 mm (9.6 in)
Minimum turning radius:
3000 mm (118 in)Weight:With oil and fuel:
275.0 kg (606 lb)Noise and vibration level:Noise level (77/311/EEC):
77.6 dB(A)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s²Engine:Engine type:
Air cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
348.0 cm³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)
Compression ratio:
9.20 :1
Starting system:
Electric and recoil starter
Lubrication system:
Wet sump
U4S262E0.book Page 1 Tuesday, June 10, 2008 11:40 AM

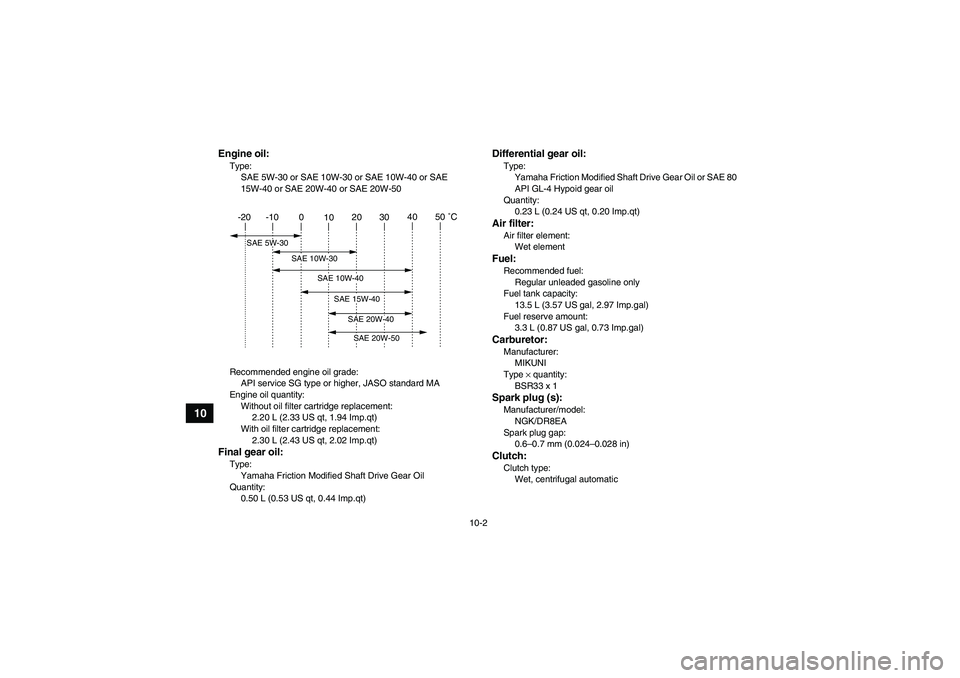

10-2
10
Engine oil:Type:
SAE 5W-30 or SAE 10W-30 or SAE 10W-40 or SAE
15W-40 or SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement:
2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:
Yamaha Friction Modified Shaft Drive Gear Oil
Quantity:
0.50 L (0.53 US qt, 0.44 Imp.qt)
Differential gear oil:Type:
Yamaha Friction Modified Shaft Drive Gear Oil or SAE 80
API GL-4 Hypoid gear oil
Quantity:
0.23 L (0.24 US qt, 0.20 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
13.5 L (3.57 US gal, 2.97 Imp.gal)
Fuel reserve amount:
3.3 L (0.87 US gal, 0.73 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, centrifugal automatic
-20 -10 0
1020 304050 ˚C
SAE 15W-40
SAE 20W-40SAE 20W-50
SAE 10W-40
SAE 5W-30
SAE 10W-30
U4S262E0.book Page 2 Tuesday, June 10, 2008 11:40 AM

10-3
10

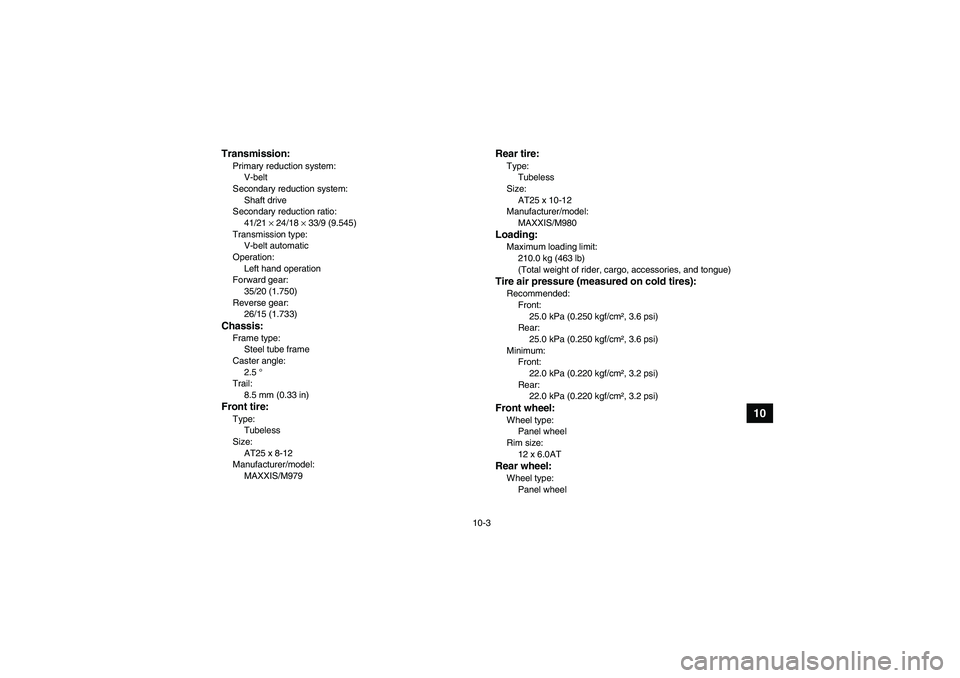

Transmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.545)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Forward gear:
35/20 (1.750)
Reverse gear:
26/15 (1.733)Chassis:Frame type:
Steel tube frame
Caster angle:
2.5 °
Trail:
8.5 mm (0.33 in)Front tire:Type:
Tubeless
Size:
AT25 x 8-12
Manufacturer/model:
MAXXIS/M979
Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
Manufacturer/model:
MAXXIS/M980Loading:Maximum loading limit:
210.0 kg (463 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:
Panel wheel
Rim size:
12 x 6.0ATRear wheel:Wheel type:
Panel wheel
U4S262E0.book Page 3 Tuesday, June 10, 2008 11:40 AM

10-4
10

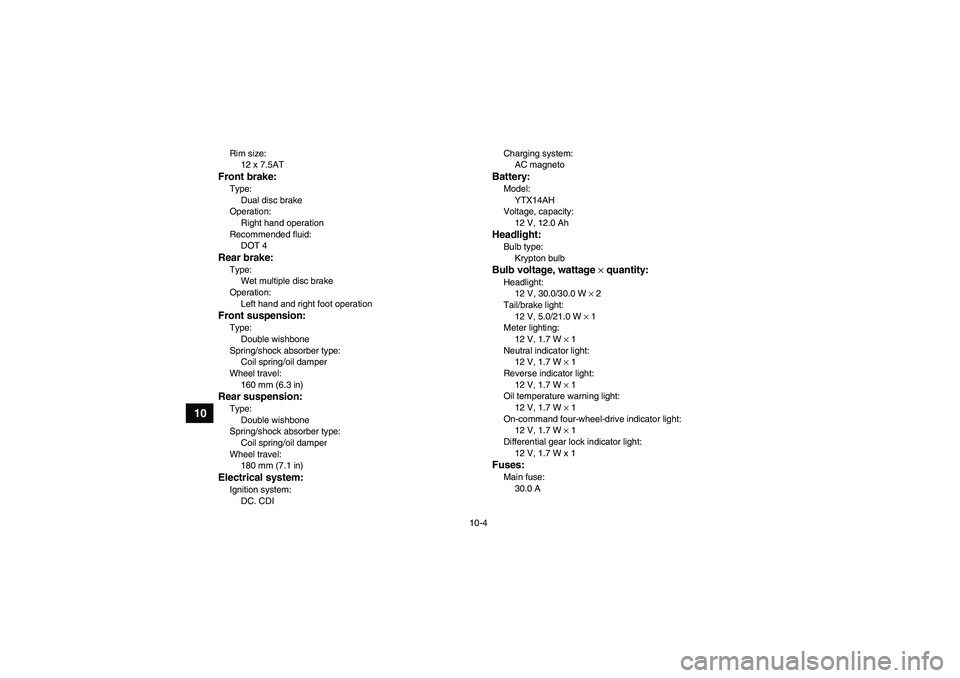

Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Wet multiple disc brake
Operation:
Left hand and right foot operationFront suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
160 mm (6.3 in)Rear suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Electrical system:Ignition system:
DC. CDICharging system:
AC magneto
Battery:Model:
YTX14AH
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting:
12 V, 1.7 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Oil temperature warning light:
12 V, 1.7 W × 1
On-command four-wheel-drive indicator light:
12 V, 1.7 W × 1
Differential gear lock indicator light:
12 V, 1.7 W x 1Fuses:Main fuse:
30.0 A
U4S262E0.book Page 4 Tuesday, June 10, 2008 11:40 AM

10-5
10

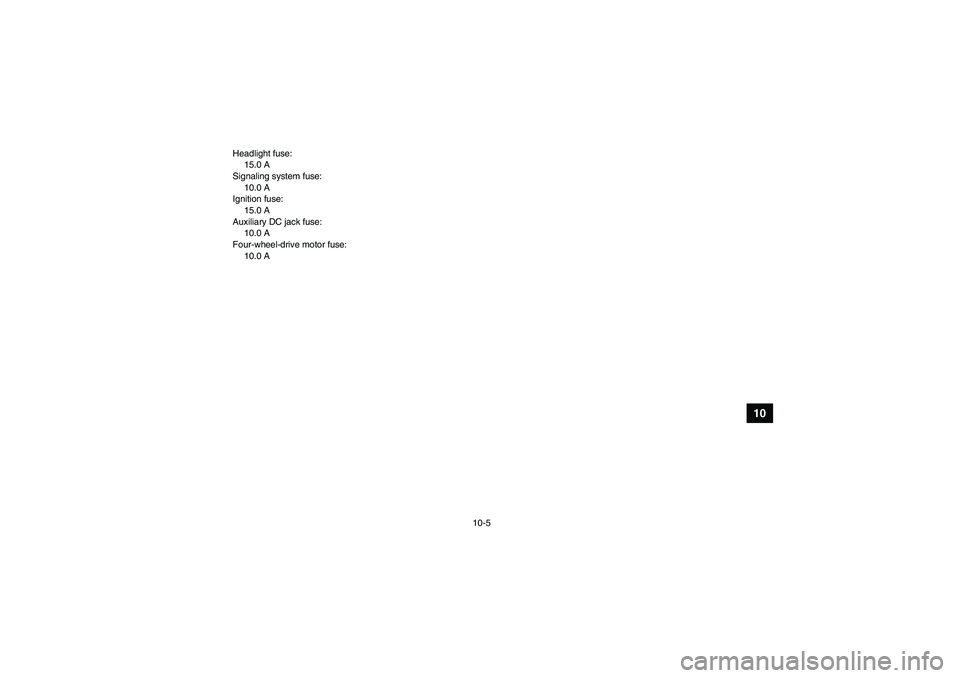

Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Auxiliary DC jack fuse:
10.0 A
Four-wheel-drive motor fuse:
10.0 A
U4S262E0.book Page 5 Tuesday, June 10, 2008 11:40 AM

11-1
11
EBU26000

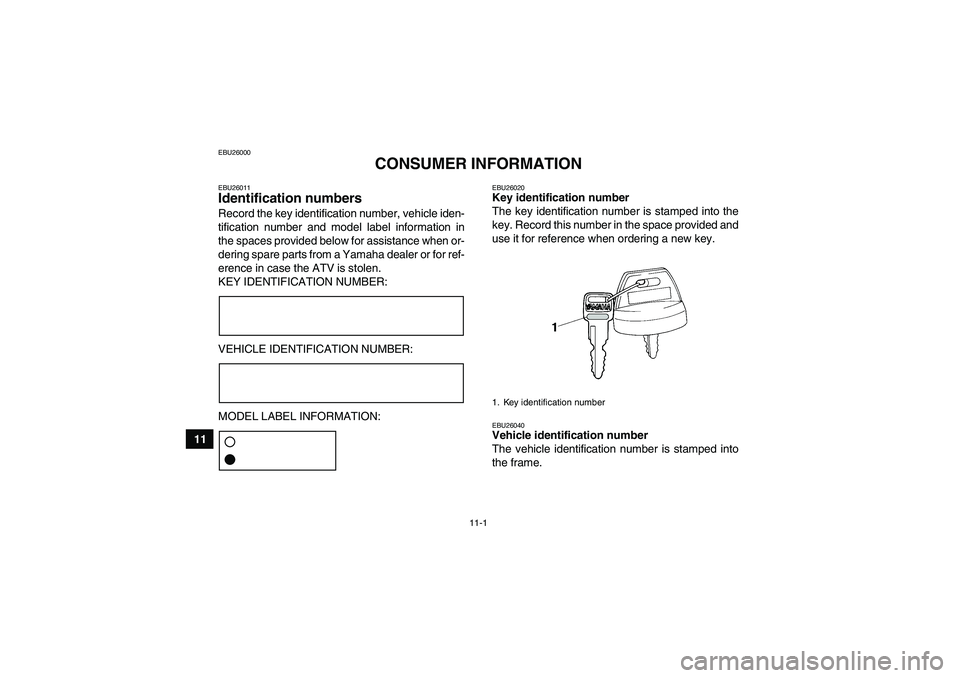

CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26040Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U4S262E0.book Page 1 Tuesday, June 10, 2008 11:40 AM

11-2

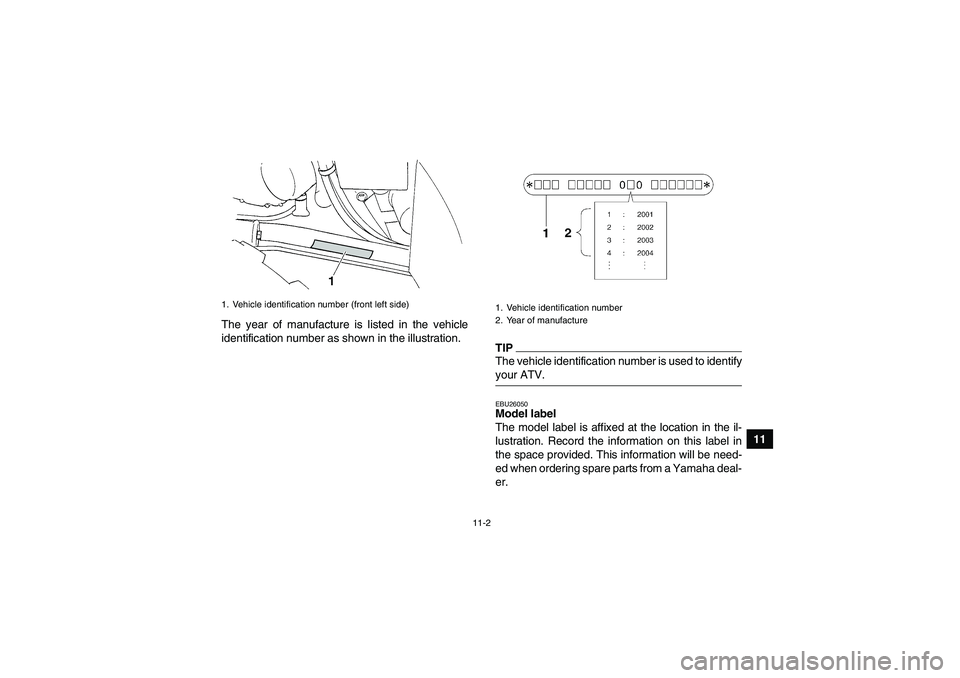

11 The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
TIPThe vehicle identification number is used to identifyyour ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number (front left side)
1. Vehicle identification number
2. Year of manufacture
U4S262E0.book Page 2 Tuesday, June 10, 2008 11:40 AM

11-3
11

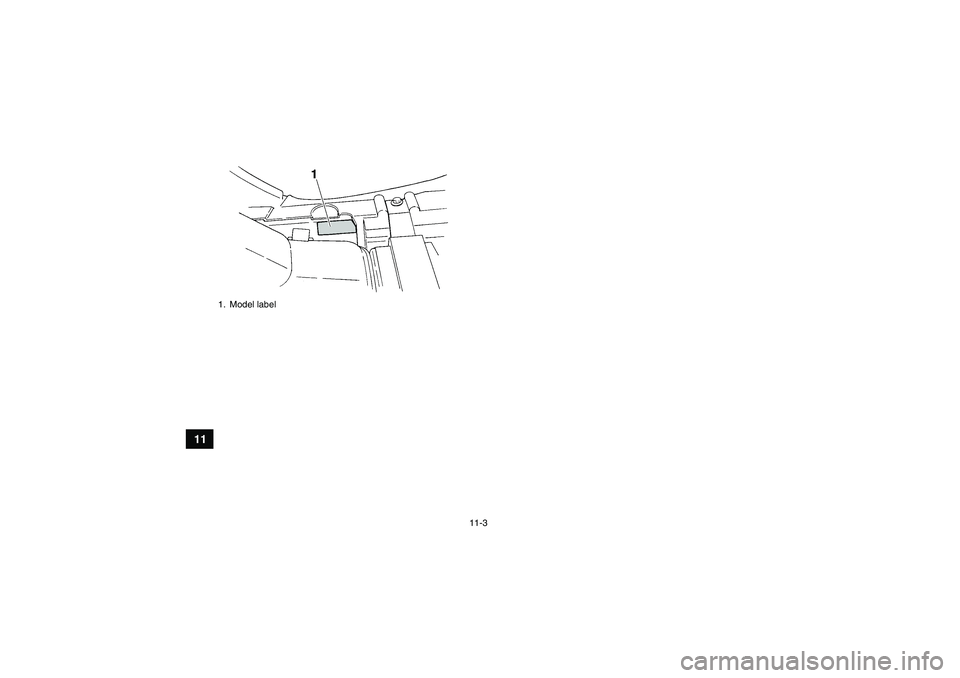

1. Model labelU4S262E0.book Page 3 Tuesday, June 10, 2008 11:40 AM
