Page 81 of 144

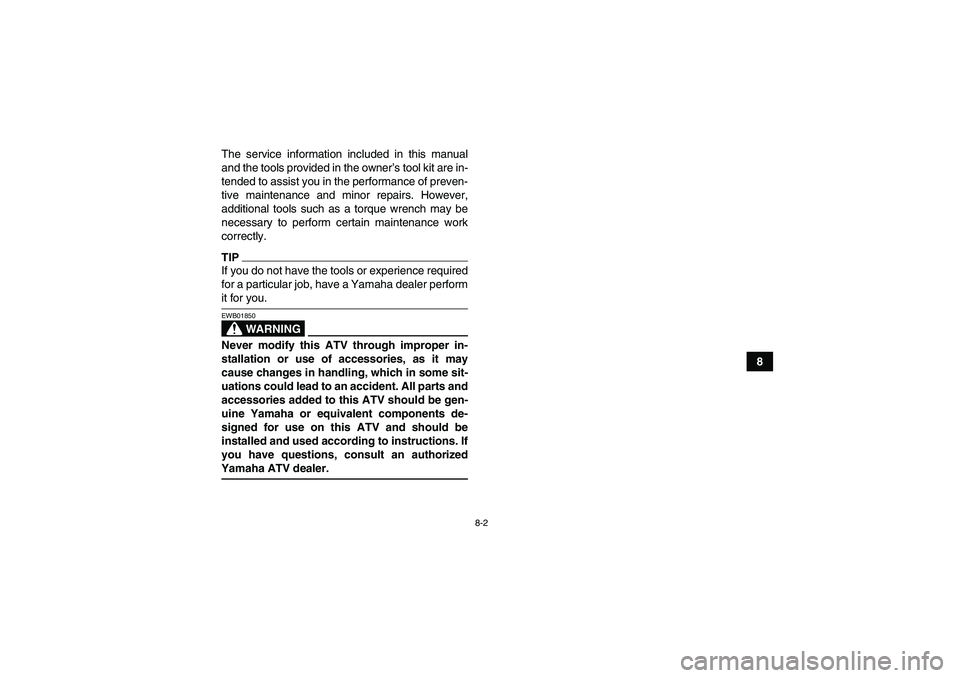

YAMAHA GRIZZLY 350 2009 Manual Online 8-2
8 The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. Ho

Page 82 of 144

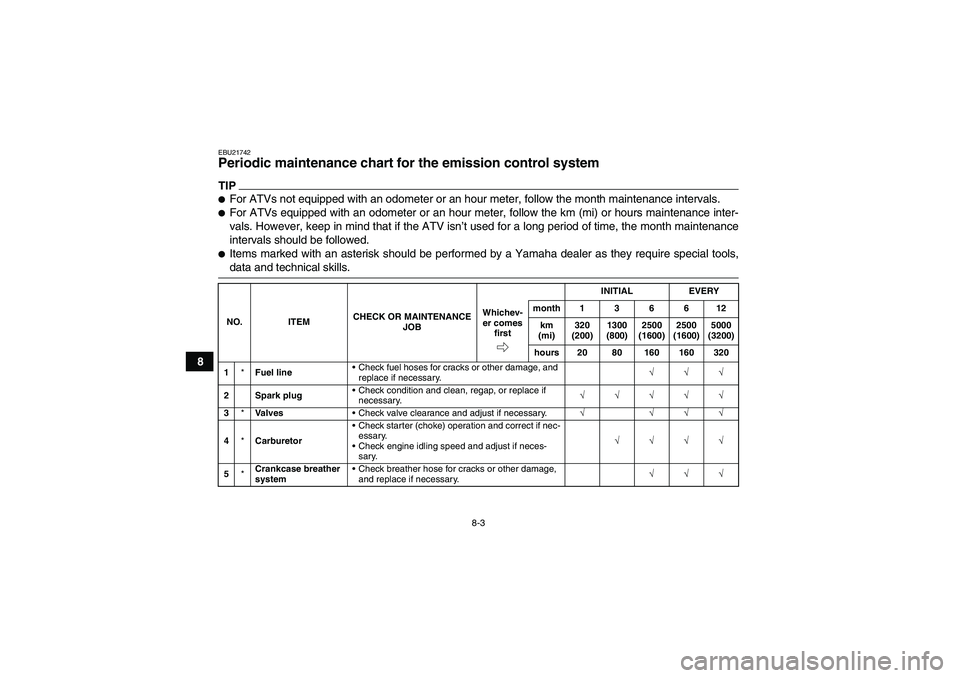

YAMAHA GRIZZLY 350 2009 Manual Online 8-3
8
EBU21742Periodic maintenance chart for the emission control system TIPFor ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.For ATVs equipped with an

Page 83 of 144

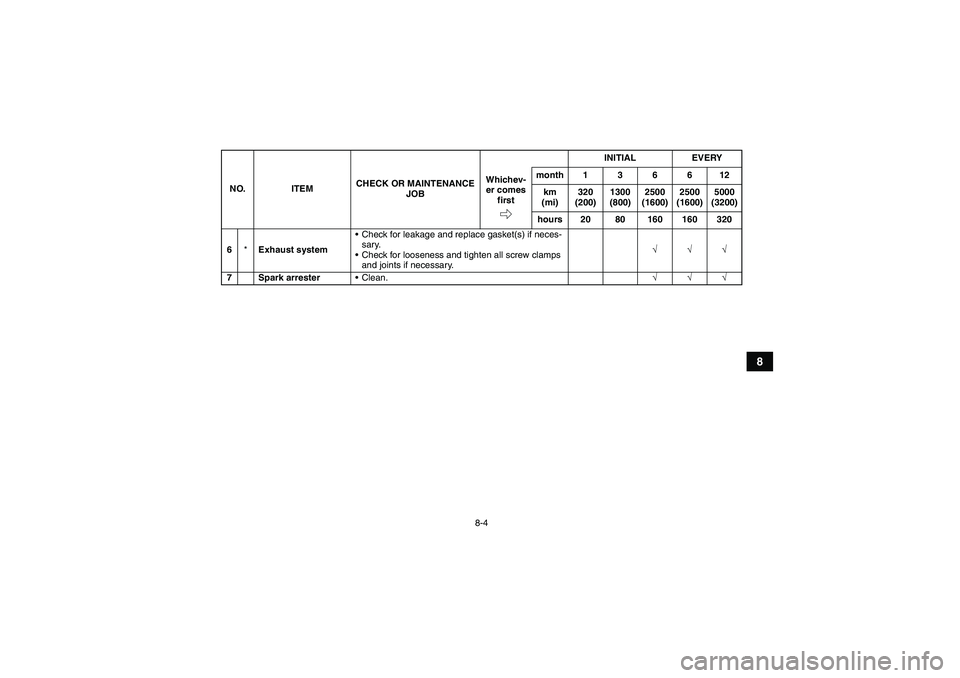

YAMAHA GRIZZLY 350 2009 Manual Online 8-4
8
6*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
7 Spark arresterClean.√√√ NO.

Page 84 of 144

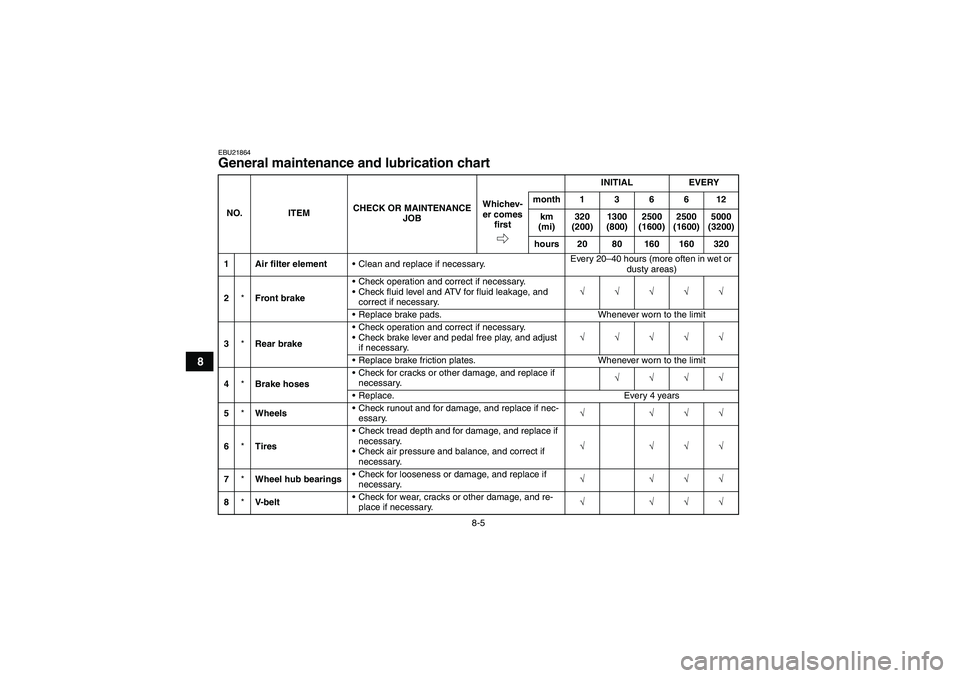

YAMAHA GRIZZLY 350 2009 Manual Online 8-5
8
EBU21864General maintenance and lubrication chart NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3

Page 85 of 144

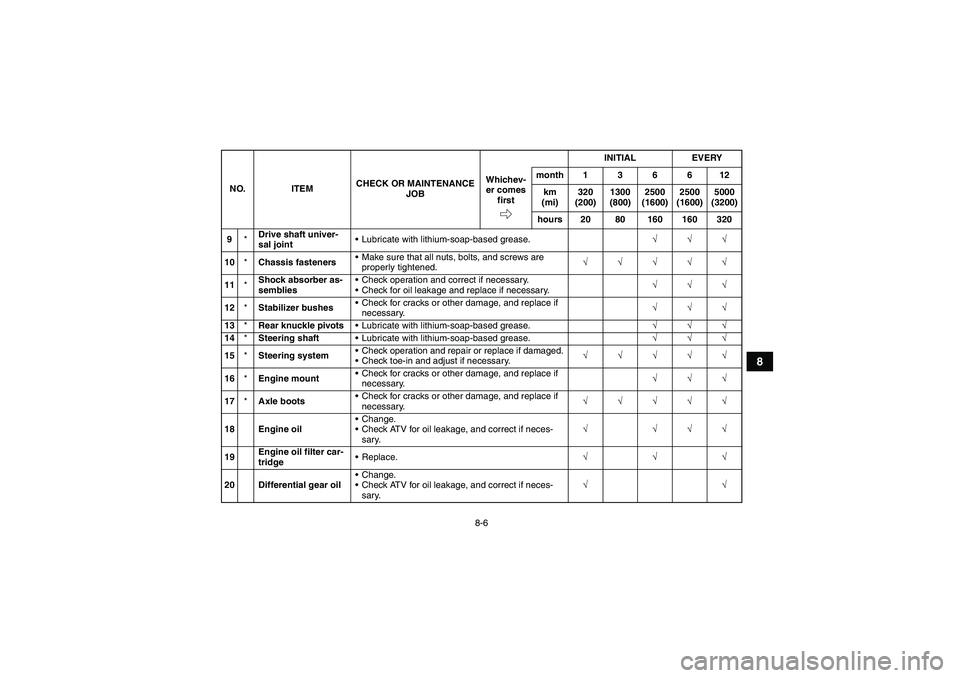

YAMAHA GRIZZLY 350 2009 Manual Online 8-6
8
9*Drive shaft univer-
sal jointLubricate with lithium-soap-based grease.√√√
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shoc

Page 86 of 144

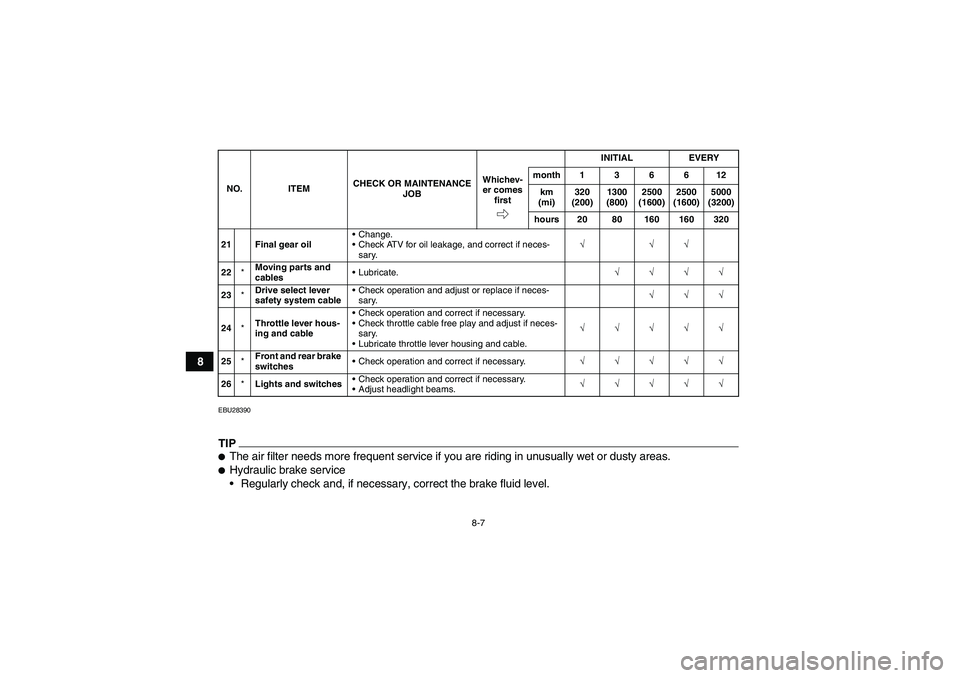

YAMAHA GRIZZLY 350 2009 Manual Online 8-7
8
EBU28390TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid leve

Page 87 of 144

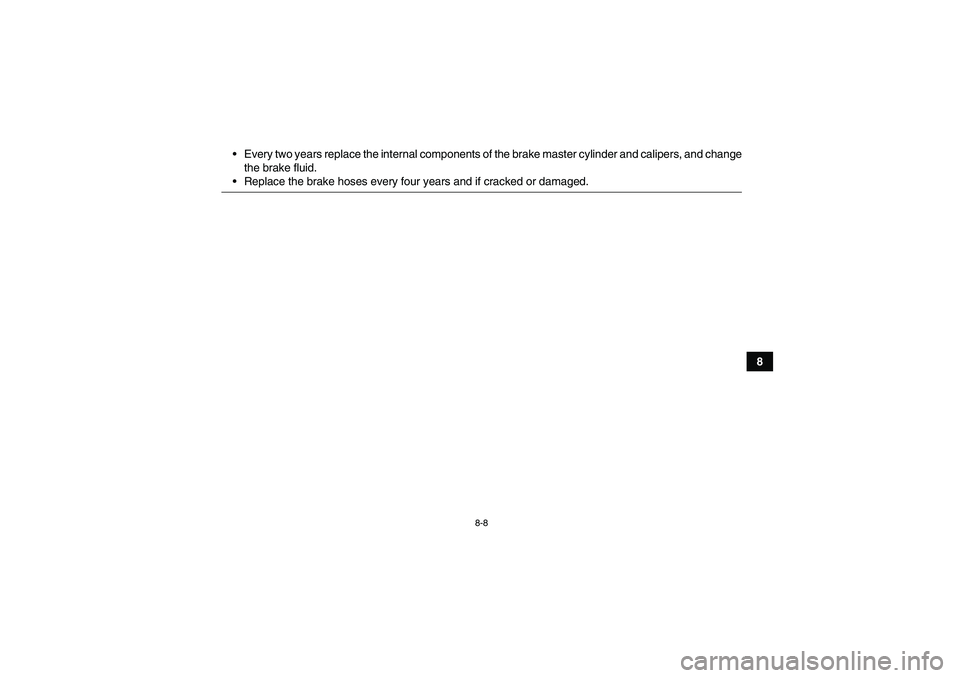

YAMAHA GRIZZLY 350 2009 Manual Online 8-8
8 Every two years replace the internal components of the brake master cylinder and calipers, and change
the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
U4S26

Page 88 of 144

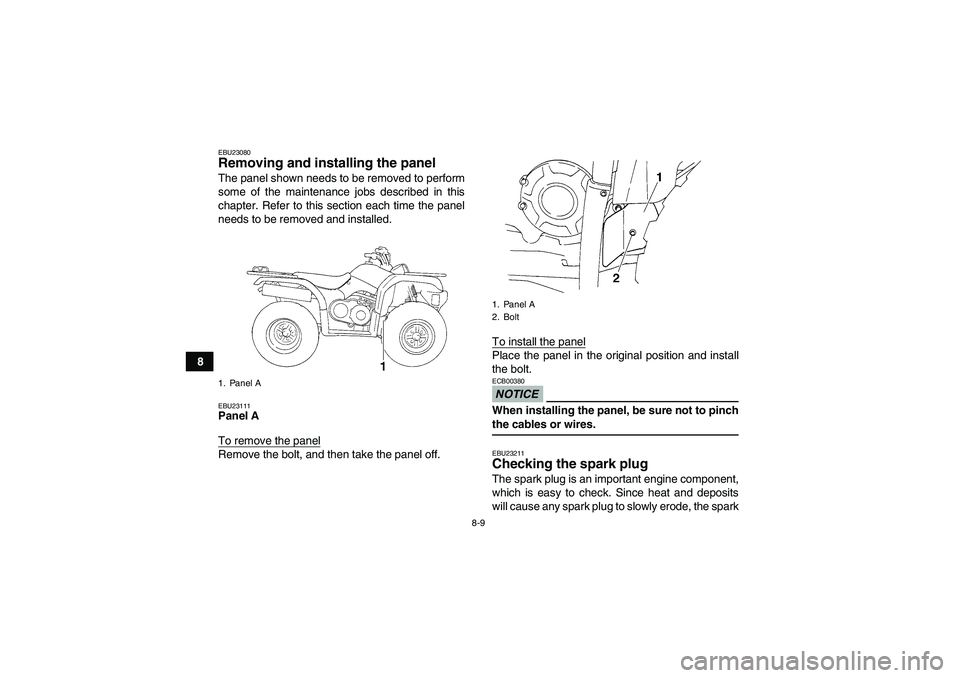

YAMAHA GRIZZLY 350 2009 Manual Online 8-9
8
EBU23080Removing and installing the panel The panel shown needs to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time the panel
needs t

Page 89 of 144

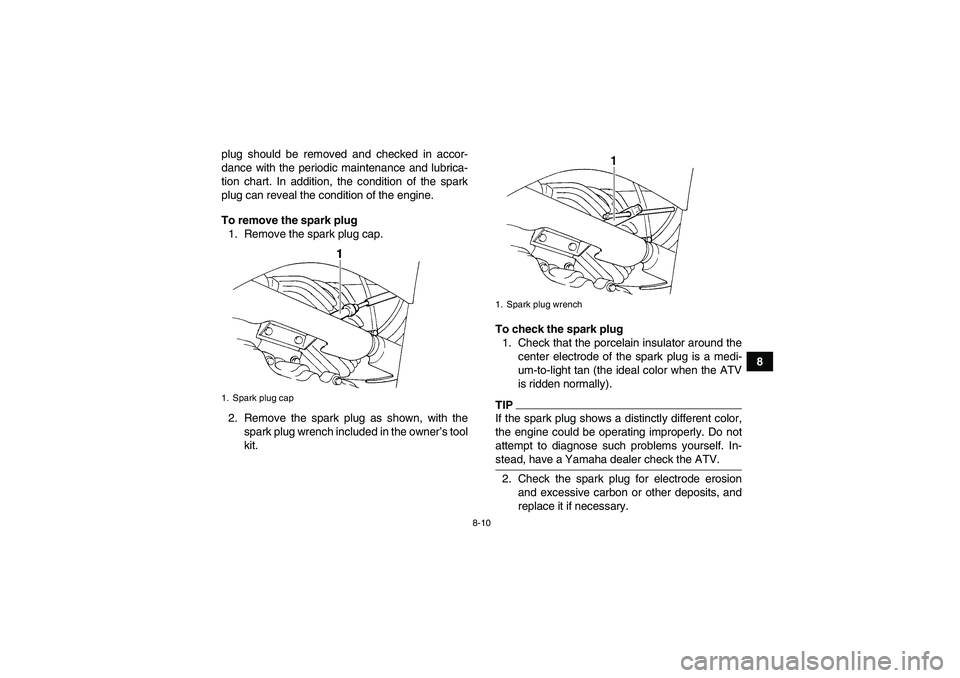

YAMAHA GRIZZLY 350 2009 Manual Online 8-10
8 plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To

Page 90 of 144

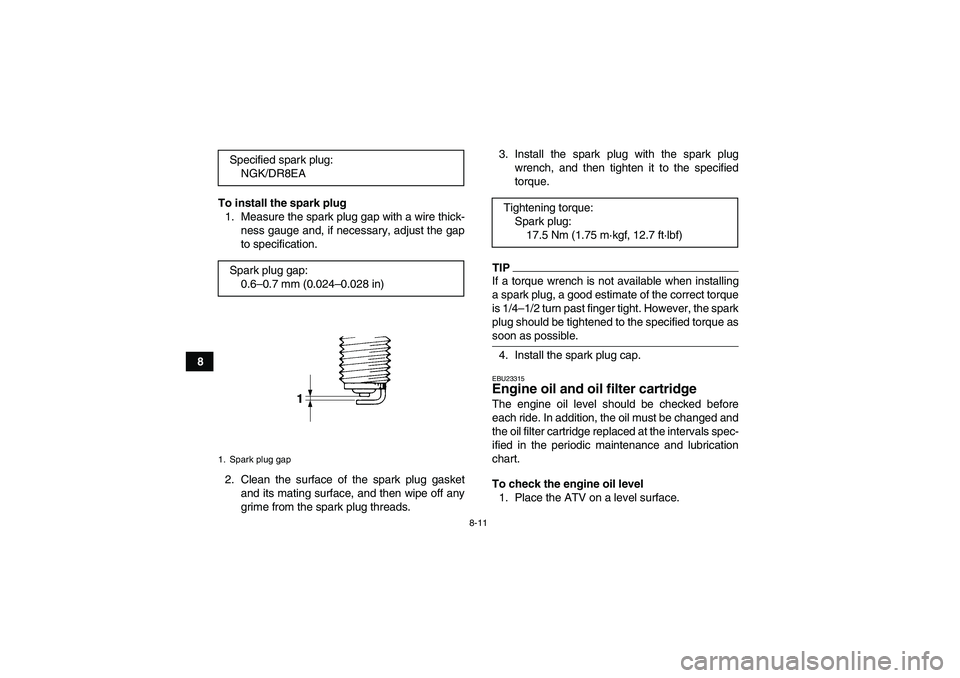

YAMAHA GRIZZLY 350 2009 Manual Online 8-11
8To install the spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
2. Clean the surface of the spark plug gasket
and its ma
