YAMAHA GRIZZLY 350 2011 Owners Manual

8-48
8 3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU25701Installing a wheel 1. Place the ATV on a level surface.
2. Install the wheel and the nuts.TIP
The arrow mark on the tire must point toward
the rotating direction of the wheel.

Tapered nuts are used for both the front and rear
wheels. Install the nuts with their tapered side to-
wards the wheel.
1. Wheel nut
1. Arrow mark
U4S264E0.book Page 48 Thursday, August 5, 2010 1:24 PM

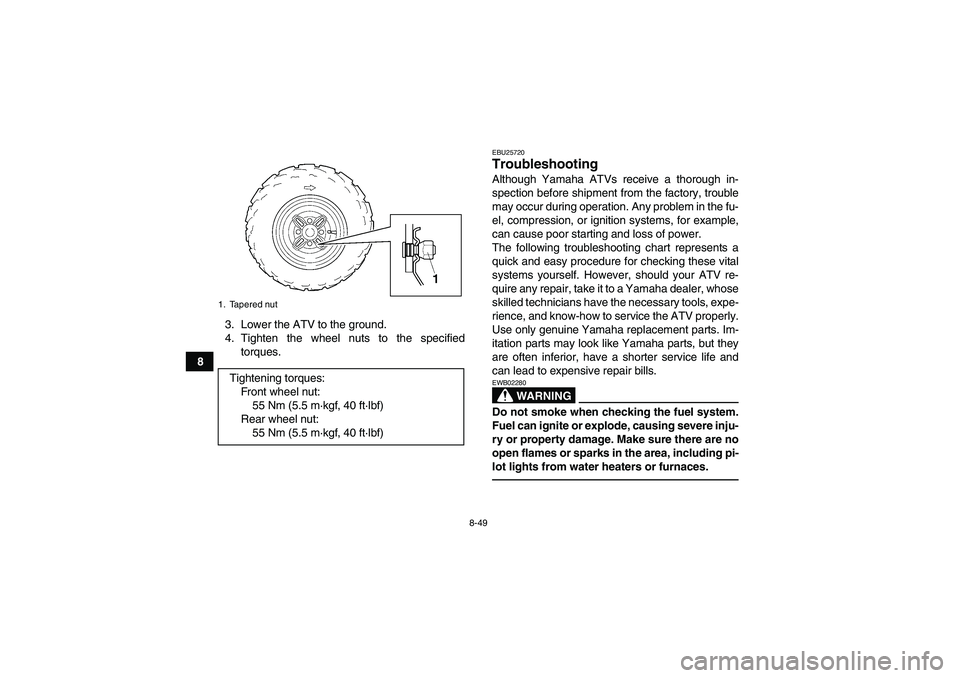

8-49
83. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.
EBU25720Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting chart represents a
quick and easy procedure for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
1. Tapered nutTightening torques:
Front wheel nut:
55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut:
55 Nm (5.5 m·kgf, 40 ft·lbf)
U4S264E0.book Page 49 Thursday, August 5, 2010 1:24 PM

8-50
8

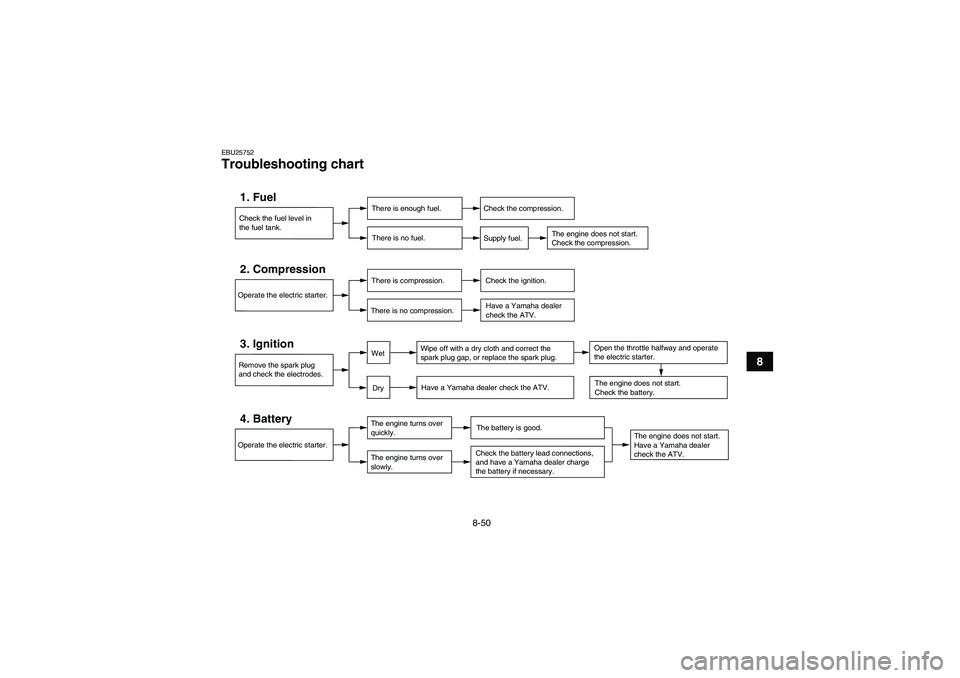

EBU25752Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U4S264E0.book Page 50 Thursday, August 5, 2010 1:24 PM

9-1
9

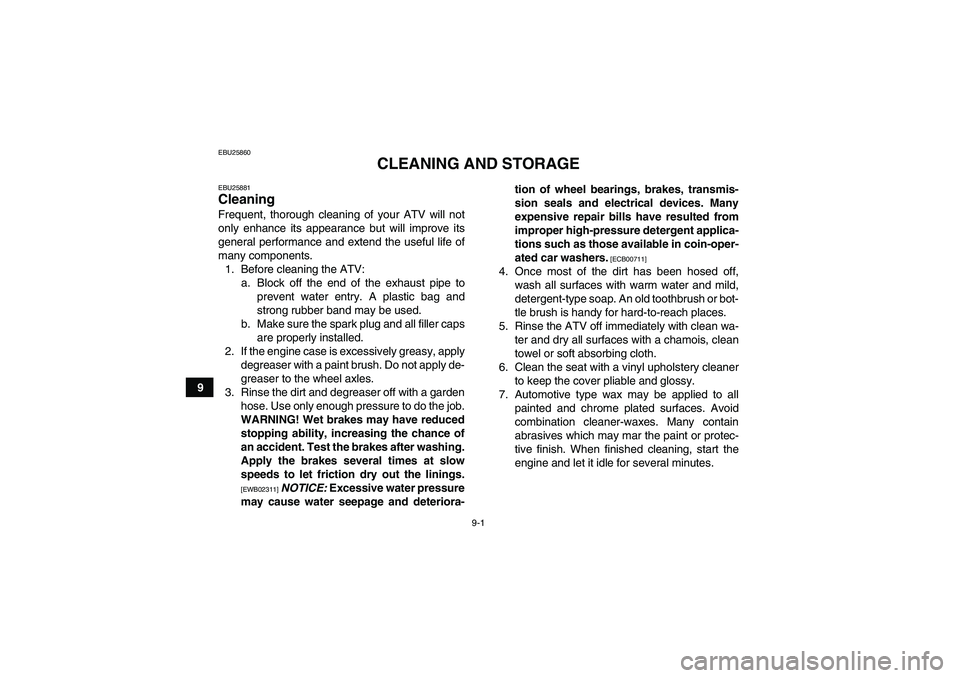

EBU25860
CLEANING AND STORAGE
EBU25881Cleaning Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the job.
WARNING! Wet brakes may have reduced
stopping ability, increasing the chance of
an accident. Test the brakes after washing.
Apply the brakes several times at slow
speeds to let friction dry out the linings.
[EWB02311]
NOTICE: Excessive water pressure
may cause water seepage and deteriora-tion of wheel bearings, brakes, transmis-
sion seals and electrical devices. Many
expensive repair bills have resulted from
improper high-pressure detergent applica-
tions such as those available in coin-oper-
ated car washers.
[ECB00711]
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
U4S264E0.book Page 1 Thursday, August 5, 2010 1:24 PM

9-2
9
EBU25933Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover. NOTICE: Storing the ATV in a poorly ven-
tilated room or covering it with a tarp while it is
still wet, will allow water and humidity to seep
in and cause rust. To prevent corrosion, avoid
damp cellars, stables (because of the presence
of ammonia) and areas where strong chemi-
cals are stored.
[ECB00721]
Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-
ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore.
c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative- Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1
oz of stabilizer to each gallon of fuel)U4S264E0.book Page 2 Thursday, August 5, 2010 1:24 PM

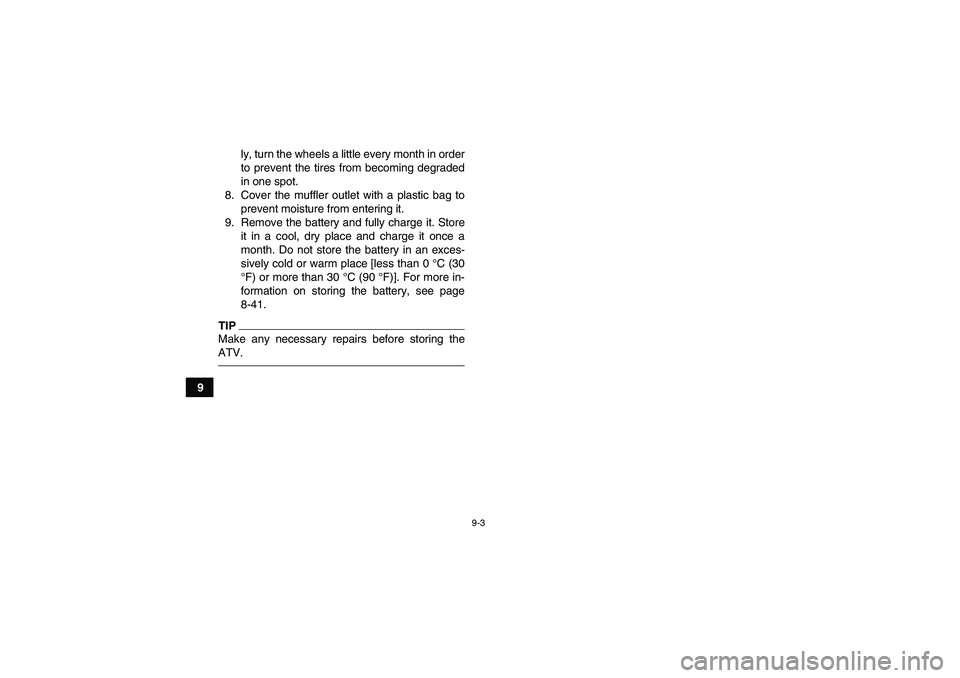

9-3
9ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-41.
TIPMake any necessary repairs before storing the
ATV.U4S264E0.book Page 3 Thursday, August 5, 2010 1:24 PM

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
1995 mm (78.5 in)
Overall width:
1095 mm (43.1 in)
Overall height:
1120 mm (44.1 in)
Seat height:
830 mm (32.7 in)
Wheelbase:
1235 mm (48.6 in)
Ground clearance:
245 mm (9.6 in)
Minimum turning radius:
3000 mm (118 in)Weight:With oil and fuel:
YFM35FGIA 275.0 kg (606 lb)
YFM35FWANA 279.0 kg (615 lb)Noise and vibration level:Noise level (77/311/EEC):
YFM35FGIA 77.6 dB(A)
Vibration on seat (EN1032, ISO5008):
YFM35FGIA Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008):
YFM35FGIA Will not exceed 2.5 m/s²
Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
348 cm³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)
Compression ratio:
9.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sumpEngine oil:Recommended brand:
YAMALUBE
U4S264E0.book Page 1 Thursday, August 5, 2010 1:24 PM

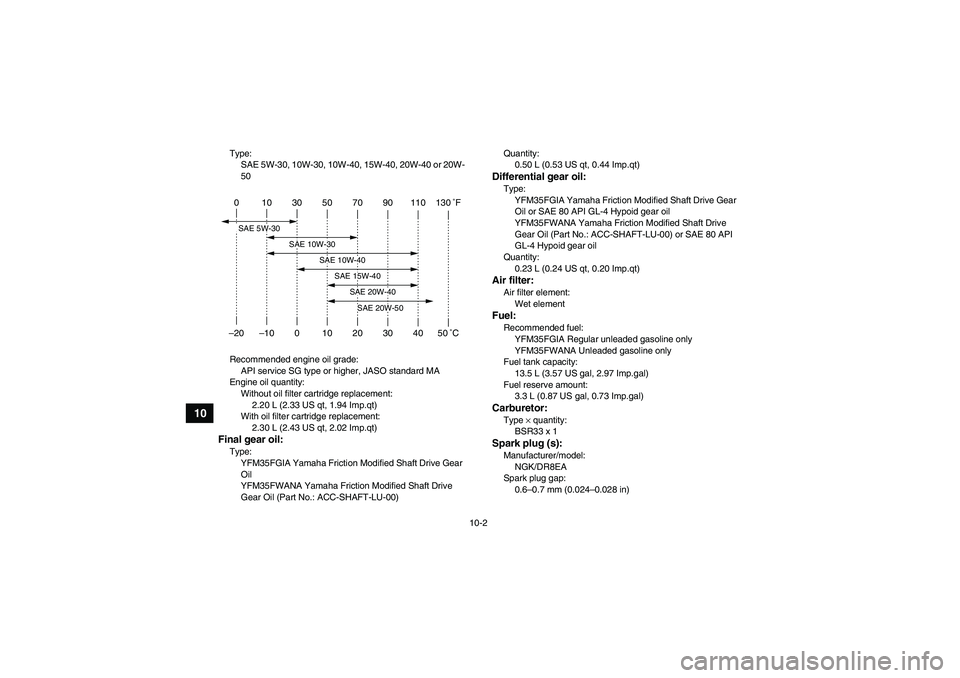

10-2
10
Type:
SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement:
2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:
YFM35FGIA Yamaha Friction Modified Shaft Drive Gear
Oil
YFM35FWANA Yamaha Friction Modified Shaft Drive
Gear Oil (Part No.: ACC-SHAFT-LU-00)Quantity:
0.50 L (0.53 US qt, 0.44 Imp.qt)
Differential gear oil:Type:
YFM35FGIA Yamaha Friction Modified Shaft Drive Gear
Oil or SAE 80 API GL-4 Hypoid gear oil
YFM35FWANA Yamaha Friction Modified Shaft Drive
Gear Oil (Part No.: ACC-SHAFT-LU-00) or SAE 80 API
GL-4 Hypoid gear oil
Quantity:
0.23 L (0.24 US qt, 0.20 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM35FGIA Regular unleaded gasoline only
YFM35FWANA Unleaded gasoline only
Fuel tank capacity:
13.5 L (3.57 US gal, 2.97 Imp.gal)
Fuel reserve amount:
3.3 L (0.87 US gal, 0.73 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U4S264E0.book Page 2 Thursday, August 5, 2010 1:24 PM

10-3
10

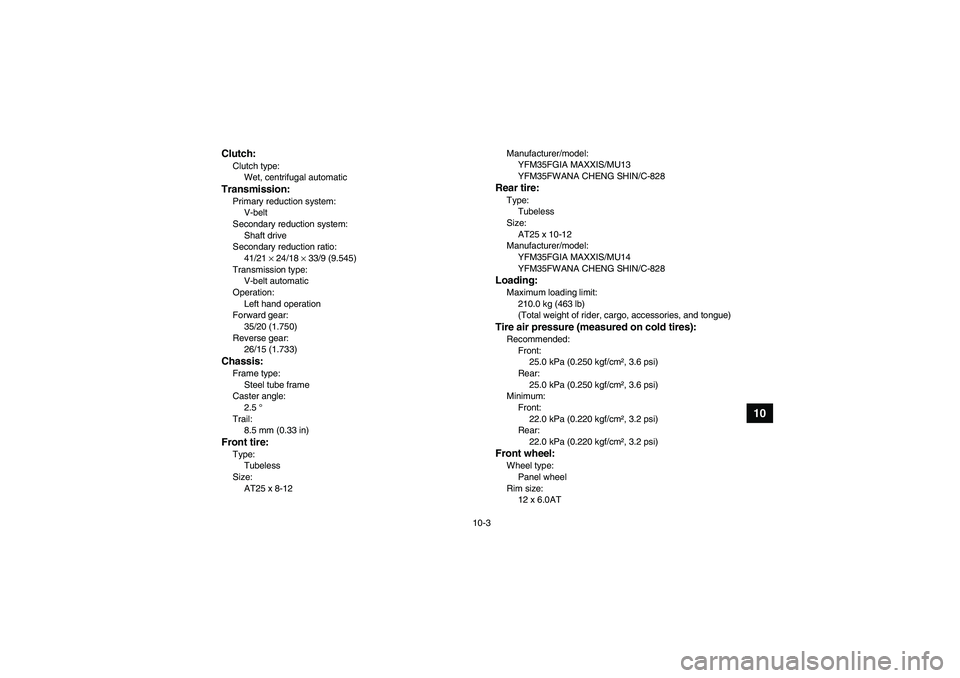

Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.545)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Forward gear:
35/20 (1.750)
Reverse gear:
26/15 (1.733)Chassis:Frame type:
Steel tube frame
Caster angle:
2.5 °
Trail:
8.5 mm (0.33 in)Front tire:Type:
Tubeless
Size:
AT25 x 8-12Manufacturer/model:
YFM35FGIA MAXXIS/MU13
YFM35FWANA CHENG SHIN/C-828
Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
Manufacturer/model:
YFM35FGIA MAXXIS/MU14
YFM35FWANA CHENG SHIN/C-828Loading:Maximum loading limit:
210.0 kg (463 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:
Panel wheel
Rim size:
12 x 6.0AT
U4S264E0.book Page 3 Thursday, August 5, 2010 1:24 PM

10-4
10
Rear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Wet multiple disc brake
Operation:
Left hand and right foot operationFront suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
160 mm (6.3 in)Rear suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)
Electrical system:Ignition system:
DC CDI
Charging system:
AC magnetoBattery:Model:
YTX14AH
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting:
12 V, 1.7 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Oil temperature warning light:
12 V, 1.7 W × 1
On-command four-wheel-drive indicator light:
12 V, 1.7 W × 1
Differential gear lock indicator light:
12 V, 1.7 W x 1
U4S264E0.book Page 4 Thursday, August 5, 2010 1:24 PM
