Page 31 of 146

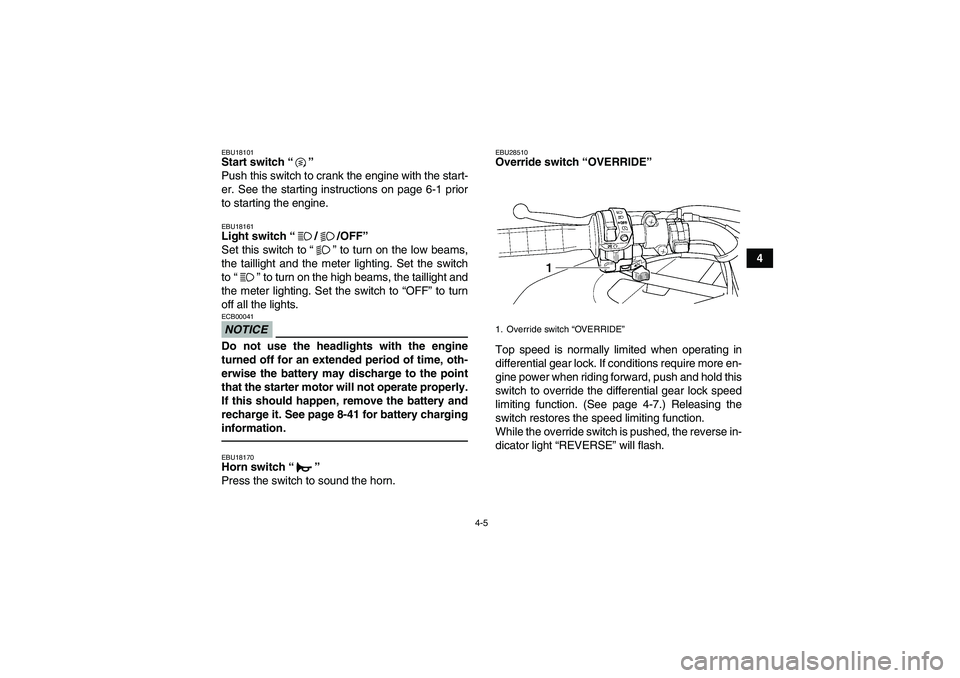

YAMAHA GRIZZLY 350 2011 Owners Guide 4-5
4
EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18161Light switch“//OFF”
Set t

Page 32 of 146

YAMAHA GRIZZLY 350 2011 Owners Guide 4-6
4
WARNING
EWB00150Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when

Page 33 of 146

YAMAHA GRIZZLY 350 2011 Owners Guide 4-7
4
EBU28372On-Command differential gear lock switch
“4WD”/“LOCK”
WARNING
EWB00131Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or

Page 34 of 146

YAMAHA GRIZZLY 350 2011 Owners Guide 4-8
4
“LOCK” (four-wheel drive with the differential
gear locked): Power is supplied to the rear and
front wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn

Page 35 of 146

YAMAHA GRIZZLY 350 2011 Owners Guide 4-9
4
To release the differential gear lock, stop the ATV
and push the switch to the “4WD” position.
TIPIf the differential gear lock is not engaging prop-
erly, turn the handlebar back and forth

Page 36 of 146

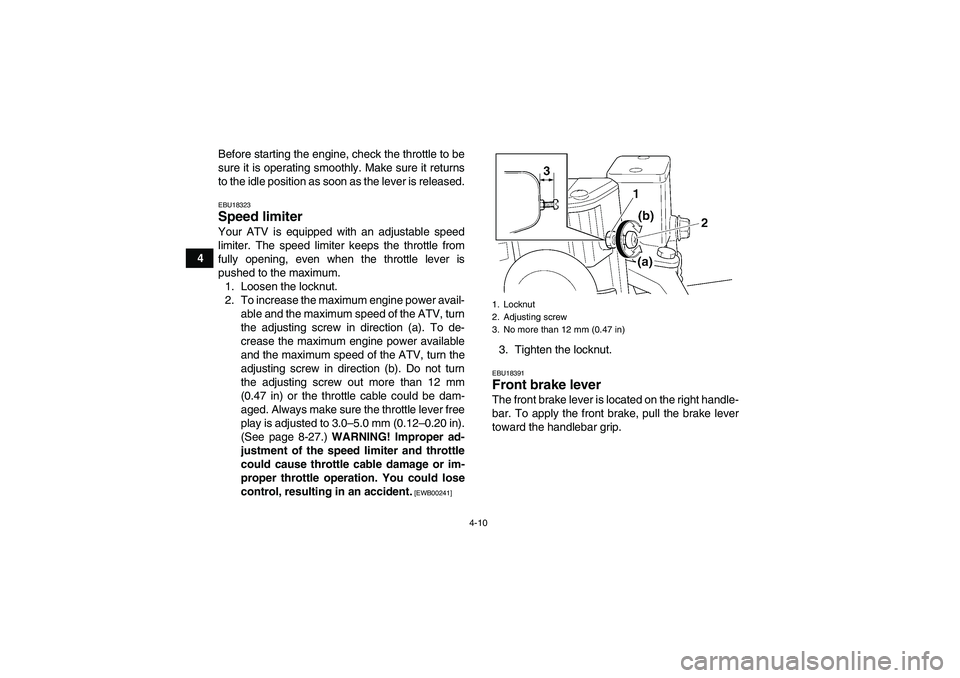

YAMAHA GRIZZLY 350 2011 Owners Guide 4-10
4Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is

Page 37 of 146

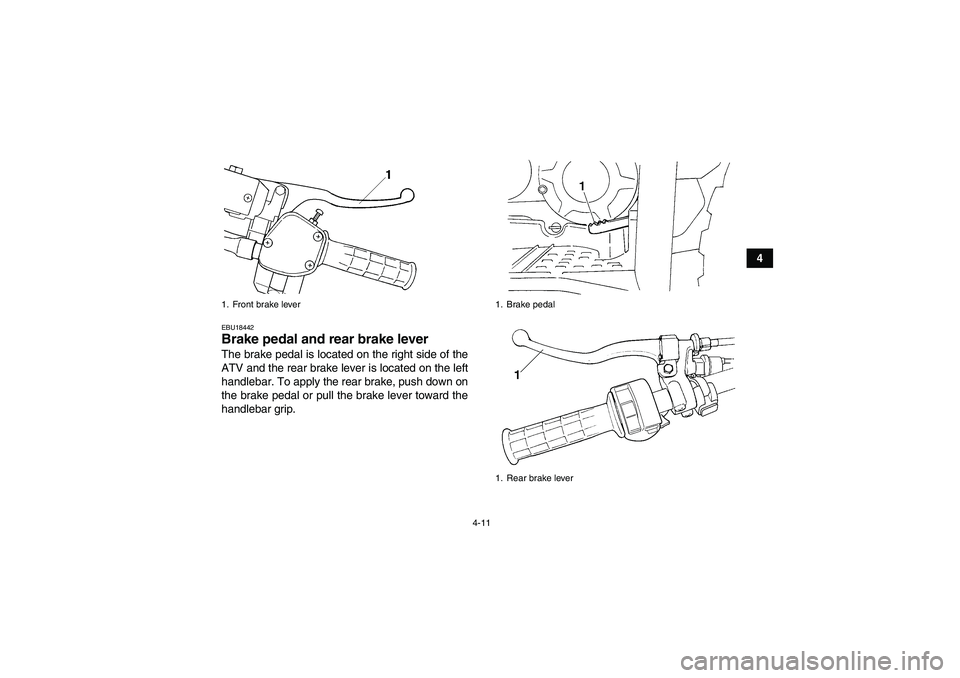

YAMAHA GRIZZLY 350 2011 Owners Guide 4-11
4
EBU18442Brake pedal and rear brake lever The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on

Page 38 of 146

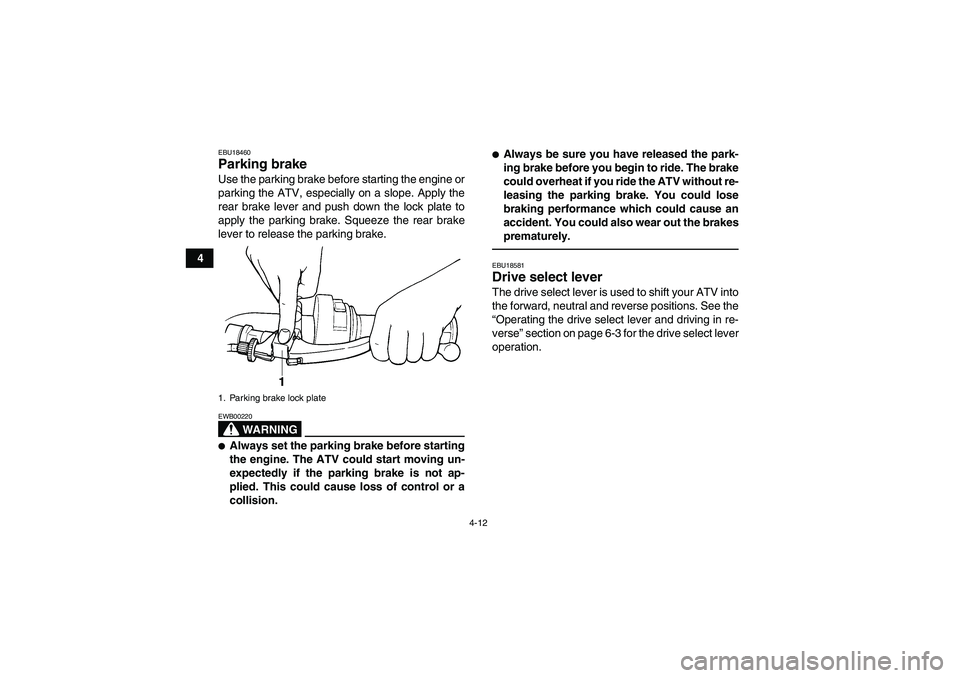

YAMAHA GRIZZLY 350 2011 Owners Guide 4-12
4
EBU18460Parking brake Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking br

Page 39 of 146

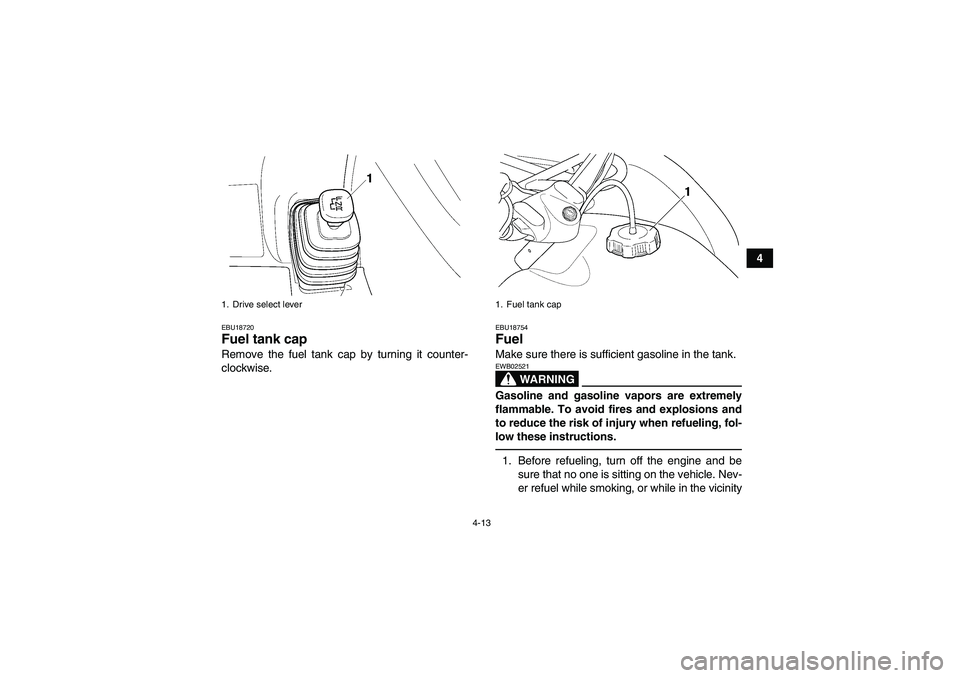

YAMAHA GRIZZLY 350 2011 Owners Guide 4-13
4
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
EBU18754Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors ar

Page 40 of 146

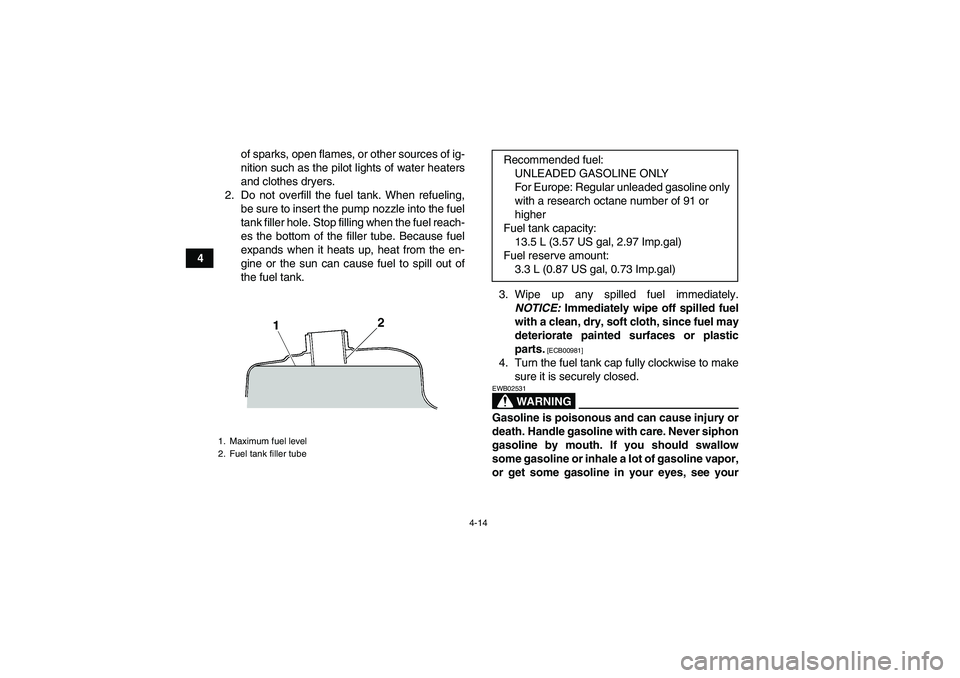

YAMAHA GRIZZLY 350 2011 Owners Guide 4-14
4of sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling,
be sure to insert the pump
