four wheel drive YAMAHA GRIZZLY 350 2011 Owners Manual

3-2
3

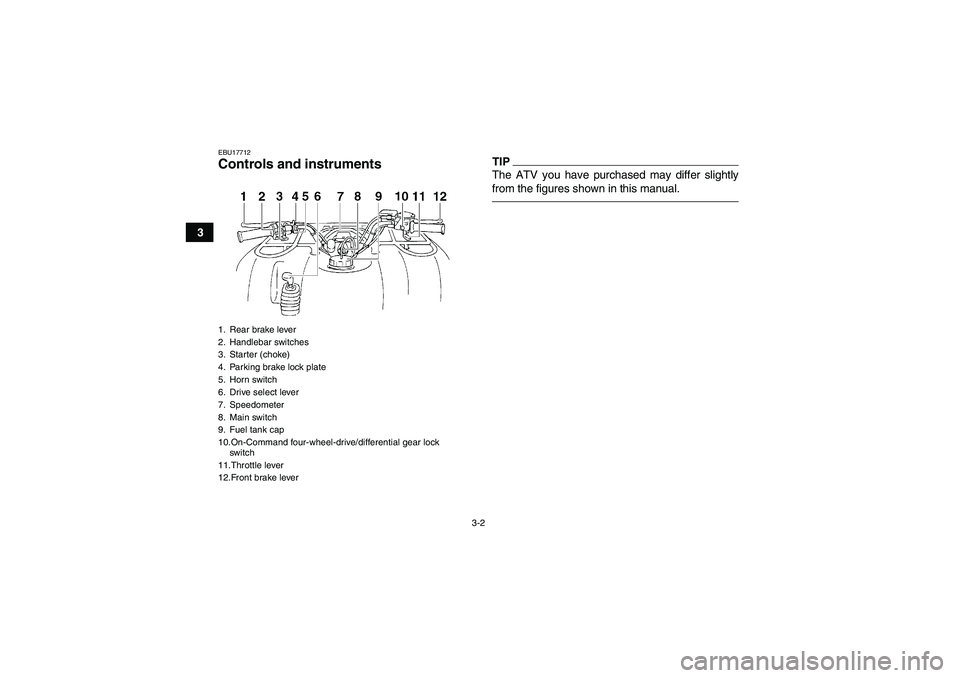

EBU17712Controls and instruments
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Rear brake lever
2. Handlebar switches
3. Starter (choke)
4. Parking brake lock plate
5. Horn switch
6. Drive select lever
7. Speedometer
8. Main switch
9. Fuel tank cap
10.On-Command four-wheel-drive/differential gear lock
switch
11.Throttle lever
12.Front brake leverU4S264E0.book Page 2 Thursday, August 5, 2010 1:24 PM

4-2
4

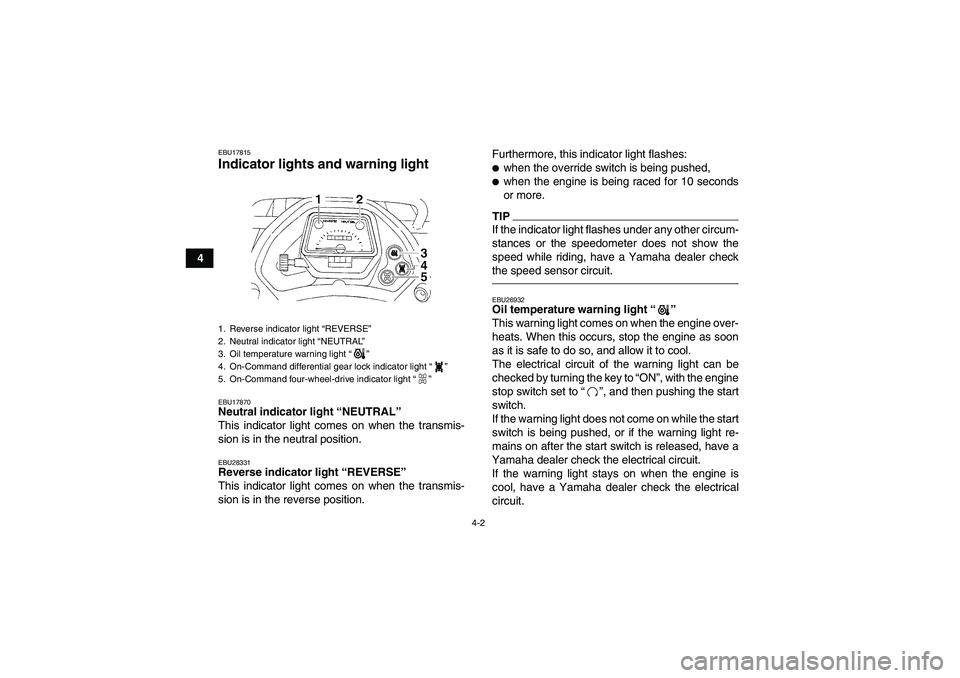

EBU17815Indicator lights and warning light EBU17870Neutral indicator light “NEUTRAL”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU28331Reverse indicator light “REVERSE”
This indicator light comes on when the transmis-
sion is in the reverse position.Furthermore, this indicator light flashes:

when the override switch is being pushed,
when the engine is being raced for 10 seconds
or more.TIPIf the indicator light flashes under any other circum-
stances or the speedometer does not show the
speed while riding, have a Yamaha dealer check
the speed sensor circuit.EBU26932Oil temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs, stop the engine as soon
as it is safe to do so, and allow it to cool.
The electrical circuit of the warning light can be
checked by turning the key to “ON”, with the engine
stop switch set to“”, and then pushing the start
switch.
If the warning light does not come on while the start
switch is being pushed, or if the warning light re-
mains on after the start switch is released, have a
Yamaha dealer check the electrical circuit.
If the warning light stays on when the engine is
cool, have a Yamaha dealer check the electrical
circuit.
1. Reverse indicator light “REVERSE”
2. Neutral indicator light “NEUTRAL”
3. Oil temperature warning light“”
4. On-Command differential gear lock indicator light“”
5. On-Command four-wheel-drive indicator light“”U4S264E0.book Page 2 Thursday, August 5, 2010 1:24 PM

4-3
4

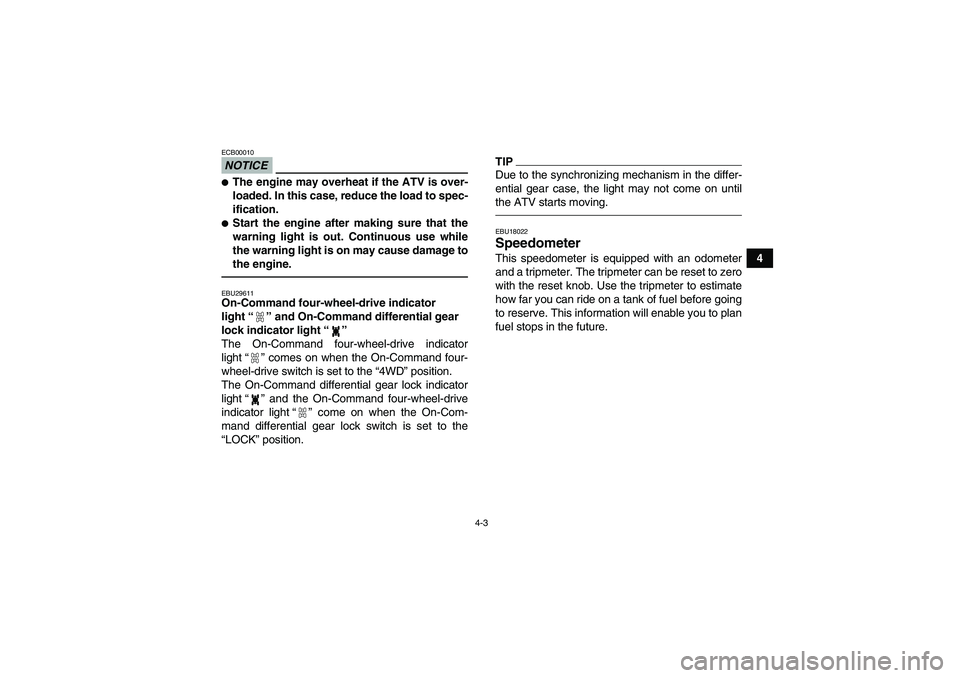

NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.EBU29611On-Command four-wheel-drive indicator
light“” and On-Command differential gear
lock indicator light“”
The On-Command four-wheel-drive indicator
light“” comes on when the On-Command four-
wheel-drive switch is set to the “4WD” position.
The On-Command differential gear lock indicator
light“” and the On-Command four-wheel-drive
indicator light“” come on when the On-Com-
mand differential gear lock switch is set to the
“LOCK” position.
TIPDue to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving.EBU18022Speedometer This speedometer is equipped with an odometer
and a tripmeter. The tripmeter can be reset to zero
with the reset knob. Use the tripmeter to estimate
how far you can ride on a tank of fuel before going
to reserve. This information will enable you to plan
fuel stops in the future.
U4S264E0.book Page 3 Thursday, August 5, 2010 1:24 PM

4-6
4

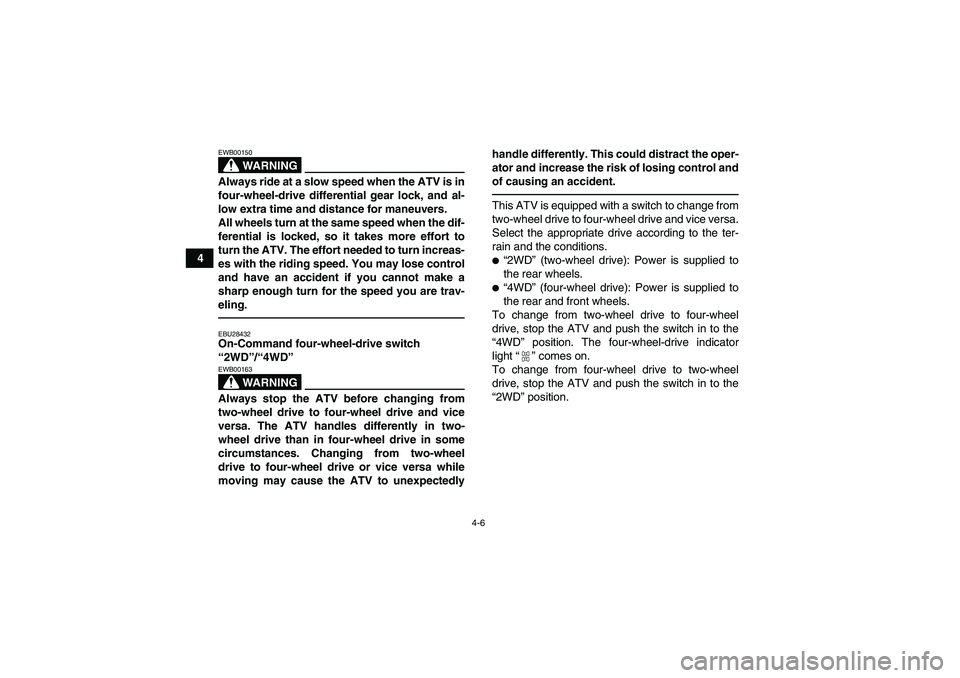

WARNING
EWB00150Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
es with the riding speed. You may lose control
and have an accident if you cannot make a
sharp enough turn for the speed you are trav-
eling.EBU28432On-Command four-wheel-drive switch
“2WD”/“4WD”
WARNING
EWB00163Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedlyhandle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.
This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“2WD” (two-wheel drive): Power is supplied to
the rear wheels.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
To change from two-wheel drive to four-wheel
drive, stop the ATV and push the switch in to the
“4WD” position. The four-wheel-drive indicator
light“” comes on.
To change from four-wheel drive to two-wheel
drive, stop the ATV and push the switch in to the
“2WD” position.
U4S264E0.book Page 6 Thursday, August 5, 2010 1:24 PM

4-7
4
EBU28372On-Command differential gear lock switch
“4WD”/“LOCK”
WARNING
EWB00131Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or vice versa.
The ATV handles differently in four-wheel drive
than in differential gear lock in some circum-
stances. Changing from four-wheel drive to dif-
ferential gear lock or vice versa while moving
may cause the ATV to handle differently unex-pectedly. This could distract the operator and
increase the risk of losing control and causing
an accident.
WARNING
EWB00140Always ride at a slow speed when the ATV is in
differential gear lock, and allow extra time and
distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential gear is locked, so it takes more effort
to turn the ATV. The effort needed to turn in-
creases with the riding speed. You may lose
control and have an accident if you cannot
make a sharp enough turn for the speed you
are traveling.This ATV is equipped with a switch allowing you to
lock the differential gear when in four-wheel drive.
Select the appropriate switch position according to
the terrain and the conditions.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
1. On-Command four-wheel-drive switch “2WD”/“4WD”U4S264E0.book Page 7 Thursday, August 5, 2010 1:24 PM

4-8
4

“LOCK” (four-wheel drive with the differential
gear locked): Power is supplied to the rear and
front wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the
same speed.
To lock the differential gear in four-wheel drive,
make sure the On-Command four-wheel-drive
switch is pushed in to the “4WD” position.Stop the ATV, move the differential gear lock lever
to position (a), and then push the differential gear
lock switch in to the “LOCK” position. When the dif-
ferential gear is locked, the differential gear lock in-
dicator light“” comes on.1. On-Command four-wheel-drive switch “2WD”/“4WD”
2. On-Command differential gear lock switch “4WD”/“LOCK”
1. Differential gear lock lever
2. On-Command four-wheel-drive switch “2WD”/“4WD”
U4S264E0.book Page 8 Thursday, August 5, 2010 1:24 PM

4-9
4

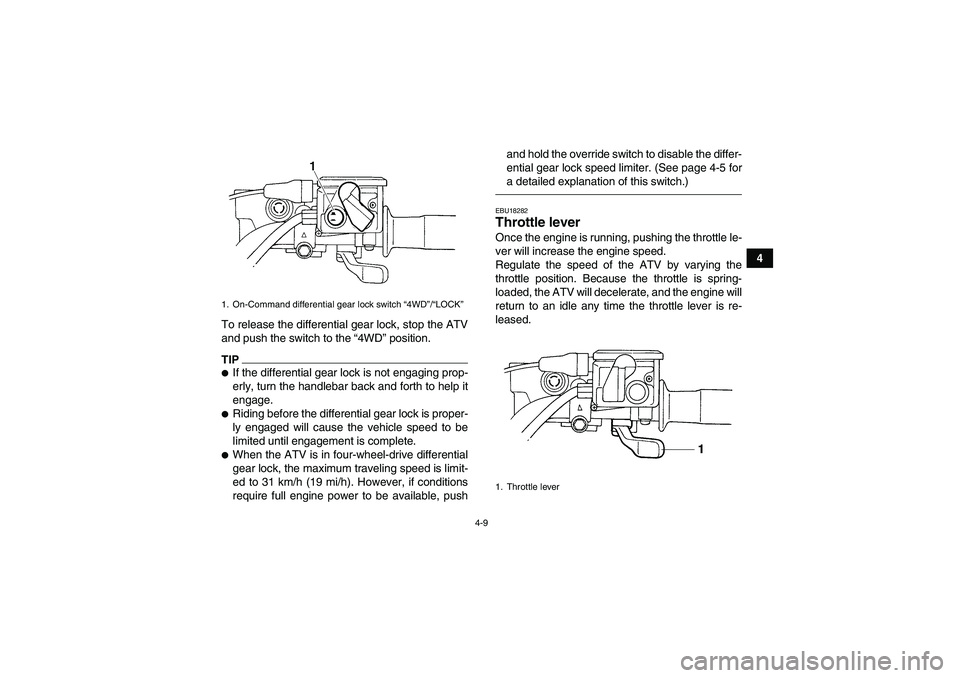

To release the differential gear lock, stop the ATV
and push the switch to the “4WD” position.
TIP
If the differential gear lock is not engaging prop-
erly, turn the handlebar back and forth to help it
engage.
Riding before the differential gear lock is proper-
ly engaged will cause the vehicle speed to be
limited until engagement is complete.
When the ATV is in four-wheel-drive differential
gear lock, the maximum traveling speed is limit-
ed to 31 km/h (19 mi/h). However, if conditions
require full engine power to be available, pushand hold the override switch to disable the differ-
ential gear lock speed limiter. (See page 4-5 for
a detailed explanation of this switch.)
EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
1. On-Command differential gear lock switch “4WD”/“LOCK”
1. Throttle lever
U4S264E0.book Page 9 Thursday, August 5, 2010 1:24 PM

8-44
8

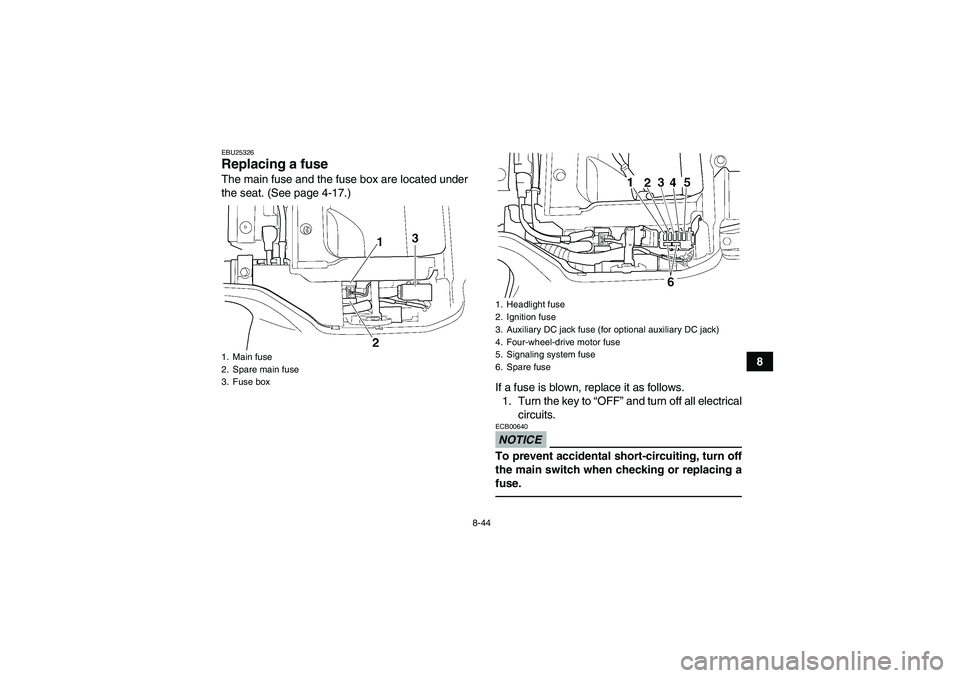

EBU25326Replacing a fuse The main fuse and the fuse box are located under
the seat. (See page 4-17.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse (for optional auxiliary DC jack)
4. Four-wheel-drive motor fuse
5. Signaling system fuse
6. Spare fuse
U4S264E0.book Page 44 Thursday, August 5, 2010 1:24 PM

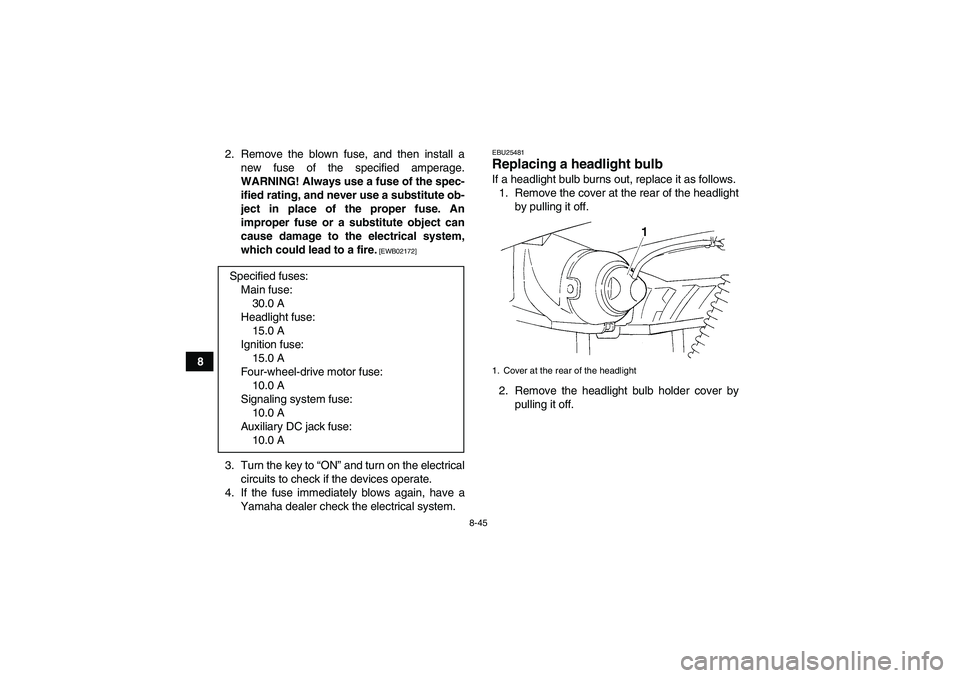

8-45
82. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
EBU25481Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the cover at the rear of the headlight
by pulling it off.
2. Remove the headlight bulb holder cover by
pulling it off. Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Four-wheel-drive motor fuse:
10.0 A
Signaling system fuse:
10.0 A
Auxiliary DC jack fuse:
10.0 A1. Cover at the rear of the headlight
U4S264E0.book Page 45 Thursday, August 5, 2010 1:24 PM

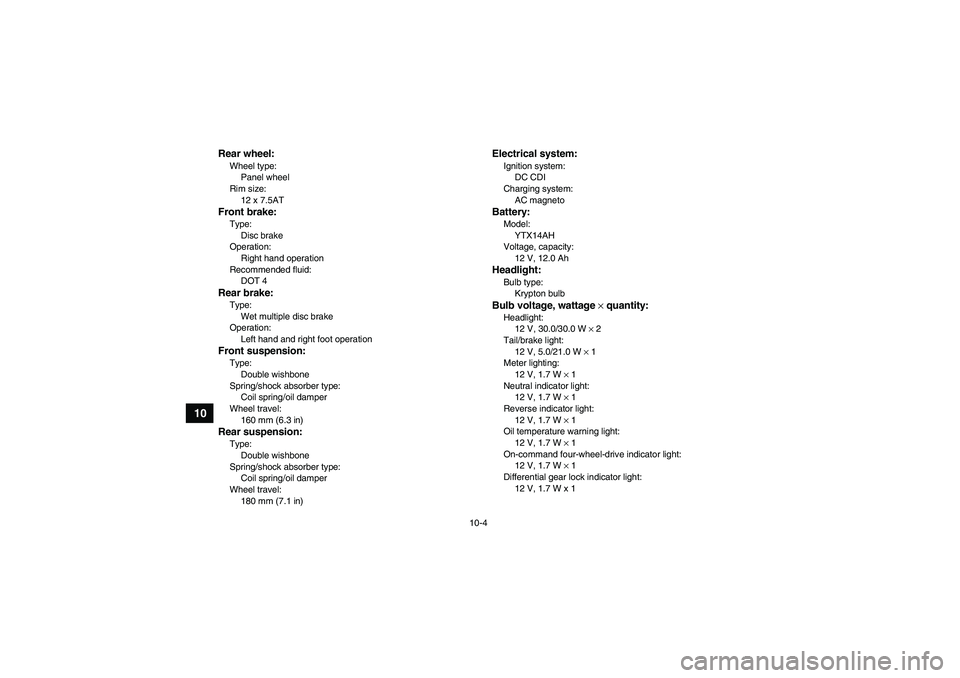

10-4
10
Rear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Wet multiple disc brake
Operation:
Left hand and right foot operationFront suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
160 mm (6.3 in)Rear suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)
Electrical system:Ignition system:
DC CDI
Charging system:
AC magnetoBattery:Model:
YTX14AH
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting:
12 V, 1.7 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Oil temperature warning light:
12 V, 1.7 W × 1
On-command four-wheel-drive indicator light:
12 V, 1.7 W × 1
Differential gear lock indicator light:
12 V, 1.7 W x 1
