9-3
9

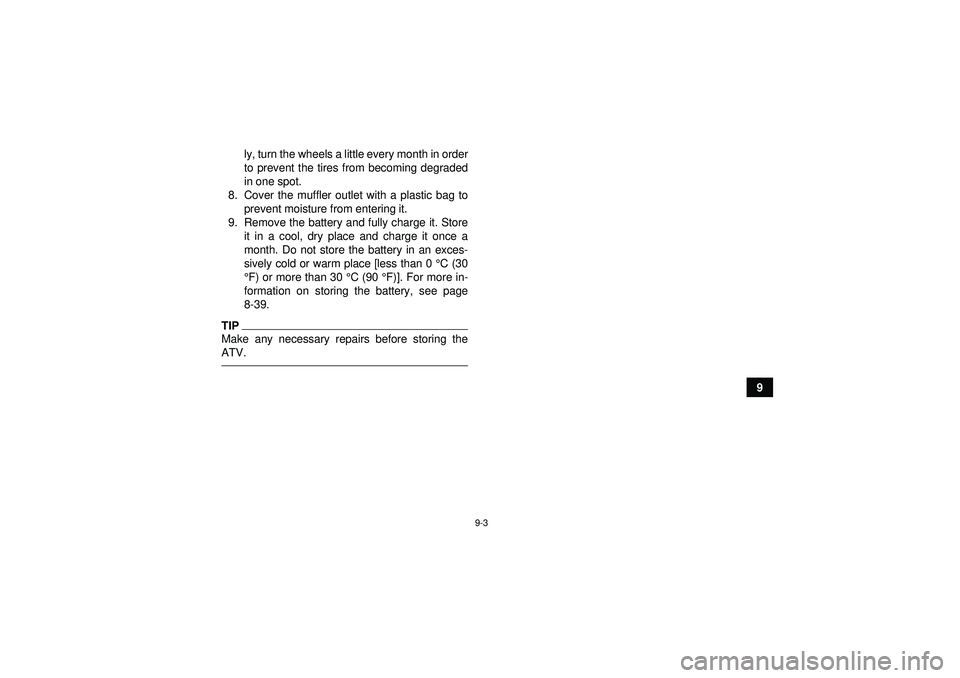

ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to prevent moisture from entering it.
9. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 ° C (30
° F) or more than 30 ° C (90 °F)]. For more in-
formation on storing the battery, see page
8-39.
TIPMake any necessary repairs before storing the
ATV.U1NS60E0.book Page 3 Monday, August 1, 2011 4:12 PM
Page 132 of 142

10-1
10
EBU25961
SPECIFICATIONS

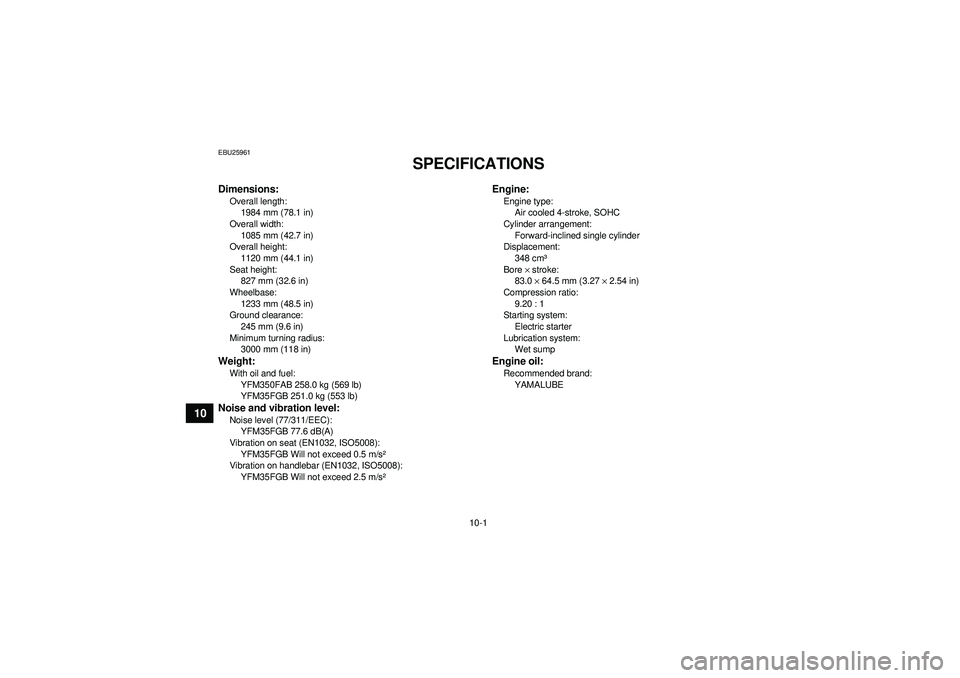

Dimensions:Overall length:1984 mm (78.1 in)
Overall width: 1085 mm (42.7 in)
Overall height:
1120 mm (44.1 in)
Seat height: 827 mm (32.6 in)
Wheelbase: 1233 mm (48.5 in)
Ground clearance:
245 mm (9.6 in)
Minimum turning radius: 3000 mm (118 in)Weight:With oil and fuel:
YFM350FAB 258.0 kg (569 lb)
YFM35FGB 251.0 kg (553 lb)Noise and vibration level:Noise level (77/311/EEC):YFM35FGB 77.6 dB(A)
Vibration on seat (EN1032, ISO5008): YFM35FGB Will not exceed 0.5 m/s ²
Vibration on handlebar (EN1032, ISO5008):
YFM35FGB Will not exceed 2.5 m/s ²
Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement: Forward-inclined single cylinder
Displacement:
348 cm ³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)
Compression ratio: 9.20 : 1
Starting system:
Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:
YAMALUBE
U1NS60E0.book Page 1 Monday, August 1, 2011 4:12 PM
Page 133 of 142

10-2
10

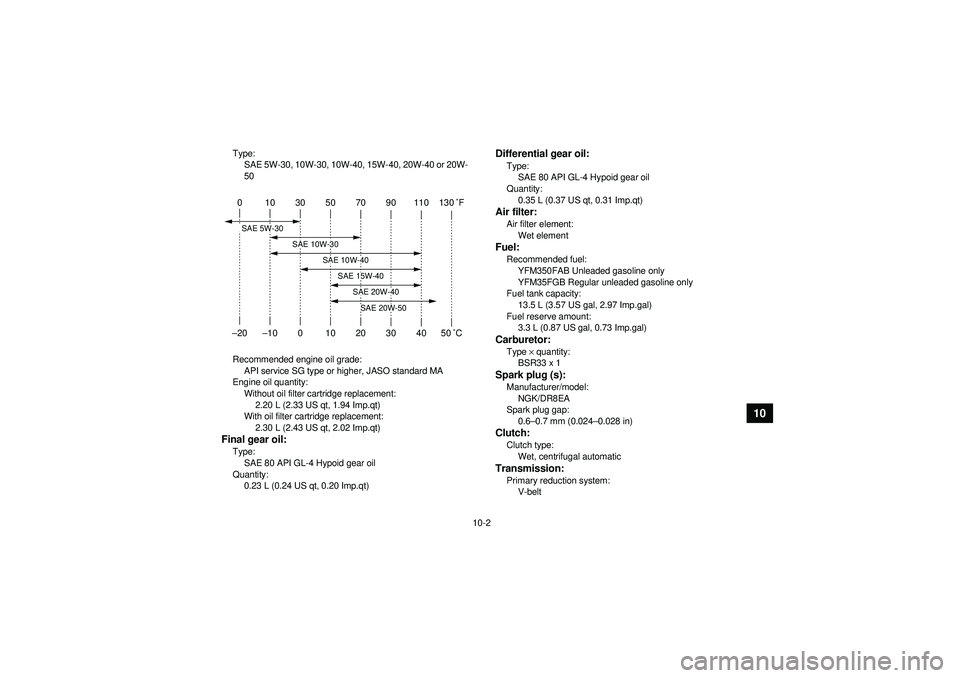

Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:
2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.23 L (0.24 US qt, 0.20 Imp.qt)
Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.35 L (0.37 US qt, 0.31 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:YFM350FAB Unleaded gasoline only
YFM35FGB Regular unleaded gasoline only
Fuel tank capacity: 13.5 L (3.57 US gal, 2.97 Imp.gal)
Fuel reserve amount: 3.3 L (0.87 US gal, 0.73 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap: 0.6 –0.7 mm (0.024 –0.028 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:V-belt
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM
Page 134 of 142

10-3
10
Secondary reduction system:Shaft drive
Secondary reduction ratio: 41/21 × 24/18 × 33/9 (9.545)
Transmission type:
V-belt automatic
Operation: Left hand operation
Forward gear: 35/20 (1.750)
Reverse gear:
26/15 (1.733)Chassis:Frame type:Steel tube frame
Caster angle:
4.0 °
Trail: 21.0 mm (0.83 in)Front tire:Type:
Tubeless
Size: AT25 x 8-12
Manufacturer/model: YFM350FAB CHENG SHIN/C-828
YFM35FGB MAXXIS/MU13Rear tire:Type:
Tubeless
Size: AT25 x 10-12 Manufacturer/model:
YFM350FAB CHENG SHIN/C-828
YFM35FGB MAXXIS/MU14
Loading:Maximum loading limit:210.0 kg (463 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front: 25.0 kPa (0.250 kgf/cm ², 3.6 psi)
Rear:
25.0 kPa (0.250 kgf/cm ², 3.6 psi)
Minimum: Front:
22.0 kPa (0.220 kgf/cm ², 3.2 psi)
Rear: 22.0 kPa (0.220 kgf/cm ², 3.2 psi)Front wheel:Wheel type:
Panel wheel
Rim size: 12 x 6.0ATRear wheel:Wheel type:
Panel wheel
Rim size: 12 x 7.5ATFront brake:Type:
Disc brake
U1NS60E0.book Page 3 Monday, August 1, 2011 4:12 PM
Page 135 of 142

10-4
10
Operation:Right hand operation

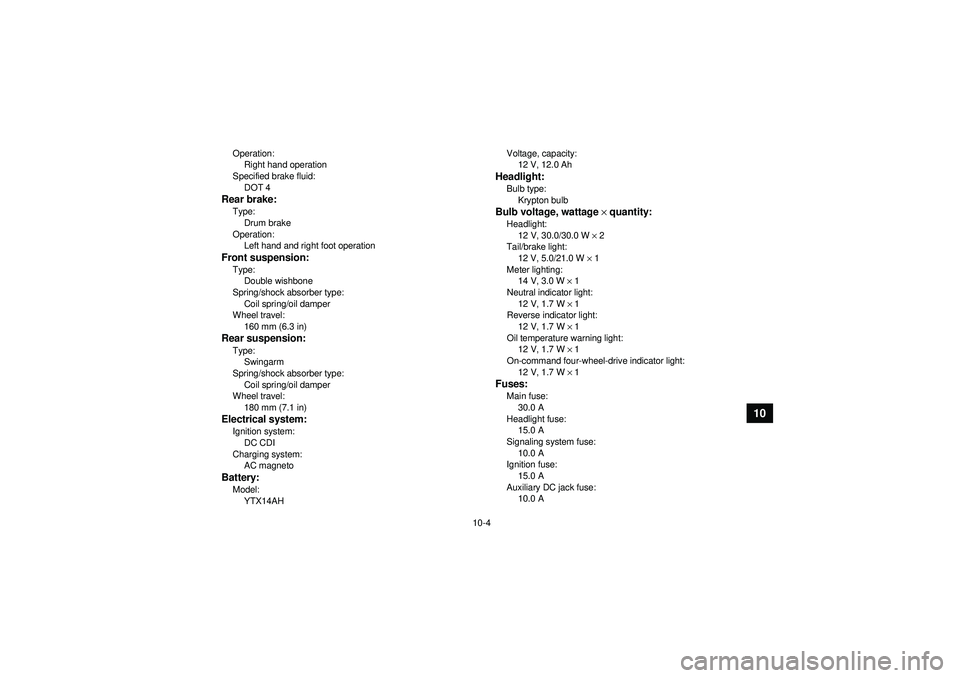

Specified brake fluid: DOT 4Rear brake:Type:Drum brake
Operation: Left hand and right foot operationFront suspension:Type:Double wishbone
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
160 mm (6.3 in)Rear suspension:Type:Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 180 mm (7.1 in)Electrical system:Ignition system:
DC CDI
Charging system: AC magnetoBattery:Model:
YTX14AH Voltage, capacity:
12 V, 12.0 Ah
Headlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting: 14 V, 3.0 W × 1
Neutral indicator light: 12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Oil temperature warning light: 12 V, 1.7 W × 1
On-command four-wheel-drive indicator light: 12 V, 1.7 W × 1Fuses:Main fuse:
30.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 15.0 A
Auxiliary DC jack fuse: 10.0 A
U1NS60E0.book Page 4 Monday, August 1, 2011 4:12 PM
Page 136 of 142

10-5
10

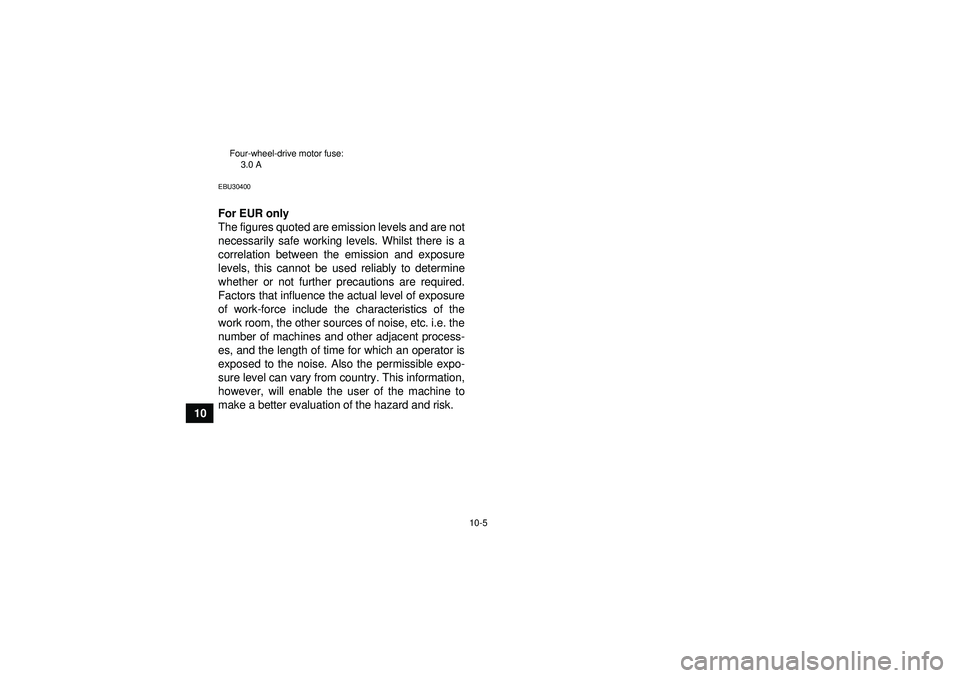

Four-wheel-drive motor fuse:3.0 AEBU30400For EUR only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.U1NS60E0.book Page 5 Monday, August 1, 2011 4:12 PM
Page 137 of 142

11-1
11

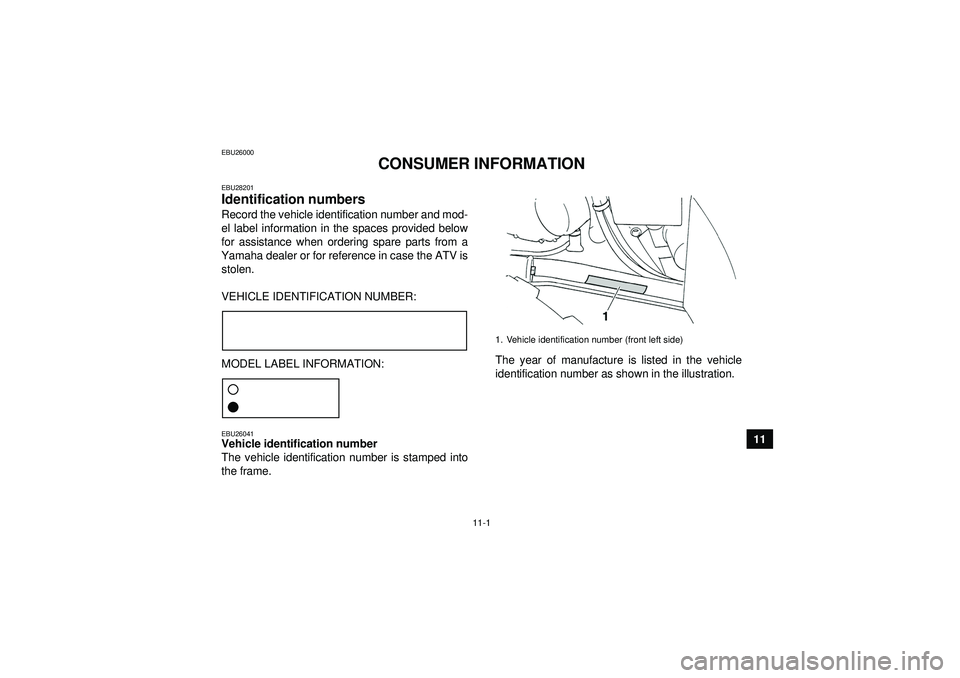

EBU26000
CONSUMER INFORMATION
EBU28201Identification numbers Record the vehicle identification number and mod-
el label information in the spaces provided below
for assistance when ordering spare parts from a
Yamaha dealer or for reference in case the ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26041Vehicle identification number
The vehicle identification number is stamped into
the frame. The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
1. Vehicle identification number (front left side)
U1NS60E0.book Page 1 Monday, August 1, 2011 4:12 PM
Page 138 of 142

11-2
11
TIPThe vehicle identification number is used to identify
your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-

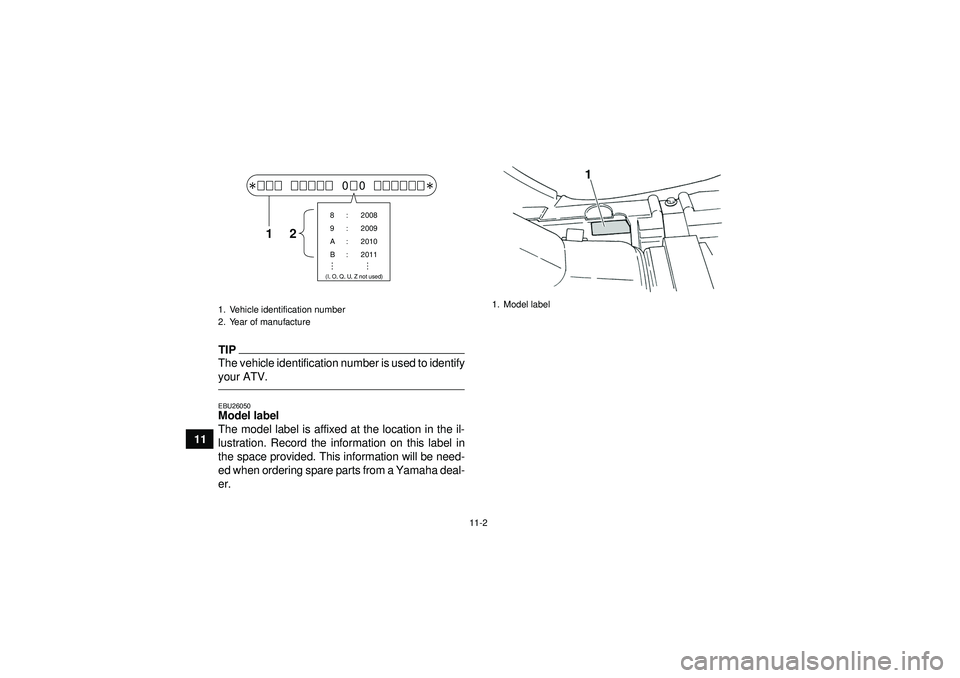

er.1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
1. Model label
U1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM
Page 139 of 142

INDEX

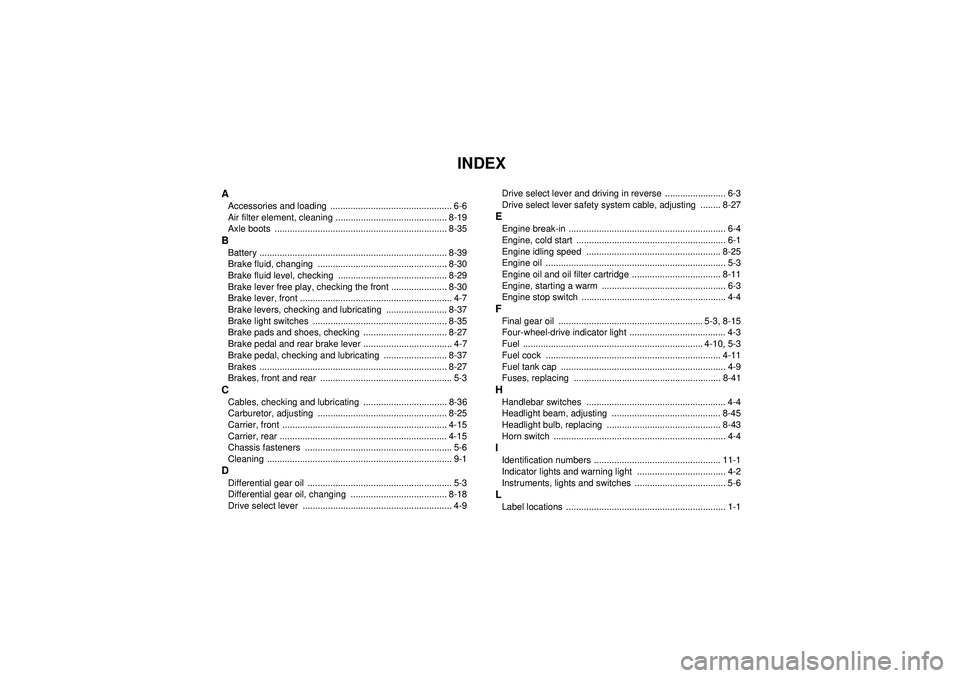

AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-19
Axle boots .................................................................... 8-35BBattery .......................................................................... 8-39
Brake fluid, changing ................................................... 8-30
Brake fluid level, checking ........................................... 8-29
Brake lever free play, checking the front ...................... 8-30
Brake lever, front ............................................................ 4-7
Brake levers, checking and lubricating ........................ 8-37
Brake light switches ..................................................... 8-35
Brake pads and shoes, checking ................................. 8-27
Brake pedal and rear brake lever ................................... 4-7
Brake pedal, checking and lubricating ......................... 8-37
Brakes .......................................................................... 8-27
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-36
Carburetor, adjusting ................................................... 8-25
Carrier, front ................................................................. 4-15
Carrier, rear .................................................................. 4-15
Chassis fasteners .......................................................... 5-6
Cleaning ......................................................................... 9-1DDifferential gear oil ......................................................... 5-3
Differential gear oil, changing ...................................... 8-18
Drive select lever ........................................................... 4-9Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ........ 8-27
EEngine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ..................................................... 8-25
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-11
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-4FFinal gear oil ......................................................... 5-3, 8-15
Four-wheel-drive indicator light ...................................... 4-3
Fuel ....................................................................... 4-10, 5-3
Fuel cock ..................................................................... 4-11
Fuel tank cap ................................................................. 4-9
Fuses, replacing .......................................................... 8-41HHandlebar switches ....................................................... 4-4
Headlight beam, adjusting ........................................... 8-45
Headlight bulb, replacing ............................................. 8-43
Horn switch .................................................................... 4-4IIdentification numbers .................................................. 11-1
Indicator lights and warning light ................................... 4-2
Instruments, lights and switches .................................... 5-6LLabel locations ............................................................... 1-1
U1NS60E0.book Page 1 Monday, August 1, 2011 4:12 PM
Page 140 of 142

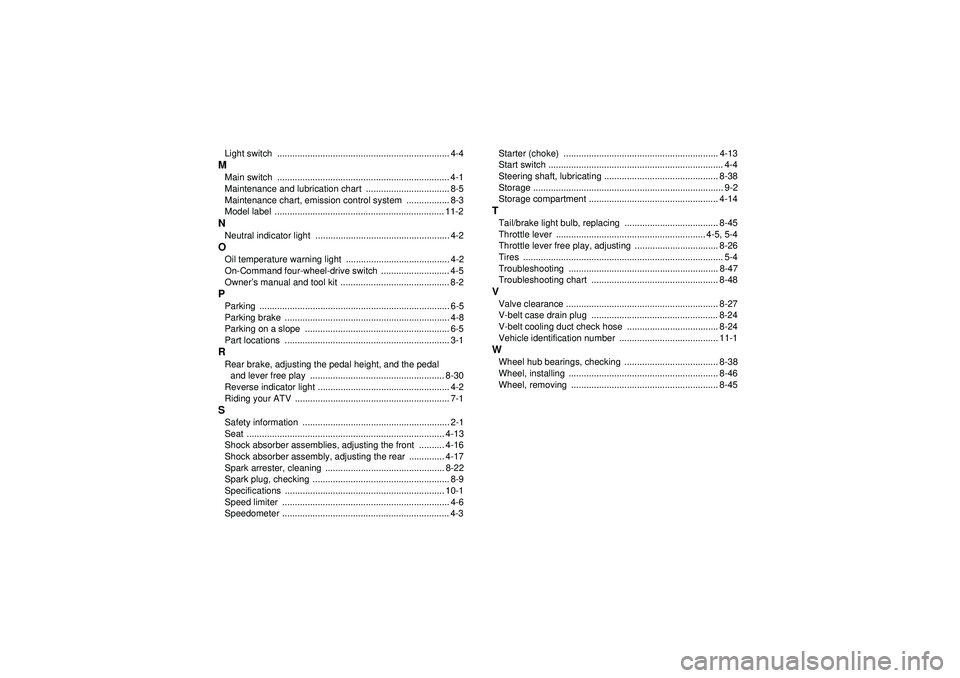

Light switch .................................................................... 4-4MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2NNeutral indicator light ..................................................... 4-2OOil temperature warning light ......................................... 4-2
On-Command four-wheel-drive switch ........................... 4-5
Owner’s manual and tool kit ........................................... 8-2PParking ........................................................................... 6-5
Parking brake ................................................................. 4-8
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1RRear brake, adjusting the pedal height, and the pedal
and lever free play ..................................................... 8-30
Reverse indicator light .................................................... 4-2
Riding your ATV ............................................................. 7-1SSafety information .......................................................... 2-1
Seat .............................................................................. 4-13
Shock absorber assemblies, adjusting the front .......... 4-16
Shock absorber assembly, adjusting the rear .............. 4-17
Spark arrester, cleaning ............................................... 8-22
Spark plug, checking ...................................................... 8-9
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-6
Speedometer .................................................................. 4-3 Starter (choke) ............................................................. 4-13
Start switch ..................................................................... 4-4
Steering shaft, lubricating ............................................. 8-38
Storage ........................................................................... 9-2
Storage compartment ................................................... 4-14
TTail/brake light bulb, replacing ..................................... 8-45
Throttle lever ........................................................... 4-5, 5-4
Throttle lever free play, adjusting ................................. 8-26
Tires ............................................................................... 5-4
Troubleshooting ........................................................... 8-47
Troubleshooting chart .................................................. 8-48VValve clearance ............................................................ 8-27
V-belt case drain plug .................................................. 8-24
V-belt cooling duct check hose .................................... 8-24
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-38
Wheel, installing ........................................................... 8-46
Wheel, removing .......................................................... 8-45
U1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM
