YAMAHA GRIZZLY 350 2012 Owner's Manual

2-2
2

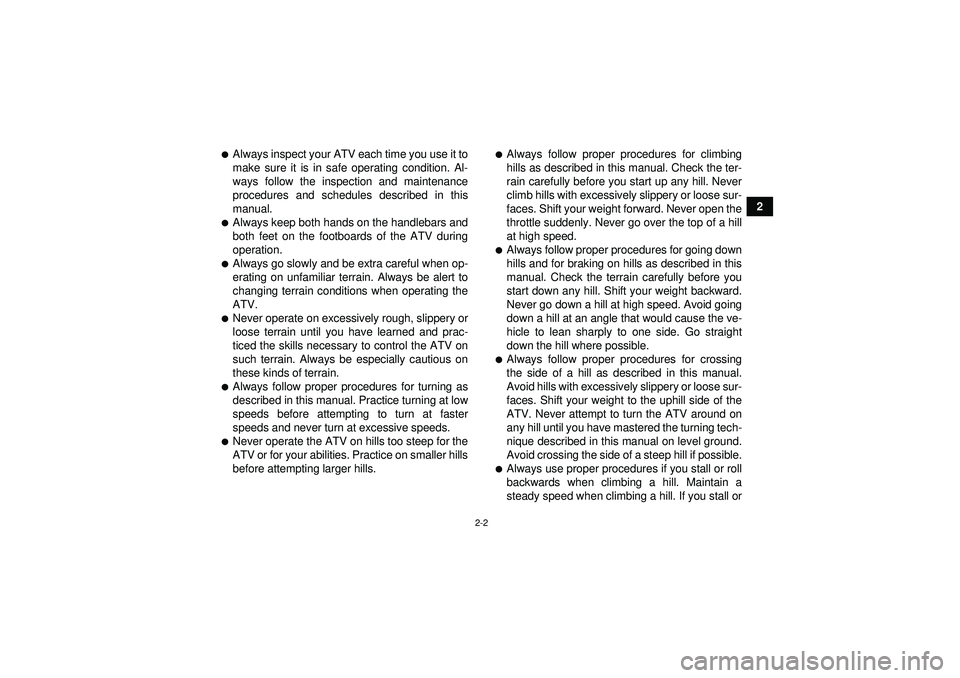

Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Al-
ways follow the inspection and maintenance
procedures and schedules described in this
manual.
Always keep both hands on the handlebars and
both feet on the footboards of the ATV during
operation.
Always go slowly and be extra careful when op-
erating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.
Never operate on excessively rough, slippery or
loose terrain until you have learned and prac-
ticed the skills necessary to control the ATV on
such terrain. Always be especially cautious on
these kinds of terrain.
Always follow proper procedures for turning as
described in this manual. Practice turning at low
speeds before attempting to turn at faster
speeds and never turn at excessive speeds.
Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller hills
before attempting larger hills.

Always follow proper procedures for climbing
hills as described in this manual. Check the ter-
rain carefully before you start up any hill. Never
climb hills with excessively slippery or loose sur-
faces. Shift your weight forward. Never open the
throttle suddenly. Never go over the top of a hill
at high speed.
Always follow proper procedures for going down
hills and for braking on hills as described in this
manual. Check the terrain carefully before you
start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going
down a hill at an angle that would cause the ve-
hicle to lean sharply to one side. Go straight
down the hill where possible.
Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose sur-
faces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV around on
any hill until you have mastered the turning tech-
nique described in this manual on level ground.
Avoid crossing the side of a steep hill if possible.
Always use proper procedures if you stall or roll
backwards when climbing a hill. Maintain a
steady speed when climbing a hill. If you stall or
U1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM

2-3
2roll backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB00072Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
U1NS60E0.book Page 3 Monday, August 1, 2011 4:12 PM

2-4
2
and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.

Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.
Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.
Do not run engine outdoors where engine
exhaust can be drawn into a building
through openings such as windows and
doors.
WARNING

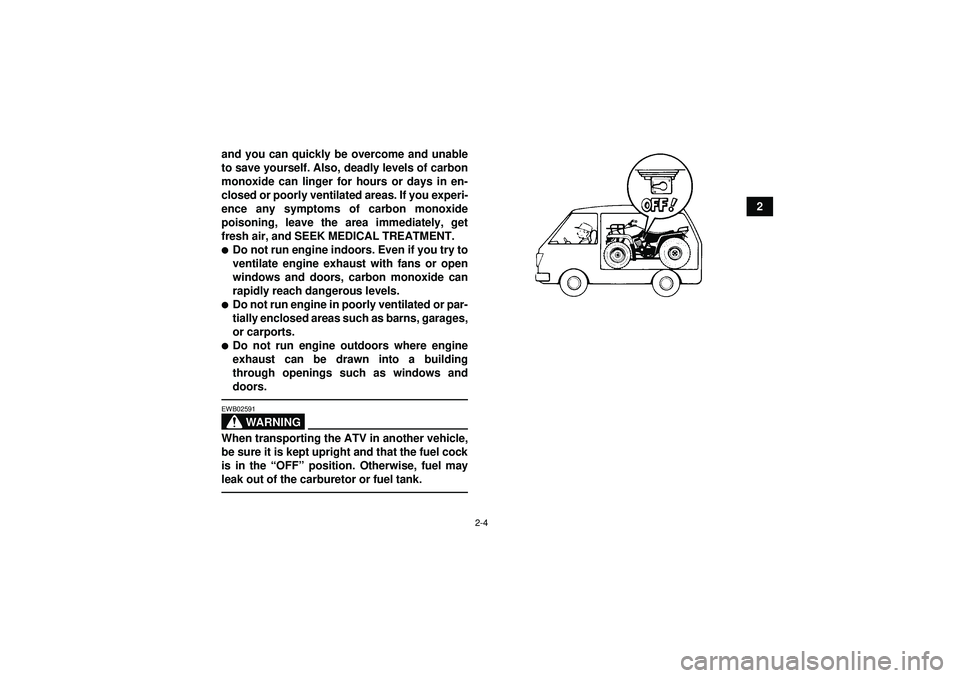

EWB02591When transporting the ATV in another vehicle,
be sure it is kept upright and that the fuel cock
is in the
“OFF ” position. Otherwise, fuel may
leak out of the carburetor or fuel tank.U1NS60E0.book Page 4 Monday, August 1, 2011 4:12 PM

3-1
3
EBU17680

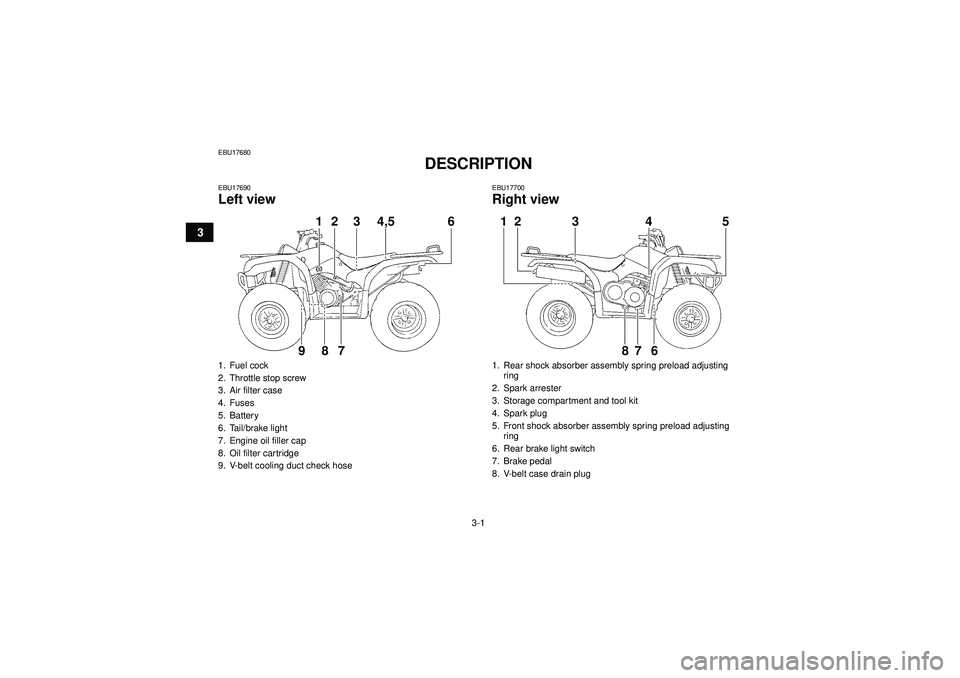

DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Fuel cock
2. Throttle stop screw
3. Air filter case
4. Fuses
5. Battery
6. Tail/brake light
7. Engine oil filler cap
8. Oil filter cartridge
9. V-belt cooling duct check hose
3
4,5
1
26
987
1. Rear shock absorber assembly spring preload adjusting ring
2. Spark arrester
3. Storage compartment and tool kit
4. Spark plug
5. Front shock absorber assembly spring preload adjusting ring
6. Rear brake light switch
7. Brake pedal
8. V-belt case drain plug12 3 4 5
678
U1NS60E0.book Page 1 Monday, August 1, 2011 4:12 PM

3-2
3

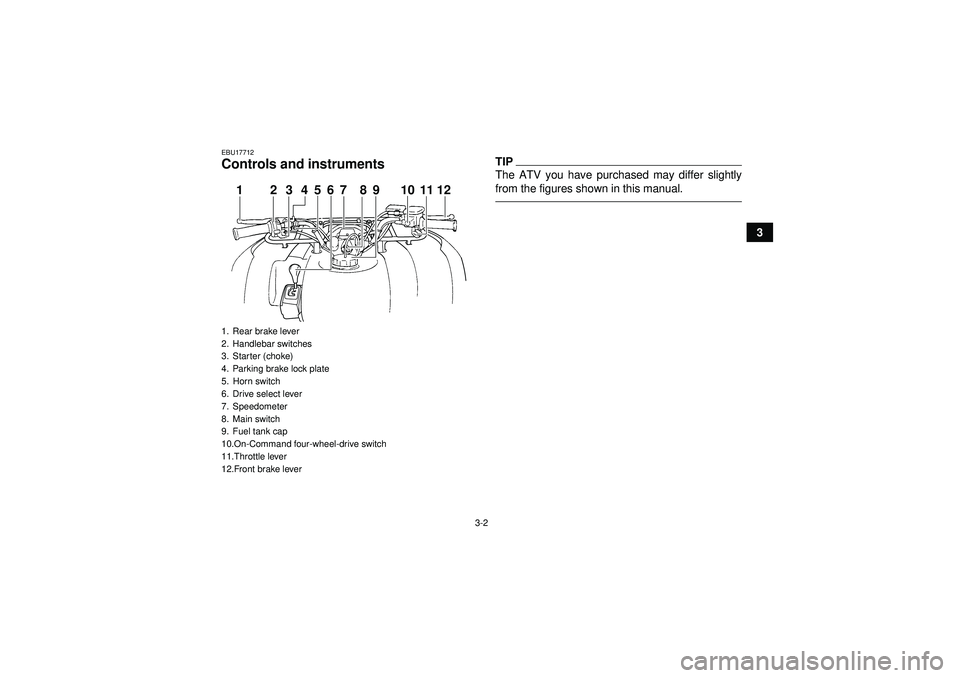

EBU17712Controls and instruments
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Rear brake lever
2. Handlebar switches
3. Starter (choke)
4. Parking brake lock plate
5. Horn switch
6. Drive select lever
7. Speedometer
8. Main switch
9. Fuel tank cap
10.On-Command four-wheel-drive switch
11.Throttle lever
12.Front brake lever
123410
567 89 1112
U1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM

4-1
4
EBU17733

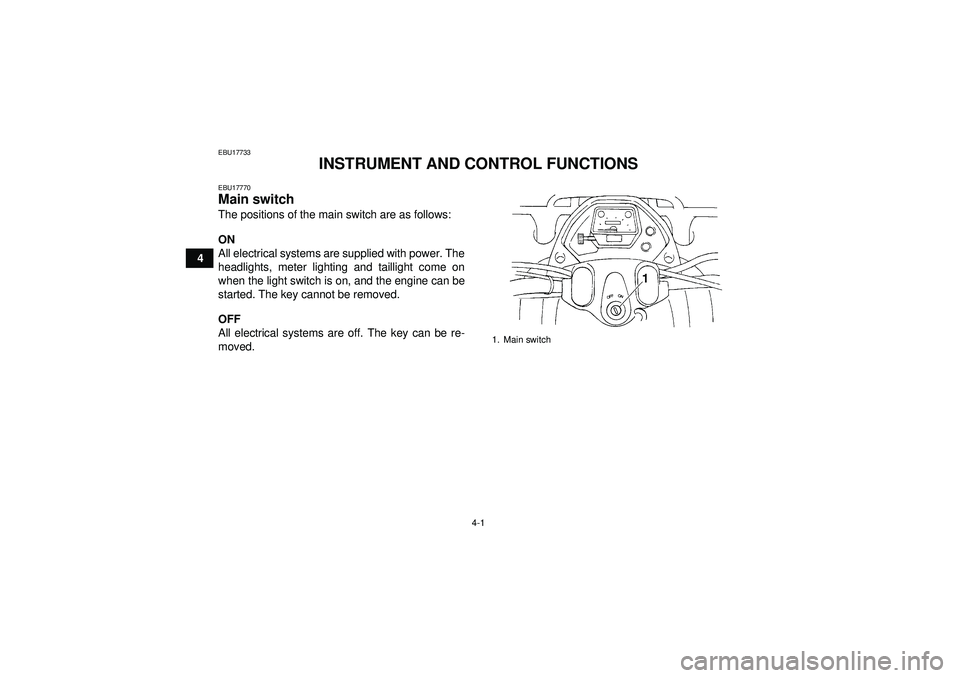

INSTRUMENT AND CONTROL FUNCTIONS
EBU17770Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights, meter lighting and taillight come on
when the light switch is on, and the engine can be
started. The key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U1NS60E0.book Page 1 Monday, August 1, 2011 4:12 PM

4-2
4

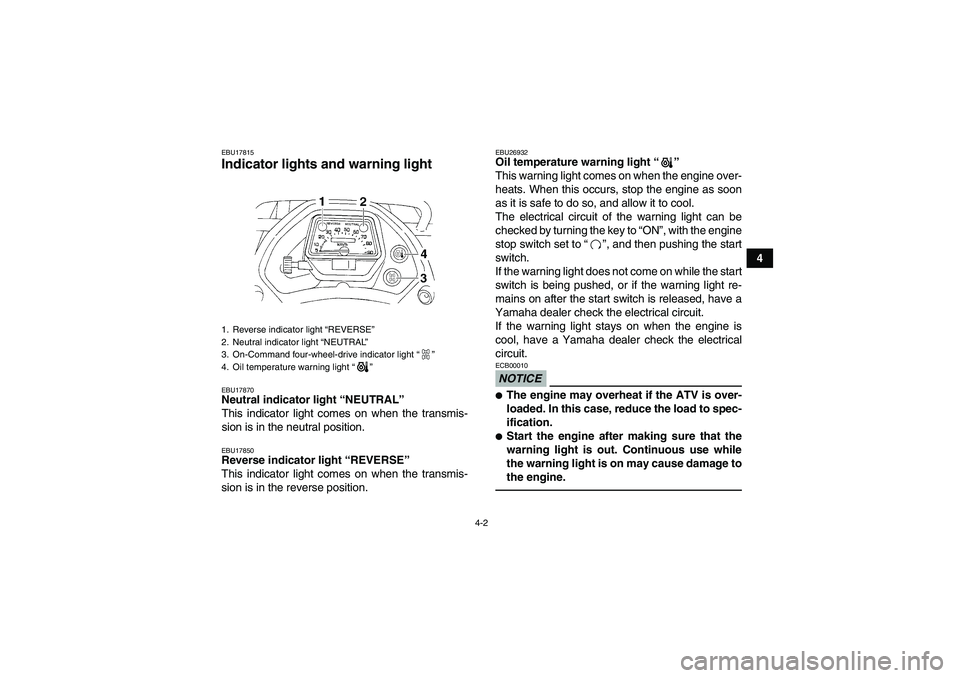

EBU17815Indicator lights and warning light EBU17870Neutral indicator light “NEUTRAL ”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17850Reverse indicator light “REVERSE”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU26932Oil temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs, stop the engine as soon
as it is safe to do so, and allow it to cool.
The electrical circuit of the warning light can be
checked by turning the key to “ ON”, with the engine
stop switch set to “”, and then pushing the start
switch.
If the warning light does not come on while the start
switch is being pushed, or if the warning light re-
mains on after the start switch is released, have a
Yamaha dealer check the electrical circuit. If the warning light stays on when the engine is
cool, have a Yamaha dealer check the electrical
circuit.NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Reverse indicator light “REVERSE”
2. Neutral indicator light “NEUTRAL”
3. On-Command four-wheel-drive indicator light “”
4. Oil temperature warning light “”U1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM

4-3
4
EBU17952On-Command four-wheel-drive indicator
light“”
This indicator light comes on when the On-Com-
mand four-wheel-drive switch is set to the “4WD ”
position.TIPDue to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until

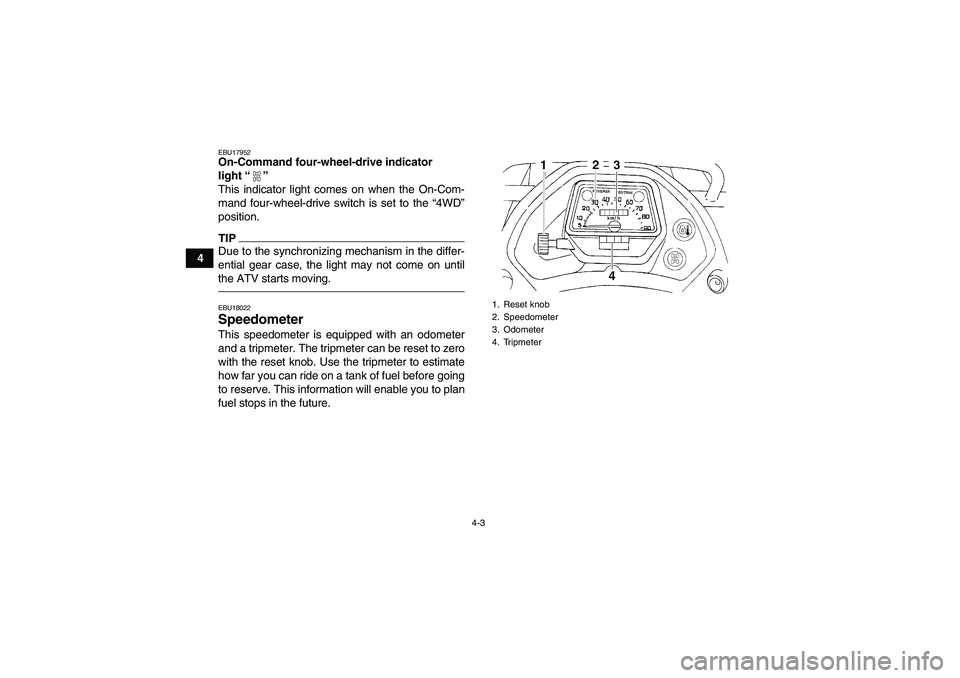

the ATV starts moving.EBU18022Speedometer This speedometer is equipped with an odometer
and a tripmeter. The tripmeter can be reset to zero
with the reset knob. Use the tripmeter to estimate
how far you can ride on a tank of fuel before going
to reserve. This information will enable you to plan
fuel stops in the future.
1. Reset knob
2. Speedometer
3. Odometer
4. Tripmeter
U1NS60E0.book Page 3 Monday, August 1, 2011 4:12 PM

4-4
4

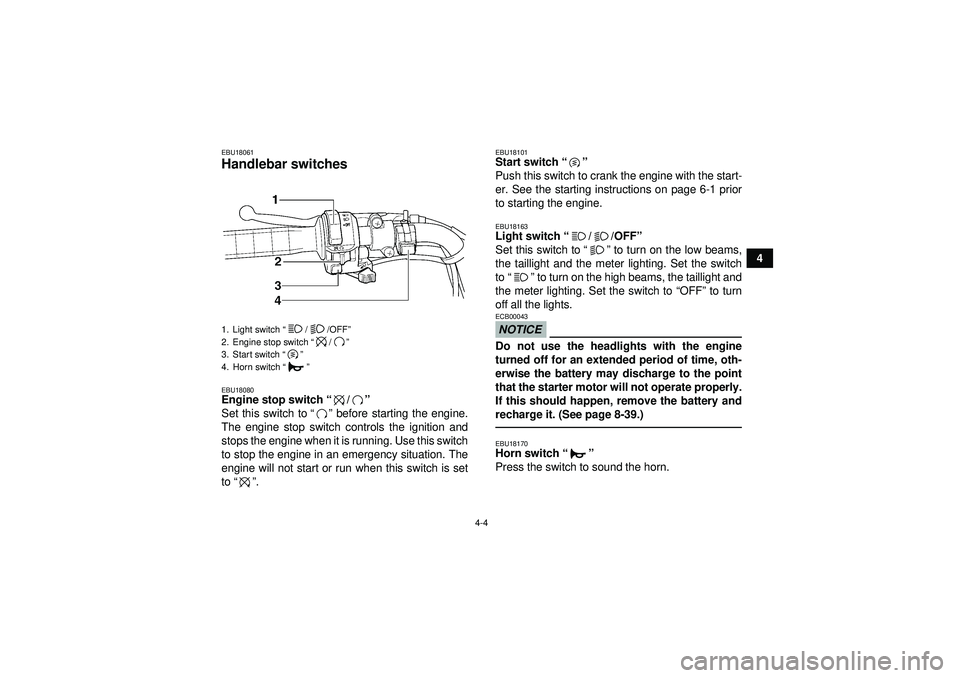

EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “” .
EBU18101Start switch “”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18163Light switch “//OFF ”
Set this switch to “” to turn on the low beams,
the taillight and the meter lighting. Set the switch
to “” to turn on the high beams, the taillight and
the meter lighting. Set the switch to “ OFF” to turn
off all the lights.NOTICEECB00043Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. (See page 8-39.)EBU18170Horn switch “”
Press the switch to sound the horn.
1. Light switch “//OFF ”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”U1NS60E0.book Page 4 Monday, August 1, 2011 4:12 PM

4-5
4

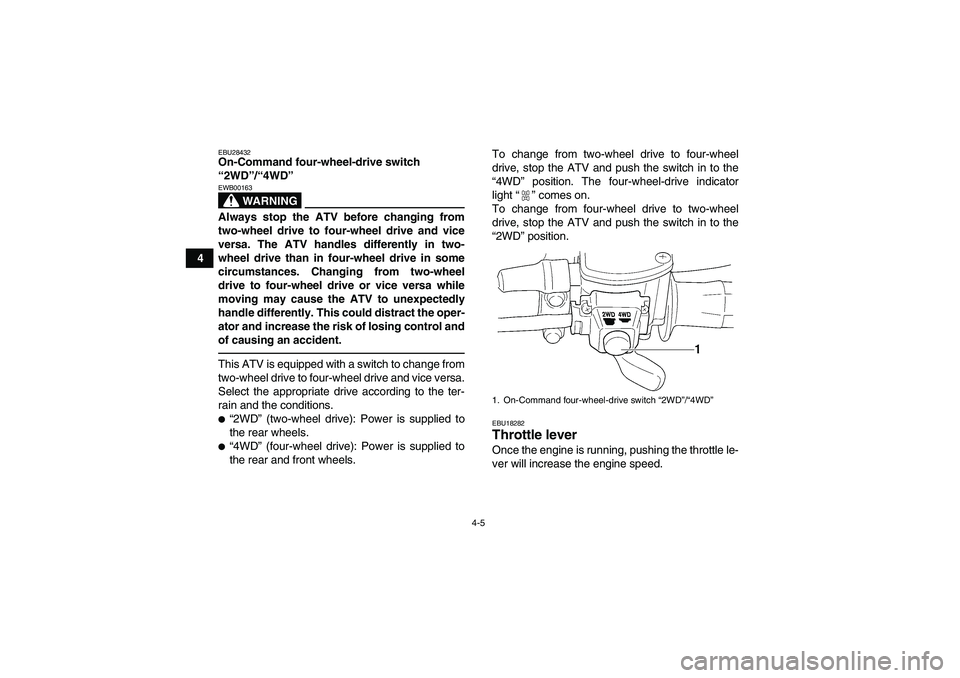

EBU28432On-Command four-wheel-drive switch
“2WD ”/“ 4WD ”
WARNING
EWB00163Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“2WD ” (two-wheel drive): Power is supplied to
the rear wheels.
“ 4WD ” (four-wheel drive): Power is supplied to
the rear and front wheels. To change from two-wheel drive to four-wheel
drive, stop the ATV and push the switch in to the
“
4WD ” position. The four-wheel-drive indicator
light “” comes on.
To change from four-wheel drive to two-wheel
drive, stop the ATV and push the switch in to the
“ 2WD ” position.
EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.1. On-Command four-wheel-drive switch “2WD”/“4WD”
U1NS60E0.book Page 5 Monday, August 1, 2011 4:12 PM
