8-1
8
EBU28783

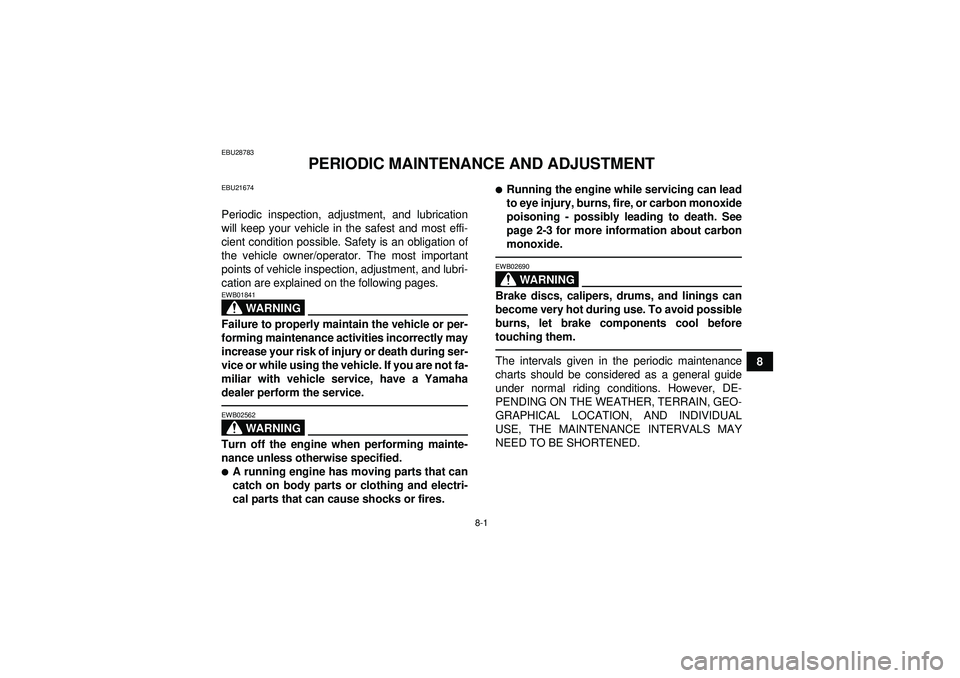

PERIODIC MAINTENANCE AND ADJUSTMENT
EBU21674Periodic inspection, adjustment, and lubrication
will keep your vehicle in the safest and most effi-
cient condition possible. Safety is an obligation of
the vehicle owner/operator. The most important
points of vehicle inspection, adjustment, and lubri-
cation are explained on the following pages.
WARNING
EWB01841Failure to properly maintain the vehicle or per-
forming maintenance activities incorrectly may
increase your risk of injury or death during ser-
vice or while using the vehicle. If you are not fa-
miliar with vehicle service, have a Yamaha
dealer perform the service.
WARNING
EWB02562Turn off the engine when performing mainte-
nance unless otherwise specified.
A running engine has moving parts that can
catch on body parts or clothing and electri-
cal parts that can cause shocks or fires.

Running the engine while servicing can lead
to eye injury, burns, fire, or carbon monoxide
poisoning - possibly leading to death. See
page 2-3 for more information about carbon
monoxide.
WARNING
EWB02690Brake discs, calipers, drums, and linings can
become very hot during use. To avoid possible
burns, let brake components cool before
touching them.The intervals given in the periodic maintenance
charts should be considered as a general guide
under normal riding conditions. However, DE-
PENDING ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTERVALS MAY
NEED TO BE SHORTENED.
U1NS60E0.book Page 1 Monday, August 1, 2011 4:12 PM

8-2
8

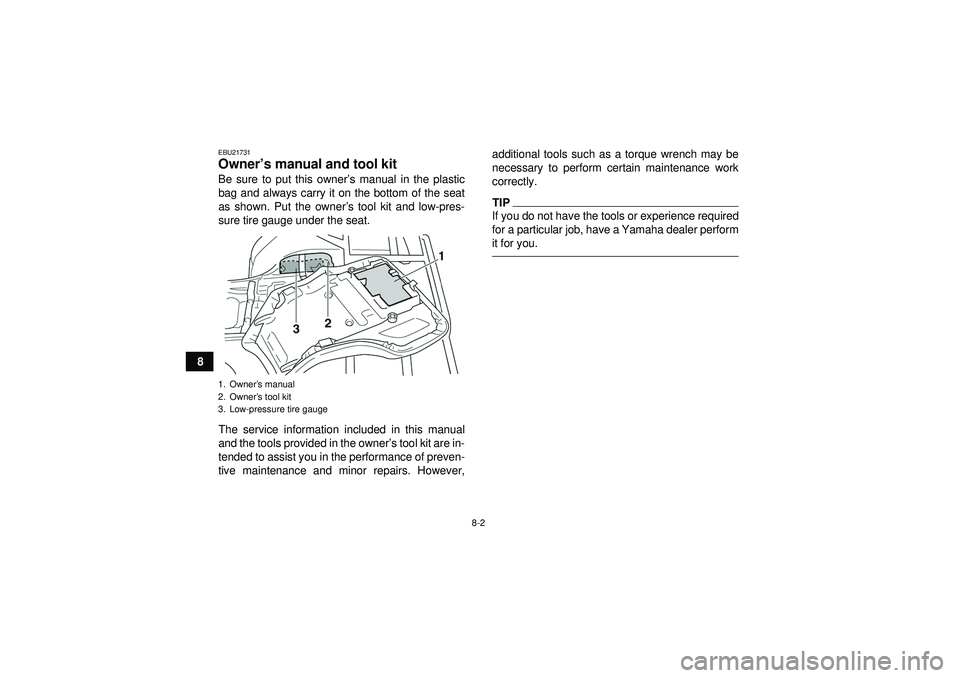

EBU21731Owner’s manual and tool kit Be sure to put this owner ’s manual in the plastic
bag and always carry it on the bottom of the seat
as shown. Put the owner ’s tool kit and low-pres-
sure tire gauge under the seat.
The service information included in this manual
and the tools provided in the owner ’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However, additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
1. Owner
’s manual
2. Owner ’s tool kit
3. Low-pressure tire gaugeU1NS60E0.book Page 2 Monday, August 1, 2011 4:12 PM

8-3
8

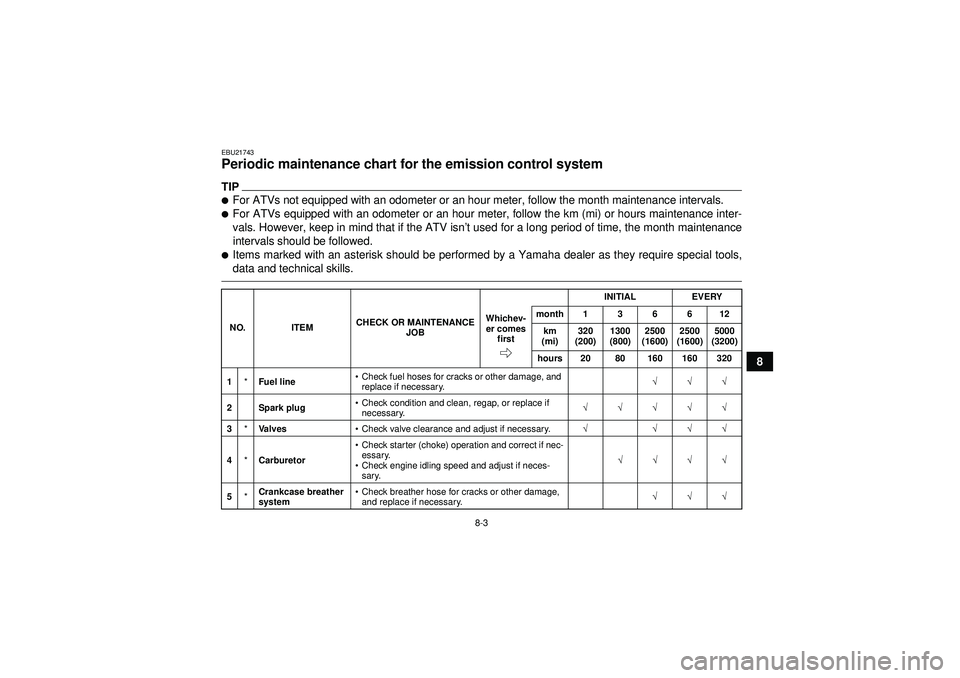

EBU21743Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 *Fuel line
Check fuel hoses for cracks or other damage, and
replace if necessary. √√√
2 Spark plug
Check condition and clean, regap, or replace if
necessary. √√√√√
3 *Valves Check valve clearance and adjust if necessary. √ √√√
4 *Carburetor
Check starter (choke) operation and correct if nec-
essary.
 Check engine idling speed and adjust if neces-
sary. √√√√
5 *Crankcase breather
system
Check breather hose for cracks or other damage,
and replace if necessary. √√√
U1NS60E0.book Page 3 Monday, August 1, 2011 4:12 PM

8-4
8

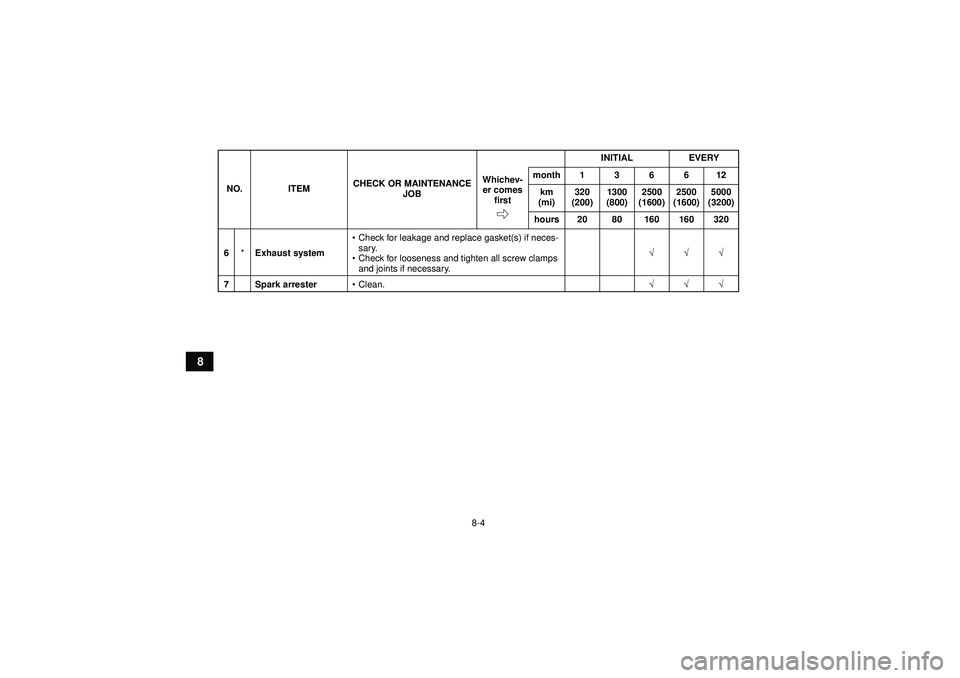

6*Exhaust system
Check for leakage and replace gasket(s) if neces-
sary.
 Check for looseness and tighten all screw clamps
and joints if necessary. √√√
7 Spark arrester Clean. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1NS60E0.book Page 4 Monday, August 1, 2011 4:12 PM

8-5
8

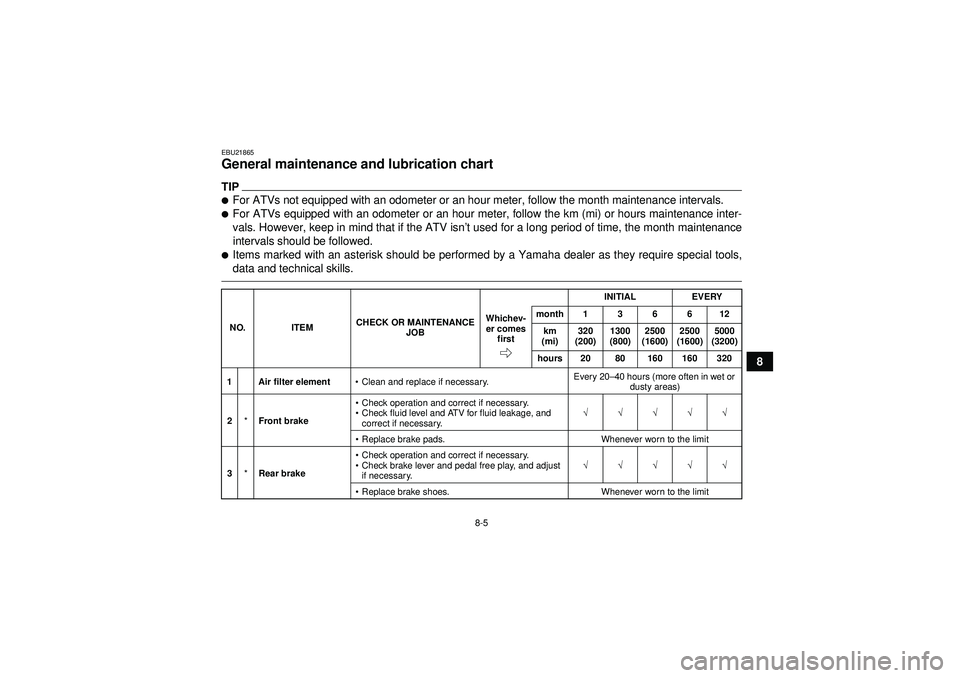

EBU21865General maintenance and lubrication chart TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 Air filter element Clean and replace if necessary. Every 20
–40 hours (more often in wet or
dusty areas)
2 *Front brake
Check operation and correct if necessary.
 Check fluid level and ATV for fluid leakage, and
correct if necessary. √√√√√
 Replace brake pads. Whenever worn to the limit
3 *Rear brake
Check operation and correct if necessary.
 Check brake lever and pedal free play, and adjust
if necessary. √√√√√
 Replace brake shoes. Whenever worn to the limit
U1NS60E0.book Page 5 Monday, August 1, 2011 4:12 PM

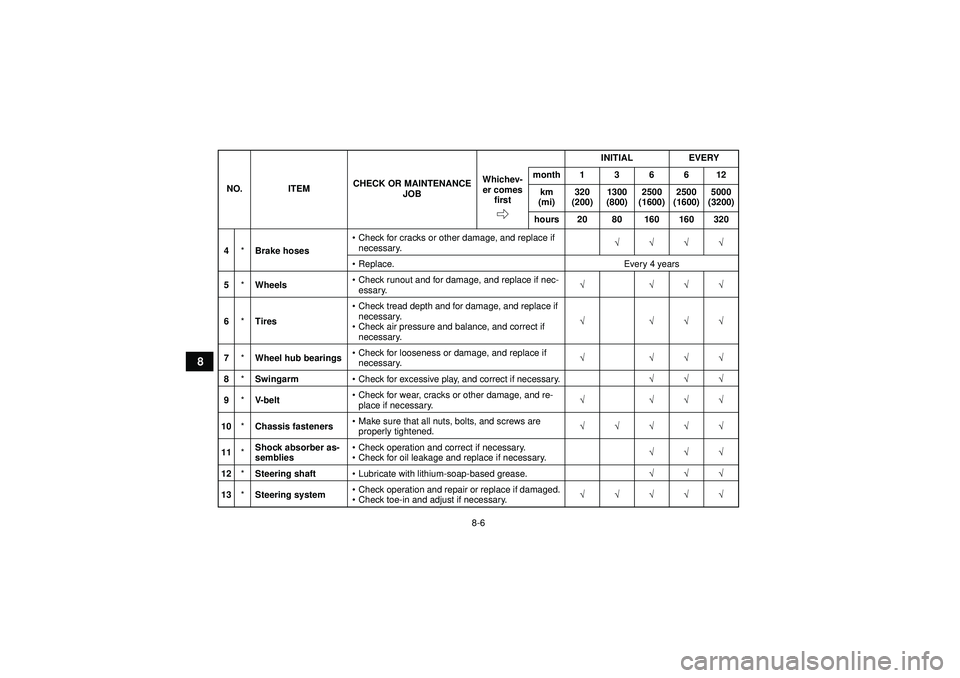

8-6
8
4*Brake hoses
Check for cracks or other damage, and replace if
necessary. √√√√
 Replace. Every 4 years
5 *Wheels
Check runout and for damage, and replace if nec-
essary. √ √√√
6 *Tires
Check tread depth and for damage, and replace if
necessary.
 Check air pressure and balance, and correct if
necessary. √ √√√
7 *Wheel hub bearings
Check for looseness or damage, and replace if
necessary. √ √√√
8 *Swingarm Check for excessive play, and correct if necessary. √√√
9 *V- b e l t
Check for wear, cracks or other damage, and re-
place if necessary. √ √√√
10 *Chassis fasteners
Make sure that all nuts, bolts, and screws are
properly tightened. √√√√√
11 *Shock absorber as-
semblies
Check operation and correct if necessary.
 Check for oil leakage and replace if necessary. √√√
12 *Steering shaft Lubricate with lithium-soap-based grease. √√√
13 *Steering system
Check operation and repair or replace if damaged.
 Check toe-in and adjust if necessary. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1NS60E0.book Page 6 Monday, August 1, 2011 4:12 PM

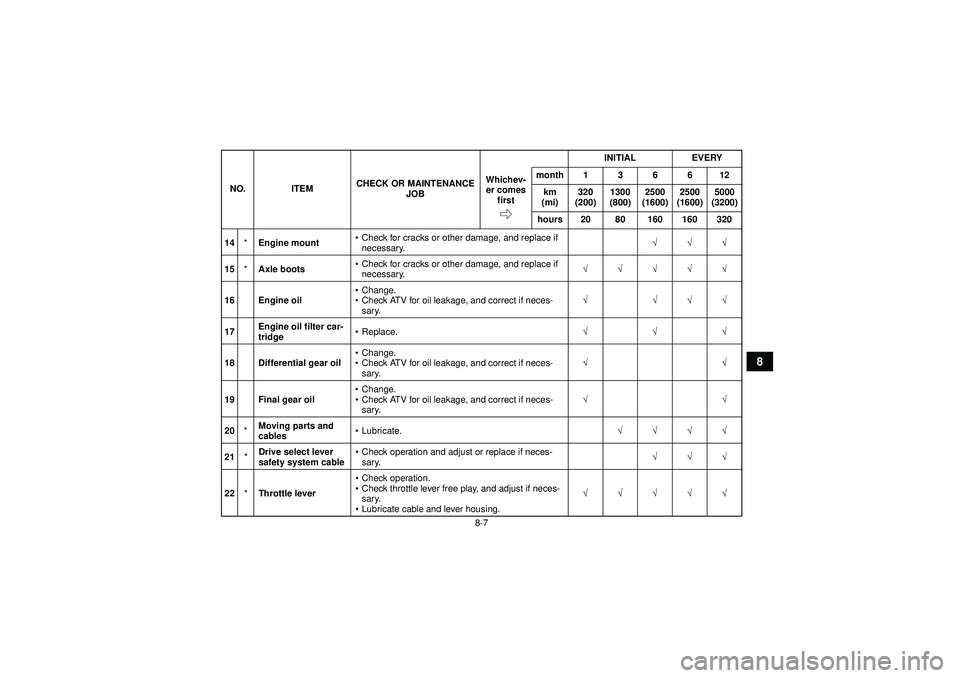

8-7
8
14*Engine mount
Check for cracks or other damage, and replace if
necessary. √√√
15 *Axle boots
Check for cracks or other damage, and replace if
necessary. √√√√√
16 Engine oil
Change.
 Check ATV for oil leakage, and correct if neces-
sary. √ √√√
17 Engine oil filter car-
tridge
Replace. √√√
18 Differential gear oil
Change.
 Check ATV for oil leakage, and correct if neces-
sary. √√
19 Final gear oil
Change.
 Check ATV for oil leakage, and correct if neces-
sary. √√
20 *Moving parts and
cables
Lubricate. √√√√
21 *Drive select lever
safety system cable
Check operation and adjust or replace if neces-
sary. √√√
22 *Throttle lever
Check operation.
 Check throttle lever free play, and adjust if neces-
sary.
 Lubricate cable and lever housing. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1NS60E0.book Page 7 Monday, August 1, 2011 4:12 PM

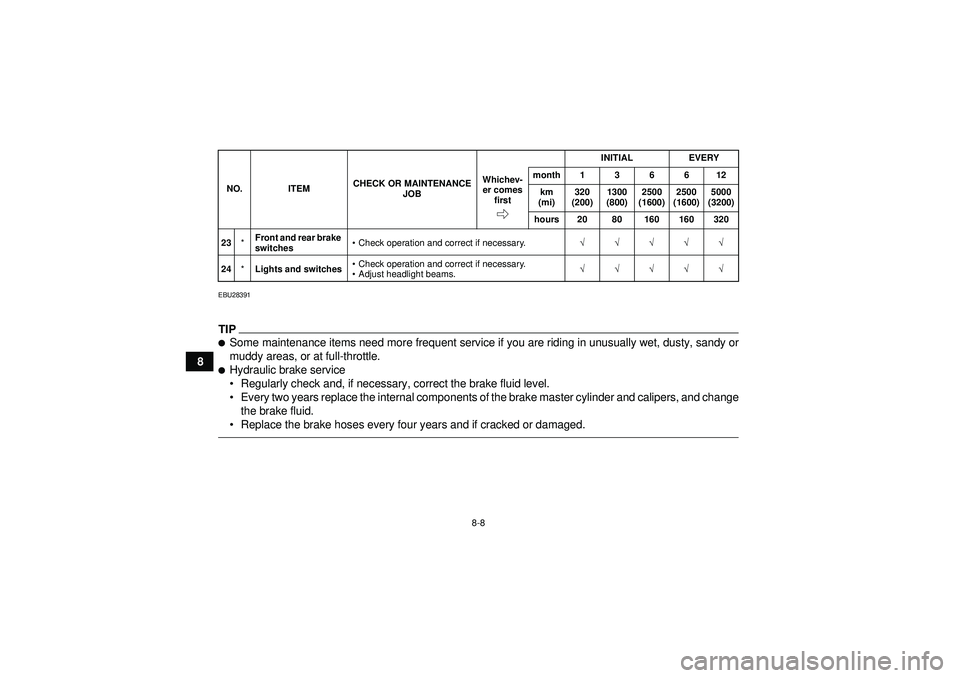

8-8
8
EBU28391TIP
Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
 Every two years replace the internal components of the brake master cylinder and calipers, and change
the brake fluid.
 Replace the brake hoses every four years and if cracked or damaged.23 *Front and rear brake
switches
Check operation and correct if necessary. √√√√√
24 *Lights and switches
Check operation and correct if necessary.
 Adjust headlight beams. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1NS60E0.book Page 8 Monday, August 1, 2011 4:12 PM

8-9
8

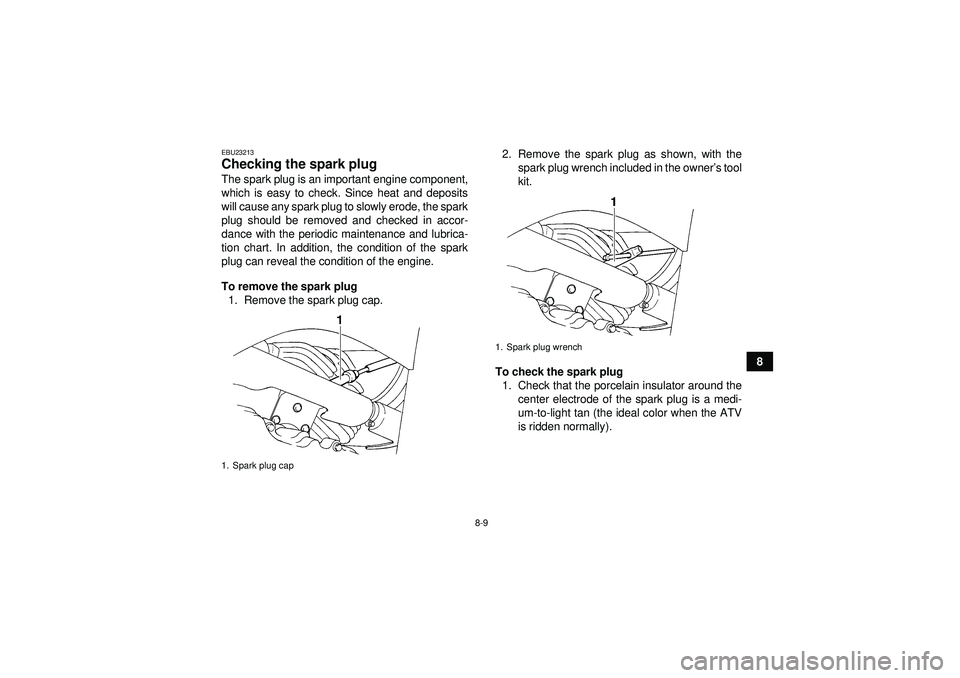

EBU23213Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug1. Remove the spark plug cap. 2. Remove the spark plug as shown, with the
spark plug wrench included in the owner ’s tool
kit.
To check the spark plug 1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1. Spark plug wrench
U1NS60E0.book Page 9 Monday, August 1, 2011 4:12 PM

8-10
8

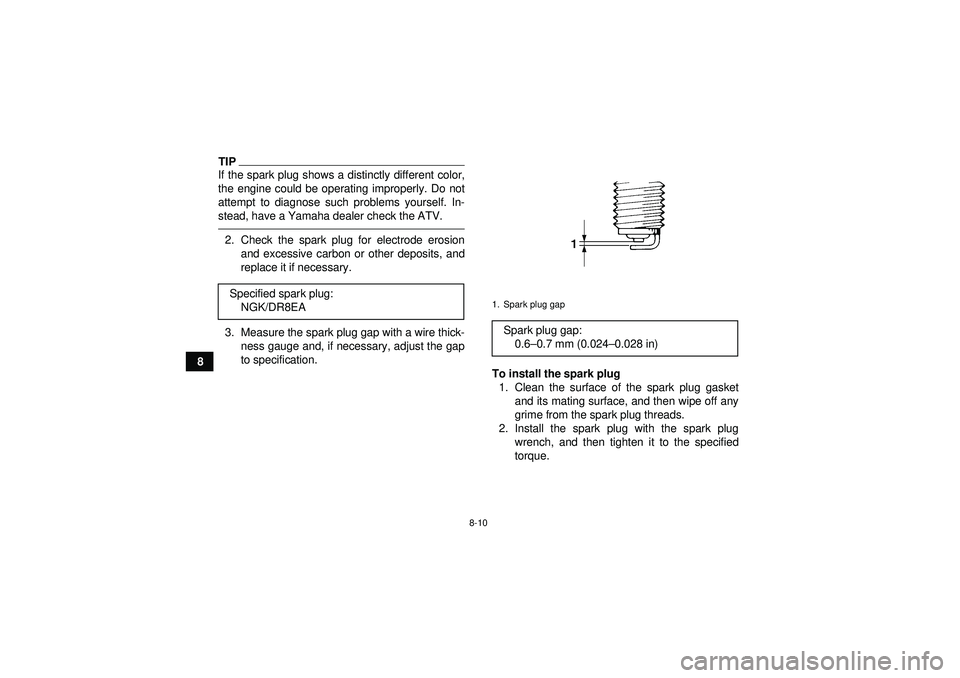

TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
Specified spark plug:
NGK/DR8EA
1. Spark plug gapSpark plug gap:0.6 –0.7 mm (0.024 –0.028 in)
