YAMAHA GRIZZLY 350 2013 User Guide

1-1
1
EBU29680
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU30291Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.

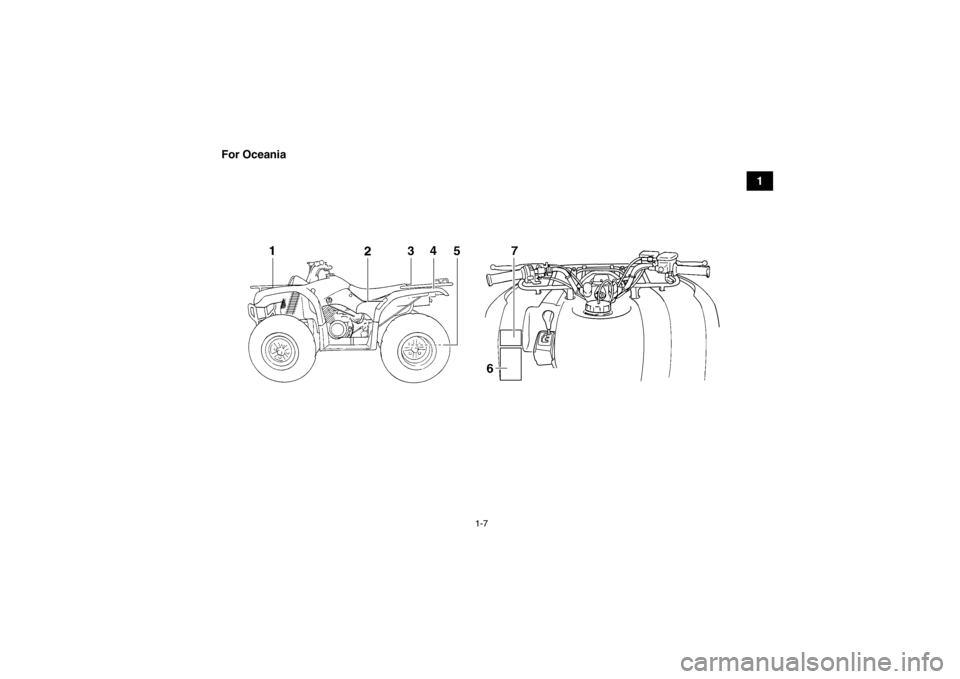

For Europe
8
9
U1NS61E0.book Page 1 Tuesday, May 15, 2012 5:19 PM

1-2
1
37S-F817R-00< 40 kg
( 88 lbs)
25.0 kPa
0.25 kgf/cm²
3.6 psi 25.0 kPa
0.25 kgf/cm²
3.6 psi
5FU-F816M-M0
37S-F817R-10< 80 kg
( 176 lbs)
< 4900 N< 500 kgf< 1102 lbf
< 147 N
< 15 kgf
< 33 lbf
4S2-F817S-00
1P0-F816P-20
1
4
2 3
5
U1NS61E0.book Page 2 Tuesday, May 15, 2012 5:19 PM

1-3
1
1P0-F816R-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM350FWA
15.9 kW
255 kg
2012
1NS-F155A-10
YAMAHA
1HP-F811R-00
67
8
9
U1NS61E0.book Page 3 Tuesday, May 15, 2012 5:19 PM

1-4
1Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
For ATV Type 1 category Y12, use from 12
years old.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
U1NS61E0.book Page 4 Tuesday, May 15, 2012 5:19 PM

1-5
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death. This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
U1NS61E0.book Page 5 Tuesday, May 15, 2012 5:19 PM

1-6
1
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
341
2
3
4
Year of construction
Model Name
Max. Power
Mass In Running Order
U1NS61E0.book Page 6 Tuesday, May 15, 2012 5:19 PM

1-7
1

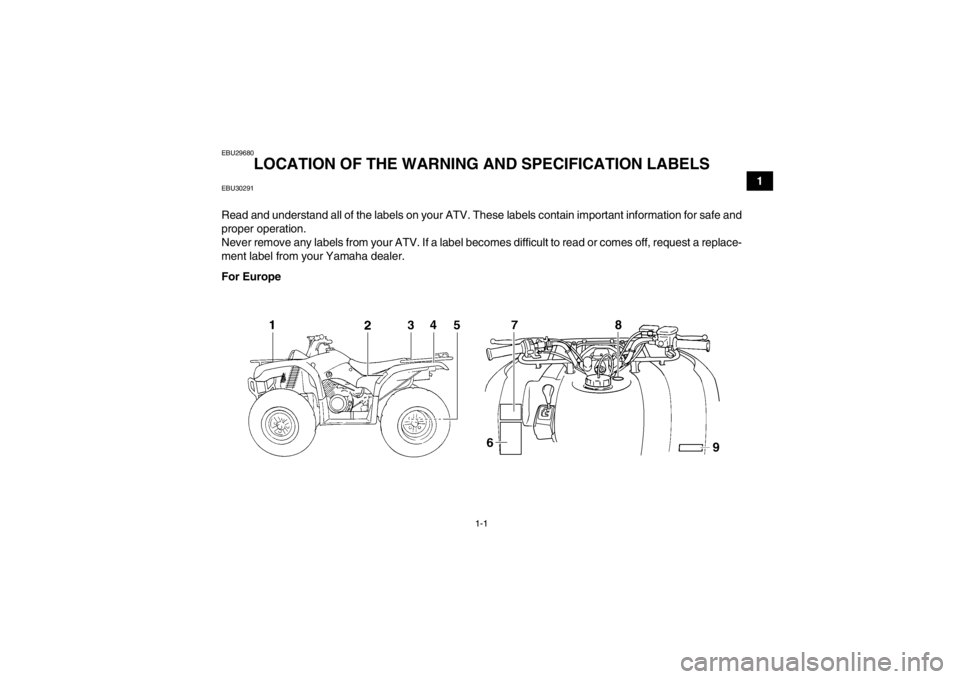

For Oceania
U1NS61E0.book Page 7 Tuesday, May 15, 2012 5:19 PM

1-8
1
5FU-F816M-20
25 kPa, (3.6 psi)
25 kPa, (3.6 psi)
22 kPa, (3.2 psi)
22 kPa, (3.2 psi)
LOAD LIMIT40 kg{88 lbs}
5ND-F4877-20
LOAD LIMIT80 kg{176 lbs}
5ND-F4897-20
MAXIMUM LOADING LIMIT
5ND-F151K-00
PULLING LOAD: 4900 N (500 kgf)1102 lbf
TONGUE WEIGHT: 147 N ( 15 kgf) 33 lbf
13
2
4
5
U1NS61E0.book Page 8 Tuesday, May 15, 2012 5:19 PM

1-9
1
67
U1NS61E0.book Page 9 Tuesday, May 15, 2012 5:19 PM

2-1
2
EBU17431
SAFETY INFORMATION
EBU17565AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:●Read this manual and all labels carefully and fol-
low the operating procedures described.●Never operate an ATV without proper training or
instruction. Take a training course. Beginners
should receive training from a certified instruc-
tor. Contact an authorized ATV dealer to find out
about the training courses nearest you.●Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.
●Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.●Never carry a passenger on an ATV.●This vehicle is intended for off-road use only. Do
not operate on any paved surfaces such as:
sidewalks, driveways, parking lots, paved roads,
public streets or other motorway.●Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.●Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.●Never consume alcohol or drugs before or while
operating this ATV.
