EBU18061Handlebar switches EBU18080Engine stop switch “ / ”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “ ”.
EBU18101Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18163Light switch “ / /OFF”
Set this switch to “ ” to turn on the low beams,
the taillight and the meter lighting. Set the switch
to “ ” to turn on the high beams, the taillight and
the meter lighting. Set the switch to “OFF” to turn
off all the lights.NOTICEECB00043Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. (See page 8-39.)EBU18170Horn switch “ ”
Press the switch to sound the horn.

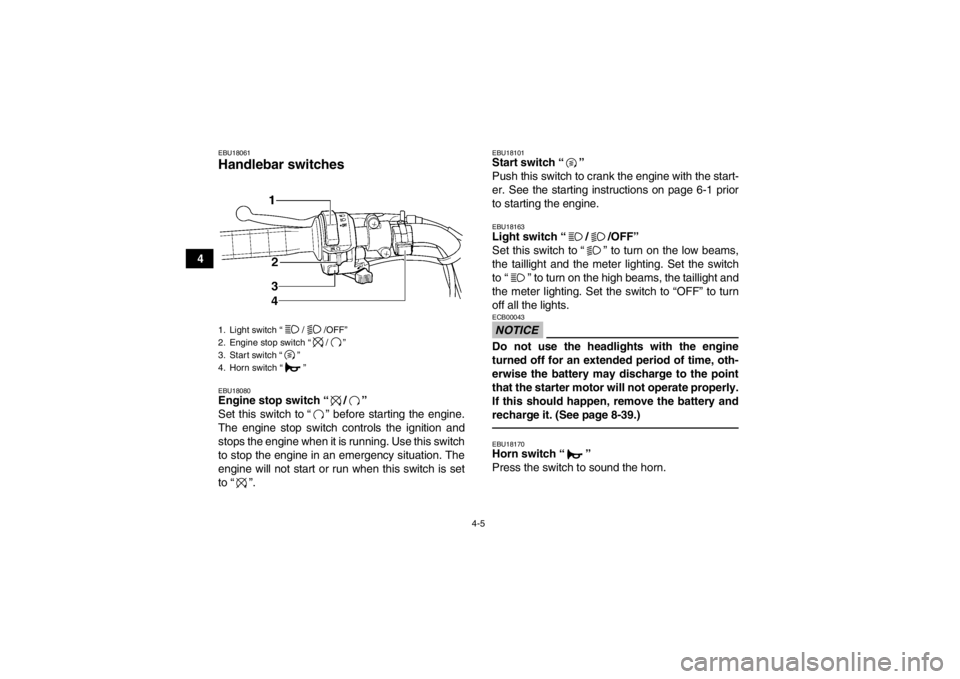

1. Light switch “ / /OFF”
2. Engine stop switch “ / ”
3. Start switch “ ”
4. Horn switch “ ”U1NS61E0.book Page 5 Tuesday, May 15, 2012 5:19 PM

8-45
87. Install the bulb holder cover and the cover at
the rear of the headlight. NOTICE: Make sure
the headlight bulb holder cover is securely
fitted over the bulb holder and seated
properly.
[ECB00671]
8. Adjust the headlight beam if necessary.EBU25551Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer make
this adjustment.To raise a headlight beam, turn the headlight beam
adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25580Replacing the tail/brake light bulb If the tail/brake light bulb burns out, have a
Yamaha dealer replace it.EBU25651Removing a wheel 1. Place the ATV on a level surface.
2. Loosen the wheel nuts.1. Headlight beam adjusting screw
