8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU23319Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.3. Remove the engine oil filler cap, and then wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.
Tightening torque:

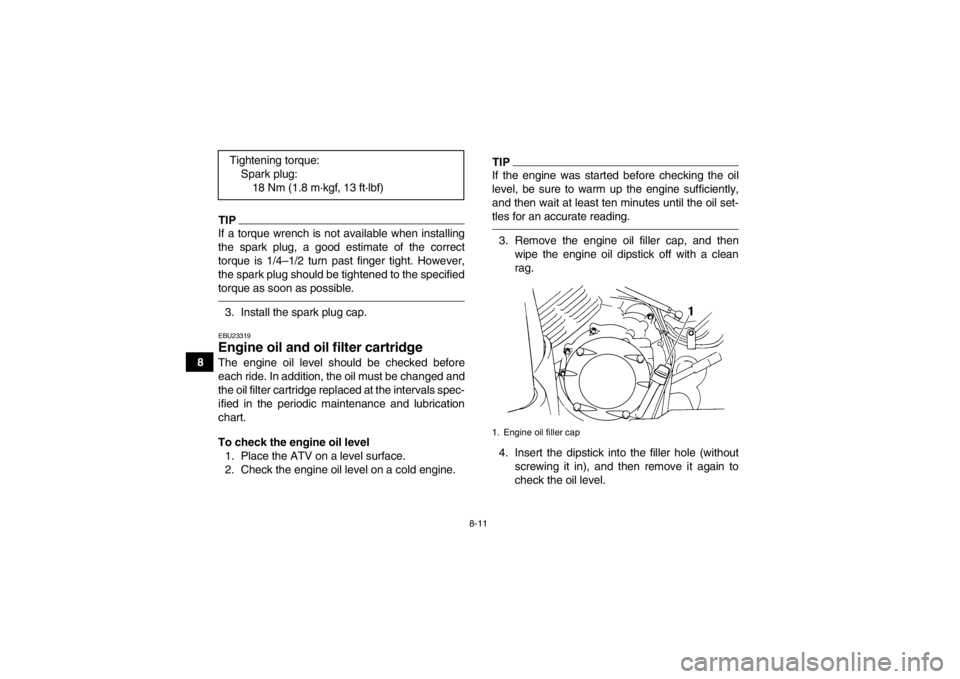

Spark plug:18 Nm (1.8 m·kgf, 13 ft·lbf)1. Engine oil filler cap
U1NS62E0.book Page 11 Monday, April 8, 2013 4:59 PM
8-12
8
TIPThe engine oil should be between the tip of the dip-
stick and the maximum level mark.5. If the engine oil is not between the tip of thedipstick and the maximum level mark, add
sufficient oil of the recommended type to raise
it to the correct level. NOTICE: Be sure the
engine oil is at the correct level, otherwise
engine damage may result.
[ECB00851]
6. Insert the dipstick into the oil filler hole, and then tighten the engine oil filler cap. To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min- utes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, and then re- move the engine oil drain bolt and its gasket to

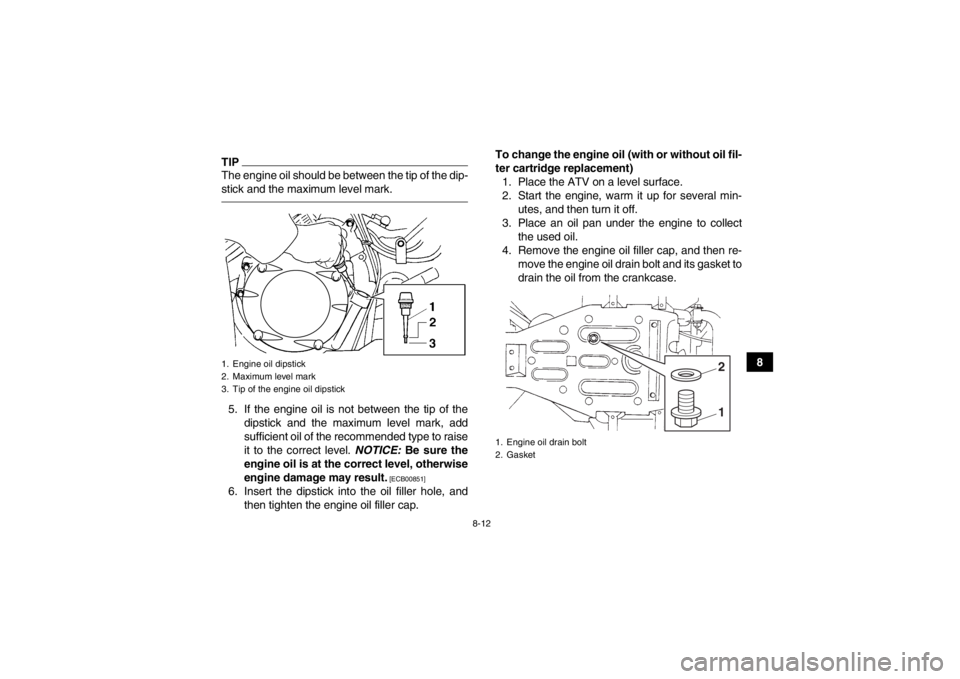

drain the oil from the crankcase.1. Engine oil dipstick
2. Maximum level mark
3. Tip of the engine oil dipstick
1. Engine oil drain bolt
2. Gasket
12
