Page 9 of 146
Starting a warm engine ............................... 6-3
Operating the drive select lever and driving in reverse................................................... 6-3
Engine break-in ........................................... 6-4
Parking ........................................................ 6-5
Parking on a slope ...................................... 6-5
Accessories and loading ............................. 6-6
RIDING YOUR ATV ........................................ 7-1 GETTING TO KNOW YOUR ATV ................ 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............... 7-9
TURNING YOUR ATV................................ 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL .................................. 7-16
CROSSING A SLOPE................................ 7-17
CROSSING THROUGH SHALLOW WATER .................................................... 7-18
RIDING OVER ROUGH TERRAIN ............. 7-21
SLIDING AND SKIDDING.......................... 7-21
WHAT TO DO IF... ..................................... 7-22
WHAT TO DO... ......................................... 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT................................................ 8-1 Owner’s manual and tool kit ....................... 8-2 Periodic maintenance chart for the
emission control system ........................... 8-3
General maintenance and lubrication chart.......................................................... 8-5
Checking the spark plug............................. 8-9
Engine oil and oil filter cartridge ............... 8-11
Final gear oil ............................................. 8-15
Changing the differential gear oil .............. 8-18
Cleaning the air filter element ................... 8-19
Cleaning the spark arrester ...................... 8-22
V-belt cooling duct check hose ................ 8-24
V-belt case drain plug............................... 8-24
Adjusting the carburetor ........................... 8-25
Adjusting the engine idling speed ............ 8-25
Adjusting the throttle lever free play ......... 8-26
Valve clearance......................................... 8-27
Adjusting the drive select lever safety system cable .......................................... 8-27
Brakes....................................................... 8-27
Checking the front brake pads and rear brake shoes ............................................ 8-28
Checking the brake fluid level .................. 8-29
Changing the brake fluid .......................... 8-30
Checking the front brake lever free play... 8-30
Adjusting the brake pedal height, and the brake pedal and rear brake lever free
play ......................................................... 8-31
U1NS63E0.book Page 2 Monday, March 10, 2014 9:05 AM
Page 26 of 146
3-1
3
EBU17681

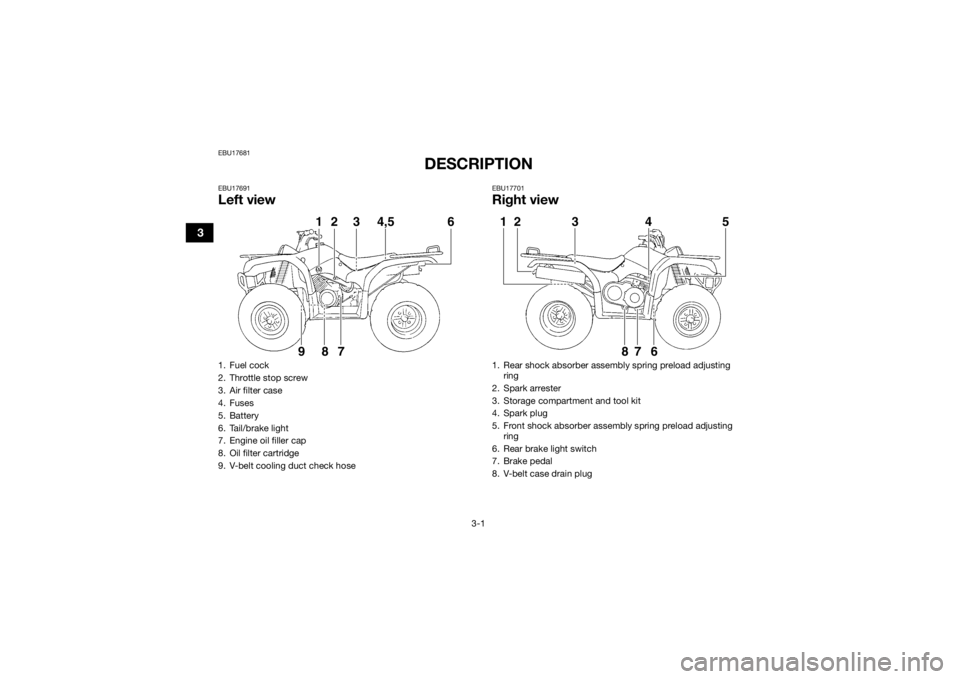

DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Fuel cock
2. Throttle stop screw
3. Air filter case
4. Fuses
5. Battery
6. Tail/brake light
7. Engine oil filler cap
8. Oil filter cartridge
9. V-belt cooling duct check hose
3
4,5
1
26
98 7
1. Rear shock absorber assembly spring preload adjusting
ring
2. Spark arrester
3. Storage compartment and tool kit
4. Spark plug
5. Front shock absorber assembly spring preload adjusting ring
6. Rear brake light switch
7. Brake pedal
8. V-belt case drain plug12 3 4 5
67
8
U1NS63E0.book Page 1 Monday, March 10, 2014 9:05 AM

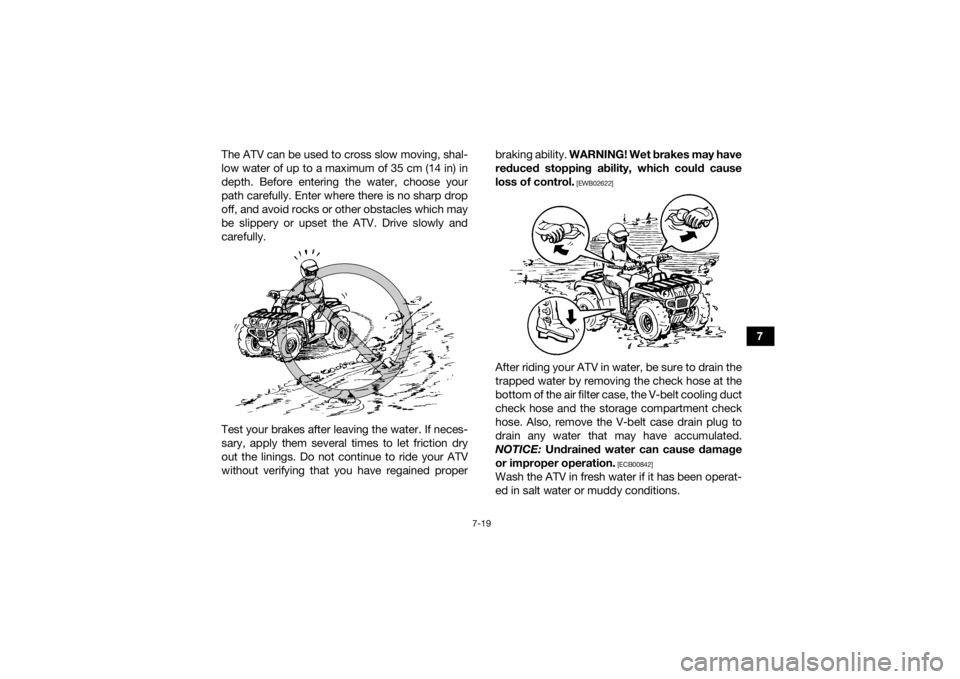

Page 79 of 146
7-19
7
The ATV can be used to cross slow moving, shal-
low water of up to a maximum of 35 cm (14 in) in
depth. Before entering the water, choose your
path carefully. Enter where there is no sharp drop
off, and avoid rocks or other obstacles which may
be slippery or upset the ATV. Drive slowly and
carefully.
Test your brakes after leaving the water. If neces-
sary, apply them several times to let friction dry
out the linings. Do not continue to ride your ATV
without verifying that you have regained proper braking ability.
WARNING! Wet brakes may have
reduced stopping ability, which could cause
loss of control.
[EWB02622]
After riding your ATV in water, be sure to drain the
trapped water by removing the check hose at the
bottom of the air filter case, the V-belt cooling duct
check hose and the storage compartment check
hose. Also, remove the V-belt case drain plug to
drain any water that may have accumulated.
NOTICE: Undrained water can cause damage
or improper operation.
[ECB00842]
Wash the ATV in fresh water if it has been operat-
ed in salt water or muddy conditions.
U1NS63E0.book Page 19 Monday, March 10, 2014 9:05 AM
Page 80 of 146
7-20
7
1. Air filter case check hose
1. V-belt cooling duct check hose (left front side of ATV)
1. Storage compartment check hose
1. V-belt case drain plug
U1NS63E0.book Page 20 Monday, March 10, 2014 9:05 AM
Page 88 of 146
8-5
8
EBU21868General maintenance and lubrication chartTIPFor ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should still be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills. NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev-
er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 Air filter element • Clean and replace if necessary. Every 20–40 hours (more often in wet or
dusty areas)
2 *Front brake • Check operation and correct if necessary.
• Check fluid level and ATV for fluid leakage, and
correct if necessary. √√√√√
• Replace brake pads. Whenever worn to the limit
3 *Rear brake • Check operation and correct if necessary.
• Check brake lever and pedal free play, and adjust
if necessary. √√√√√
• Replace brake shoes. Whenever worn to the limit
U1NS63E0.book Page 5 Monday, March 10, 2014 9:05 AM
Page 90 of 146
8-7
8
14*Steering system • Check operation and repair or replace if dam-
aged.
• Check toe-in and adjust if necessary. √√√√√
15 *Engine mount • Check for cracks or other damage, and replace if
necessary. √√√
16 *Axle boots • Check for cracks or other damage, and replace if
necessary. √√√√√
17 Engine oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √ √√√
18 Engine oil filter car-
tridge
• Replace.
√√√
19 Differential gear oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √√
20 Final gear oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √√
21 *Moving parts and
cables
• Lubricate.
√√√√
22 *Drive select lever
safety system cable • Check operation and adjust or replace if neces-
sary. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev-
er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1NS63E0.book Page 7 Monday, March 10, 2014 9:05 AM
Page 98 of 146
8-15
89. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters the
crankcase.
10. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
11. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.EBU23387Final gear oilThe final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the final gear oil level1. Place the ATV on a level surface.
2. Remove the final gear oil filler bolt and its gas- ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
Recommended oil:
See page 10-1.
Oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)
U1NS63E0.book Page 15 Monday, March 10, 2014 9:05 AM
Page 102 of 146
8-19
84. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
5. Refill with the specified amount of the recom- mended differential gear oil. NOTICE: Be
sure no foreign material enters the differ-
ential gear case.
[ECB00412]
TIP Do not exceed the specified differential gear oil
quantity when filling. Overfilling will cause the oil
to seep out of the breather hose during and af-
ter riding.
The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked from
the oil filler hole.
6. Check the oil filler bolt gasket for damage,
and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
8. Check the differential gear case for oil leak- age. If oil is leaking, check for the cause.EBU23647Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-
ing in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
Tightening torque:Differential gear oil drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Recommended differential gear oil: See page 10-1.
Oil quantity: 0.35 L (0.37 US qt, 0.31 Imp.qt)
Tightening torque:Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
U1NS63E0.book Page 19 Monday, March 10, 2014 9:05 AM
Page 103 of 146
8-20
8
1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-14.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders. 4. Pull the air filter element out of the air filter
case.
1. Air filter case check hose
1. Air filter case cover holder
2. Air filter case cover
U1NS63E0.book Page 20 Monday, March 10, 2014 9:05 AM
Page 104 of 146
8-21
85. Pull off the air filter element lock plate, and
then remove the sponge material from the air
filter element frame. 6. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01942]
7. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
1. Air filter element
1. Air filter element frame
2. Sponge material
3. Air filter element lock plate
