YAMAHA GRIZZLY 450 2009 Owners Manual

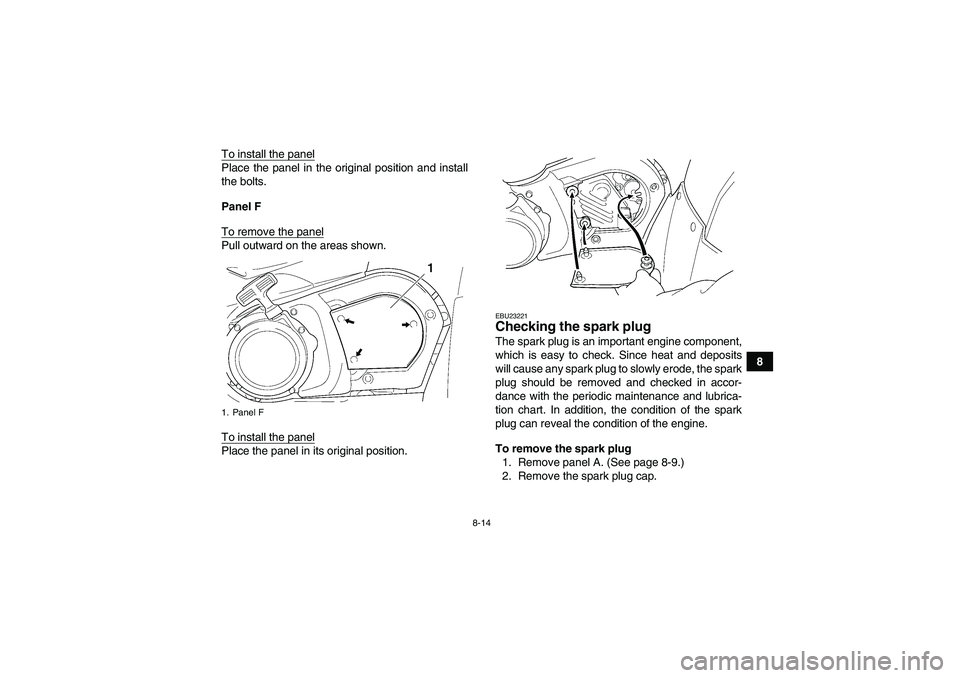

8-14
8 To install the panel
Place the panel in the original position and install
the bolts.
Panel F
To remove the panelPull outward on the areas shown.
To install the panelPlace the panel in its original position.
EBU23221Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove panel A. (See page 8-9.)
2. Remove the spark plug cap.
1. Panel FU37S60E0.book Page 14 Thursday, June 5, 2008 6:51 PM

8-15
83. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U37S60E0.book Page 15 Thursday, June 5, 2008 6:51 PM

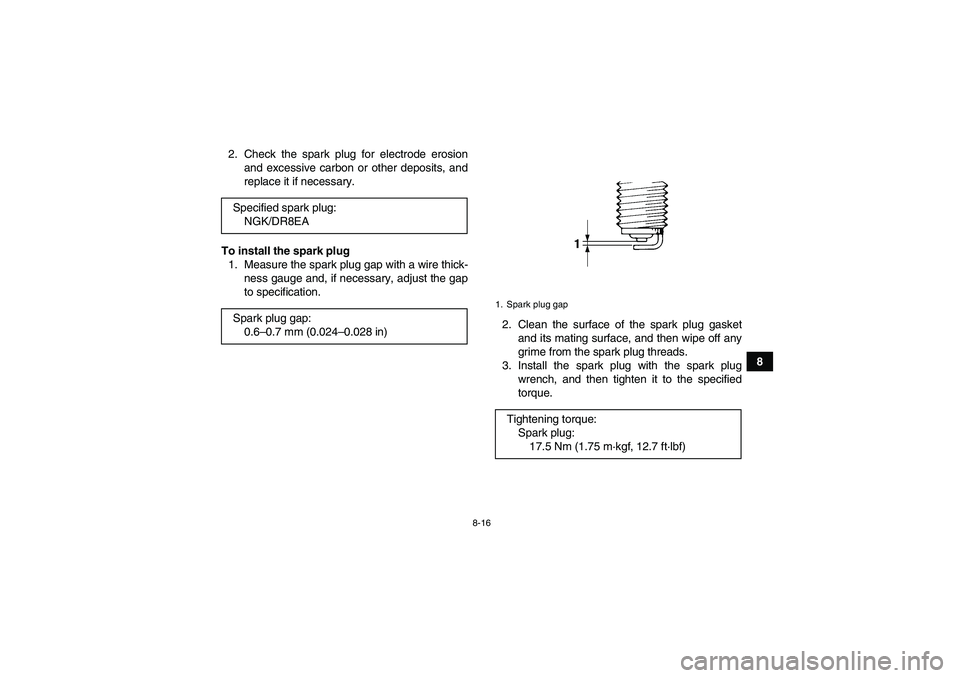

8-16
8 2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
To install the spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
2. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1. Spark plug gapTightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U37S60E0.book Page 16 Thursday, June 5, 2008 6:51 PM

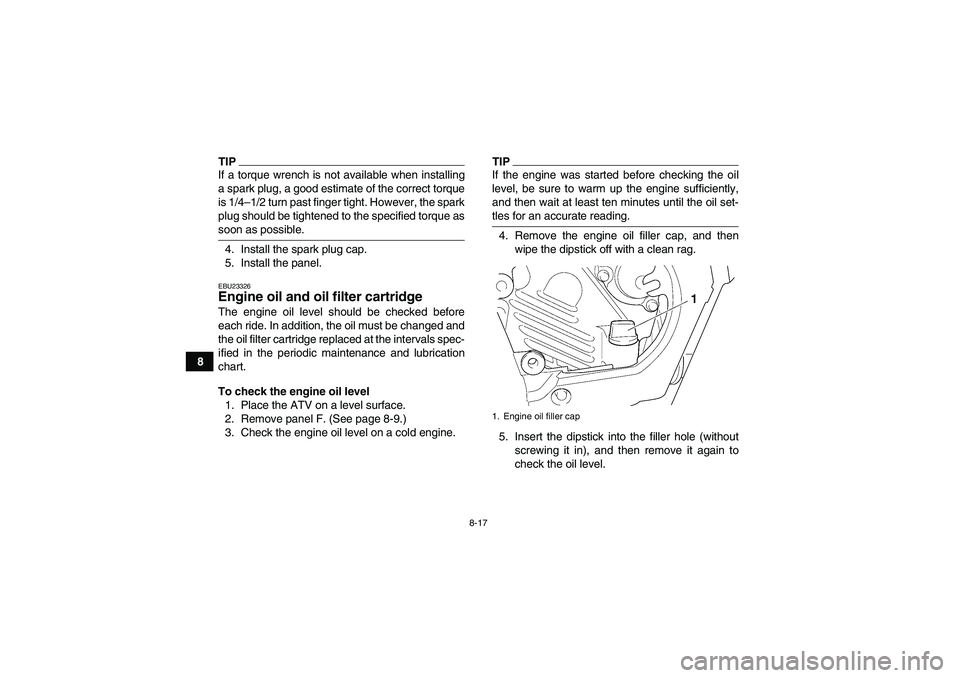

8-17
8
TIPIf a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.
5. Install the panel.EBU23326Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Remove panel F. (See page 8-9.)
3. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-tles for an accurate reading.
4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.
5. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.1. Engine oil filler cap
U37S60E0.book Page 17 Thursday, June 5, 2008 6:51 PM

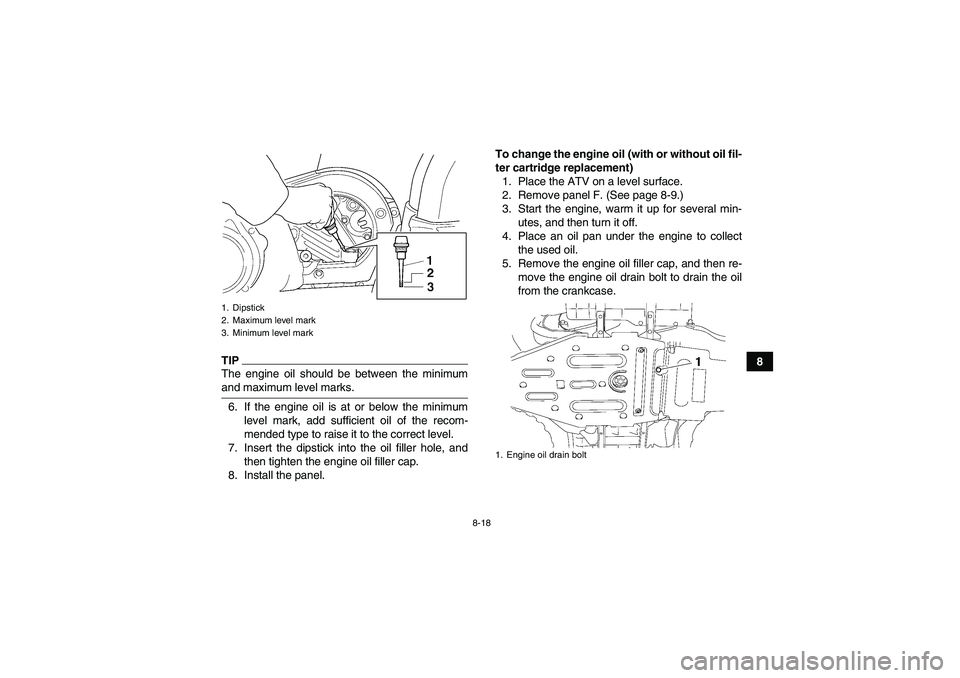

8-18
8
TIPThe engine oil should be between the minimumand maximum level marks.
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
8. Install the panel.To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Place the ATV on a level surface.
2. Remove panel F. (See page 8-9.)
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Place an oil pan under the engine to collect
the used oil.
5. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase.1. Dipstick
2. Maximum level mark
3. Minimum level mark
1. Engine oil drain bolt
U37S60E0.book Page 18 Thursday, June 5, 2008 6:51 PM

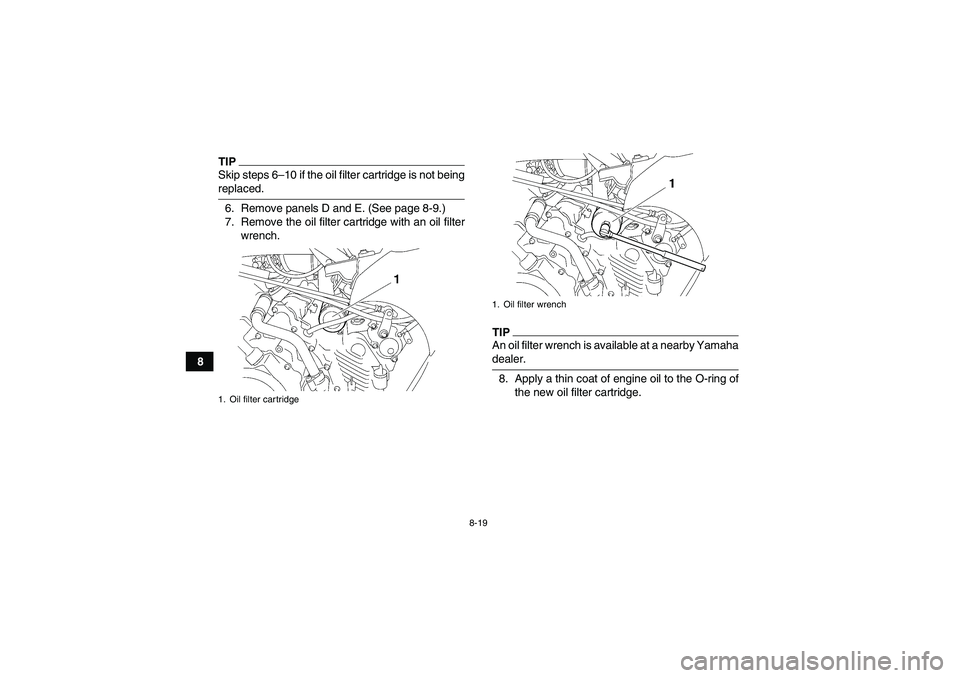

8-19
8
TIPSkip steps 6–10 if the oil filter cartridge is not beingreplaced.
6. Remove panels D and E. (See page 8-9.)
7. Remove the oil filter cartridge with an oil filter
wrench.
TIPAn oil filter wrench is available at a nearby Yamahadealer.
8. Apply a thin coat of engine oil to the O-ring of
the new oil filter cartridge.
1. Oil filter cartridge
1. Oil filter wrench
U37S60E0.book Page 19 Thursday, June 5, 2008 6:51 PM

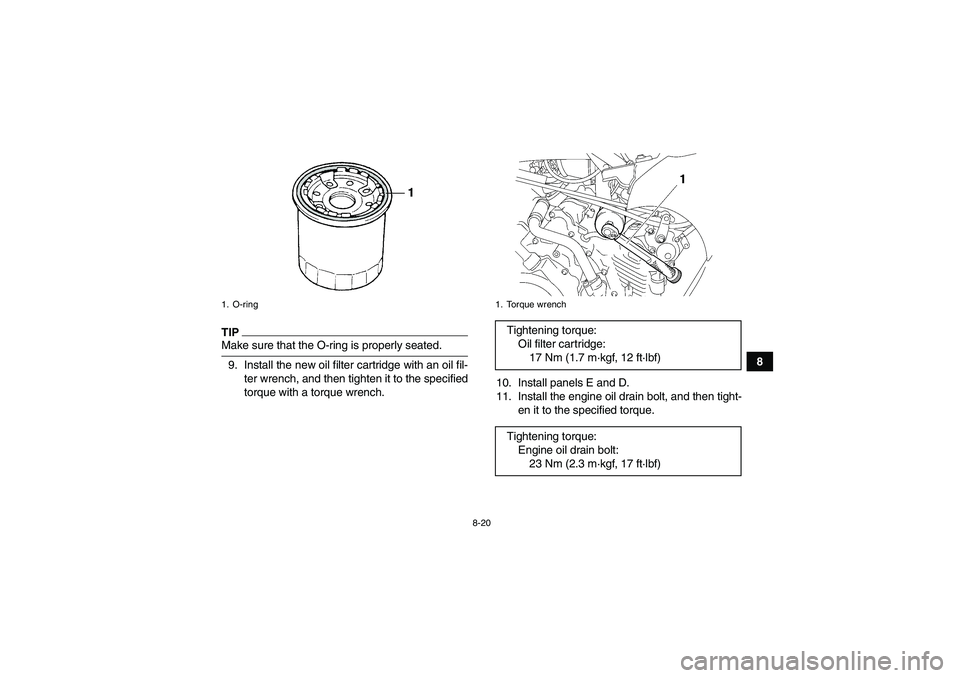

8-20
8
TIPMake sure that the O-ring is properly seated.
9. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.10. Install panels E and D.
11. Install the engine oil drain bolt, and then tight-
en it to the specified torque.1. O-ring
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U37S60E0.book Page 20 Thursday, June 5, 2008 6:51 PM

8-21

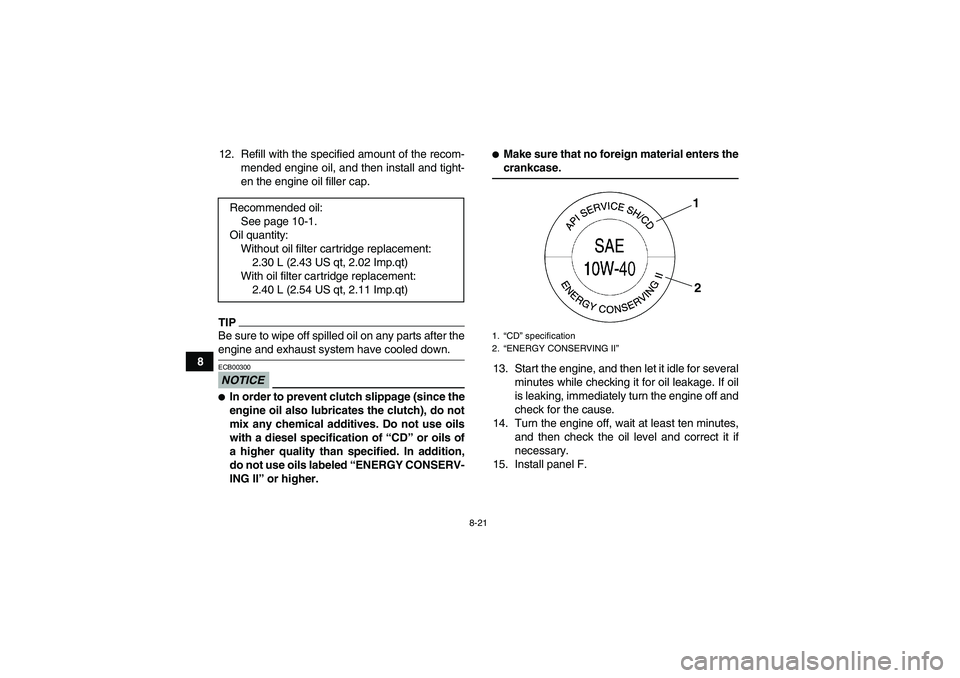

812. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after theengine and exhaust system have cooled down.NOTICEECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.

Make sure that no foreign material enters thecrankcase.
13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
15. Install panel F. Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter cartridge replacement:
2.30 L (2.43 US qt, 2.02 Imp.qt)
With oil filter cartridge replacement:
2.40 L (2.54 US qt, 2.11 Imp.qt)1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U37S60E0.book Page 21 Thursday, June 5, 2008 6:51 PM

8-22
8

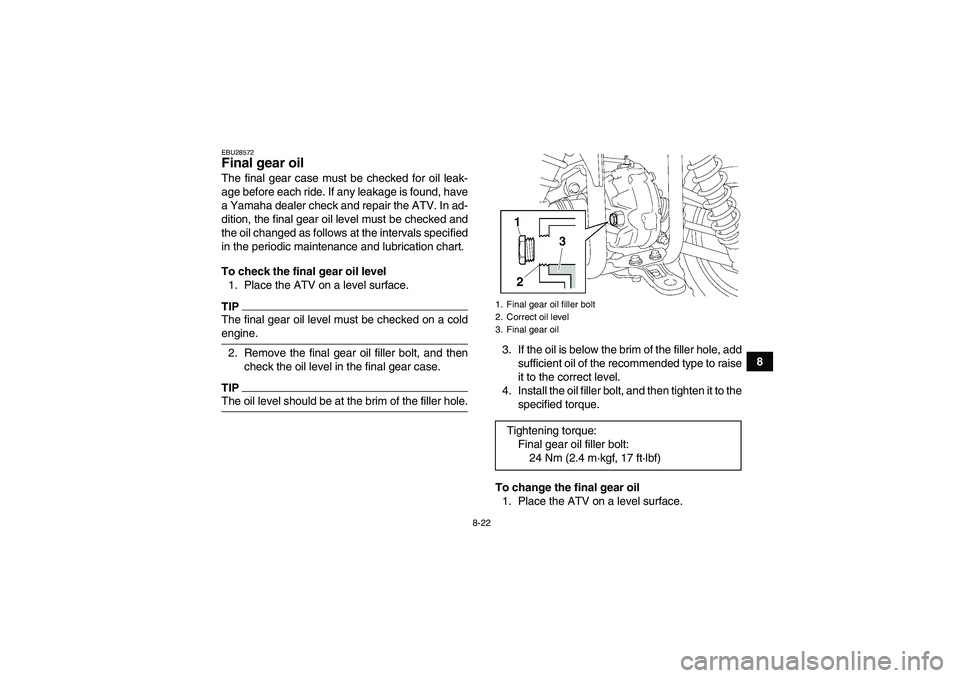

EBU28572Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.TIPThe final gear oil level must be checked on a coldengine.
2. Remove the final gear oil filler bolt, and then
check the oil level in the final gear case.TIPThe oil level should be at the brim of the filler hole.3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque.
To change the final gear oil
1. Place the ATV on a level surface.
1. Final gear oil filler bolt
2. Correct oil level
3. Final gear oilTightening torque:
Final gear oil filler bolt:
24 Nm (2.4 m·kgf, 17 ft·lbf)
U37S60E0.book Page 22 Thursday, June 5, 2008 6:51 PM

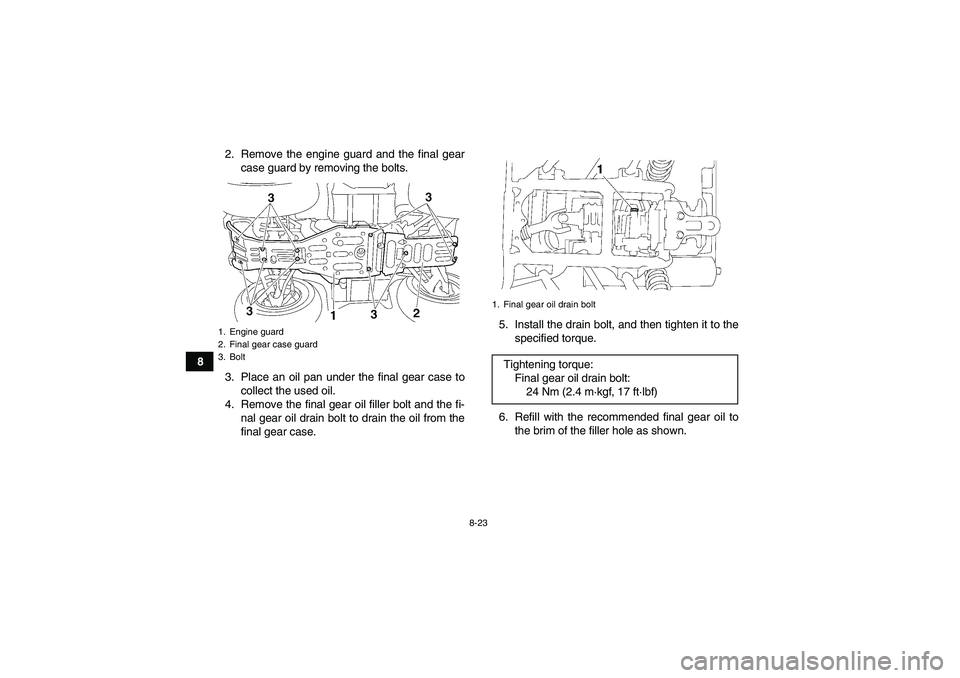

8-23
82. Remove the engine guard and the final gear
case guard by removing the bolts.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt and the fi-
nal gear oil drain bolt to drain the oil from the
final gear case.5. Install the drain bolt, and then tighten it to the
specified torque.
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown.
1. Engine guard
2. Final gear case guard
3. Bolt
1. Final gear oil drain boltTightening torque:
Final gear oil drain bolt:
24 Nm (2.4 m·kgf, 17 ft·lbf)
U37S60E0.book Page 23 Thursday, June 5, 2008 6:51 PM
