8-62

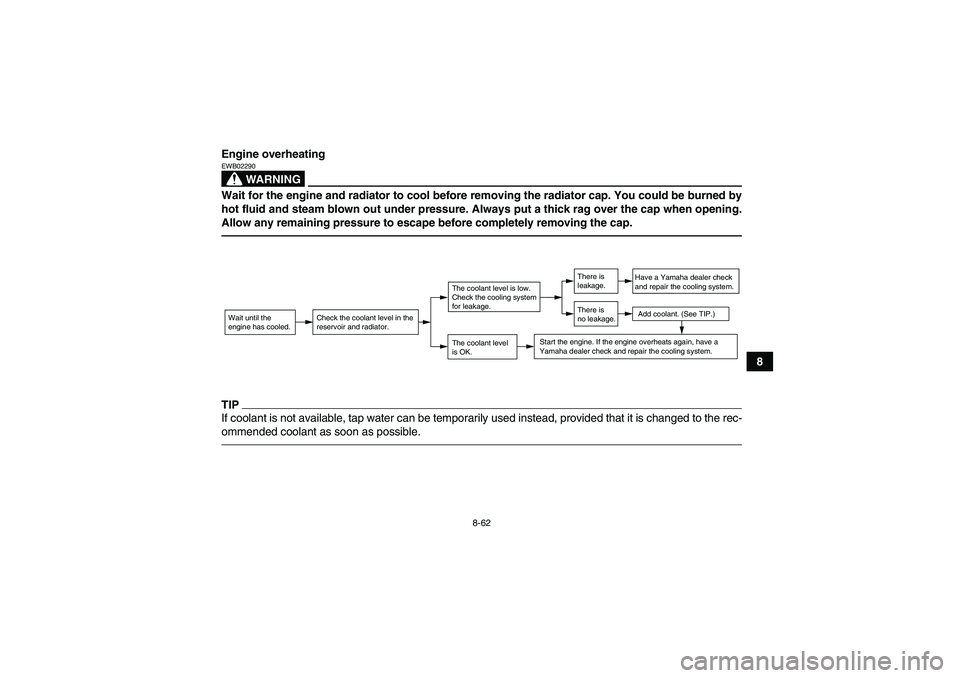

8 Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U1CT60E0.book Page 62 Monday, May 31, 2010 10:05 AM

9-2
9

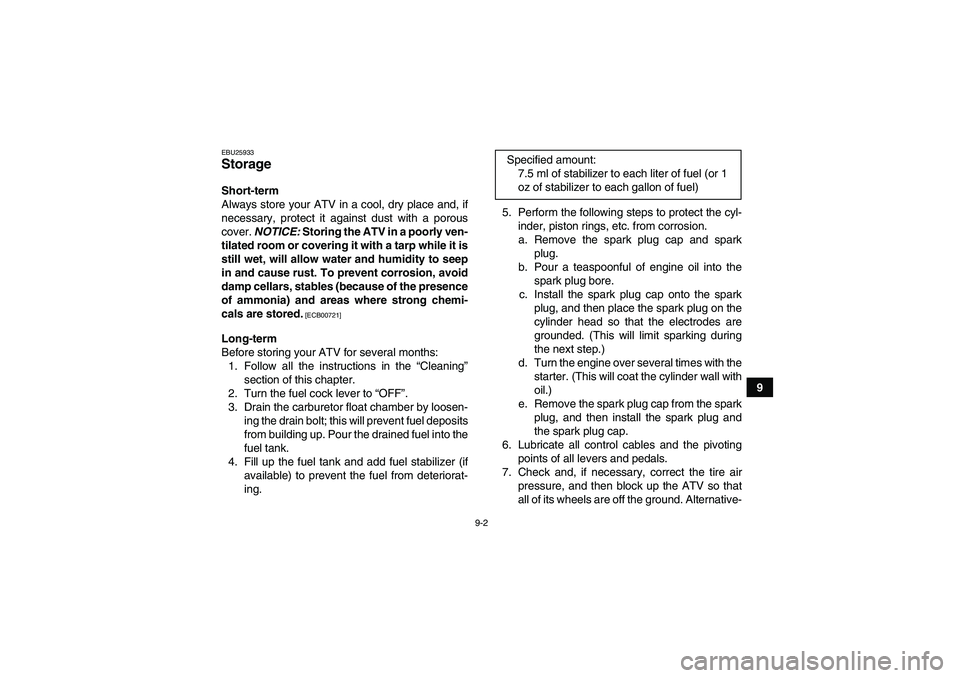

EBU25933Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover. NOTICE: Storing the ATV in a poorly ven-
tilated room or covering it with a tarp while it is
still wet, will allow water and humidity to seep
in and cause rust. To prevent corrosion, avoid
damp cellars, stables (because of the presence
of ammonia) and areas where strong chemi-
cals are stored.
[ECB00721]
Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-
ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore.
c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative- Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1
oz of stabilizer to each gallon of fuel)U1CT60E0.book Page 2 Monday, May 31, 2010 10:05 AM

INDEX
AAccessories and loading ................................................ 6-6
Accessories, auxiliary jack ........................................... 4-23
Air filter element, cleaning ............................................ 8-30
Axle boots .................................................................... 8-45BBattery .......................................................................... 8-51
Brake fluid, changing .................................................... 8-40
Brake fluid level, checking ............................................ 8-40
Brake lever free play, checking the front ...................... 8-41
Brake lever, front .......................................................... 4-13
Brake levers, checking and lubricating ......................... 8-47
Brake light switches ..................................................... 8-46
Brake pads and friction plates, checking ...................... 8-39
Brake pedal and rear brake lever ................................. 4-13
Brake pedal, checking and lubricating ......................... 8-48
Brakes .......................................................................... 8-38
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-47
Carburetor, adjusting .................................................... 8-36
Carrier, front ................................................................. 4-22
Carrier, rear .................................................................. 4-22
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-26
Coolant temperature warning light ................................. 4-3
DDifferential gear oil ................................................ 5-3, 8-24
Drive select lever .......................................................... 4-14
Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ......... 8-38
Drive shaft universal joint, lubricating ........................... 8-49EEngine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-36
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-17
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-7
EPS warning light ........................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-21
Four-wheel-drive/differential gear lock indicator ............ 4-4
Fuel ....................................................................... 4-15, 5-3
Fuel cock ...................................................................... 4-16
Fuel gauge ..................................................................... 4-6
Fuel tank cap ................................................................ 4-14
Fuses, replacing ........................................................... 8-53HHandlebar switches ........................................................ 4-6
Headlight beam, adjusting ............................................ 8-56
Headlight bulb, replacing .............................................. 8-55
High-range indicator light ............................................... 4-2
