3-1
3
EBU17680

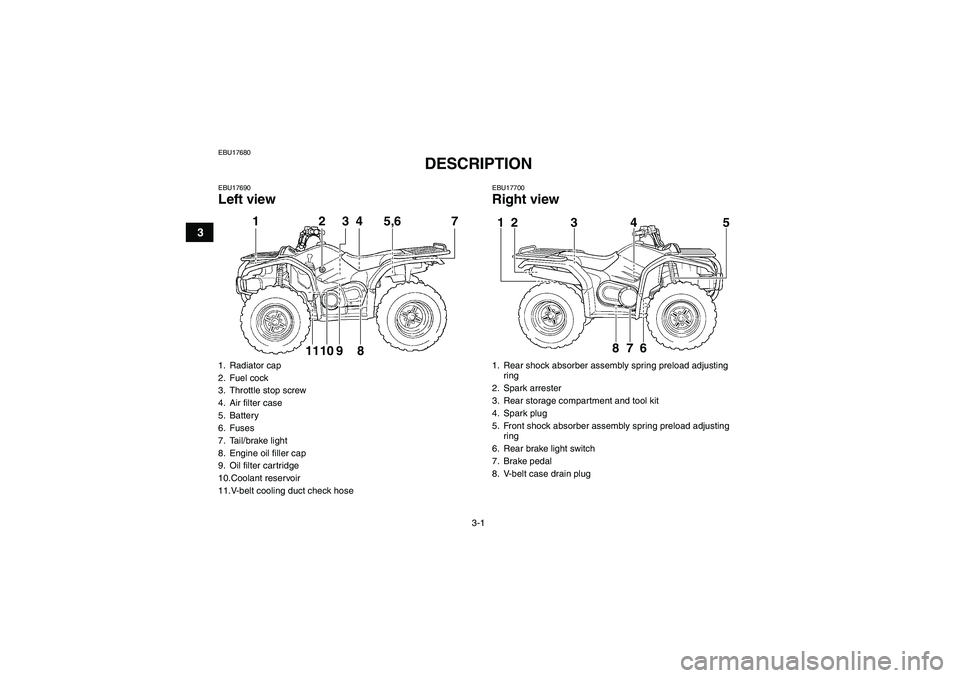

DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Fuel cock
3. Throttle stop screw
4. Air filter case
5. Battery
6. Fuses
7. Tail/brake light
8. Engine oil filler cap
9. Oil filter cartridge
10.Coolant reservoir
11.V-belt cooling duct check hose
1 2 3 4 5,6 7
8 9 10 11
1. Rear shock absorber assembly spring preload adjusting
ring
2. Spark arrester
3. Rear storage compartment and tool kit
4. Spark plug
5. Front shock absorber assembly spring preload adjusting
ring
6. Rear brake light switch
7. Brake pedal
8. V-belt case drain plug1
2
3
4
5
6
7
8
U1CT60E0.book Page 1 Monday, May 31, 2010 10:05 AM

4-16
4

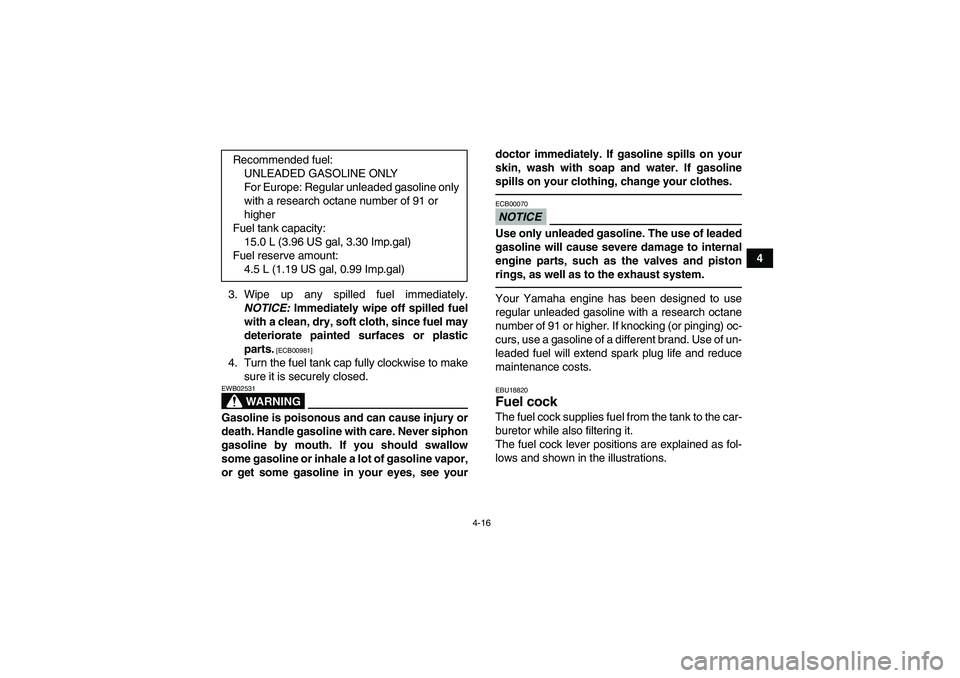

3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00981]
4. Turn the fuel tank cap fully clockwise to make
sure it is securely closed.
WARNING
EWB02531Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor,
or get some gasoline in your eyes, see yourdoctor immediately. If gasoline spills on your
skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of un-
leaded fuel will extend spark plug life and reduce
maintenance costs.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations. Recommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or
higher
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)
U1CT60E0.book Page 16 Monday, May 31, 2010 10:05 AM

10-3
10

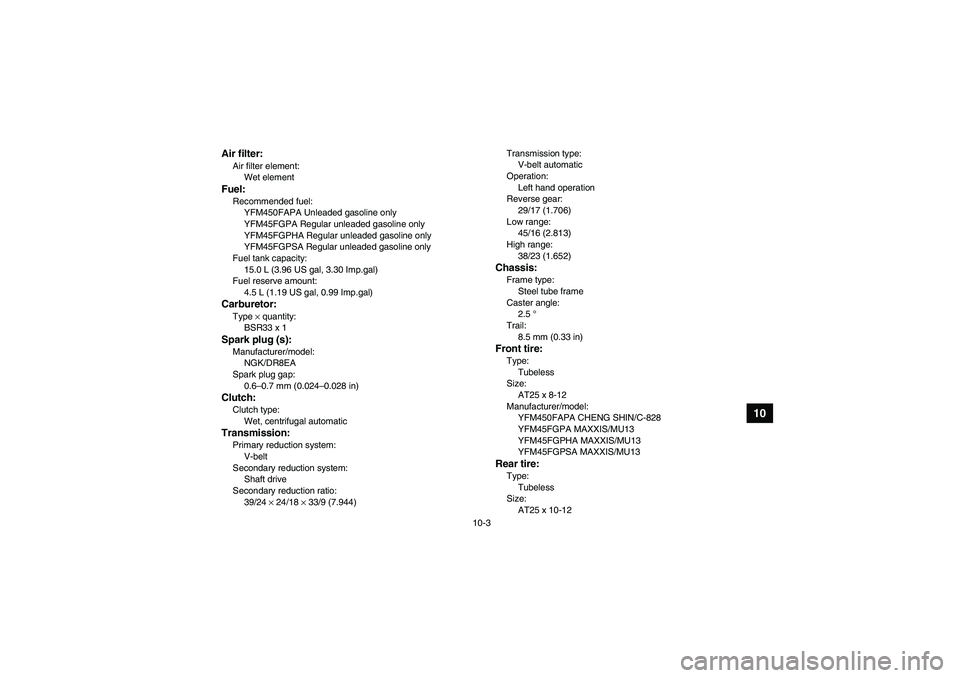

Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM450FAPA Unleaded gasoline only
YFM45FGPA Regular unleaded gasoline only
YFM45FGPHA Regular unleaded gasoline only
YFM45FGPSA Regular unleaded gasoline only
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
39/24 × 24/18 × 33/9 (7.944)Transmission type:
V-belt automatic
Operation:
Left hand operation
Reverse gear:
29/17 (1.706)
Low range:
45/16 (2.813)
High range:
38/23 (1.652)
Chassis:Frame type:
Steel tube frame
Caster angle:
2.5 °
Trail:
8.5 mm (0.33 in)Front tire:Type:
Tubeless
Size:
AT25 x 8-12
Manufacturer/model:
YFM450FAPA CHENG SHIN/C-828
YFM45FGPA MAXXIS/MU13
YFM45FGPHA MAXXIS/MU13
YFM45FGPSA MAXXIS/MU13Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
U1CT60E0.book Page 3 Monday, May 31, 2010 10:05 AM

INDEX
