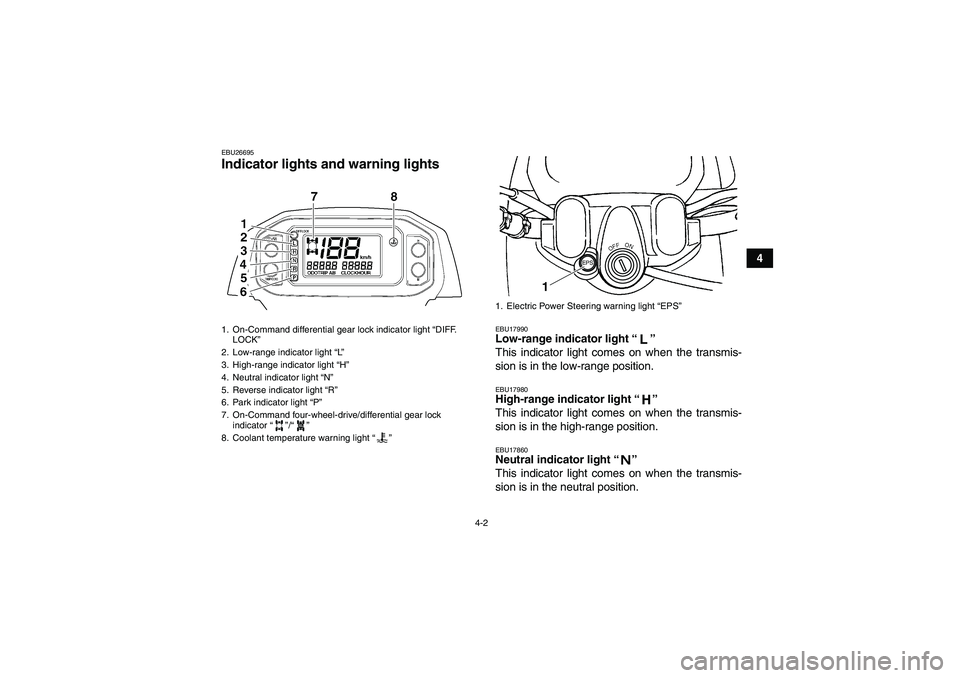

EBU26695Indicator lights and warning lights
EBU17990Low-range indicator light“”
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17980High-range indicator light“”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator“”/“”
8. Coolant temperature warning light“”
1. Electric Power Steering warning light “EPS”
EPS
1
U1CT60E0.book Page 2 Monday, May 31, 2010 10:05 AM

4-3
4

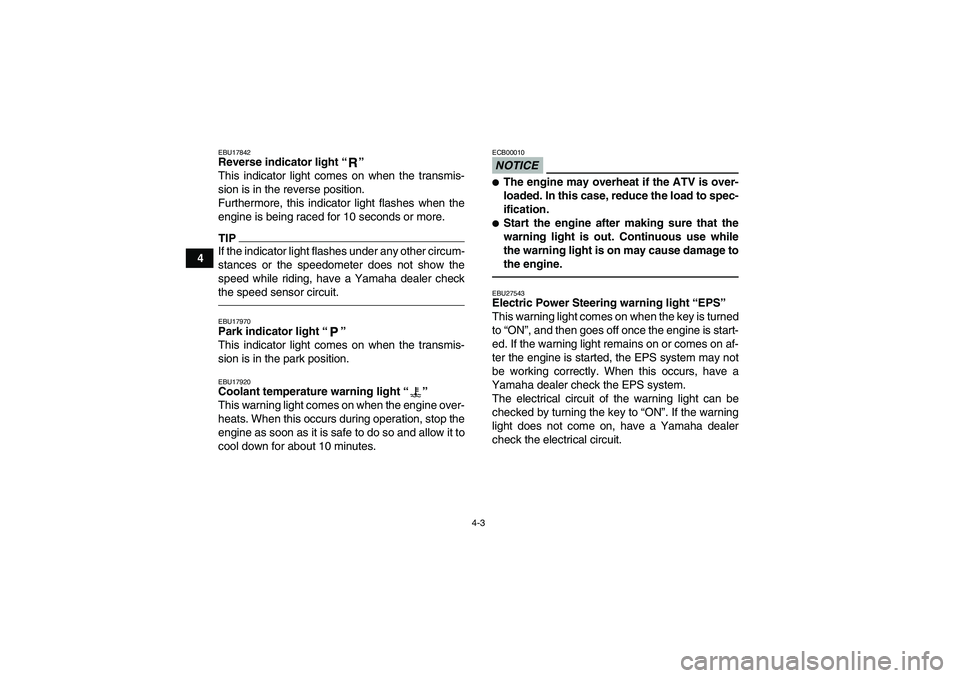

EBU17842Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.
Furthermore, this indicator light flashes when the
engine is being raced for 10 seconds or more.TIPIf the indicator light flashes under any other circum-
stances or the speedometer does not show the
speed while riding, have a Yamaha dealer check
the speed sensor circuit.EBU17970Park indicator light“”
This indicator light comes on when the transmis-
sion is in the park position.EBU17920Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.EBU27543Electric Power Steering warning light “EPS”
This warning light comes on when the key is turned
to “ON”, and then goes off once the engine is start-
ed. If the warning light remains on or comes on af-
ter the engine is started, the EPS system may not
be working correctly. When this occurs, have a
Yamaha dealer check the EPS system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
U1CT60E0.book Page 3 Monday, May 31, 2010 10:05 AM

4-4
4

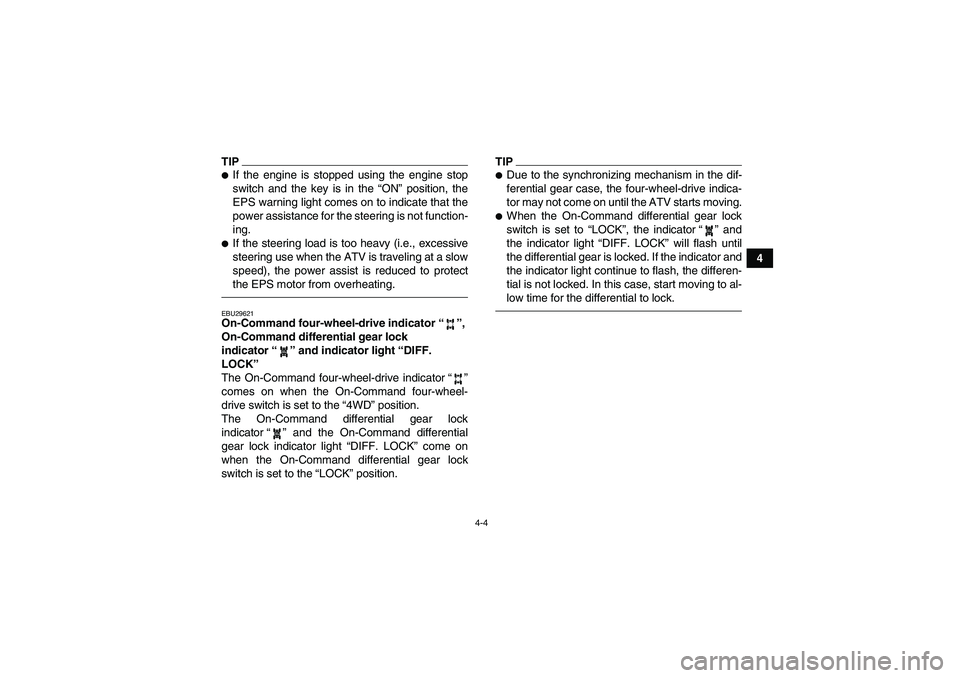

TIP
If the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating.EBU29621On-Command four-wheel-drive indicator“”,
On-Command differential gear lock
indicator“” and indicator light “DIFF.
LOCK”
The On-Command four-wheel-drive indicator“”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
The On-Command differential gear lock
indicator“” and the On-Command differential
gear lock indicator light “DIFF. LOCK” come on
when the On-Command differential gear lock
switch is set to the “LOCK” position.
TIP
Due to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts moving.
When the On-Command differential gear lock
switch is set to “LOCK”, the indicator“” and
the indicator light “DIFF. LOCK” will flash until
the differential gear is locked. If the indicator and
the indicator light continue to flash, the differen-
tial is not locked. In this case, start moving to al-
low time for the differential to lock.
